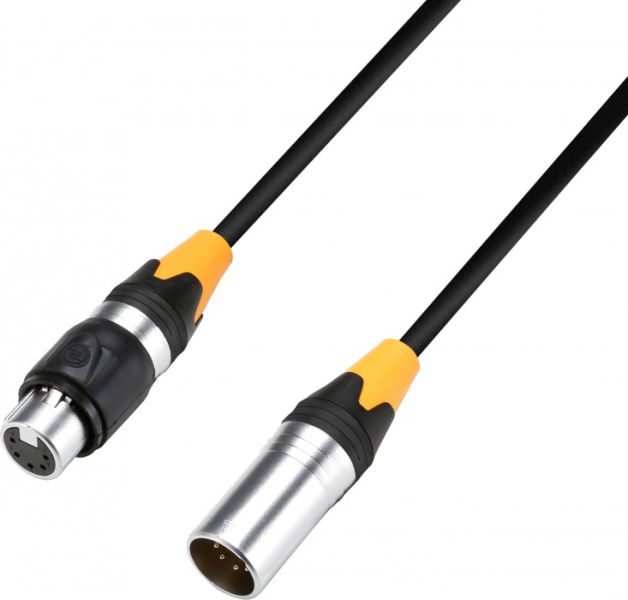

Adam Hall Cables K 4 DGH 2000 IP 65 DMX AES/EBU Cable 5-pole XLR male to
€34.40 *
incl. tax,
plus shipping costs
Availability:
Currently not available.
Expected to be available again in 8 weeks.
Expected to be available again in 8 weeks.
Currently not available
Item number: 500121940
EAN: 4049521232886
MPN: K4DGH2000IP65
Highly flexible AES/EBU & DMX cable Twin OFC conductors Dual shielding for 100% coverage... more
All information about the product:
"Adam Hall Cables K 4 DGH 2000 IP 65 DMX AES/EBU Cable 5-pole XLR male to"
- Highly flexible AES/EBU & DMX cable
- Twin OFC conductors
- Dual shielding for 100% coverage
- Heavy-duty 5-pole connectors with IP65 rating
This high-quality cable assembly uses highly flexible AES/EBU & DMX cable with twin OFC conductors, copper spiral plus AL/PT foil shielding and rugged PVC jacket. It is equipped with heavy-duty, IP65 rated 5-pole male and female XLR connectors that are protected against dust and water ingress.Specifications:
| Product type: | Pre-assembled Cables |
| Type: | DMX & AES/EBU Cable |
| Length: | 20 m |
| Weight: | 0,58 kg |
| Product type: | Plugs and Connectors |
| Type: | XLR Connectors |
| Poles: | 5 |
| Gender: | female |
| Cable diameter: | 3.5 - 8 mm |
| Contacts: | gold plated |
| Connection type: | solder contacts |
| Colour: | silver, black + orange |
| Housing: | die-cast zinc |
| Length: | 73.6 mm |
| Diameter: | 16,8 mm |
| Weight: | 0,02 kg |
| Product type: | Plugs and Connectors |
| Type: | XLR Connectors |
| Poles: | 5 |
| Gender: | male |
| Cable diameter: | 3.5 - 8 mm |
| Contacts: | gold plated |
| Connection type: | solder contacts |
| Colour: | silver, black + orange |
| Housing: | die-cast zinc |
| Length: | 70.8 mm |
| Diameter: | 18.9 mm |
| Weight: | 0,02 kg |
| Product type: | Bulk Cable |
| Type: | DMX & AES/EBU Cable |
| Colour: | black |
| Overall diameter: | 6.5 (+/- 0.2 ) mm |
| Center conductor cross section: | 0.34 mm² |
| Center conductor material: | Copper, OFC |
| Center conductor construction: | 7 x 0.25 mm |
| Number of internal conductors: | 2 |
| Shield material: | copper |
| Shield: | Braided shielding |
| Line resistance: | 53 Ohm(s) |
| Capacitance: | 65 pF/m |
| Jacket material: | PVC |
| Weight: | 0,05 kg |
