Adam Hall Cables 4 STAR H TCON 5D 0150 - Hybrid cable | Mains & DMX

Adam Hall Cables 4 STAR H TCON 5D 0150 - Hybridkabel | Netz & DMX | XLR 5-Pol x X-Series IP65

€79.90 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Near-term available
Delivery time: approx. 1 week

Delivery time: approx. 1 week

Item number: 500131770

EAN: 4049521993923

MPN: K4HTCON5D0150

Hybrid cable | Mains & DMX | XLR 5-pin x X Series IP65 | 1.5 m Hybrid cable for parallel... more

Back to the overview

All information about the product:

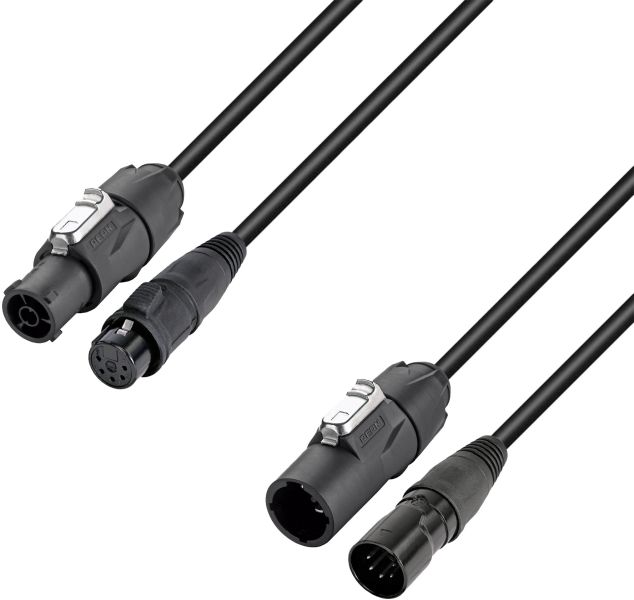

"Adam Hall Cables 4 STAR H TCON 5D 0150 - Hybrid cable | Mains & DMX | XLR 5-pin x X Series IP65"

Hybrid cable | Mains & DMX | XLR 5-pin x X Series IP65 | 1.5 m

Hybrid cable for parallel transmission of DMX signals and power from the 4 STAR SERIES
Original Rean® 5-pin XLR connectors (Rean is a Neutrik® Group brand)
Rean® X Series mains connector (compatible with Neutrik® TRUE1) – pluggable under load, standard-compliant, IP65-certified
Inner conductor cross-sections: 2 × 0.22 mm² (AWG24) for DMX and 3 × 1.5 mm² (AWG16) for power
Developed by Adam Hall Cables® Crew in Germany

The 4 STAR H TCON 5D combines power supply and DMX control in a single cable – ideal for applications where space and efficiency count.

Equipped with original Rean® 5-pin XLR connectors for signal transmission and robust Rean® X Series power connectors (compatible with Neutrik® TRUE1), the cable is pluggable under load, standard-compliant and IP65-certified – suitable for both indoor and outdoor use. The separate conductor cross-sections ensure stable and interference-free transmission: 2 × 0.22 mm² for DMX and 3 × 1.5 mm² for power.

Developed by Adam Hall Cables® Crew in Germany.

Technical data:General

Cable length:	1.5 m
Split end length:	40 cm
Cable jacket:	PVC (Polyvinyl chloride)
Cable diameter:	15 mm
Cable colour:	Black

Plugs

Connector type plug 1:	XLR 5-pole female
Model name plug 1:	Rean RC5F-BAG
Contact material plug 1:	Silver plated
Connector type plug 2:	XLR 5-pole male
Model name plug 2:	Rean RC5M-BAG
Contact material plug 2:	Silver plated

Line

Conductor material:	OFC (Oxygen-free copper)
Conductor cross-section:	2 x 0,22 mm²
AWG:	24
Wave impedance:	110 Ω
Shielding:	Spiral copper shielding
Cable jacket:	PVC (Polyvinyl chloride)
Cable diameter:	5 mm

Mains plug

Plug type connector 1:	Mains plug device outdoor female & TRUE1®
Model name connector 1:	Rean RCAC3F-X-000
Plug type connector 2:	Mains plug device outdoor male & TRUE1®
Model name connector 2:	Rean RCAC3M-X-000

Mains line

Conductor material:	OFC (Oxygen-free copper)
Conductor cross-section:	3 x 1,5 mm²
AWG:	16
Cable jacket:	PVC (Polyvinyl chloride)
Cable diameter:	9 mm
