Adam Hall Cables 4 STAR H TCON 5D 0300 - Hybrid cable | Mains & DMX | XLR 5-pin x X Series IP65 |
€71.90 *
Availability:
Near-term available
Delivery time: approx. 1 week
Delivery time: approx. 1 week
Delivery time: approx. 1 week
Item number: 500131775
EAN: 4049521993930
MPN: K4HTCON5D0300
Hybrid cable | Mains & DMX | XLR 5-pin x X Series IP65 | 3 m Hybrid cable for parallel... more
All information about the product:
"Adam Hall Cables 4 STAR H TCON 5D 0300 - Hybrid cable | Mains & DMX | XLR 5-pin x X Series IP65 |"

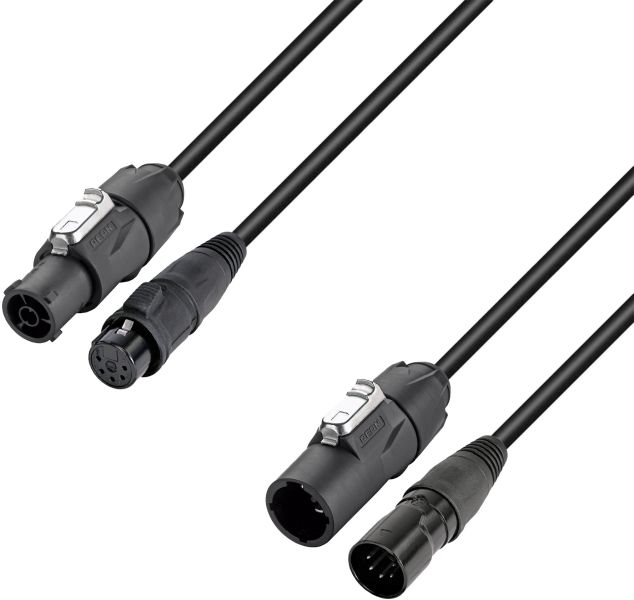

Hybrid cable | Mains & DMX | XLR 5-pin x X Series IP65 | 3 m
Plugs
Line
Mains plug
Mains line
- Hybrid cable for parallel transmission of DMX signals and power from the 4 STAR SERIES
- Original Rean® 5-pin XLR connectors (Rean is a Neutrik® Group brand)
- Rean® X Series mains connector (compatible with Neutrik® TRUE1) – pluggable under load, standard-compliant, IP65-certified
- Inner conductor cross-sections: 2 × 0.22 mm² (AWG24) for DMX and 3 × 1.5 mm² (AWG16) for power
- Developed by Adam Hall Cables® Crew in Germany
The 4 STAR H TCON 5D combines power supply and DMX control in a single cable – ideal for applications where space and efficiency count.
Equipped with original Rean® 5-pin XLR connectors for signal transmission and robust Rean® X Series power connectors (compatible with Neutrik® TRUE1), the cable is pluggable under load, standard-compliant and IP65-certified – suitable for both indoor and outdoor use. The separate conductor cross-sections ensure stable and interference-free transmission: 2 × 0.22 mm² for DMX and 3 × 1.5 mm² for power.
Developed by Adam Hall Cables® Crew in Germany.
Technical data:General| Cable length: | 3 m |
| Split end length: | 40 cm |
| Cable jacket: | PVC (Polyvinyl chloride) |
| Cable diameter: | 15 mm |
| Cable colour: | Black |
| Connector type plug 1: | XLR 5-pole female |
| Model name plug 1: | Rean RC5F-BAG |
| Contact material plug 1: | Silver plated |
| Connector type plug 2: | XLR 5-pole male |
| Model name plug 2: | Rean RC5M-BAG |
| Contact material plug 2: | Silver plated |
| Conductor material: | OFC (Oxygen-free copper) |
| Conductor cross-section: | 2 x 0,22 mm² |
| AWG: | 24 |
| Wave impedance: | 110 Ω |
| Shielding: | Spiral copper shielding |
| Cable jacket: | PVC (Polyvinyl chloride) |
| Cable diameter: | 5 mm |
| Plug type connector 1: | Mains plug device outdoor female & TRUE1® |
| Model name connector 1: | Rean RCAC3F-X-000 |
| Plug type connector 2: | Mains plug device outdoor male & TRUE1® |
| Model name connector 2: | Rean RCAC3M-X-000 |
| Conductor material: | OFC (Oxygen-free copper) |
| Conductor cross-section: | 3 x 1,5 mm² |
| AWG: | 16 |
| Cable jacket: | PVC (Polyvinyl chloride) |
| Cable diameter: | 9 mm |
