Defender COMPACT BASE - Base for 85100 Cable Protector 5-channel
€67.35 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 500112970
Base for 85100 Cable Protector 5-channel Fire resistance class B2 (DIN 4102), DEKRA-certified... more
All information about the product:
"Defender COMPACT BASE - Base for 85100 Cable Protector 5-channel"

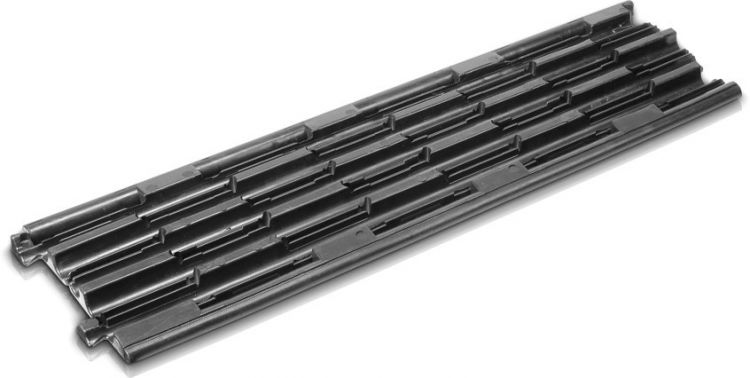

Base for 85100 Cable Protector 5-channelDefender® Compact with Base
- Fire resistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
- resistant to oil, acids, solvents, and petrol
- Dimensions 80 x 43 x 4 cm
- reliable protection for cables and personnel for indoor and outdoor use
- suitable for higher loads such as forklifts and lifting trucks
- channels with base: 5 channels 22 x 21 cm
- weight with base: 7 kg
- not suitable for vehicular traffic

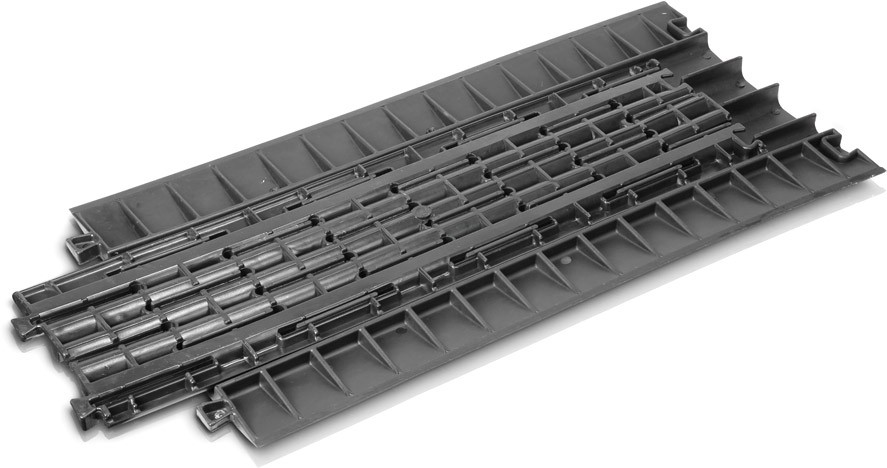

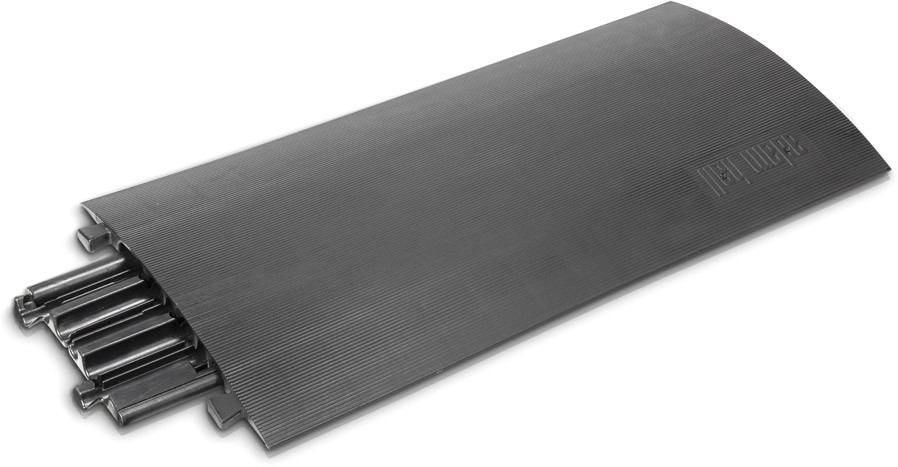

Attached to the optional 5-channel base the Defender® COMPACT drop-over cable protector transforms into a heavy-duty guard with high load capacity to support trucks, forklifts and other vehicles. The ribbed surface provides excellent traction while integrated connectors on the base and drop-over facilitate lining up to form a rigid continuous protection system. The range of applications includes construction sites, carnivals, fairs, trade shows, exhibitions, warehouses, shopping malls and music events.
Technical data:Product type: | Cable Protector Accessories |
Type: | 5-channel |
Type: | Bases |
Length: | 804 mm |
Height: | 37 mm |
Width: | 241 mm |
Channels: | 5 |
Width channel 1: | 22 mm |
Height channel 1: | 21 mm |
Width channel 2: | 22 mm |
Height channel 2: | 21 mm |
Width channel 3: | 22 mm |
Height channel 3: | 21 mm |
Width channel 4: | 22 mm |
Height channel 4: | 21 mm |
Width channel 5: | 22 mm |
Height channel 5: | 21 mm |
Material: | Polyurethane |
Max load: | Fork lift, lifting truck |
Chemical resistance: | Acid-resistant |
Chemical resistance: | Oil-resistant |
Chemical resistance: | Petrol-resistant |
Weight: | 1,9 kg |
Special feature: | DEKRA-certified |
