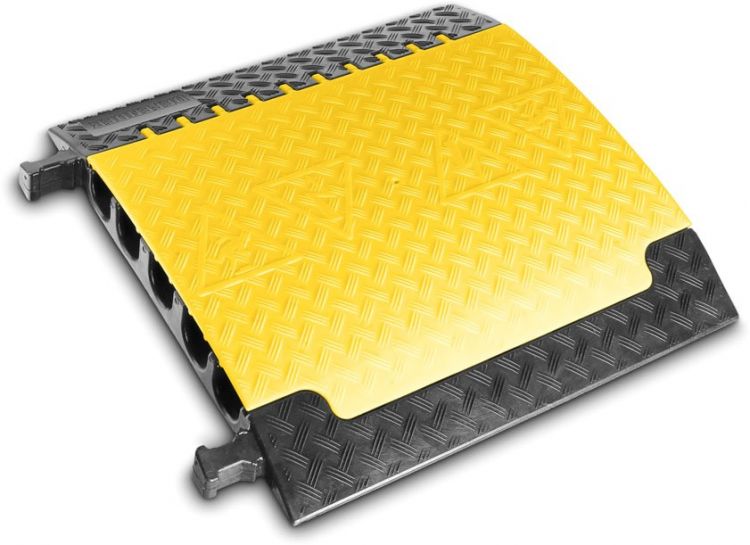

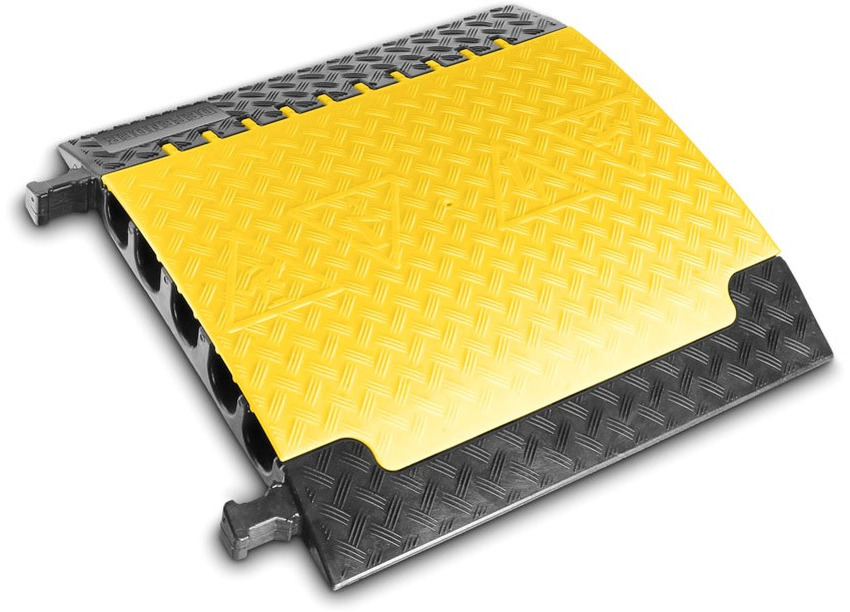

Defender XXL LUX - Cable Protector 5-channel LUX
- Heavy-duty cable protector made of black, recyclable polyurethane with built-in carrying handles for demanding applications

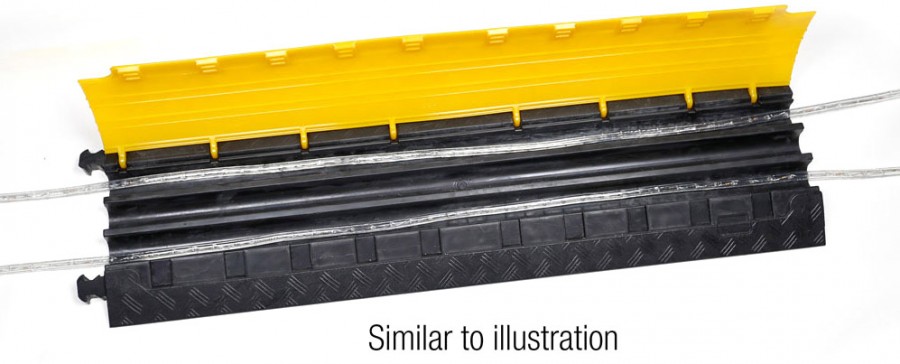

- Highly transparent yellow-tinted lid for use in the dark with light tubes
- Non-slip, yellow polyurethane lid with high warning effect and secure closure
- Patented, self-cleaning lid hinge

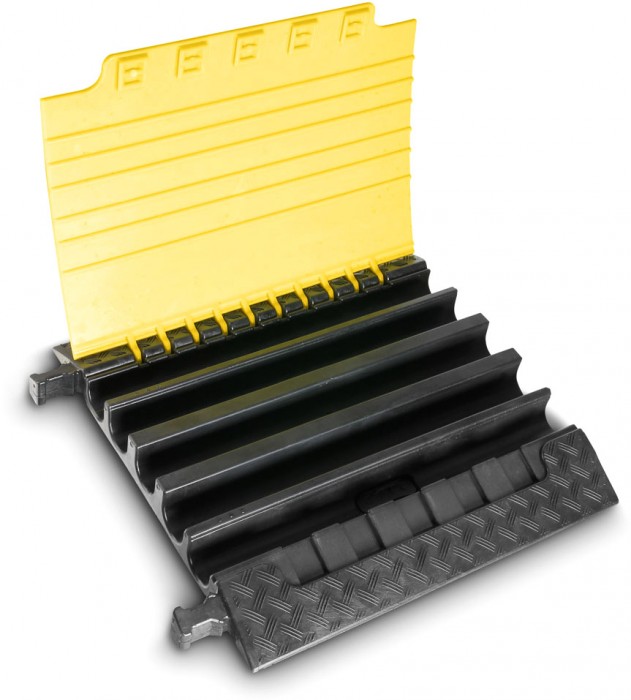

- 5 channels: 1 channel 60 x 63 mm, 2 channels each 61 x 59 mm and 62 x 65 mm
- Three channels suitable for C-hose couplings
- Load bearing capacity approx. 5 t / 20 x 20 cm
- Fire resistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
- Resistant to oil, acid, petrol and short-term contact with solvents
- Dimensions 70 x 69.6 x 8.7 cm; Weight 21.4 kg
- Reliable protection for cables, hoses, and personnel for indoor and outdoor use
- End ramps for secure cable and hose insertion and removal as accessories
The ultimate solution for protecting your cables and for preventing people from tripping. The innovative cable crossovers from the Defender LUX Series have highly transparent, yellow-tinted lids, where LED light tubes can be inserted parallel to cables and other pipes. Defender LUX cable crossovers have been developed in collaboration with event organisers and operators of large halls and festival venues according to the latest state-of-the-art technology and also ensure the highest possible level of safety and visibility in the dark, both indoors and outdoors. For more information, please refer to our price list for Defender LUX cable crossovers, or contact your Defender representative directly.
Cable Crossover 5 ChannelsDefender® XXL Heavy-Duty crossovers have been developed for extremely high loads and offer 5 large cable/hose channels, three of them for fire-C-hoses (only up to 62 mm diameter - no couplings) and power cables. Integrated connector plugs enable a quick, easy connection of individual elements to build a stable cable crossover line. The separately available end ramps ensure safe insertion and removal of cables. With its capacity of 5 tonnes on an area of 20 x 20 cm, Defender XXL cable crossovers are the ideal solution for heavy vehicle traffic, construction sites, warehouses and trade shows as well as Carnival and music events. Integrated handles for optimum handling. Integrated handles for optimum handling.

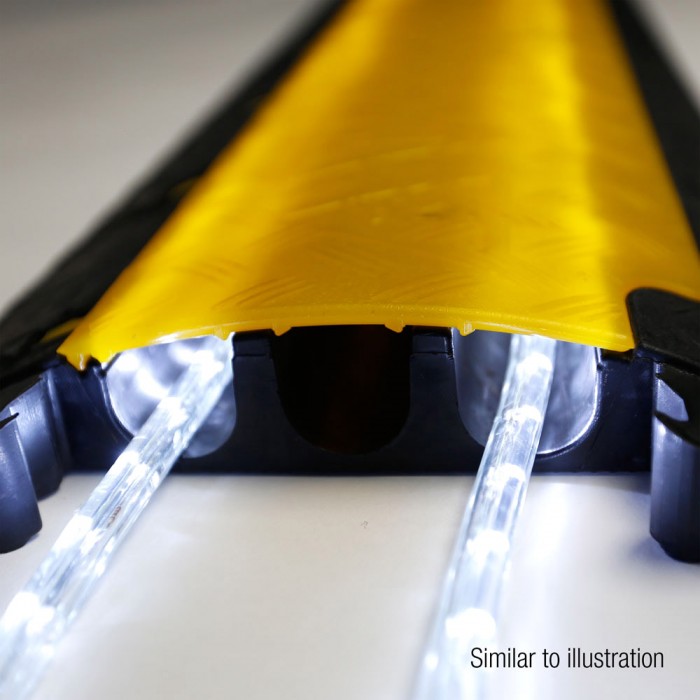

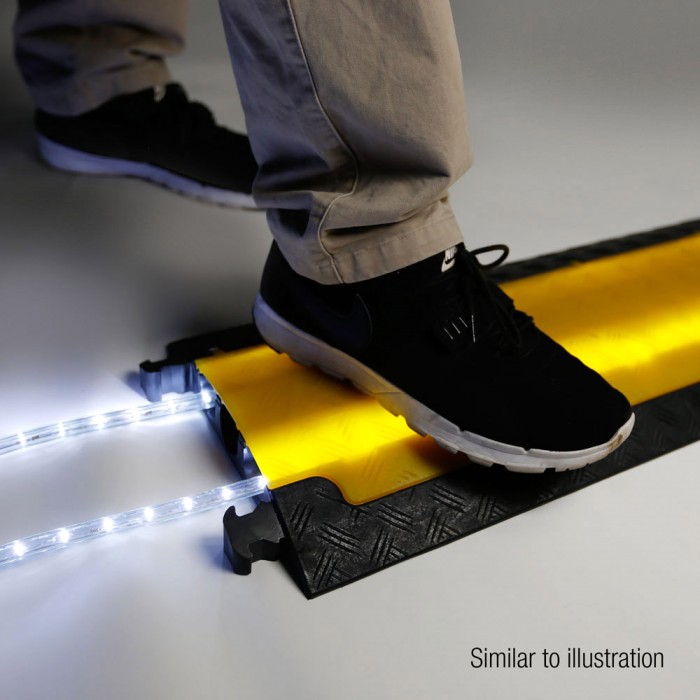

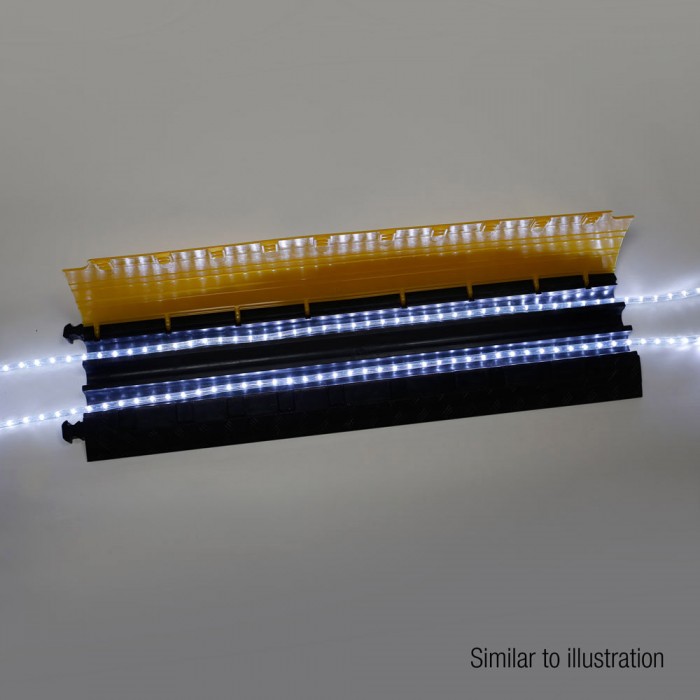

Defender LUX cable crossovers can be used with commercially available light tubes. Light tubes with a so-called neon effect are especially recommended since the individual LEDs are less visible and this provides for particularly homogeneous lighting. For outdoor use, please mind the appropriate IP classification of the light tube. The use of LED strips and other unidirectional light-emitting products or fairy lights is not recommended.

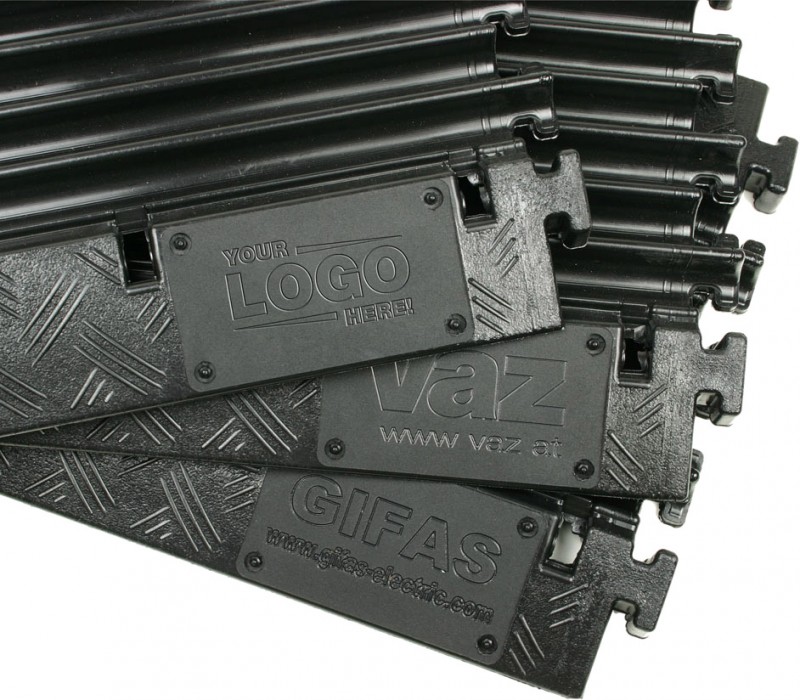

Label your cable crossovers! Customise the Defender cable crossovers with your company logo for orders ex 30 pieces for each product. You will find the format requirements in the download pool above the text. Feel free to contact us for more information.
Technical data:| Product type: | Cable Protectors |
| Type: | 5 Channels |
| Length: | 700 mm |
| Height: | 87 mm |
| Width: | 696 mm |
| Channels: | 5 |
| Width channel 1: | 61 mm |
| Height channel 1: | 59 mm |
| Width channel 2: | 62 mm |
| Height channel 2: | 65 mm |
| Width channel 3: | 60 mm |
| Height channel 3: | 63 mm |
| Width channel 4: | 62 mm |
| Height channel 4: | 65 mm |
| Width channel 5: | 61 mm |
| Height channel 5: | 59 mm |
| Material: | Polyurethane |
| Max load: | approx. 5t on a surface area of 20 x 20 cm |
| Chemical resistance: | Acid-resistant |
| Chemical resistance: | Oil-resistant |
| Chemical resistance: | Petrol-resistant |
| Chemical resistance: | Short-term contact with solvents |
| Fire protection class: | B2 |
| Temperature range: | -30°C to 60°C °C |
| Weight: | 20,9 kg |
| Special feature: | DEKRA-certified |
