Defender MIDI 5 2D SET BLU - Midi 5 2D set blue module system for wheelchair ramp and barrier-free

€656.31 *
incl. tax, plus forwarding agency costs
Availability:
Near-term available
Delivery time: approx. 1 week
Delivery time: approx. 1 week

Bulky goods

Please choose a variant.
Item number: 500126580
EAN: 4049521606021
MPN: 869300SETBLU
Midi 5 2D set blue module system for wheelchair ramp and barrier-free transition Set consisting... more
All information about the product:
"Defender MIDI 5 2D SET BLU - Midi 5 2D set blue module system for wheelchair ramp and barrier-free"

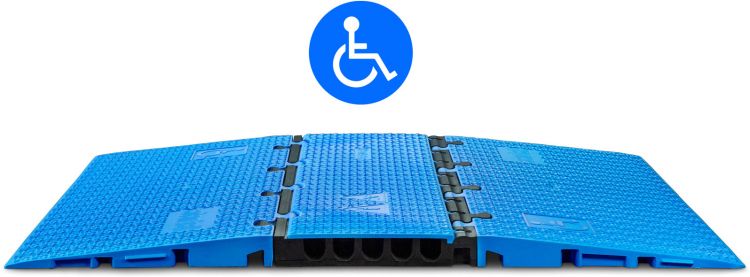

Midi 5 2D set blue module system for wheelchair ramp and barrier-free transition
Set consisting of 2 ramps and a middle section
  • Heavy-duty all-round cable bridge with 3D laser grip anti-slip surface made of blue recycled polyurethane and patented self-cleaning lid hinge
  • Simple, multidirectional modular structure with unlimited expandability in width and length
  • Fully compatible with Defender MIDI cable protectors
  • Five 34 × 36 cm channels
  • Load capacity: approx. 5 t / 20 × 20 cm
  • Made of extremely robust and break-proof TPU
  • Flame resistant according to DIN EN 13501-1 (pending)
  • TÜV SÜD certified
  • Resistant to oil, acid, petrol and short-term contact with solvents
  • Made in Germany
Blue Defender 2D M Set, modular system, wheelchair friendly.

The blue modular Defender 2D M cable protector was developed based on our widely popular modular cable protector Defender MIDI to ensure the best barrier-free conditions. It consists of a blue middle section that is compatible with the MIDI and two flat blue ramps that can be combined and extended as required, both in length and width. Plus, it's also extremely easy to handle.

Defender MIDI 5 2D Set with a blue cover 'Barrier-free accessibility' has become a topic of mounting concern for both public authorities and event organisers over the past few years. Conventional cable protector systems often mean having to make a compromise between accessibility and passability. But this is not the case with the new Blue Defender 2D M: each middle section can be equipped with two 6° inclined ramps that can be driven over completely without any problems. The flat incline makes it easy for wheelchair users to roll over the protectors with no trouble at all. They're also so stable that even forklifts and lorries can drive over them. Easy access and safety to areas where five channels are typically not enough, for example, near power generators or FOH areas, are thus also guaranteed. Sound, lighting and power cables can be laid out individually, effortlessly and safely. The middle sections are designed to be symmetrical all the way around to facilitate assembly so that you never have to look for the right attachment piece ever again. As such, no detailed assembly diagrams are required. The connections have been designed to have enough space for easy installation.

Technical data:
Product type:Cable Protectors
Product type:Cable Protectors
Product type:Cable Protectors
Type:Ramp Module
Type:Set
Type:5 Channels
Length:1000 mm
Material:Polyurethane
Weight:27,2 kg
Length:1000 mm
Height:54 mm
Width:325 mm
Height:54 mm
Width:430 mm
Channels:5
Width channel 1:34.5 mm
Color:Blue
Max load:Approx. 5 t on a surface area of 20 x 20 cm
Height channel 1:38.6 mm
Width channel 2:34.5 mm
Chemical resistance:Oil-resistant
Chemical resistance:Petrol-resistant
Chemical resistance:Short-term contact with solvents
Hardness range:88 Shore ± 4 A Shore
Height channel 2:38.6 mm
Width channel 3:34.5 mm
Height channel 3:38.6 mm
Temperature range:-30 to + 60 °C
Fire protection class:B-s1 (flame resistant) according to DIN EN 13501-1 (pending)
Width channel 4:34.5 mm
Height channel 4:38.6 mm
Special feature:2D cable bridge (modular in length and width)
Special feature:TÜV SÜD certified
Weight:8,5 kg
Width channel 5:34.5 mm
Height channel 5:38.6 mm
Material:Polyurethane
Max load:Approx. 5 t on a surface area of 20 x 20 cm
Chemical resistance:Oil-resistant
Chemical resistance:Petrol-resistant
Chemical resistance:Short-term contact with solvents
Hardness range:88 Shore ± 4 A Shore
Fire protection class:Class E in accordance with DIN EN 13501-1 (B-s1 pending)
Temperature range:- 30 to 60 °C
Weight:10,2 kg
Special feature:2D cable bridge (modular in length and width)
