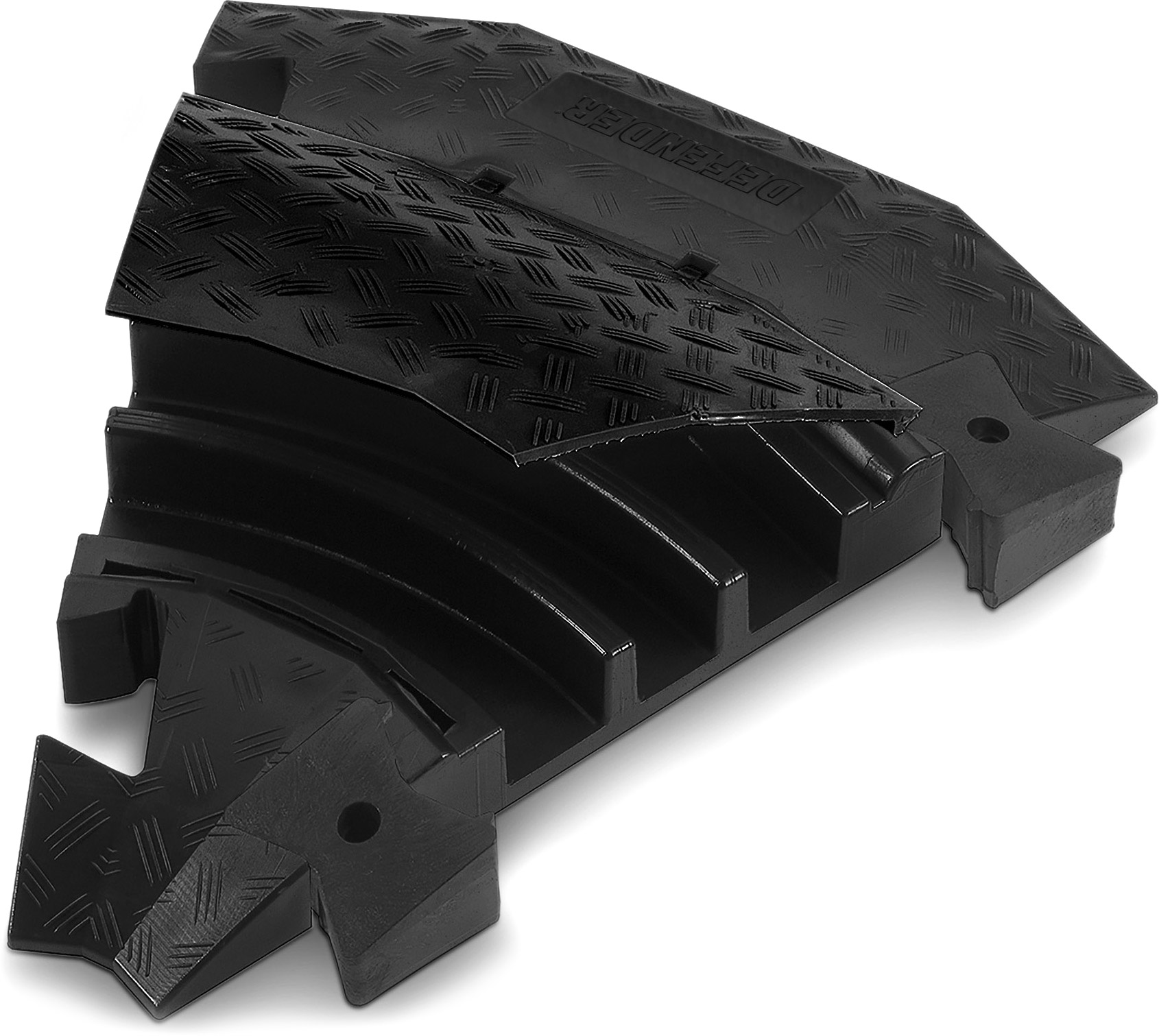

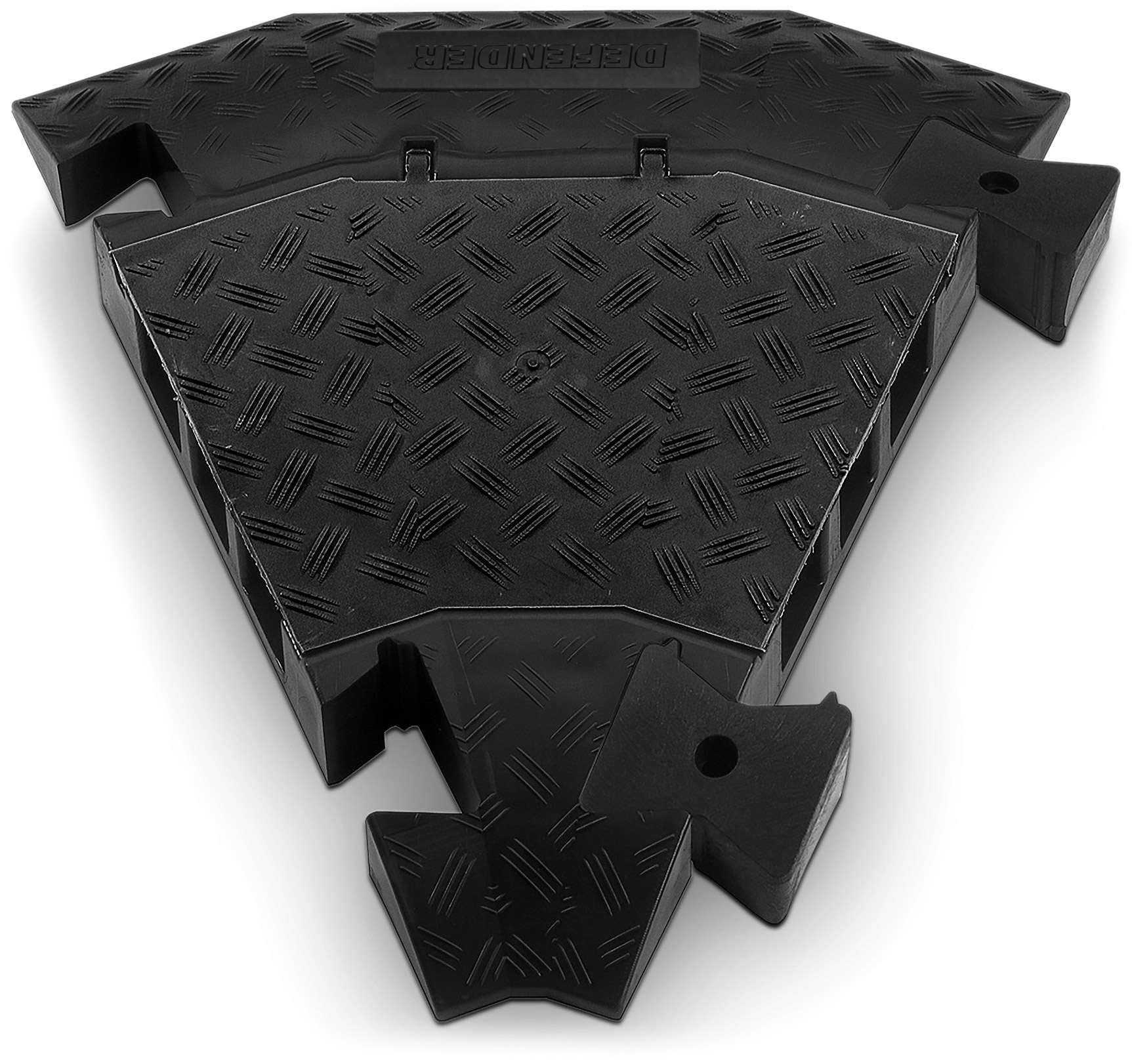

Defender 3 C BLK - Cable protector 3 channels | black | 45° bend | with connector | heavy-duty
- Heavy-duty, non-slip all-round cable protector made of black, recyclable polyurethane with built-in carrying handles
- Black polyurethane lid with secure closure
- Patented, self-cleaning lid hinge
- 3 channels: 1 channel 45 x 50 mm, 2 channels 52 x 49 mm
- Load capacity approx. 5 t / 25 x 30 cm
- Fire protection class E according to DIN EN 13501-1
- Resistant to oil, petrol and short-term contact with solvents
- Dimensions 105 x 60.7 x 7.3 cm; Weight 23.5 kg
- Reliable protection for cables and personnel for indoor and outdoor use
- TÜV SÜD certified
3 big channels - most popular
Featuring a 73 mm profile, 45° curve and end ramps with detachable dovetail connectors, the Defender® 3 cable protection system provides versatile cable routing and safe crossing for vehicles and pedestrians. With 3 medium large channels, built-in handles for easy portability and a 5 t per 25 x 30 cm load capacity the 73 mm profile Defender® 3 cable protectors are the perfect all-round choice for a wide variety of applications including heavy wheeled traffic, construction sites, warehouses, carnivals, fairs, trade shows, exhibitions, shopping malls and music events.
The DEFENDER 3 C BLK 45° curve with connectors is ideal for creating curves with the DEFENDER 3 cable protectors.
Label your cable protector! Customise the Defender cable protector with your company logo for orders ex 30 pieces for each product. You will find the format requirements in the download pool. Feel free to contact us for more information.
Technical data:General| Material: | TPU (Thermoplastic polyurethane) |
| Surface structure: | Ribbed |
| Colour: | Black |
| Lid colour: | Black |
| Maximum load (on 25 x 30 cm): | 5 t |
| Max. Passing speed: | 7 km/h |
| Chemical resistance: | Petrol, Solvents (short-term contact), Oil |
| Hardness range (±4 Shore A): | 88 Shore A |
| Shape: | Round |
| Quantity: | 3 |
| Cable ducts size (W x H): | 45 mm x 50 mm / 52 mm x 49 mm |
| Fire protection class per DIN 4102-1: | B2 |
| Inflammability (UL 94): | V-2, HB |
| Ambient temperature: | -40 - 70 °C |
| Curve/Bend: | 45 ° |
| Length: | 500 mm |
| Width: | 607 mm |
| Height: | 75 mm |
| Weight: | 10 kg |
