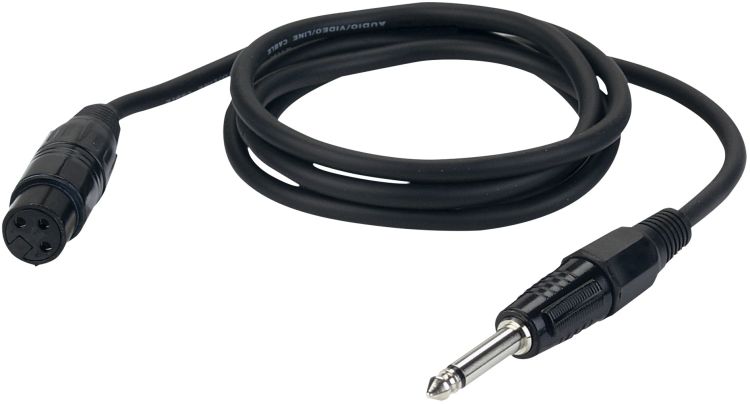

DAP-Audio FL02 - unbal. XLR/F 3P to Jack mono 3 m

€8.25 *

incl. tax, plus shipping costs

Availability:

Currently not available.
Expected to be available again in 2 weeks.

Currently not available

Item number: 200806725

EAN: 8717748045621

MPN: FL023

3 m Technical data: Flashover Voltage: 30 V Impedance: 110 Ω Connector 1: XLR 3P... more

All information about the product:

"DAP-Audio FL02 - unbal. XLR/F 3P to Jack mono 3 m"

3 mTechnical data:

Flashover Voltage:	30 V
Impedance:	110 Ω
Connector 1:	XLR 3P
Connector 2:	TS 6.3 mm unbalanced
Cable Length:	3 m
Pins:	3
Conductor Resistance:	90 Ω/km
Conductor Capacitance:	60 pF/m
Capacity Inner Conduct. Shield/Inner Conduct.:	78 pF/m
Outer Cable Diameter:	6 mm
Outer Isolation Diameter:	6 mm
Outer Isolation Type:	PVC
Weight:	0.189 kg
Colour:	Black
Contact Type:	Copper
1st Shield:	Conductive Plastic
2nd Shield:	Oxygen Free Copper
Shield Resistance:	25 Ω/km
Conductors:	3
Maximum Ambient Temperature:	60 °C
Minimum Ambient Temperature:	-20 °C
