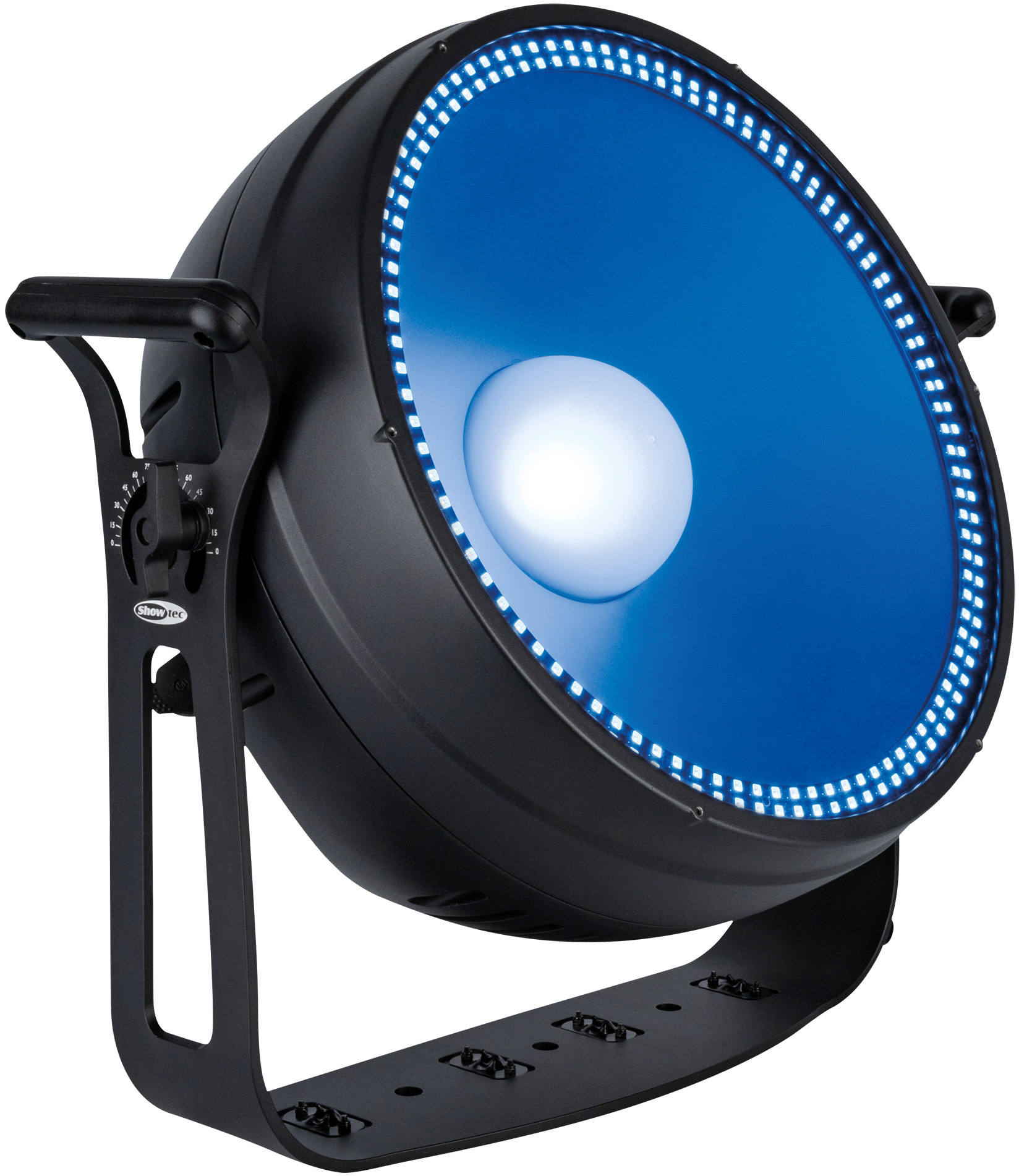

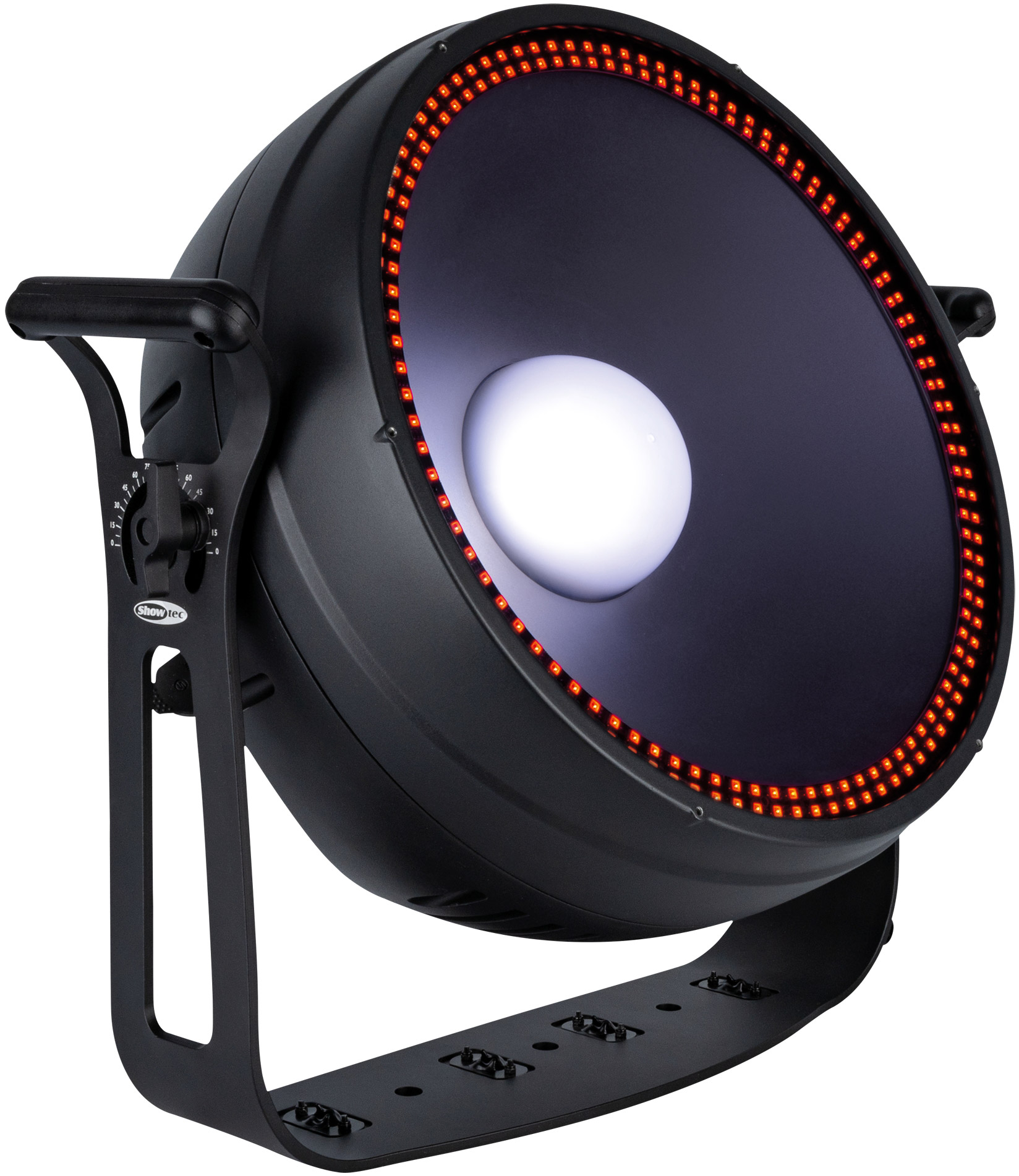

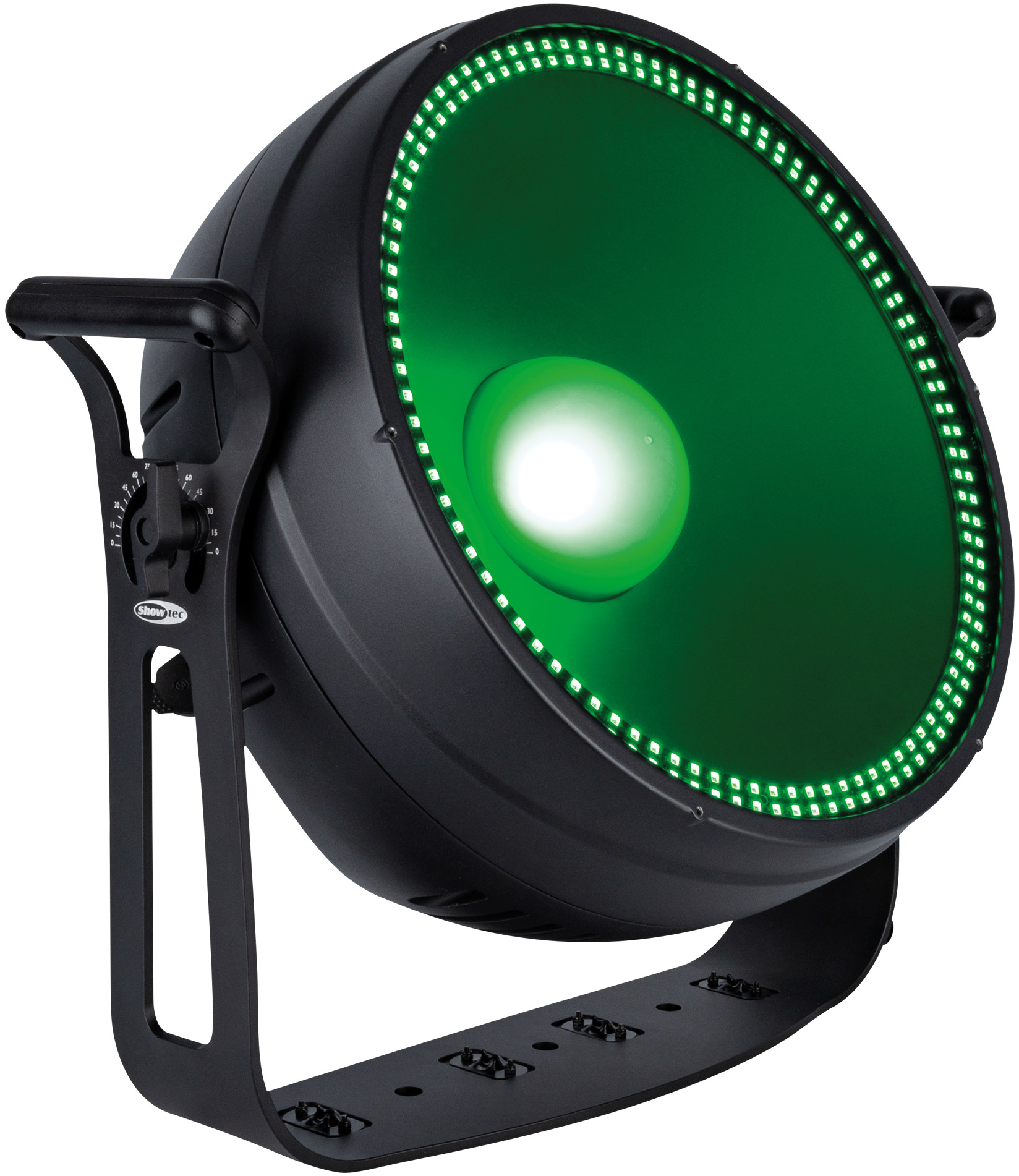

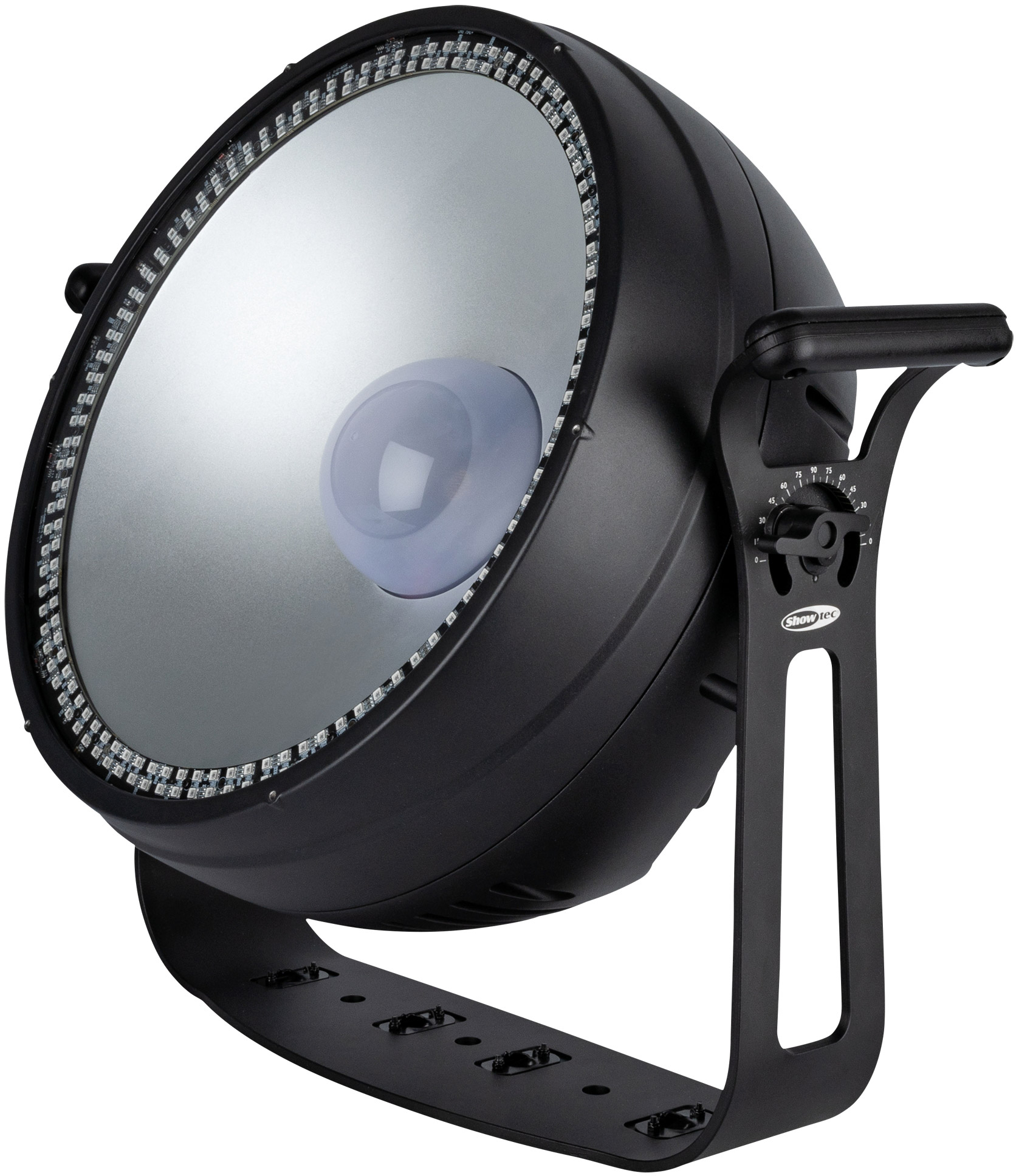

SHOWTEC Lumina Sola 500 W RGBAL LED blinder with RGB LED ring effect

The Showtec Lumina Sola is a high-performance outdoor LED blinder designed for large-scale events and demanding applications. At its core, a 500 W RGBAL LED engine delivers an impressive output of over 12,000 lumens with a CRI above 91, ensuring vibrant colours and natural whites. The amber LED section enables a realistic tungsten dimming effect for authentic warm fades. The Lumina Sola features a dedicated studio mode offering a CCT range from 1800K to 7000K and a Tint channel for green/magenta adjustment, making it ideal for TV and film environments.

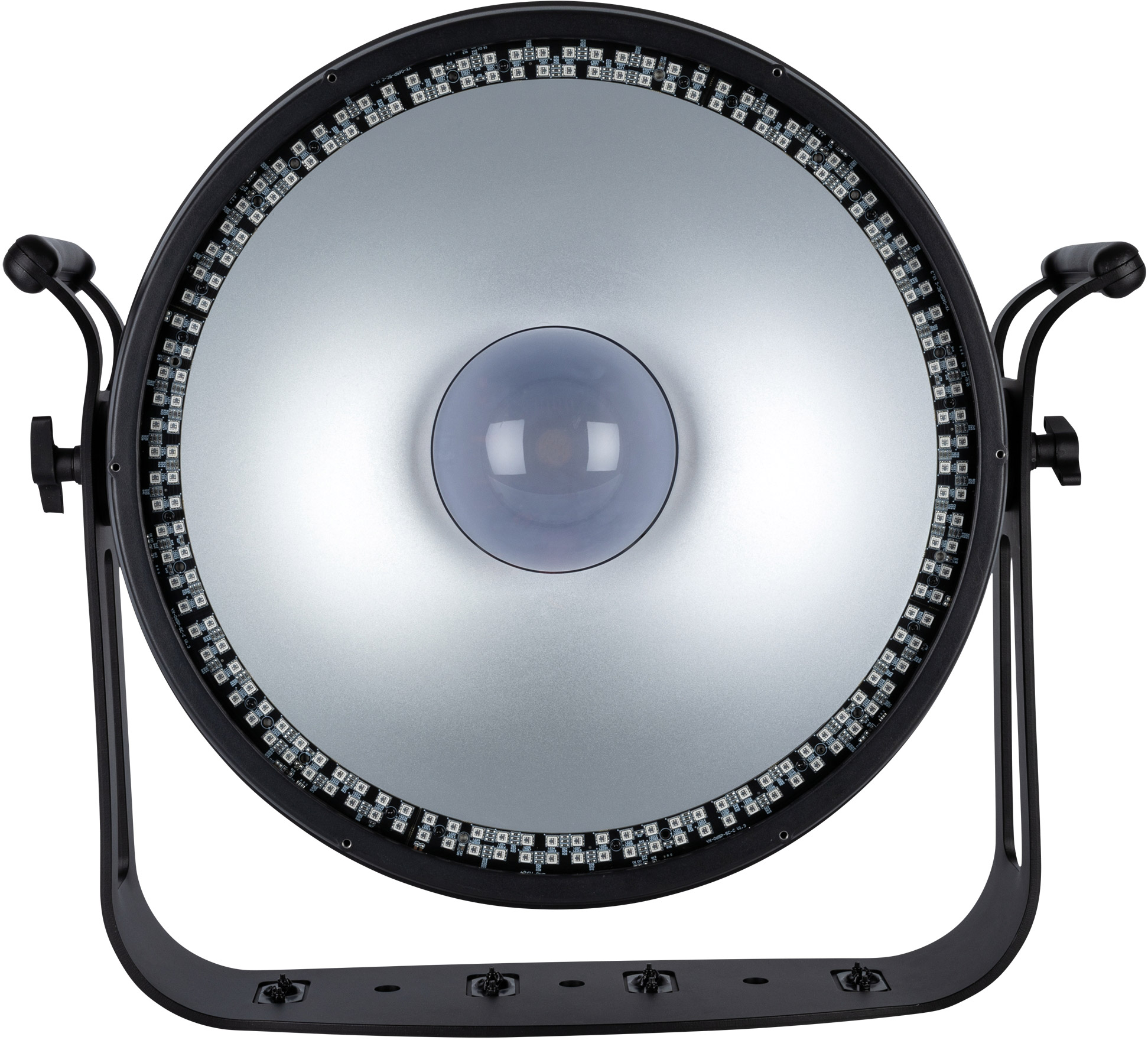

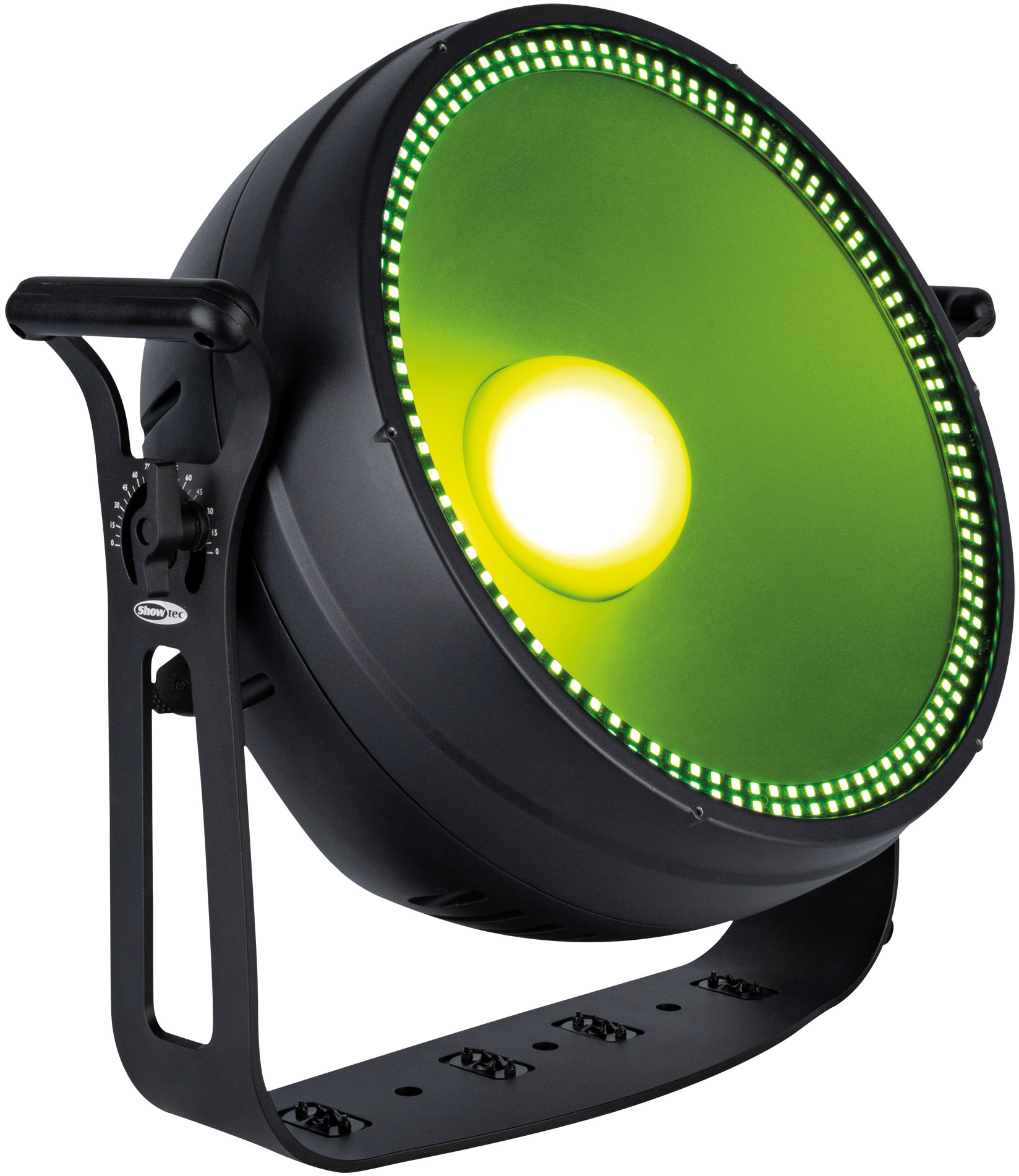

Surrounding the centre LED is a ring of 192 RGB LEDs (1.5 W each), divided into 8 controllable sections for beautiful visual effects and creative accents. With a wide beam angle of over 80°, the Lumina Sola provides smooth coverage for stages and outdoor installations. Its IP65-rated housing guarantees reliable performance in all weather conditions, while convection cooling combined with an axial fan (with adjustable modes) ensures silent and efficient operation.
Control is flexible and professional: DMX/RDM, Auto, Manual, and Master/Slave modes are supported, with up to 50 DMX channels for advanced programming. Thanks to RDM, you can remotely change the DMX address and switch DMX modes without physical access. The Lumina Sola also features 4 selectable dimming curves for precise intensity control, Power Pro True connectors, and 3 and 5-pin DMX connections for secure and robust setups. High-frequency PWM (1–25 kHz) ensures flicker-free performance for broadcast and camera applications.
A range of optional accessories is available to soften the LED appearance, modify the beam look, or create distinctive patterns for a vintage or Goliath-style appearance.Technical data:

Light Source Type:	LED
Light Source Quantity:	192
Light Source Power:	500 W
LED Colour Type:	RGBAL
Life Expectancy:	20000 h
Refresh Rate:	1000 Hz
Refresh Rate (Max.):	25 kHz
Luminous Flux (Total):	12668 lm
Luminous Flux (Red):	1775 lm
Luminous Flux (Green):	3511 lm
Luminous Flux (Blue):	825 lm
Luminous Flux (Amber):	3185 lm
CRI:	91.5
Beam Angle (Horizontal):	81.2°
Beam Angle (Vertical):	81.2°
Control Mode:	Auto / DMX / Manual / RDM
DMX Channels:	1 / 50
Protocols:	DMX / RDM
Fan mode:	Yes
Dim Curve:	Linear / Square / I-Square / S-Curve
Dimmer:	0-100 %
Strobe:	0-20 Hz
Power Supply:	100-240 V AC 50/60 Hz
Power Consumption:	450 W

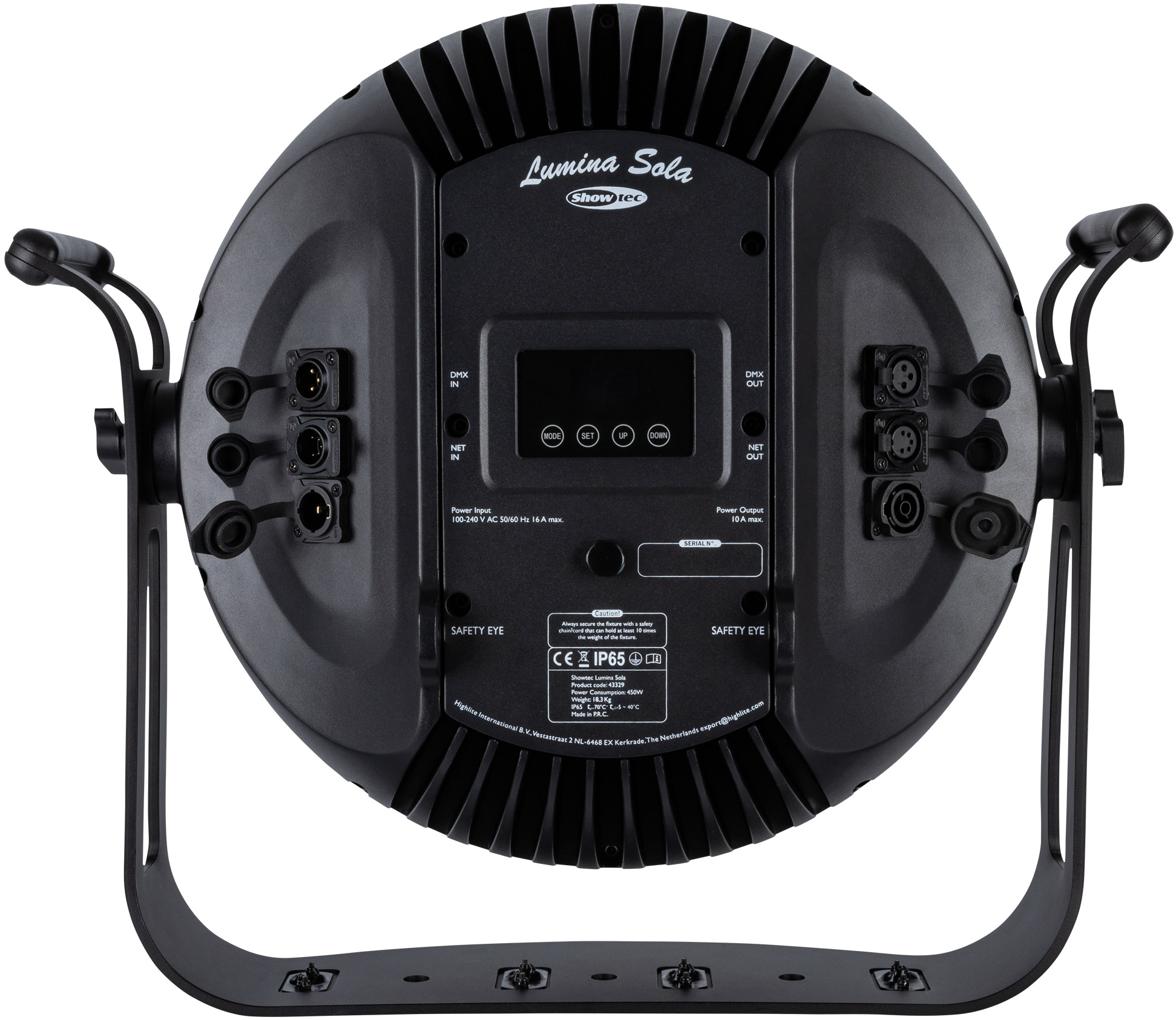

Power Connector In:	Power Pro True
DMX Connector:	XLR 5P In/Out
DMX Connector In:	XLR 5P
DMX Connector Out:	XLR 5P
Length (mm):	265 mm
Width (mm):	555 mm
Height (mm):	481 mm
Weight:	21.3 kg
IP Rating:	IP65
Material:	Aluminium
Housing:	Aluminium
Colour:	Black
Cooling:	Convection/Axial fan
Maximum Ambient Temperature:	40 °C
Maximum Surface Temperature:	70 °C
Included Cables:	Power Pro True Cable
