SHOWTEC ACT Profile 50 WW 50 W Warm White Theatre LED ellipsoidal

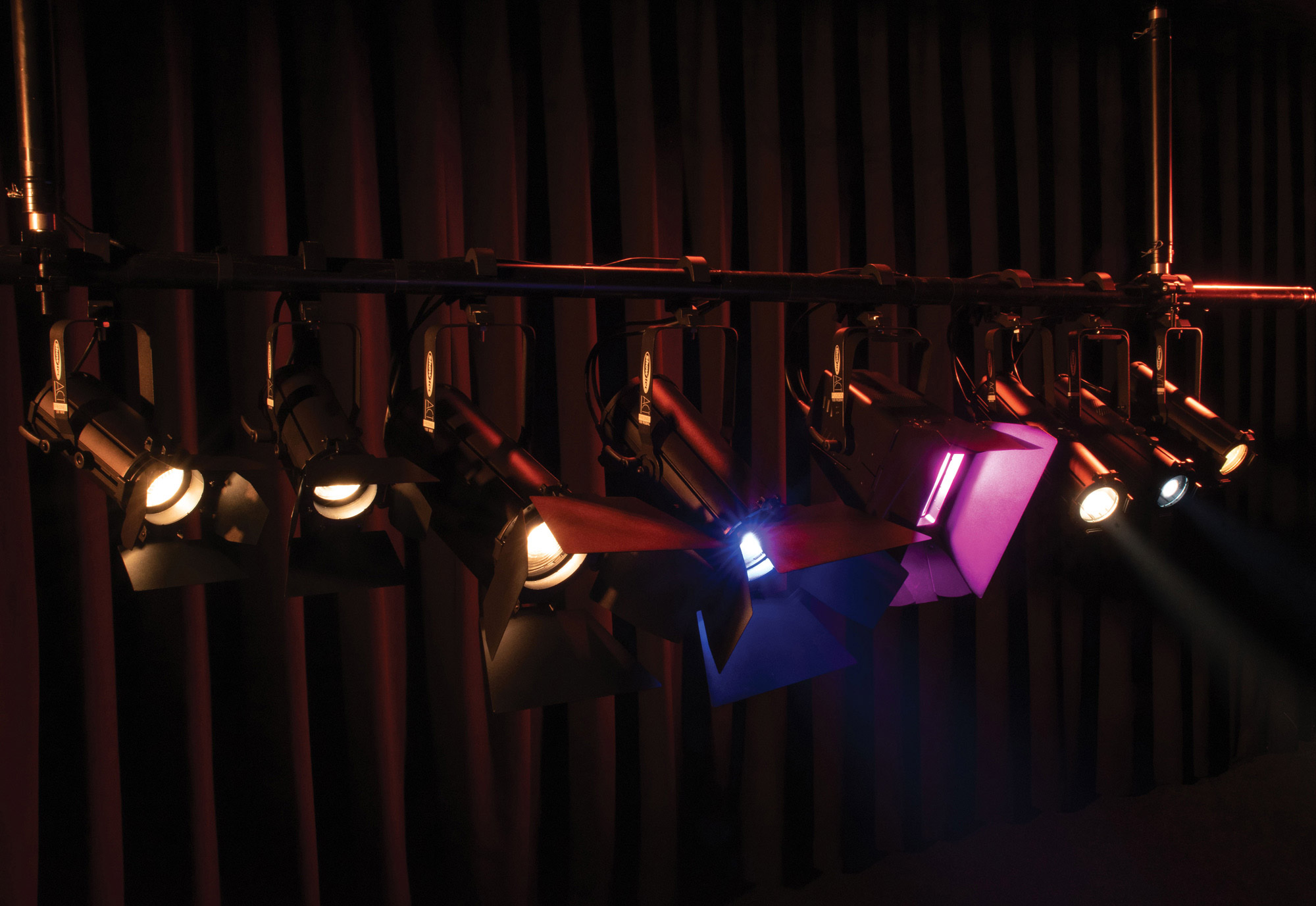

The Showtec ACT series offers a wide range of theatre lighting fixtures consisting of Fresnels, Ellipsoidals, and Flood Lights, suitable for indoor applications. All ACT fixtures have accurate colour rendering (high CRI), a long lifespan, and are reliable without any interference of flickering. A bright, even field of light is ensured in any required colour temperature, from Warm White to smooth pastels and punchy colours. All Showtec ACT fixtures meet the high quality standard required for operating in theatres, on stages, and during business events.

The ACT Fresnels project a soft field of light with a widely controllable zoom range, dimmer and strobe effects, suitable for short- to medium-throw applications. All ACT Profiles consist of ellipsoidals equipped with a zoom lens to provide a hard-edged, precisely focused field of light over long distances. The Showtec ACT Flood fixtures project a bright Wash effect, throwing a bright RGBW light with a wide angle in short-throw applications.

Each projector offers multiple control options and some come with included accessories to enhance functionality. Contact us now for free advice and receive an offer you cannot refuse or check out our product pages for more information.

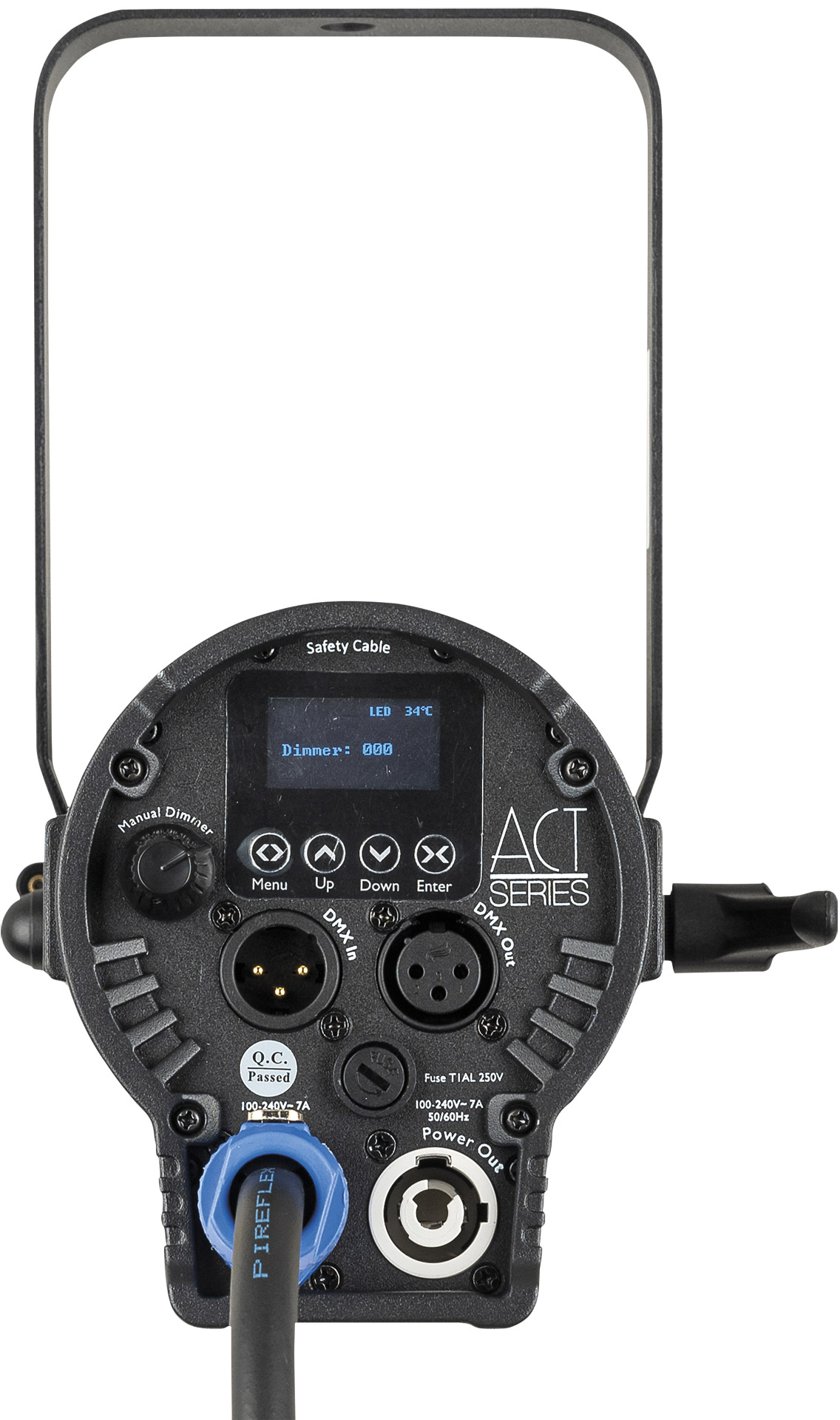

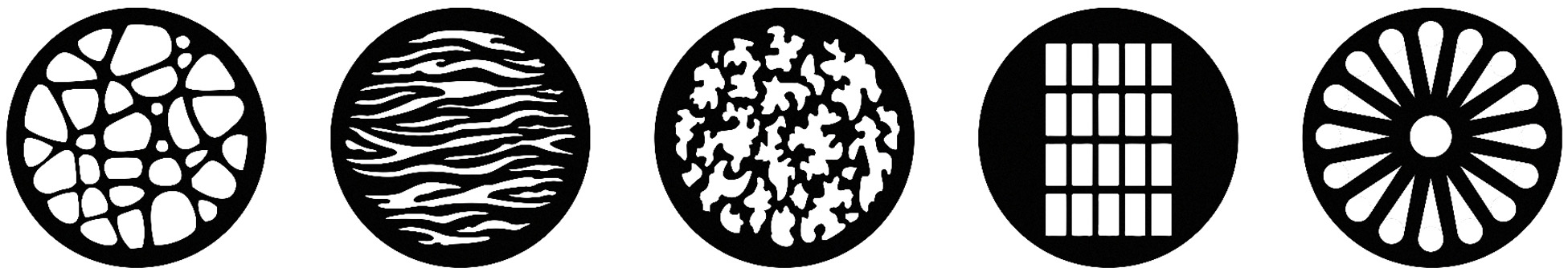

The Showtec ACT Profile 50 WW is a 50 watt Warm White COB LED ellipsoidal with high CRI, suitable for theatrical applications. It operates within a 16° - 32° manually adjustable zoom range and projects a hard-edge, precisely focused light. The ACT Profile 50 WW features a manually and DMX controllable 0 - 100 % dimmer function and comes with 5 design gobos and a four-blade shutter system, allowing you to add the proper intensity of light where its needed.Technical data:

Light Source Type:	LED
Light Source Quantity:	1
Light Source Power:	50 W
LED Colour Type:	WW
Refresh Rate:	1100 Hz
Illuminance @ 2 m:	2148 lx
Luminous Flux (Total):	1315 lm
CRI:	97
Maximum CCT:	3200 K
Beam Angle Minimum (Circular):	13°
Beam Angle Maximum (Circular):	30°
Zoom Type:	Manual
Control Mode:	DMX / Manual
DMX Channels:	1 / 2
Display:	LCD
Dimmer:	0-100 %
Power Supply:	100-240 V AC 50/60 Hz
Power Consumption:	57 W
Power Connector In:	Power Pro Blue
Power Connector Out:	Power Pro Grey
DMX Connector:	XLR 3P In/Out
DMX Connector In:	XLR 3P
DMX Connector Out:	XLR 3P
Length (mm):	411 mm
Width (mm):	170 mm
Height (mm):	263 mm
Weight:	2.6 kg
Noise Level Maximum:	36 dB
IP Rating:	IP20 (indoor use only)
Housing:	Aluminium
Colour:	Black
Cooling:	Axial fan
Maximum Ambient Temperature:	40 °C
Maximum Surface Temperature:	45 °C
Minimum Operating Temperature:	0 °C
Included Cables:	powerCON cable
