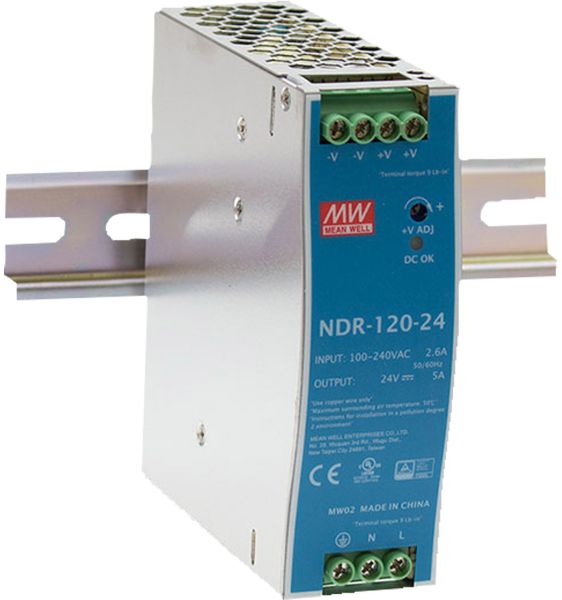

MEANWELL DIN Rail Power Supply 120 W/24 V DC Mean Well NDR-120-24

The NDR-120-24 is a slim-design DIN rail power supply that can be mounted on TS-35/7.5 or TS-35/15 DIN rails. It is intended for industrial use and built to comply to the UL 508 standard. It has a built-in constant current limiting circuit, offering rugged short-circuit protection. Cooling is managed by free air convection, which is helped by its metal housing. It accepts input voltages from 90-264 V AC and is fully protected against overload, overvoltage, and overtemperature.Technical data:

Power Supply:	88-264 V AC
Output voltage:	24 V DC
Power Consumption:	120 W
Output Current (A):	5 A
Power Connector In:	Terminal
Power Connector Out:	Terminal
Maximum Wire Size:	2.5 mm²
Length (mm):	113.5 mm
Height (mm):	125.2 mm
Width (mm):	40 mm
Weight:	0.6 kg
IP Rating:	IP20 (indoor use only)
Material:	Aluminium
Housing:	Aluminium
Colour:	Silver
Maximum Ambient Temperature:	70 °C
Minimum Ambient Temperature:	-20 °C
