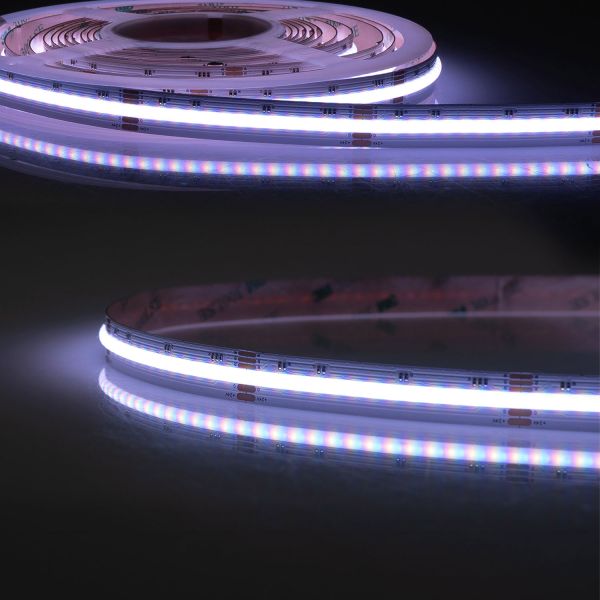

ISOLED LED COB RGB+WW Linear flex stripe, 24V, 20W, IP20, 896 LED/m

€148.01 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Not in stock
Delivery time: approx. 2 weeks

Delivery time: approx. 2 weeks

Item number: 111012655

EAN: 9009377148101

MPN: 115790

ISOLED LED COB RGB+WW Linear flex stripe, 24V, 20W, IP20, 896 LED/m Technical data: Length:... more

All information about the product:

"ISOLED LED COB RGB+WW Linear flex stripe, 24V, 20W, IP20, 896 LED/m"

ISOLED LED COB RGB+WW Linear flex stripe, 24V, 20W, IP20, 896 LED/mTechnical data:

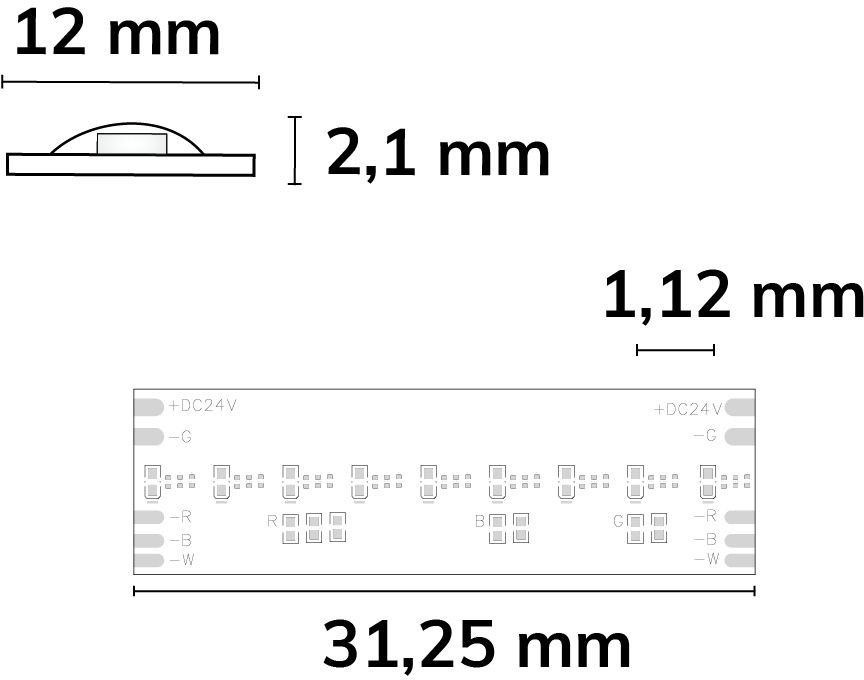

Length:	5000 mm
Width:	12 mm
Height:	2,10 mm
LED type:	SMD0402
Nominal power:	19,20 W
Rated power:	20 W
Colour temperature:	3000K

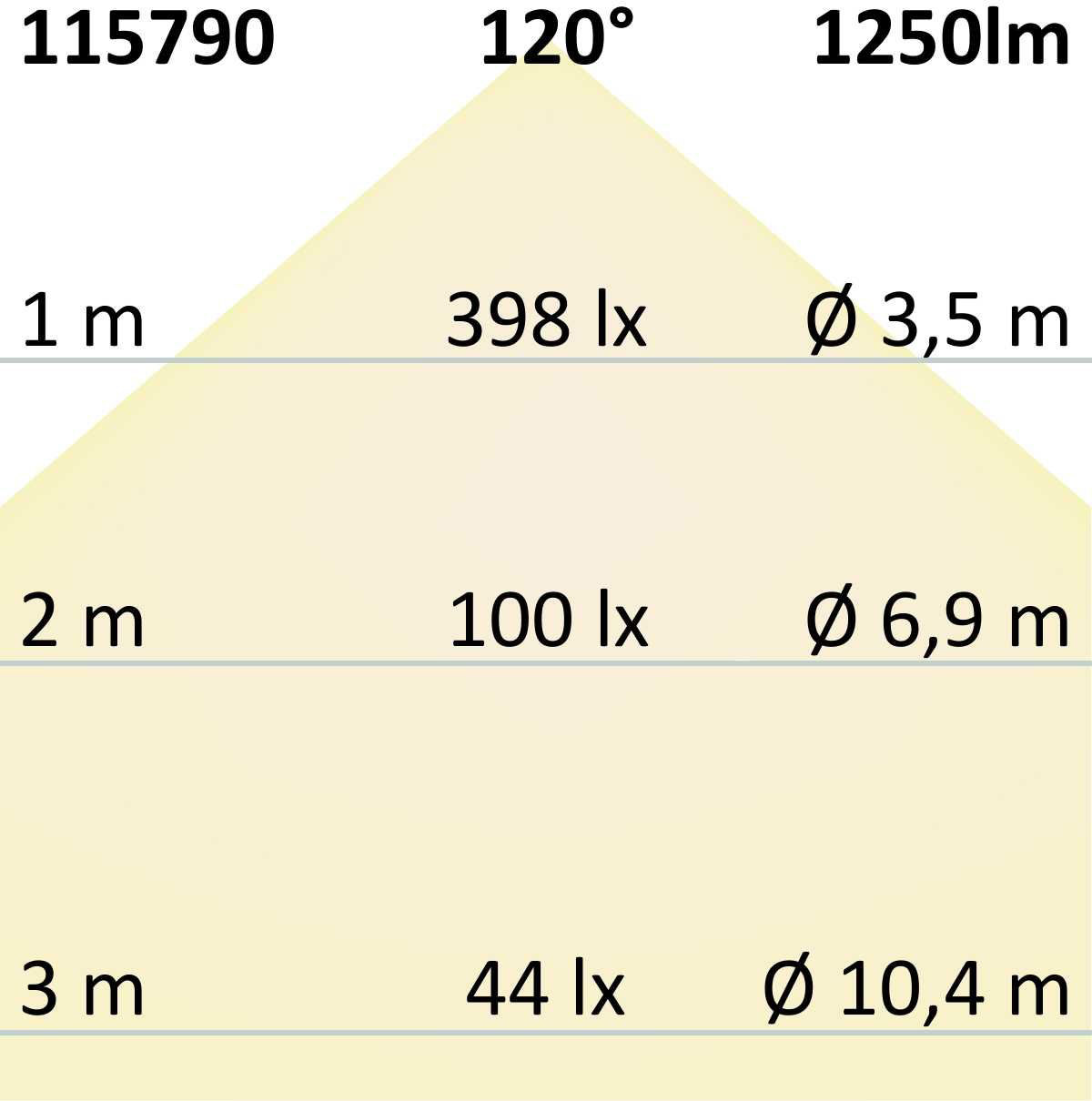

Luminous flux:	1250 lm
Light intensity:	398 cd
Colour rendering:	90 CRI
Lifetime:	30000 h
Switching cycles:	100000
Protection class:	IP20
Energy efficiency class:	G
Material:	Copper
Incl. illuminant:	No

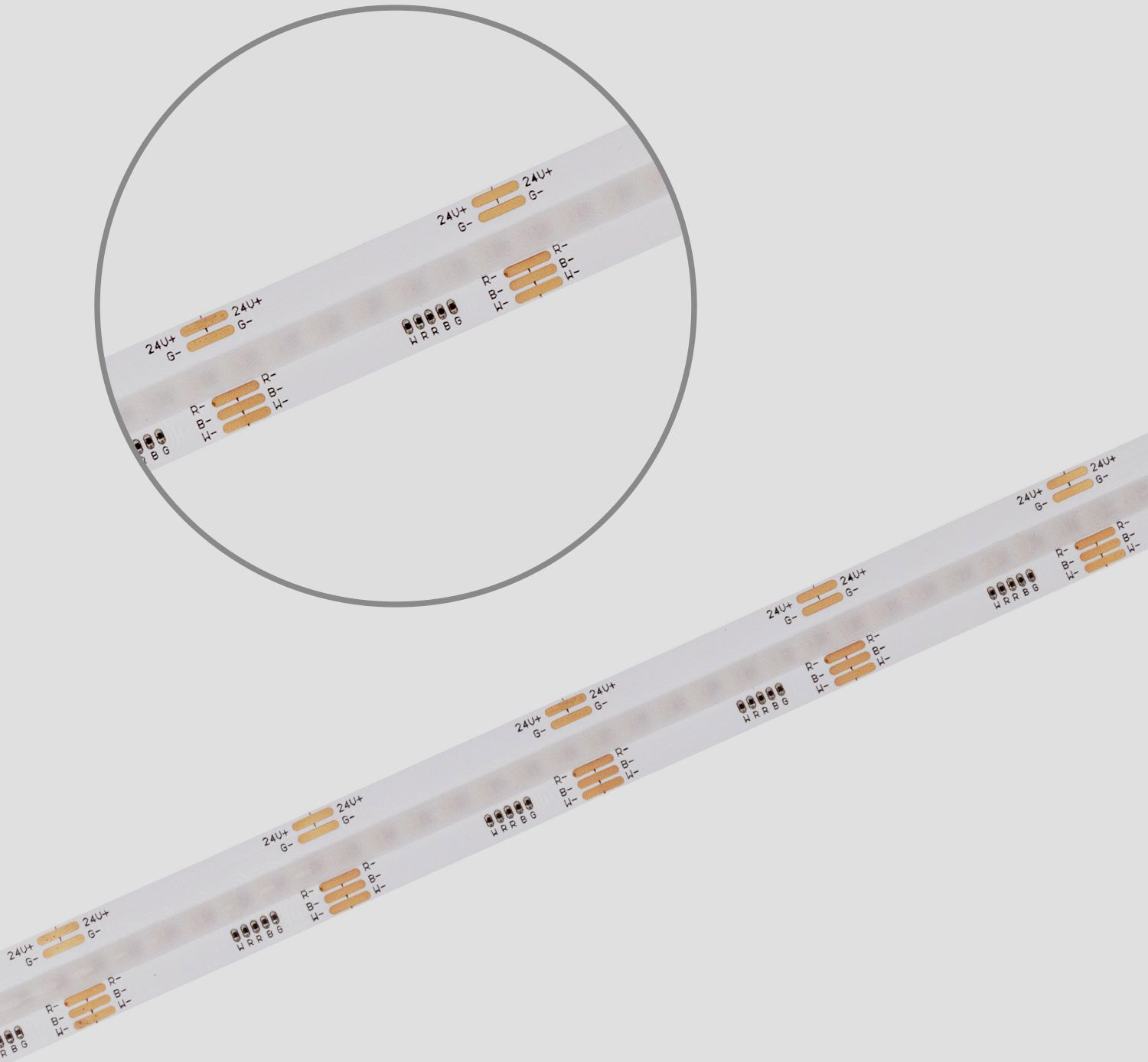

Special features:	Separation point: 62,5mm with 56 SMD each \| Pitch (chip centre-to-centre): 1,12mm \| 1 roll = 5m \| max. flex stripe length per feed: 5m \| length tolerance + thermal expansion: 1% \| incl. 3M 300LSE adhesive tape \| clean and degrease substrate before sticking! Do not peel off again! \| cooling compound required: min. 140 gr/m
