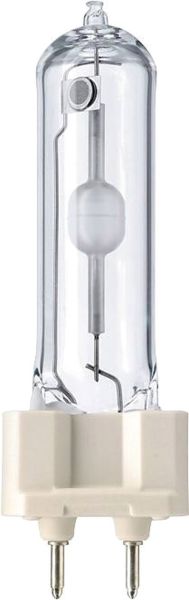

Philips MASTERColour CDM-T Elite G12 35W/930
Quantity | Unit price | You save |
---|---|---|
From 12 | €23.83 * | 2.66 % |
Specifications | |
General Information | |
Cap-Base: | G12 [ G12] |
Operating Position: | UNIVERSAL [ Any or Universal (U)] |
Life to 5% Failures (Nom): | 12000 h |
Life to 10% Failures (Nom): | 14000 h |
Life to 20% Failures (Nom): | 16000 h |
Life to 50% Failures (Nom): | 20000 h |
ANSI Code HID: | C130/E |
Light Technical | |
Color Code: | 930 [ CCT of 3000K] |
Luminous Flux (Rated) (Nom): | 4050 lm |
Color Designation: | Warm White (WW) |
Lumen Maintenance 1000 h (Nom): | 95 % |
Lumen Maintenance 12000 h (Nom): | 80 % |
Lumen Maintenance 10000 h (Nom): | 83 % |
Lumen Maintenance 2000 h (Nom): | 93 % |
Lumen Maintenance 4000 h (Nom): | 90 % |
Lumen Maintenance 5000 h (Nom): | 88 % |
Chromaticity Coordinate X (Nom): | 0.435 |
Chromaticity Coordinate Y (Nom): | 0.395 |
Correlated Color Temperature (Nom): | 3000 K |
Luminous Efficacy (Rated) (Nom): | 98 lm/W |
Color Rendering Index (Min): | 87 |
Color Rendering Index (Nom): | 90 |
Operating and Electrical | |
Power (Rated) (Nom): | 39.0 W |
Lamp Current Run-Up (Max): | 1 A |
Lamp Current (EM) (Nom): | 0.500 A |
Ignition Supply Voltage (Max): | 198 V |
Ignition Peak Voltage (Max): | 5000 V |
Ignition Supply Voltage (Min): | 198 V |
Re-Ignition Time (Min) (Max): | 15 min |
Ignition Time (Max): | 30 s |
Voltage (Max): | 90 V |
Voltage (Min): | 80 V |
Voltage (Nom): | 85 V |
Controls and Dimming | |
Dimmable: | No |
Run-Up Time 90% (Max): | 3 min |
Run-Up Time 90% (Nom): | 1.5 min |
Mechanical and Housing | |
Bulb Finish: | Clear |
Approval and Application | |
Energy Efficiency Label (EEL): | A+ |
Mercury (Hg) Content (Nom): | 4.7 mg |
Energy Consumption kWh/1000 h: | 43 kWh |
UV | |
Pet (Niosh) (Min): | 8 h/500lx |
Damage Factor D/fc (Max): | 0.3 |
Luminaire Design Requirements | |
Bulb Temperature (Max): | 500 °C |
Cap-Base Temperature (Max): | 250 °C |
Pinch Temperature (Max): | 350 °C |
Product Data | |
Net Weight (Piece): | 0.028 kg |
