LEDVANCE SubstiTUBE T8 UNIVERSAL 1500 mm 24W 840

LEDVANCE SubstiTUBE T8 UNIVERSAL 1500 mm 24W 840

€20.53 *

incl. tax, plus shipping costs

Availability:

Delivery time: approx. 2-3 weeks

Delivery time: approx. 2-3 weeks

Item number: 101416010

EAN: 4099854033223

MPN: 4099854033223

Product data sheet (PDF)

LEDVANCE SubstiTUBE T8 UNIVERSAL 1500 mm 24W 840 LED tubes for electronic and electromagnetic... more

Back to the overview

All information about the product:

"LEDVANCE SubstiTUBE T8 UNIVERSAL 1500 mm 24W 840"

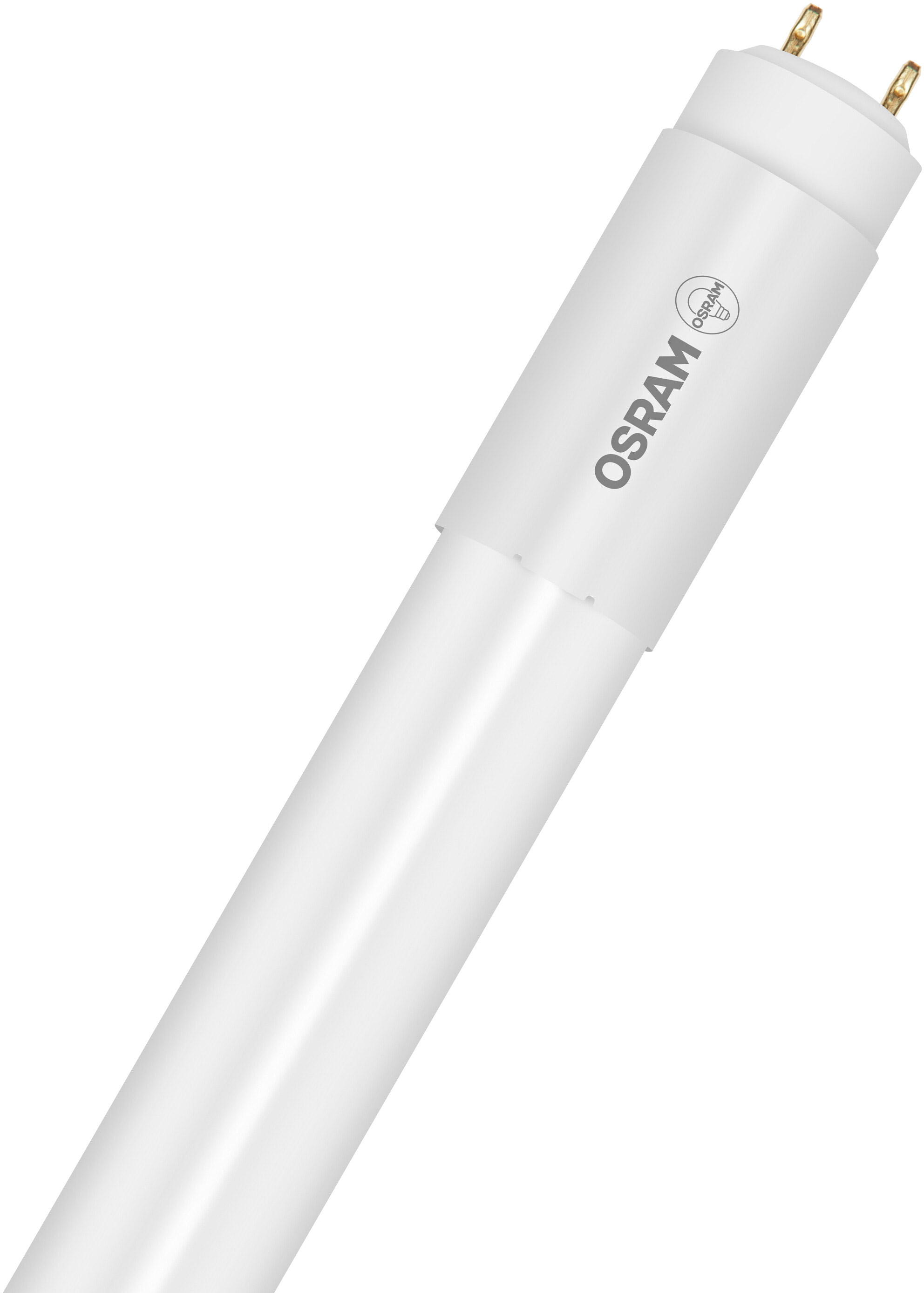

LEDVANCE SubstiTUBE T8 UNIVERSAL 1500 mm 24W 840

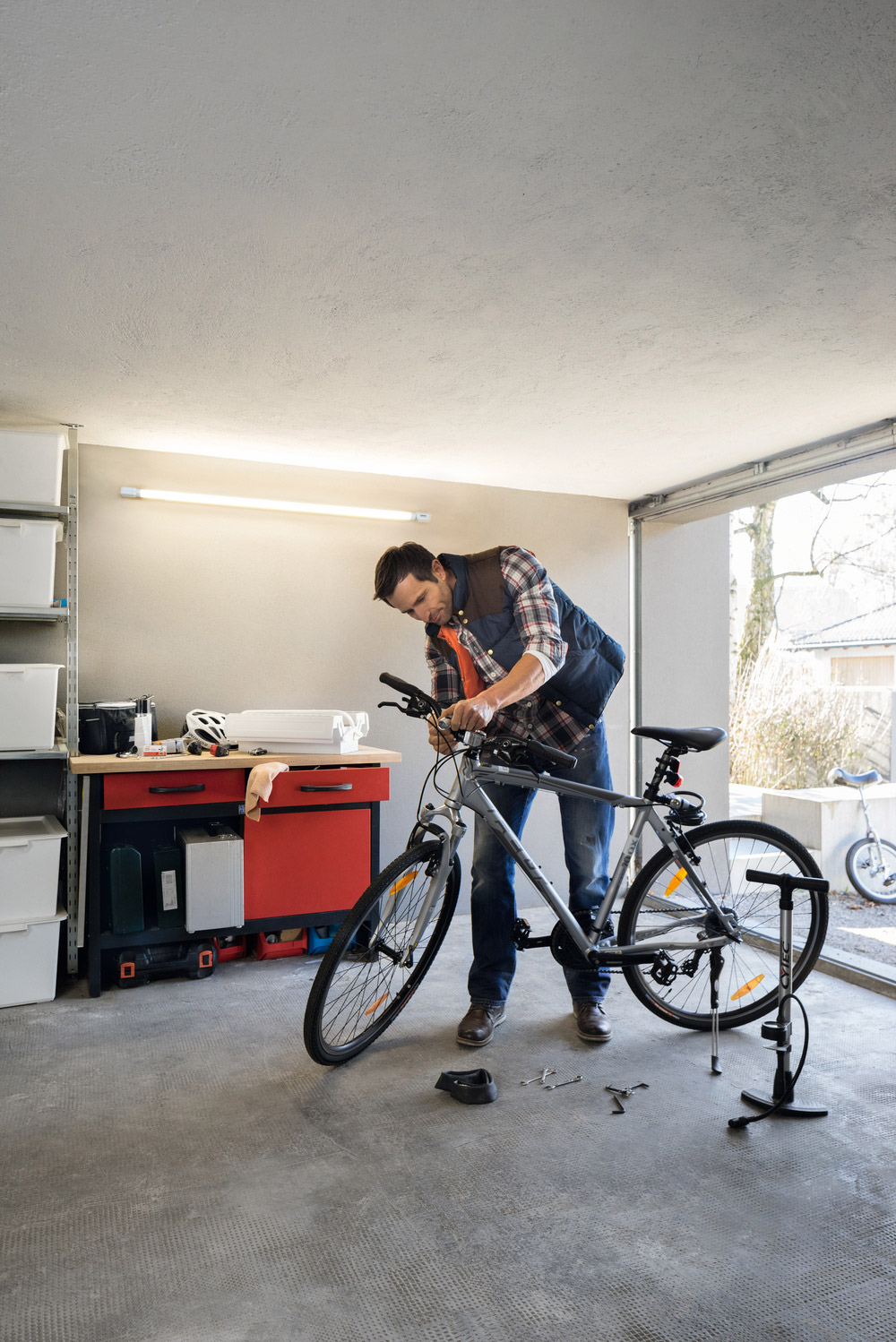

LED tubes for electronic and electromagnetic control gears. Product features: LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires and many common ECG luminaires (see compatibility list) or on AC mains. T8 LED tube made of glass with G13 base. Low flicker according to EU 2019-2020 (SVM =0,4 / PstLM = 1). Mercury-free and RoHS compliant. Type of protection: IP20. Product benefits: High color homogeneity. Energy savings of up to 59 % (compared to T8 fluorescent lamp). Instant flickerfree starting. Areas of application: General illumination within ambient temperatures from -20…+45 °C. Corridors, stairways, parking garages. Domestic applications.

Technical data:

Length:	1513 mm
Width:	27,80 mm
Height:	27,80 mm
Diameter:	27,80 mm
Weight:	307 g
Socket:	G13
Nominal voltage:	220 V
Nominal power:	24 W
Nominal current:	110 mA
Energy consumption:	24 kWh/1000
Colour temperature:	4000 K
Light colour:	Neutral white

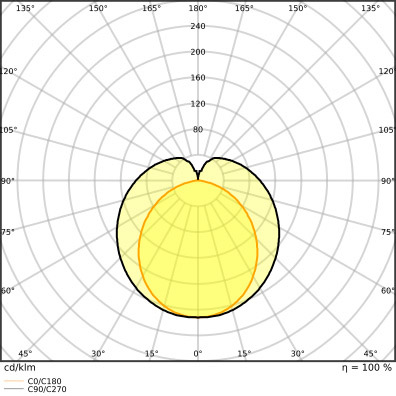

Beam angle:	190°
Luminous flux:	2800 lm
Luminous efficacy:	116 lm/W
Colour rendering:	80-89 CRI
Dimmable:	No
Lifetime:	30000 h
Switching cycles:	200000
Protection class:	IP20
Energy efficiency class:	E
Power factor:	0.90
Voltage type:	AC
Lamp shape:	Tube, double-ended
Filament lamp:	no
Type of glass/cover:	Frosted
Colour consistency (McAdam ellipse):	SDCM5
Dimming phase cut-off (trailing edge):	no
Dimming phase cut-on (leading edge):	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming Bluetooth:	no
Dimming Wi-Fi:	no
Lamp designation:	T8
Remote operation possible:	no
With movement sensor:	no
With remote control:	no
Photobiological safety according to EN 62471:	RG0
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	yes
