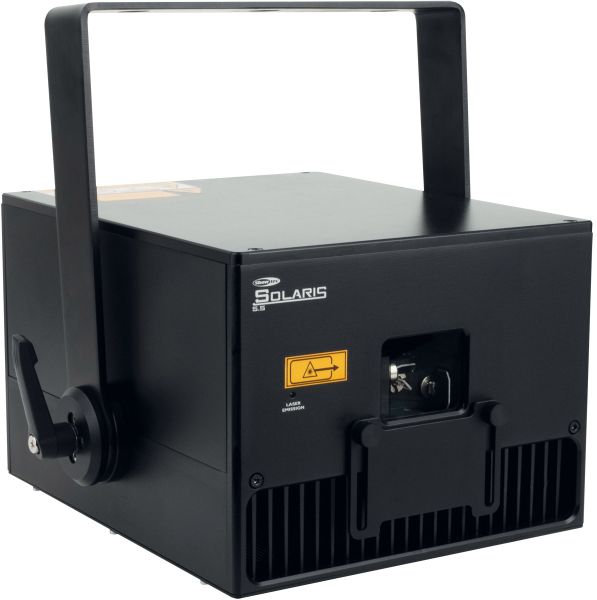

SHOWTEC Solaris 5.5 High-power RGB Laser with Pangolin FB4

The Showtec Solaris laser effects are highly accurate and powerful full-colour laser effect units, intended for a professional spectrum of applications. They offer exceptionally accurate control of their laser beam. Analogue intensity control ensures the best possible reproduction of the full-colour spectrum, allowing you to create formidable colours. In combination with the low divergence of the laser and the high scanning speeds, this results in razor-sharp images and beam contours in any colour.

The Solaris laser effects are fully protected against failures and comply with all necessary safety precautions. The units that are equipped with the Pangolin FB4 module unlock the full capabilities of the award-winning QuickShow software. With this specialised piece of software, creating a professional show is easy. It allows you to control your laser(s) via your PC through a full network setup. The Solaris laser effects offer you a professional piece of equipment, suitable for larger venues and professional shows.

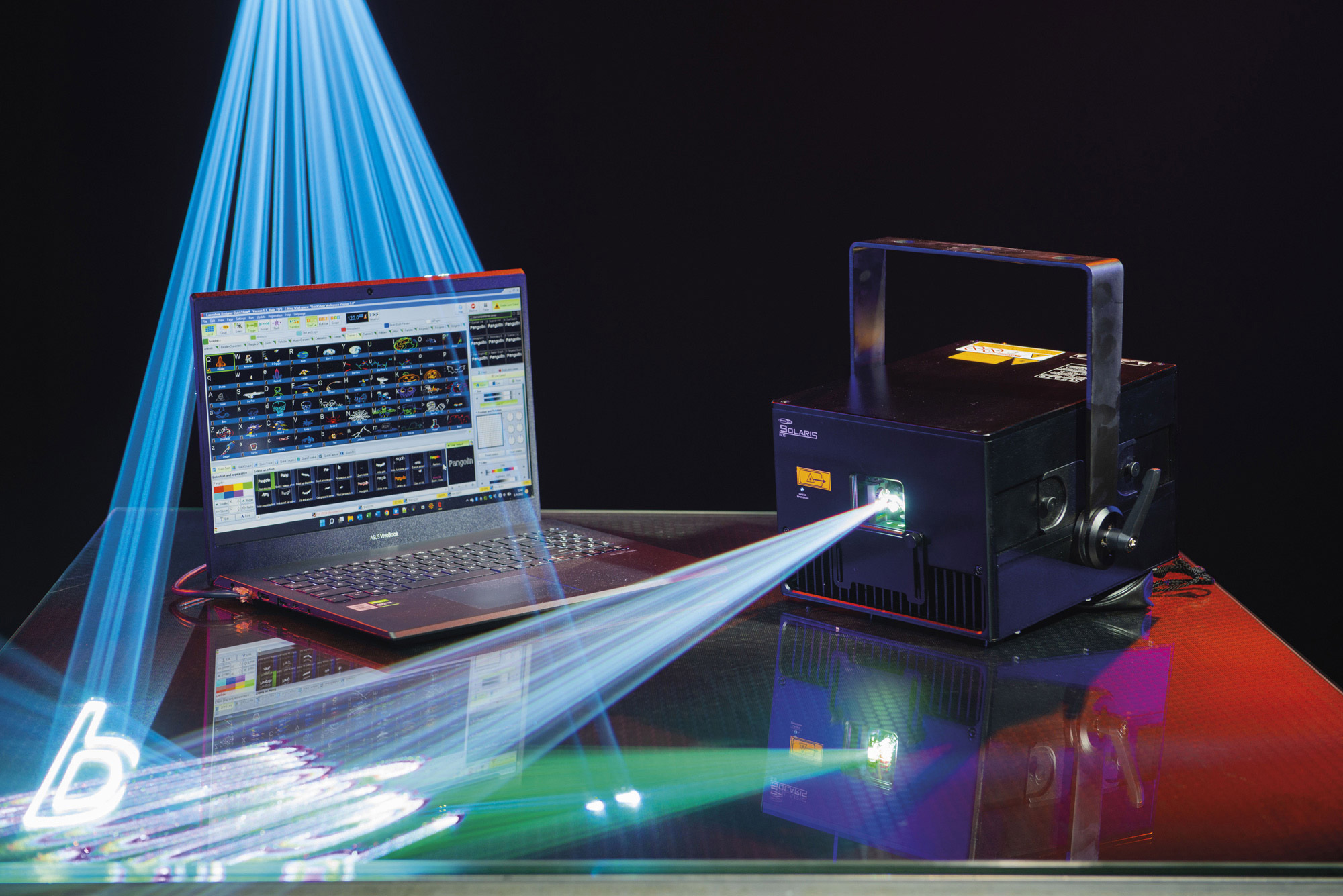

The Solaris 5.5 is a very powerful 5.500-mW RGB laser projector with built-in Pangolin FB4 control module, intended for use in large venues. The FB4 module unlocks the award-winning QuickShow software, which means you can use this professional software completely free of charge. This opens up extensive possibilities for professional laser show control. It allows you to run your laser shows in a full network setup, controlled by the QuickShow software on your PC. You can also control it through your lighting console by Art-Net or ILDA, and it features an SD card interface for saving automatic, stand-alone playback.

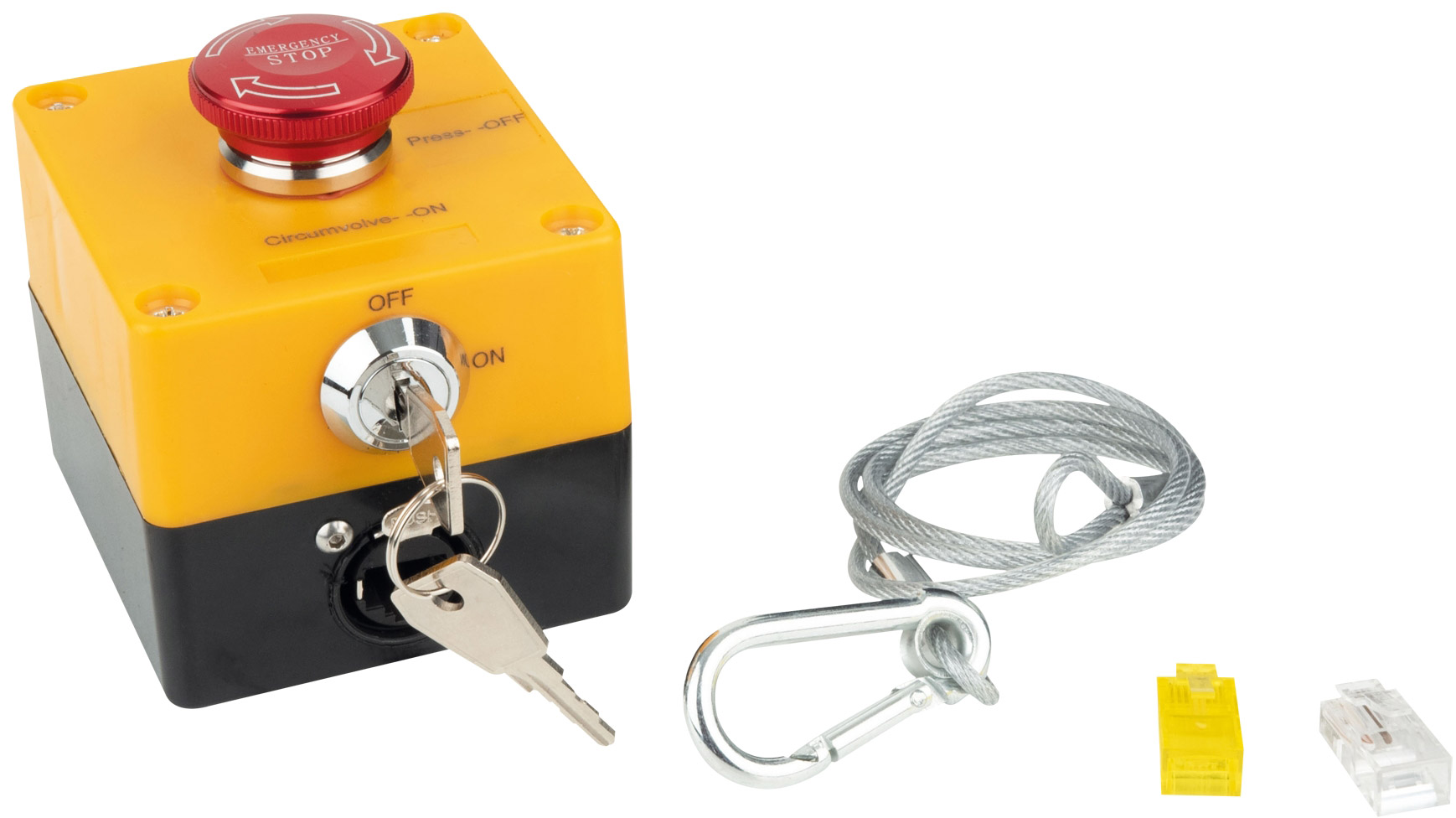

By using linear analogue dimming modulation, the Solaris 5.5 can generate the full spectrum of colours. Its very precise and high-quality construction ensure perfect matching of the RGB beams and distortion-free images. Its extra wide 45° beam angle allows for large projection areas. It comes with all the necessary safety measures, like scanning system overload protection, a keyed interlock system, scan-fail safety, aperture masking plate, emergency stop system, and a keyed remote.Technical data:

Laser:	Yes
Laser Power:	5500 mW
Laser Source:	Diode
Laser Modulation:	Analog
Laser Class:	4
Laser Colour:	Red / Green / Blue
Laser Power (Total):	5500 mW
Laser Power (Red):	1500 mW
Laser Wavelength (Red):	637 nm
Laser Power (Green):	1800 mW
Laser Wavelength (Green):	520 nm
Laser Power (Blue):	2200 mW
Laser Wavelength (Blue):	445 nm
Control Mode:	Art-Net / DMX / ILDA / SD Card
Display:	OLED
Laser Scan Angle (Max.):	45°
Power Supply:	100-240 V AC 50/60 Hz
Power Consumption:	150 W
Power Connector In:	Power Pro True
Power Connector Out:	Power Pro True
Data Connector:	ILDA DB25 / RJ45 In/Out
Data Connector In:	ILDA DB25 Male / RJ45
Data Connector Out:	ILDA DB25 Female / RJ45
Height (mm):	288 mm
Width (mm):	309 mm
Depth (mm):	298 mm
Weight:	9.3 kg
IP Rating:	IP20 (indoor use only)
Housing:	Aluminium
Colour:	Black
Cooling:	Axial fan
Safety Features:	Interlock / Key Switch / Safety Eye
Laser Scanner:	35 kpps
Maximum Ambient Temperature:	40 °C
Mounting Options:	Bracket / Floor
Safety Attachment:	Yes
Included Cables:	Power Pro True Cable
Included Accessories:	Interlock key(s)
Included Rigging:	Bracket
Laser Classification Standard:	EN-IEC 60825-1:2014+A11:2021
NOHD:	830 m
MPE (for Exposure Duration of 0,25 s):	25 W·m⁻²
