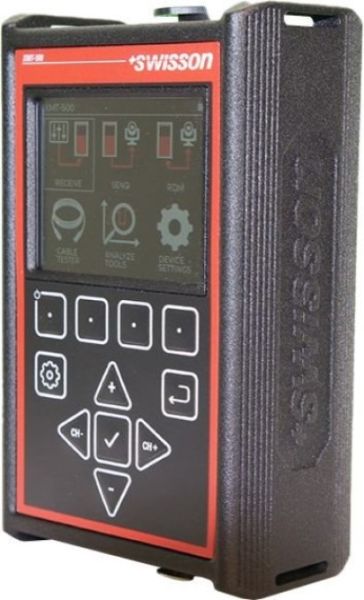

Swisson RDM Controller XMT-500, set incl. nylon bag + 2 x XLR adapters

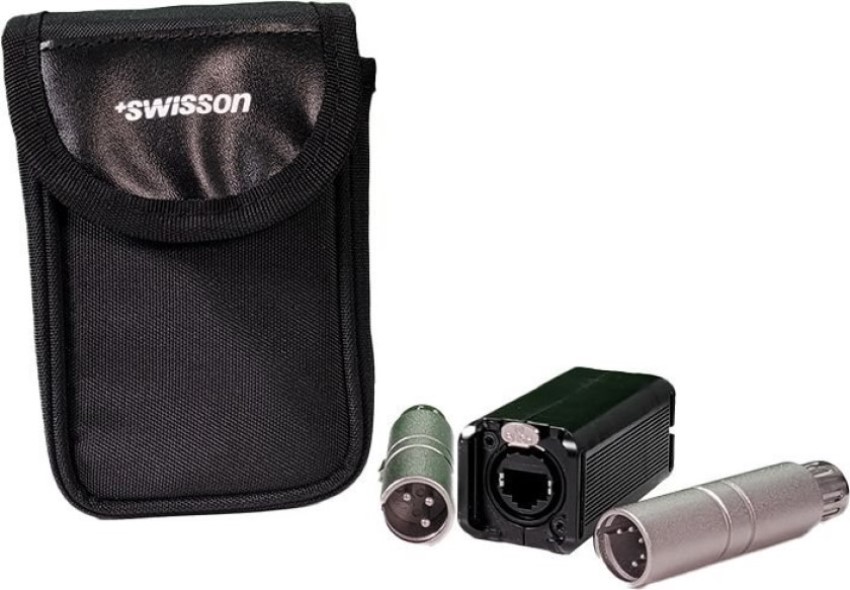

SWISSON XMT-500 set - DMX Measurement Tool / Tester & RDM Ethernet Controller incl. Case & Adapters


The basic functions of the XMT-500 include useful functions for DMX, RDM, Art-Net, sACN, signal tests and cable tests. While the DMX functionality makes it possible to send values to any DMX channel or to monitor received signals, the RDM functions help with the localization and remote configuration of RDM-compliant devices. In addition, sACN and Art-Net commands can be sent or displayed in receive mode. Signal tests help verify signal integrity and provide real-time insight into the flow of data packets and monitor timing aspects of DMX and RDM.

Sometimes problems are simply caused by faulty cables, the cable test function automatically scans all pin connections in any 3-pin or 5-pin DMX cable as well as RJ-45 cables. Thanks to the cable test dongle, installed cables can also be easily tested.

A full-color, backlit display ensures high-contrast readability, while the intuitive menu system and multifunction softkeys make navigation easy. The high-capacity internal Li-ion battery is compatible with standard USB-C chargers.

True to the motto "designed to grow with your needs", the XMT-500 has impressive computing power and plenty of storage space, which makes it possible to add new functions to the device - either as a supplement or as an upgrade.


Features:

• Sending or receiving values to/from any Art-Net or sACN channel/universe via etherCON
• Send values to any DMX channel or display received DMX signals
• Remotely locate and configure RDM-compliant devices anywhere in the rig
• Precisely monitor every timing aspect of the DMX and RDM signals received
• Check the correct pin assignment of all connections within XLR or RJ-45 cables
• Full-color IPS TFT display, readable even in direct sunlight
• Li-ion battery, USB-C rechargeable

Technical specifications:

• Weight: 0.445 kg (1 pound)
• Dimensions (L x W x H): 122 x 75 x 43 mm (4.8" x 2.95" x 1.7")
• Ambient temperature: -20 to +50 °C (-4 to +122 °F)
• Battery: 3.6 V, 3200 mAh
• USB-C: 5 V DC, 7.5 W
• etherCON: Neutrik
• XLR 5-pin connector: Neutrik
• XLR 5-pin socket: Neutrik
• Display: 2.4-inch IPS TFT
• Ethernet: 10BASE-T / 100BASE-TX, automatic negotiation, automatic MDI-X
• Network protocols: sACN, sACN draft version (v0.2), Art-Net 1 to 4
• DMX: ANSI E1.11
• RDM: ANSI E1.20
• Signal connections: UVP-485
