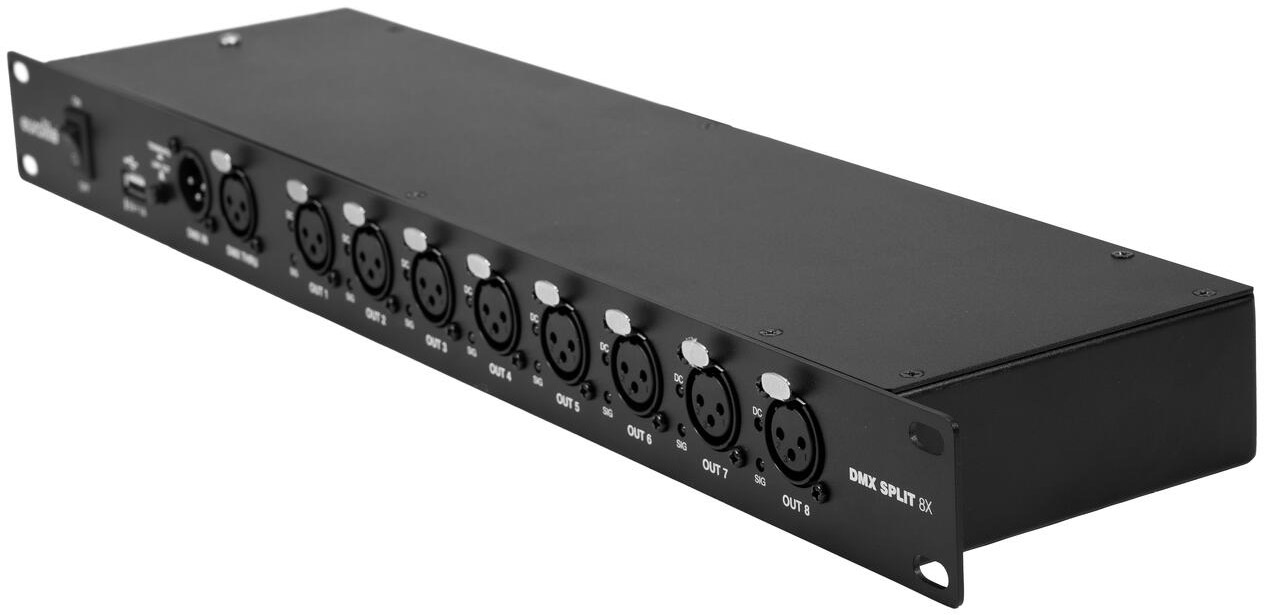

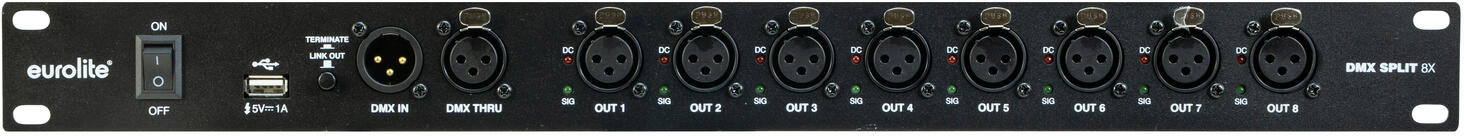

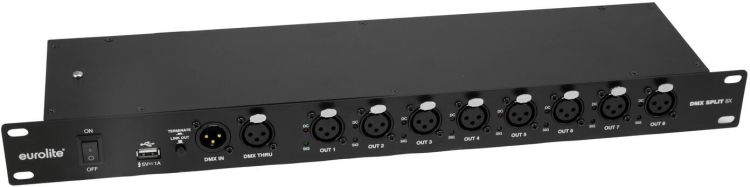

EUROLITE DMX Split 8X Splitter 3pin
€99.00 *
Availability:
Delivery time: 3-5 days
Delivery time: 3-5 days
Item number: 120037830
EAN: 4026397745948
MPN: 70064824
Splitter with 8 galvanically isolated outputs, 3-pin XLR sockets DMX splitter for splitting... more
All information about the product:
"EUROLITE DMX Split 8X Splitter 3pin"
Splitter with 8 galvanically isolated outputs, 3-pin XLR sockets
- DMX splitter for splitting one DMX input signal to 8 DMX outputs
- Input and outputs galvanically isolated
- Switchable termination resistor
- (19") 48.3 cm rack installation 1 U
- Each DMX output with independent driver and status indicator
- The device is cooled by passive convection cooling
- Control via DMX
- For application areas such as: Trade fair and shop fitting; installation; mobile use; stage
- Silent operation
Package contents
- 1 x device, 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 5 W |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Fuse: | 5 x 20 mm, F 1 A fuse replaceable |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 8 x 3-pin XLR (F) mounting version separate (galvanic) with independent driver and status indicator 1 x 3-pin XLR (F) mounting version Bypass |
| Cooling: | Passive convection cooling |
| Control: | DMX |
| Housing color: | Black |
| USB port: | Type A, 1 A |
| Material: | Metal |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Mounting depth: | 14 cm |
| Dimensions: | Width: 48,3 cm Depth: 12,5 cm Height: 4,4 cm |
| Weight: | 1,65 kg |
| Noise classification: | Class 0 (no noise at all) |
