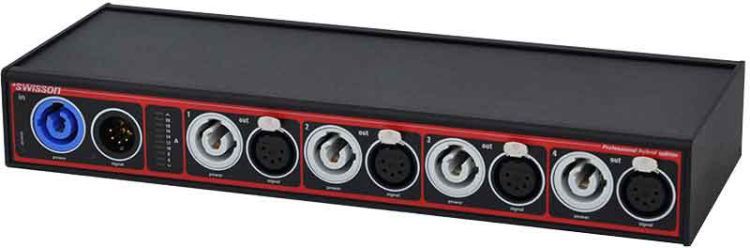

Swisson XSH-5BR-1P4 (Box) RDM Hybrid Splitter

Swisson
Preview: Swisson XSH-5BR-1P4 (Box) RDM Hybrid Splitter Preview: Swisson XSH-5BR-1P4 (Box) RDM Hybrid Splitter
Swisson XSH-5BR-1P4 (Box) RDM Hybrid Splitter
Swisson XSH-5BR-1P4 (Box) RDM Hybrid Splitter

€949.62 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Near-term available
Delivery time: approx. 1 week
Delivery time: approx. 1 week
Please choose a variant.
Item number: 142000180
EAN: 4262535971316
MPN: swi101351
Description Videos 0 Downloads 1
Description
Signal splitter with power The XSH Hybrid Splitter is the splitter for simultaneous... more
Back to the overview
All information about the product:
"Swisson XSH-5BR-1P4 (Box) RDM Hybrid Splitter"
Signal splitter with power
The XSH Hybrid Splitter is the splitter for simultaneous distribution of the DMX signal and power supply via XLR and powerCON connectors. It connects one powerCON 20A input to four powerCON 20A outputs and distributes the DMX signal from one XLR input to four such outputs. This combination proves particularly practical in modern DMX systems, where so-called hybrid cables with XLR_x0002_and powerCON connectors are often used. An integrated power consumption display makes it easy to ensure that the cables are not operated at their limit. With the RDM option, remote monitoring of power consumption is also possible.
  • DMX input with integrated termination
  • 4 optically isolated DMX outputs
  • 1 powerCON 20A_x0002_input
  • 4 powerCON 20A outputs
  • Neutrik XLR and powerCON sockets
  • Available with 5-pin XLR and 3-pin XLR connectors
  • Current measurement (0 - 20 A) - High reliability
  • Amplifies and regenerates the DMX signal
  • Reduces reflection problems
  • RDM
  • 19" rack mounting kit (optional)
Note: A power cord/power plug is not included in the scope of delivery!
Technical data:
Dimensions:302 x 113.5 x 44.4 mm (WxDxH)
Connection:1x PowerCon in, 4 x PowerCon out
Color:red/black
Weight:1.4 kg
Power consumption:4 watts
Material:metal
Power supply:internally
Signal distribution:1x DMX in (5-pin) to 4 x DMX out (5-pin)
Voltage:100–240 V, 50/60 Hz
Type:RDM/DMX/PowerCon hybrid splitter for truss mounting
