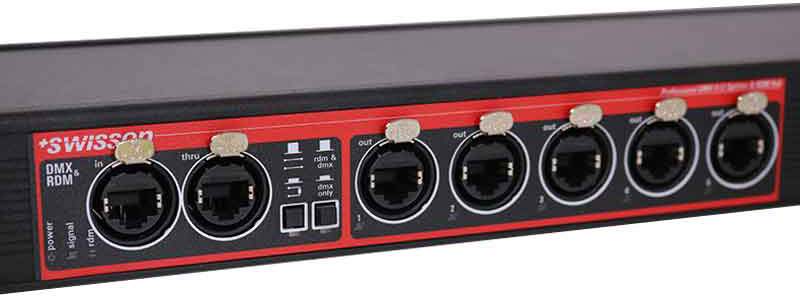

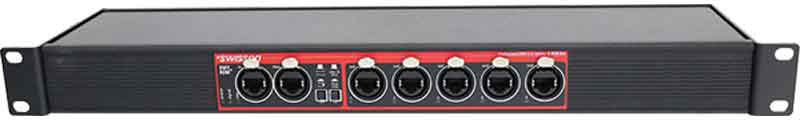

Swisson XSR-8R (rack), RDM-DMX splitter

Reliably split every signal

DMX splitters are the backbone of every DMX512 installation. The XSP models offer maximum reliability in professional use on tour or in installations. The specially developed power supply ensures smooth operation even under difficult network conditions. Each port is optically isolated and very well protected against transient overvoltages. The DMX signal is regenerated and amplified by the XSP without changing the DMX protocol timing. The XSP splitter reduces reflection problems and allows the DMX signal to be distributed across multiple lines. An integrated microcontroller constantly monitors the DMX protocol and displays signals or errors. There are a variety of XSP models to suit a wide range of applications. The box models have a thread for a clamp and an eyelet for the safety cable. These models are portable and suitable for truss mounting. The rack and double rack models are for 19" rack systems. There are different connection types with 5-pin XLR, 3-pin XLR, and pluggable screw terminals. Installation versions for wall mounting and direct wiring are also available.

Note: A power cord/power plug is not included in the scope of delivery!
