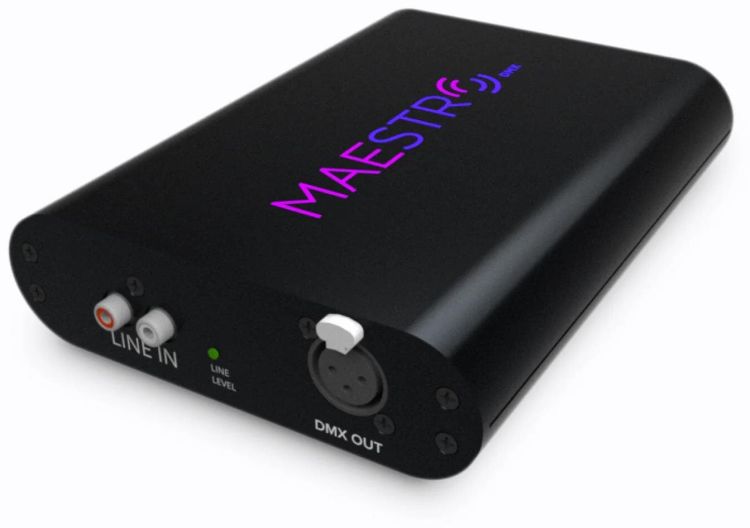

LimbicMedia MAESTRO-DMX

LimbicMedia MAESTRO-DMX™

Smart lighting control that understands music

MaestroDMX™ is an autonomous and intelligent lighting control system that not only hears music—it understands it. Using AI-based algorithms, it analyzes songs in real time and designs light shows with the sensitivity of a professional lighting designer—without any human intervention, if desired.

Highlights at a glance

• Quick deployment – Ready to go in just a few minutes
• Real-time music analysis – No preliminary analysis required
• Fully autonomous operation – No operation required unless desired
• Standalone device – No internet access required – Fail-safe even in the event of audio or network interruptions
• Intuitive control – via a web-based, user-friendly interface
• TouchOSC compatibility – creation and control of custom interfaces possible
• Intelligent lighting design – reacts and creates in a similar way to a human lighting technician
• Compatible with all DMX-enabled lamps and Moving Heads
• ArtNet-compatible - Output of a total of 1024 DMX channels in two universes*
• Most comprehensive fixture library – For a quick start with all devices
• Live visualization of the DMX values output for each channel
• Manual control when needed – blind, strobe, fog, static scenes, and more
• Flexible customization—create snapshots and FX palettes, as well as your own colors and color gradients
• Music pause detection – Automatic light immobilization during silence and speech pauses
• Supports all common effects – colors, movements, gobos, zoom, prisms, hazers, and much more.
• Expandable with special effects – also suitable for shows with lasers, derbies, etc.
• Easy updates – directly in the web interface or via USB

Technical specifications

• Inputs: RCA (line-in), LAN, 2× USB-A
• Outputs: 3-pin Neutrik® DMX output
• Power supply: USB-C (5V, 2A – power adapter not included)
• Connectivity: Wi-Fi (2.4 GHz) & wired LAN
• Control: Browser-based, free for life
• DMX channels: 1024 channels -> 512 channels via built-in DMX port, additional 512 channels possible via intuitive external ArtNet connection.*
• Dimensions: 5.7 inches × 7.9 inches × 1.8 inches
• Certifications: IP20 (indoor use), CE, RoHS, WEEE, FCC, UKCA

Scope of delivery

• MaestroDMX™
• USB-C cable
• wireless network dongle
• sticker
• Quick start guide (German & English)
• safety instructions

What you get when you purchase MaestroDMX™

• Robust hardware with high-quality brand-name components
• Lifetime software license – no lamp, mixer, or manufacturer restrictions
• Free updates – including all features, improvements, and enhancements*

MaestroDMX™ – Because light can be more than just "sound to light" or simply colored light.

Immerse yourself in the next level of show automation!

With MaestroDMX™, you experience a system that not only analyzes music, but also understands, empathizes, and impresses—for light shows that convey emotions and leave a lasting impression.

*Two DMX universes are provided free of charge; additional universes can likely be purchased at a later date.
