LTECH DMX LED Driver 16x 3A

€195.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: 3-5 days

Item number: 139005180

EAN: 8717748602978

MPN: A9915302

16x 3A OLED display and control buttons 8-bit/16-bit Multiple dimming curve options... more

Back to the overview

All information about the product:

"LTECH DMX LED Driver 16x 3A"

16x 3A
OLED display and control buttons
8-bit/16-bit
Multiple dimming curve options
Built-in circuit protection and photoelectric isolation

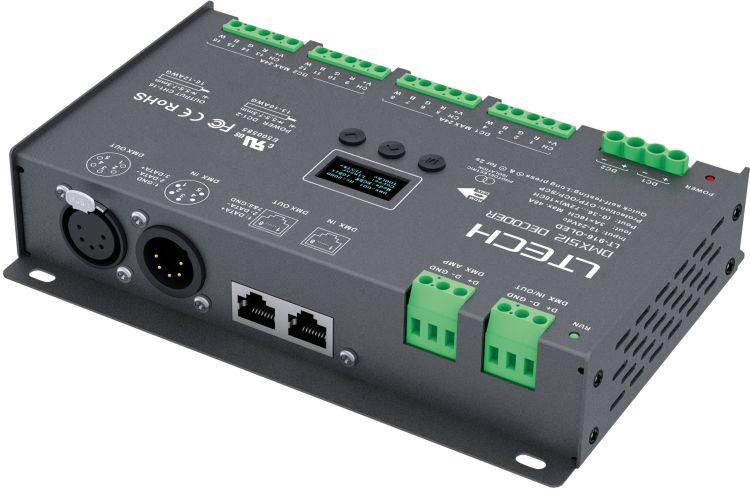

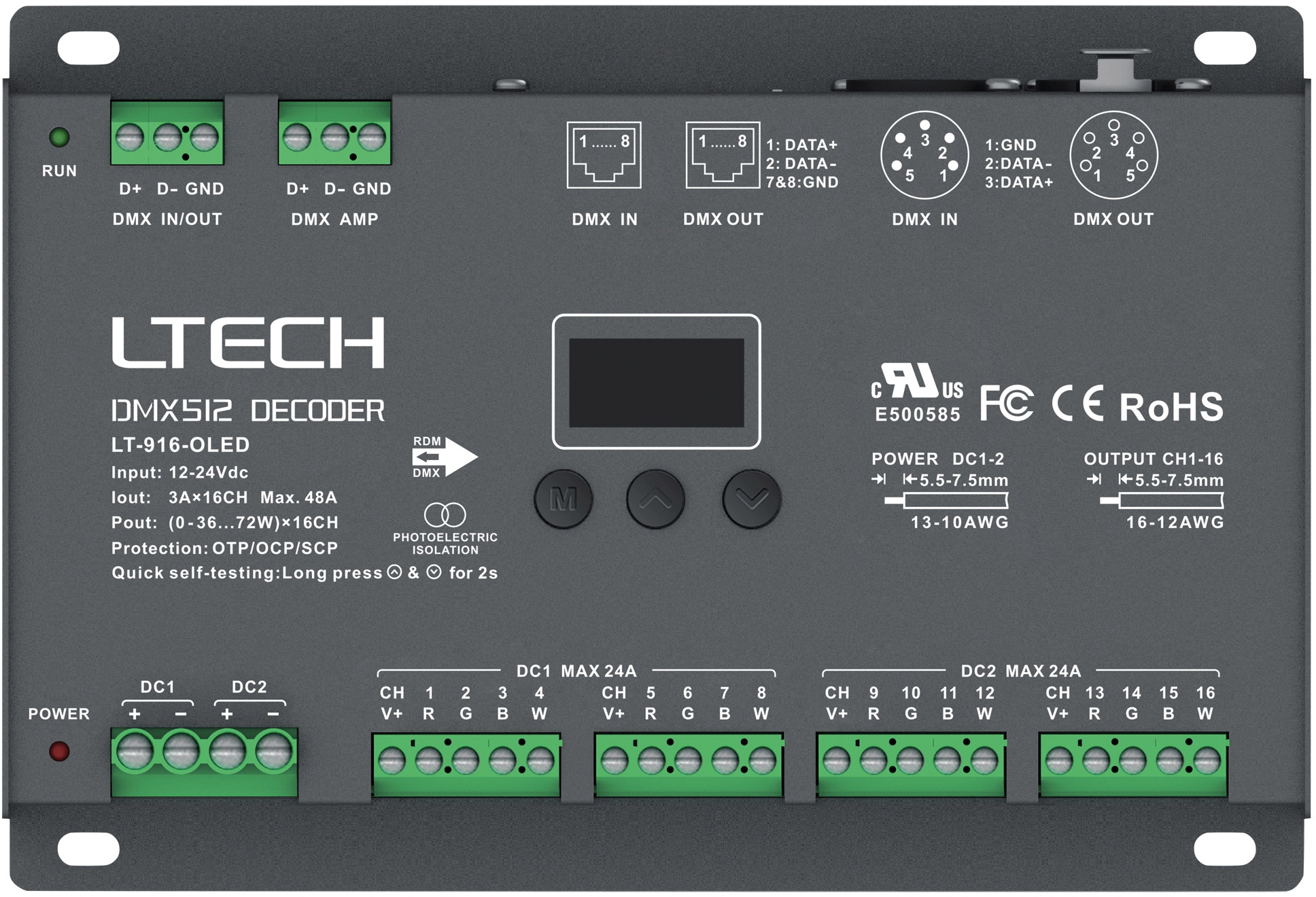

This 16-channel, 3A DMX LED Driver is designed for high-power, multi-channel applications. It's equipped with 5-pin XLR, RJ45 and terminal DMX ports. Its OLED display shows information including the DMX address, the PWM frequency, the mode (Dim, CT, RGB, RGBW), the grey level and the dimming curve. The built-in control buttons can be used to easily adjust parameters. With the RDM protocol on board too, operations can be completed via the RDM master console.Technical data:

Control Mode:	DMX / RDM
Display:	OLED
Power Supply:	12-24 V DC
Power Connector In:	Open End
Power Connector Out:	Open End
Length (mm):	180 mm
Height (mm):	122 mm
Width (mm):	39 mm
Weight:	0.73 kg
IP Rating:	IP20 (indoor use only)
Colour:	Black
Maximum Ambient Temperature:	65 °C
Minimum Ambient Temperature:	-30 °C
