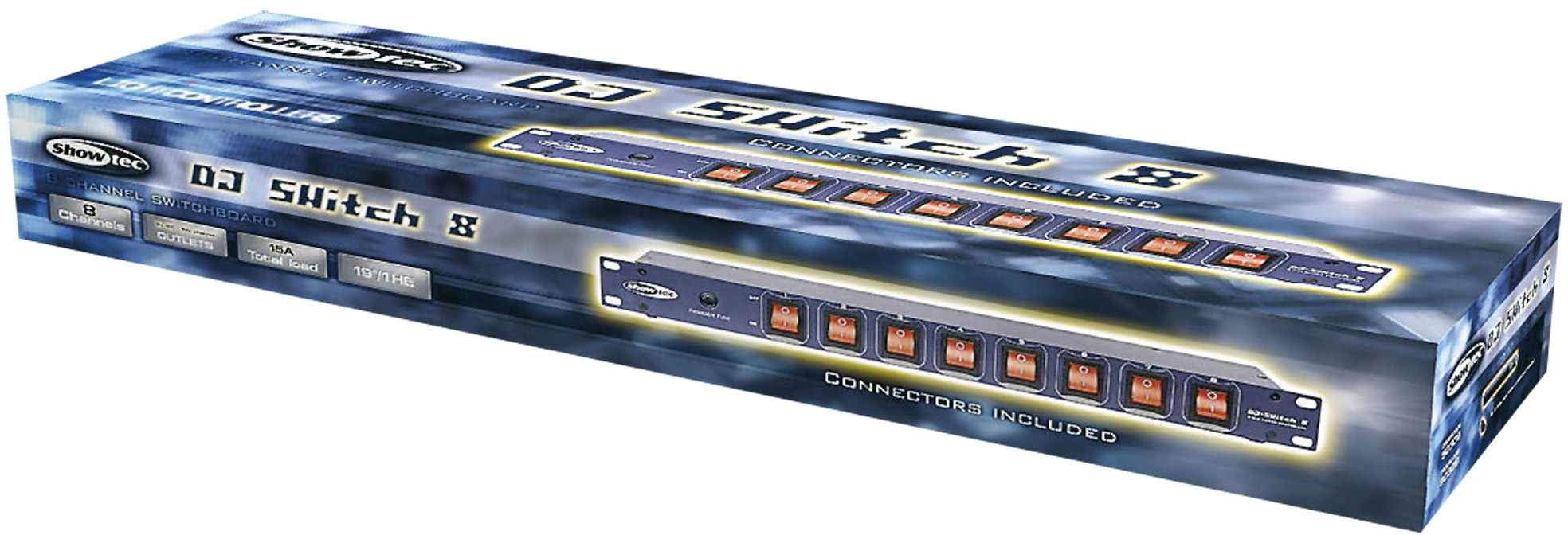

SHOWGEAR DJSwitch 8

€89.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: 3-5 days

Item number: 120608645

EAN: 8717748016591

MPN: 50309

Engaged switches are lit Fuse on front panel 8 IEC sockets Maximum 10 A per channel... more

Back to the overview

All information about the product:

"SHOWGEAR DJSwitch 8"

Engaged switches are lit
Fuse on front panel
8 IEC sockets
Maximum 10 A per channel

8-channel switchboard. IEC outlets on backside 10 A per channel. 15 A total load. Fuse on frontpanel.

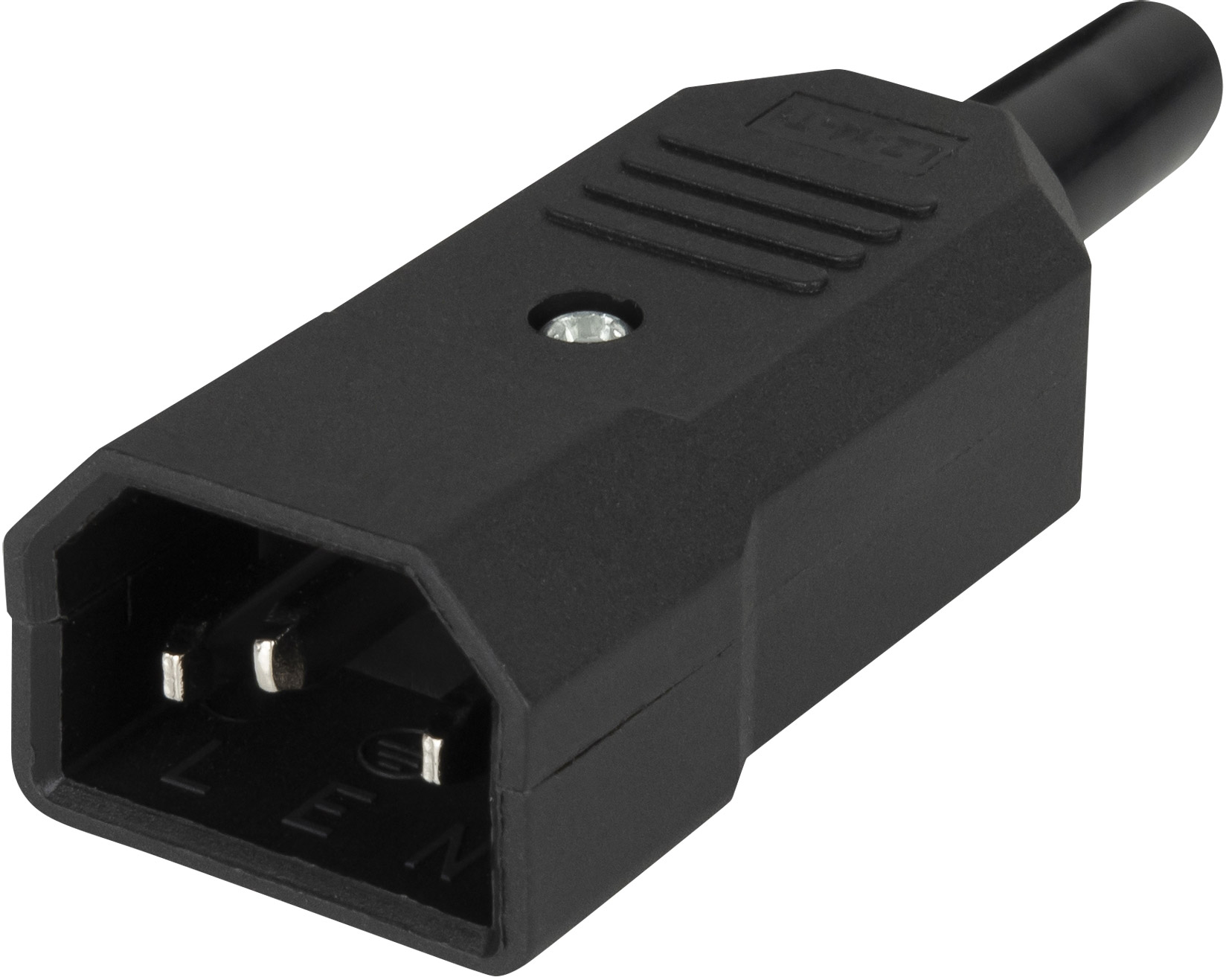

(IEC male connectors included)Technical data:

Power Supply:	100-240 V AC 50/60 Hz
Output Current per Channel:	10 A
Fuse:	15 A
Power Connector In:	Schuko Plug
Power Connector Out:	IEC
Cable Length:	1 m
Width (mm):	482 mm
Height (mm):	45 mm
Depth (mm):	280 mm
Installation Depth (Excl. Connector):	135 mm
Weight:	1.1 kg
Rack Units:	1 U
IP Rating:	IP20 (indoor use only)
Housing:	Metal
Colour:	Dark Gray
Maximum Ambient Temperature:	40 °C
Minimum Ambient Temperature:	-10 °C
Minimum Operating Temperature:	-10 °C
Included Cables:	Fixed Cable
