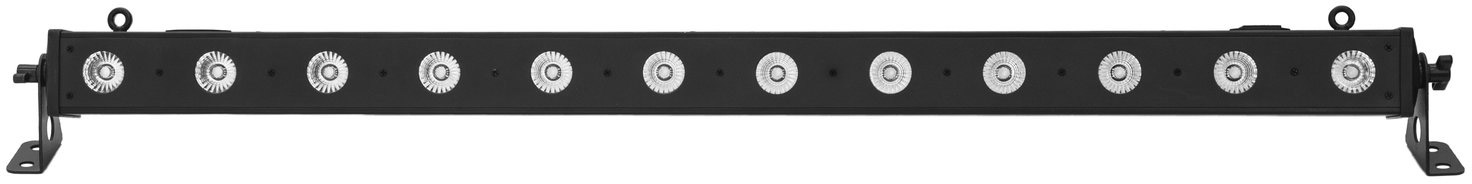

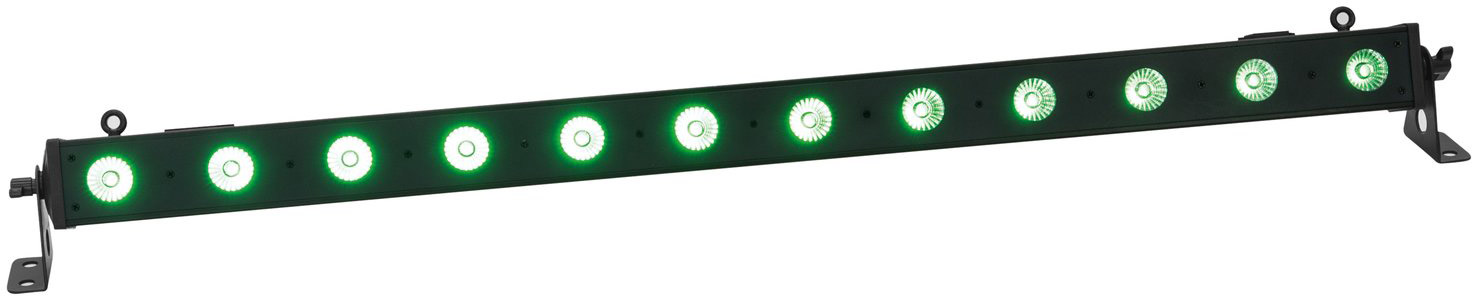

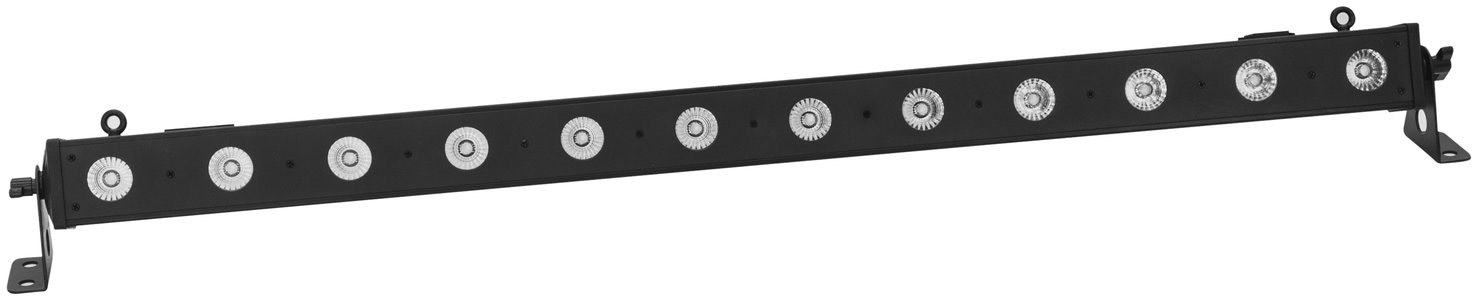

EUROLITE LED BAR-12 QCL RGB+UV Bar
€149.00 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 120031005
Light effect bar (1 m) with RGB+UV color mixing 12 powerful LEDs 4 W high-power 4in1 QCL... more
All information about the product:
"EUROLITE LED BAR-12 QCL RGB+UV Bar"
Light effect bar (1 m) with RGB+UV color mixing
- 12 powerful LEDs 4 W high-power 4in1 QCL RGB/UV (homogenous color mix)
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- Strobe effect; UV effect
- Integrated show programs
- Direct color selection for 20 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 20°
- With Mounting bracket
- 4 digit 7-segment LED display
- Silent operation
- Preprogrammed in LED PC-Control 512; EASY SHOW 2; Light Captain; EASY SHOW 3
- Mains input and output for power linking up to 8 units
- For further information about this product, please refer to the Data Sheet under "Downloads"
Package contents
- 1 x bar, 1 x user manual, 1 x power cord, 2 x mounting bracket, 2 x screw, 2 x washer
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 25 W |
IP classification: | IP20 |
Protection class: | Protection class I |

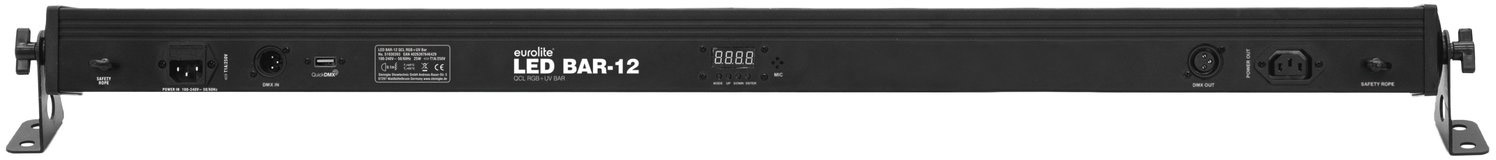

Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
Power output: | 1 x IEC connector (F) mounting version |
Lamp type: | LED lamp |
LED: | 12 x 4 W high-power 4in1 QCL RGB/UV (homogenous color mix) |
Flash rate: | 0 - 20 Hz |
DMX channels: | 2; 4; 5; 6; 9 |
DMX input: | 3-pin XLR (M) mounting version |
DMX output: | 3-pin XLR (F) mounting version |
Cooling: | Passive convection cooling |
Control: | Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
Preprogrammed in: | LED PC-Control 512; EASY SHOW 2; Light Captain; EASY SHOW 2; EASY SHOW 3 |
Beam angle: | 20° |
Beam angle (1/2 peak): | 20° |
Beam angle (1/10 peak): | 33° |
Wavelength: | Ultra violet (UV) 399 nm |
Housing color: | Black |
Attachment system: | Mounting bracket |
Display type: | 4 digit 7-segment LED display |
Material: | Aluminum; metal |
Dimensions: | Length: 1,07 m Depth: 6,5 cm Height: 10,3 cm |
Weight: | 2,85 kg |
Noise classification: | Class 0 (no noise at all) |
Photobiological safety: | Risk Group 0 |
Power cord | |
Cable construction: | 3 x 0,75 mm² H05VV-F |
Cable length: | 1,2 m |
Mounting bracket | |
Diameter mounting holes: | 1 x Ø20mm; 1 x Ø11mm; 2 x Ø7mm |
Material: | Metal, 2 mm |
Legal specifications | |
Special product: | Not designed for household room illumination |
Intended use: | Show effect lighting |
