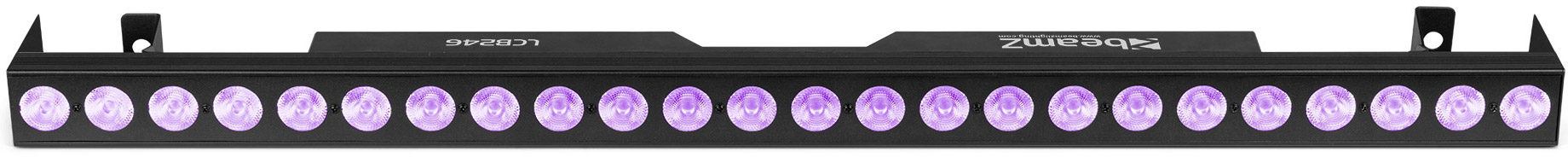

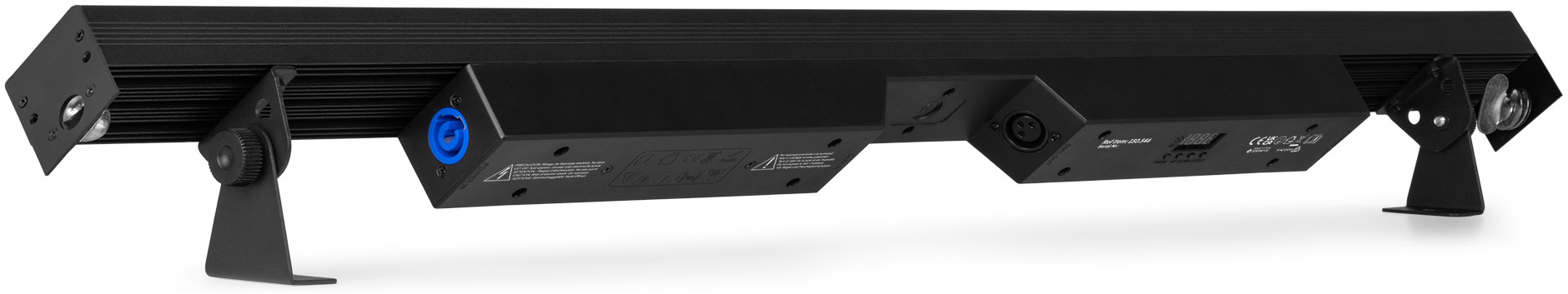

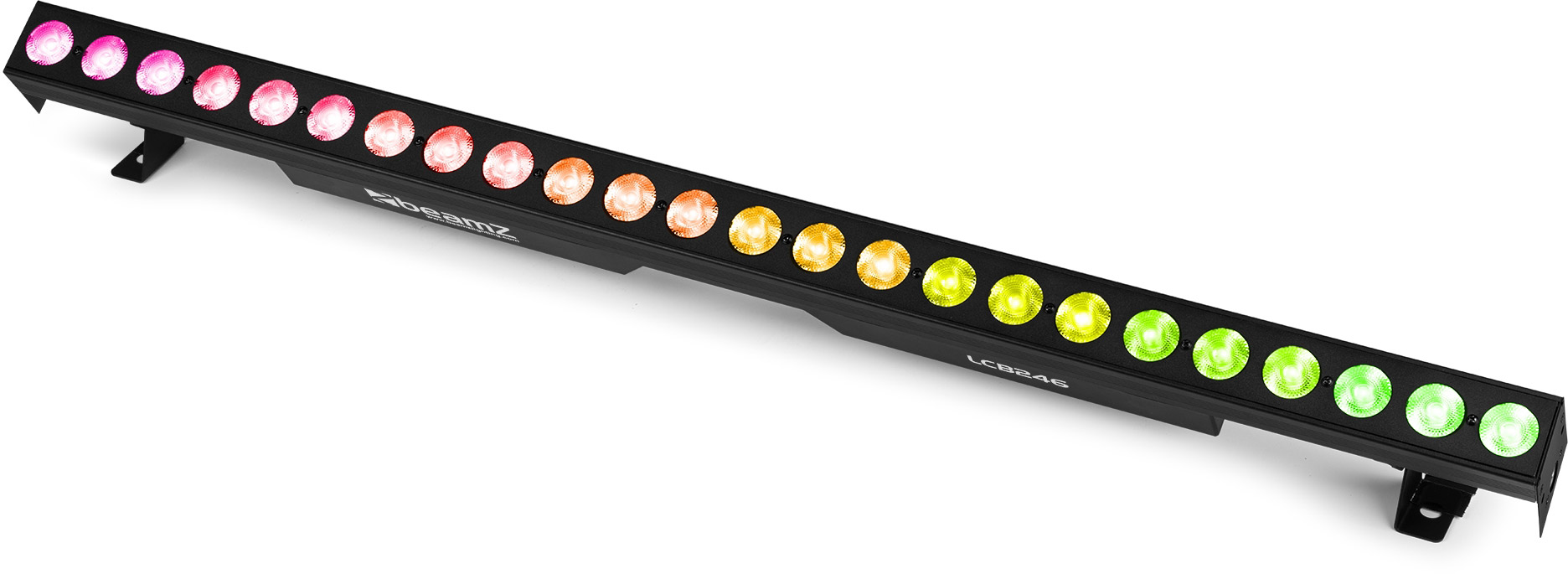

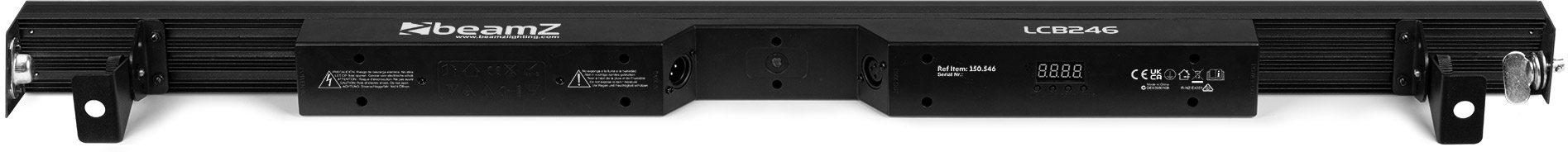

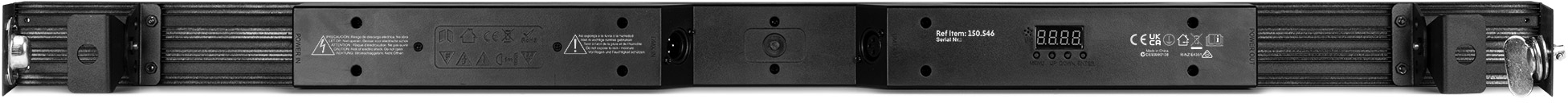

beamZ LCB246 LED BAR 24x6W RGBAW-UV
€229.00 *
Availability:
Delivery time: 3-5 days
Delivery time: 3-5 days
Item number: 125003100
EAN: 8715693355352
MPN: 150.546
The LCB246 is a LED bar equipped with 24x 6W pieces RGBAW-UV LEDs. The LEDs are divided into 8... more
All information about the product:
"beamZ LCB246 LED BAR 24x6W RGBAW-UV"
The LCB246 is a LED bar equipped with 24x 6W pieces RGBAW-UV LEDs. The LEDs are divided into 8 individually controllable sections of 3 LEDs each. While using the fixture in stand-alone mode there are pre-programmed shows that you can run automatically or sound activated, pick from the pre-set colour macros or create your own mixture of colours in RGBAW-UV mode. The extra power output enables you to simply link the power of multiple units together into a single socket.
- 24x 6W 6-in-1 LEDs
- RGBAW-UV colour mixing
- 8 separate controllable sections
- 54 Pre-programmed shows
- Auto mode programs
- Sound activated
- DMX and Stand-alone mode
- Master/slave function
- DMX in/output via 3-pin XLR
- Control panel with LED display
- Aluminium housing
- Powerconnector in/output
- Incl. Quick Lock Brackets
- Product colour: Black
- Light source: 6-in-1 LED
- Colours: Red, Green, Blue, Amber, White, Ultra Violet
- LED power (single LED): 6W
- Quantity of LEDs: 24
- Beam angle: 11°
- Field angle: 24°
- Illuminance: 7.613 lx @ 1m
- Flash rate per second: 1 - 23Hz
- Modes: Automatic programs, DMX, Manual, Master/Slave
- Sound to light mode: Yes
- RDM: Yes
- DMX channels: 6, 8, 11, 48, 52
- DMX connection: 3-pin XLR
- Daisy chain: Yes (max. 6 bars)
- IP rating: IP20
- Cooling: Convection
- Display: LED
- Power plug: P-Con
- Power consumption: 1.635 - 0.771A
- Power supply: 100-240VAC 50/60Hz
- Dimensions (L x W x H): 1000 x 55 x 105mm
- Weight (kg): 2.4600
- Included accessories: Mounting bracket, Power cable
