NEW

€599.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: 3-5 days

Item number: 120038185

EAN: 4026397755527

MPN: 41604100

NEW

Weather-proof (IP65) bar with twelve 30W LED units and excellent tungsten simulation Blinder... more

All information about the product:

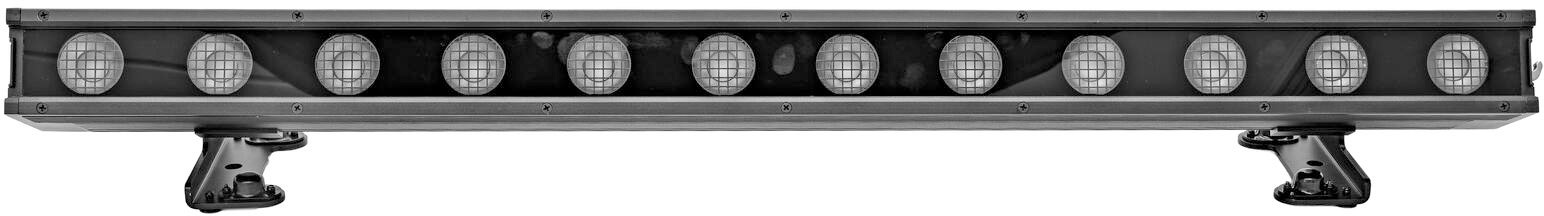

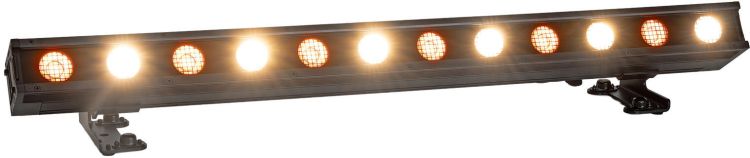

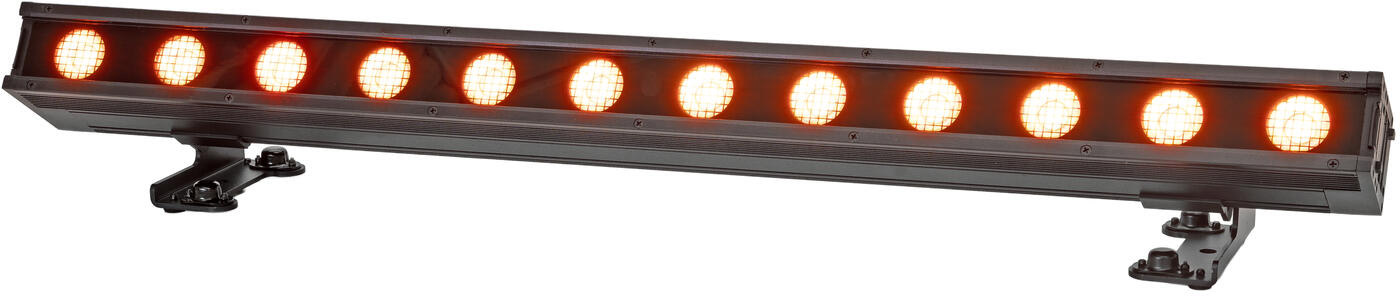

"EUROLITE SUNSET IP BAR 12 Blinder dim2warm"

Weather-proof (IP65) bar with twelve 30W LED units and excellent tungsten simulation

Blinder effect
Control via stand-alone; DMX; RDM; master/slave function
5 integrated show programs
DMX fail mode (hold; blackout)
Dimmer electronic; dimmer curves adjustable; Dimmer speed (step response) adjustable; pulse-width modulation adjustable; Dim to warm
36 LEDs 10 W warm white (WW)
12 segments controlled separately
48 LEDs 0.6 W red (R)
12 segments controlled separately
48 LEDs 1 W amber (A)
12 segments controlled separately
RDM For bidirectional communication over the DMX line

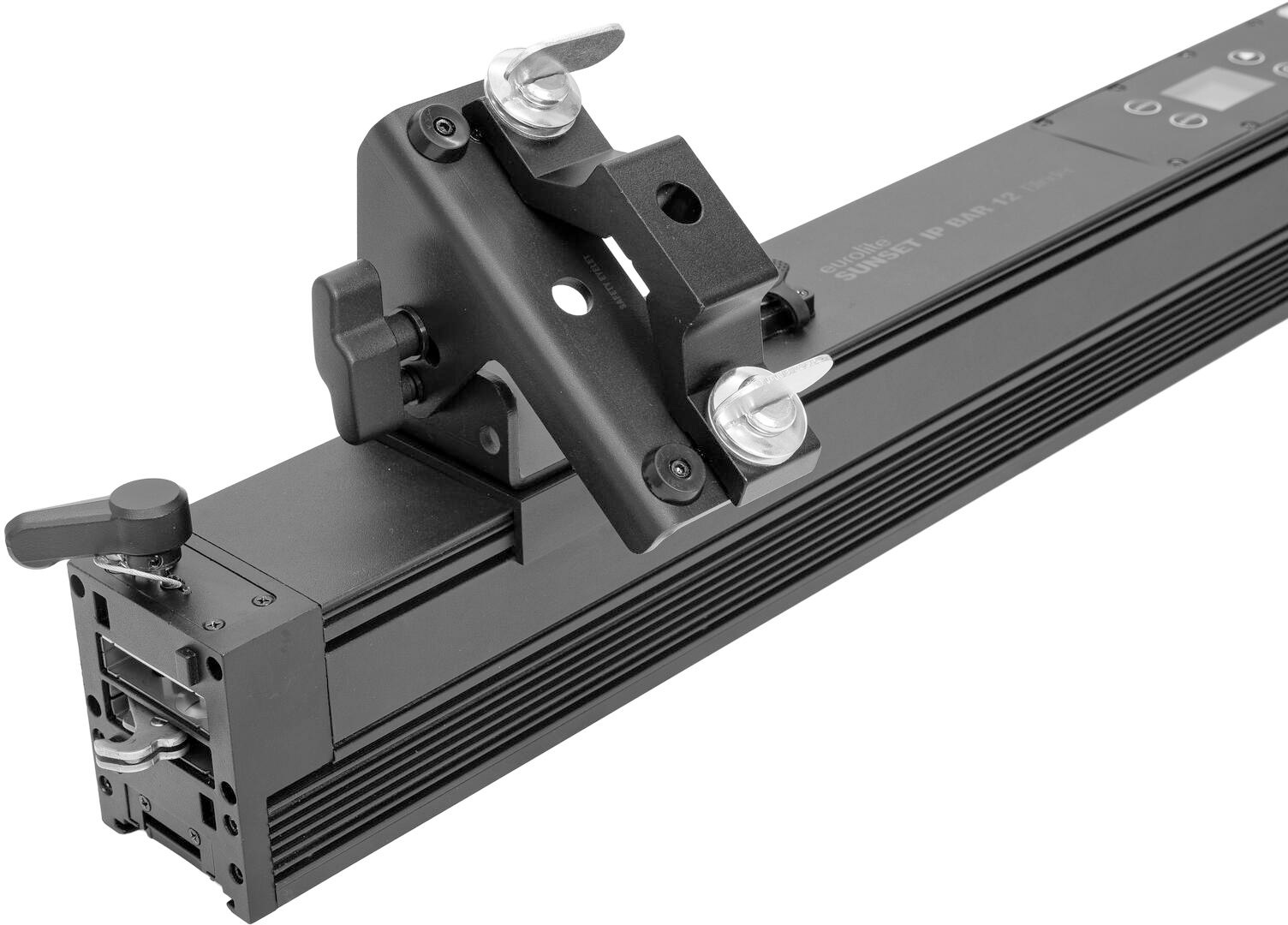

With panning and tilting mounting bracket for ceiling or wall installation in most varying angles; with omega bracket

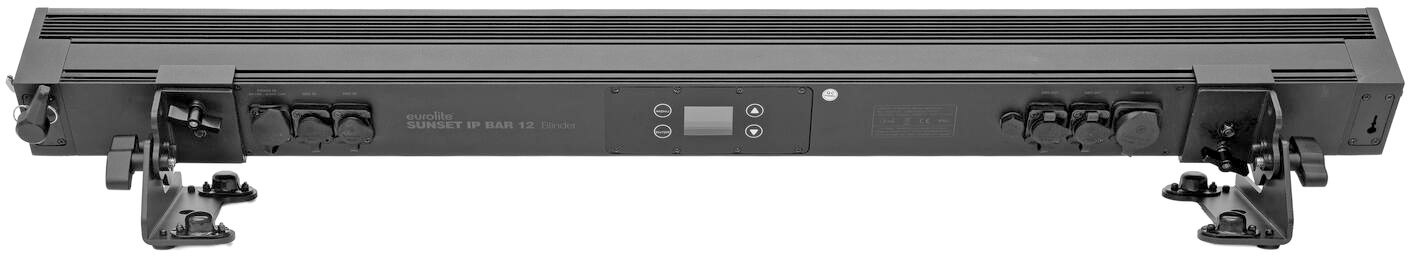

Multicolor LCD display
The device is cooled by passive convection cooling
Mains input and output for power linking up to 8 units
Built with SEETRONIC connector
Suitable for outdoor use IP65
With pressure compensation membrane
For application areas such as: Stage; clubs/dancing school; wedding/gala/events; restaurants, bars and hotels; theater
Application possibility: Standing; suspended
Very quiet working noise
Flicker-free
Preprogrammed in Light Captain

Scope of delivery

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	230 W
IP classification:	IP65
Protection class:	Protection class I
Power connection:	Mains input via IP T-Con (M) mounting version power supply cord with safety plug
Cable construction:	3 x 2.5 mm² H07RN-F
Power output:	IP T-Con (F) mounting version
Lamp type:	LED lamp
LED type:	36 x 10 W warm white (WW) 48 x 0.6 W red (R) 48 x 1 W amber (A)
Flash rate:	1 - 33 Hz
DMX channels:	1; 4; 6; 12; 16; 21; 24; 34
DMX input:	3-pin XLR (M) mounting version IP 5-pin XLR (M) mounting version IP
DMX output:	3-pin XLR (F) mounting version IP 5-pin XLR (F) mounting version IP
Cooling:	Passive convection cooling
Control:	Stand-alone; DMX; RDM; master/slave function
Preprogrammed in:	Light Captain
Projection:	Flicker-free
DMX features:	RDM For bidirectional communication over the DMX line
DMX fail mode:	Hold; blackout
Housing color:	Black
Attachment system:	2x panning and tilting mounting bracket for ceiling or wall installation in most varying angles 2x omega bracket
Display type:	Multicolor LCD display
Diameter mounting holes:	2 x Ø12mm
Use of brands:	Built with SEETRONIC connector
Material:	Aluminum casting
Dimensions:	Length: 100.5 cm Width: 14.0 cm Height: 14.7 cm
Weight:	8.25 kg
Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
