NEW

€399.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: 3-5 days

Item number: 120038200

EAN: 4026397751413

MPN: 51914129

NEW

Weatherproof (IP65) bar with RGBW color mixing and pixel control, incl. IR remote control 18... more

All information about the product:

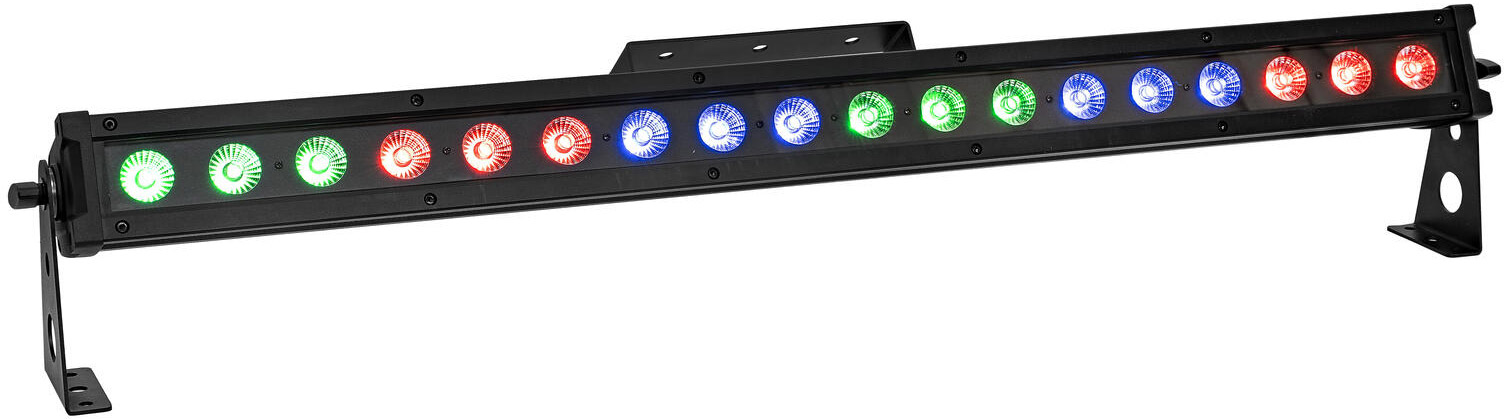

"EUROLITE LED IP T-PIX 18 QCL Bar"

Weatherproof (IP65) bar with RGBW color mixing and pixel control, incl. IR remote control

18 LEDs 8 W SMD 9080 4in1 QCL RGBW (homogenous color mix)
LEDs controlled separately
Dimmer electronic; color change adjustable
Wash effect; strobe effect
12 integrated show programs
Direct color selection for 19 preset colors
The device is cooled by passive convection cooling
Control via stand-alone; IR remote control; DMX; master/slave function
Flicker-free
DMX fail mode (blackout; hold; full on; static; auto)
With a beam angle of 18°
With mounting bracket; with bracket for floor use

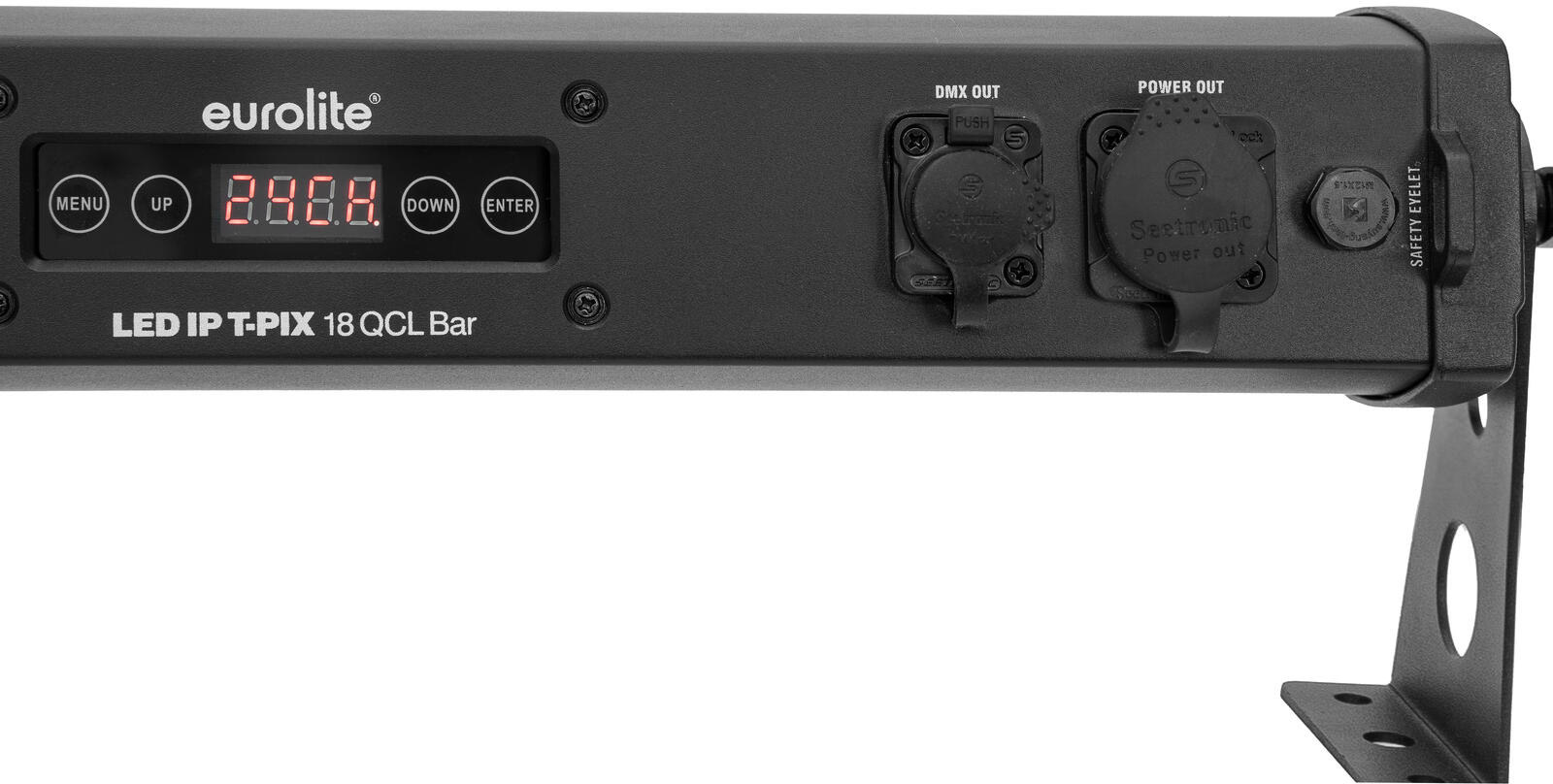

4 digit 7-segment LED display
Mains input and output for power linking up to 8 units
Built with SEETRONIC connector
Suitable for outdoor use IP65
With pressure compensation membrane
For application areas such as: Clubs/dancing school; stage; restaurants, bars and hotels; installation
Silent operation
Application possibility: Suspended
Preprogrammed in Light Captain

Scope of delivery

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	75 W
IP classification:	IP65
Protection class:	Protection class I
Power connection:	Mains input via IP T-Con (M) mounting version power supply cord with safety plug
Cable construction:	3 x 1.0 mm² H05RN-F
Power output:	IP T-Con (F) mounting version
Lamp type:	LED lamp
LED type:	18 x 8 W SMD 9080 4in1 QCL RGBW (homogenous color mix)
Flash rate:	0.5 - 24 Hz
DMX channels:	3; 4; 6; 9; 22; 24; 36; 72
DMX input:	3-pin XLR (M) mounting version IP
DMX output:	3-pin XLR (F) mounting version IP
Cooling:	Passive convection cooling
Control:	Stand-alone; IR remote control; DMX; master/slave function
Preprogrammed in:	Light Captain
Projection:	Flicker-free
PWM frequency:	4100 Hz
DMX fail mode:	Blackout; hold; full on; static; auto
Beam angle:	18°
Beam angle (1/2 peak):	18°
Beam angle (1/10 peak):	38°
Lamp life:	50000 h
Housing color:	Black
Attachment system:	Mounting bracket 2x bracket for floor use
Display type:	4 digit 7-segment LED display
Use of brands:	Built with SEETRONIC connector
Material:	Aluminum casting
Dimensions:	Width: 106.5 cm Depth: 13.3 cm Height: 21.0 cm
Weight:	6.40 kg
Noise classification:	Class 0 (no noise at all)
Remote control
Battery:	1 x button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
