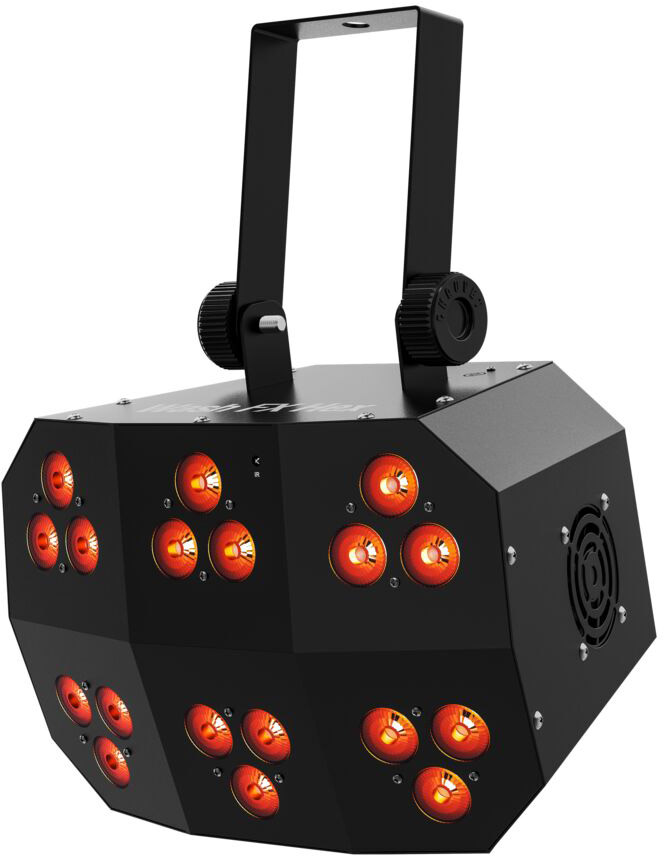

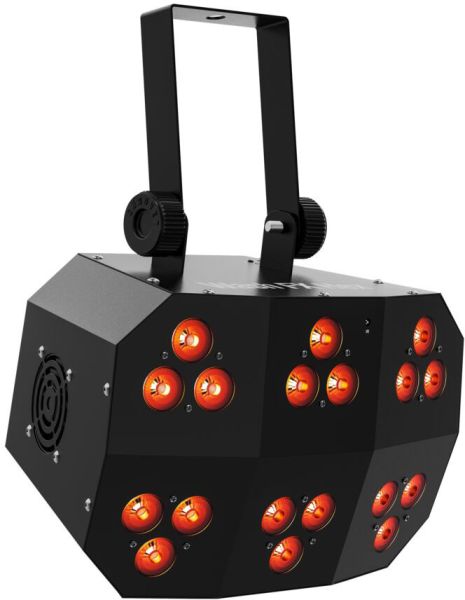

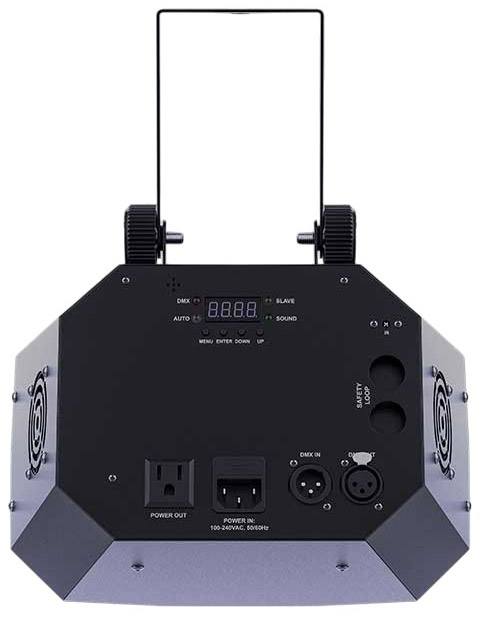

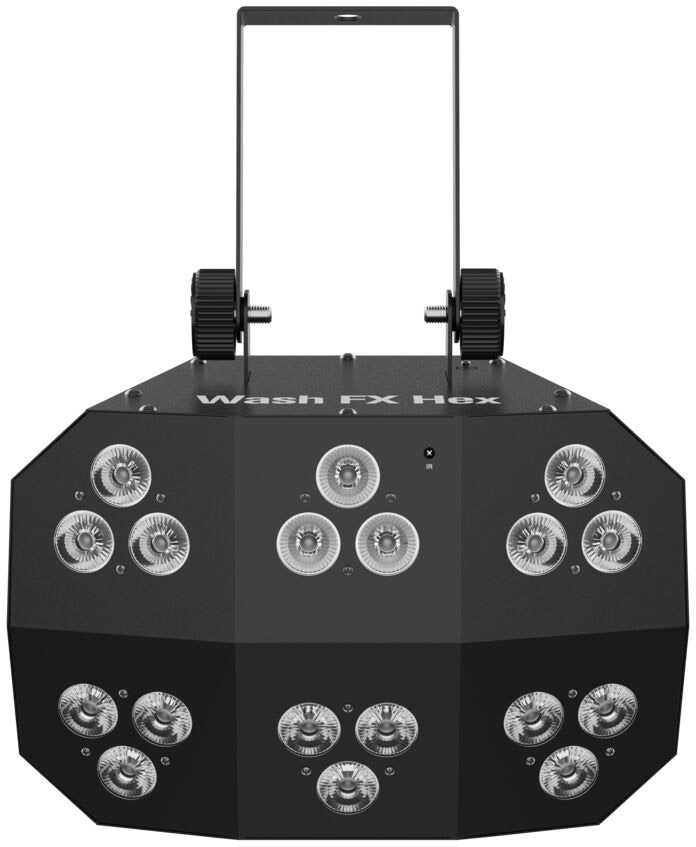

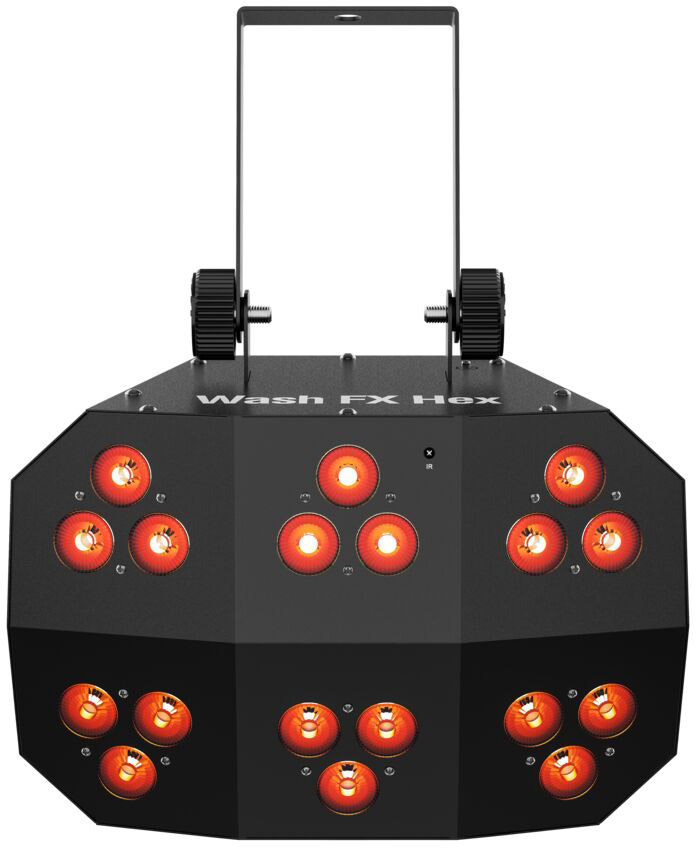

Chauvet DJ Wash FX Hex

Wash FX Hex

With its RGBAW+UV LEDs, our Wash FX Hex is a powerful multi-purpose effect light. UV LEDs offer impressive black light effects, while amber provides natural and brilliant-looking color combinations. Whether as a chaser, blinder or wash light: 6 control zones allow the Wash FX Hex to act both as a static light and as an effect unit. With the extended master/slave mode, the effects can be easily mirrored between two devices. Control options include stand-alone mode, DMX and wireless via the optional IRC-6 remote control. Power linking saves time when laying cables. Ideal for transportation with our CHS-40-VIP bag.

Highlights

• Multi-purpose effect light: running light, blinder or static wash light
• Generates a broad color spectrum and achieves natural-looking color temperatures thanks to RGBAW UV LEDs
• Extended master/slave function allows effects to be mirrored between devices
• Can be used as a regular wash spotlight or as an eye-candy effect light with 6 chaser zones
• Multiple control options include stand-alone, DMX, IR or master/slave
• Compatible with the IRC-6 wireless remote control
• Power linking
• Fits perfectly in the CHS-40 VIP bag

Specifications

• DMX channels: 3, 6, 11 or 40
• DMX connections: 3-pin XLR
• Light source: 18 LEDs (Hex-Color RGBAW+UV) 8 W, 2.8 A, 50,000 hours life expectancy
• Strobe rate: 0 to 24 Hz
• PWM frequency: 1.14 kHz
• Beam angle: 41°
• Field angle: 68°
• Illuminance: 2,422 lx at 2 m
• Power linking: 3 units at 120 V; 5 units at 230 V
• Input voltage: 100 to 240 V AC, 50/60 Hz (automatic adjustment)
• Power and electricity:
  • 200 W, 2.5 A at 120 V, 60 Hz
  • 194 W, 1.5 A at 230 V, 50 Hz
• Weight: 3.2 kg (7.0 pounds)
• Size: 11.2 x 6.3 x 13 in (285 x 160 x 330 mm)
• Approvals: CE
• Optional controller: IRC-6

Included in the scope of delivery

• Wash FX Hex
• Power cable
• Quick guide
