€799.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: 3-5 days

Item number: 120037925

EAN: 4026397746174

MPN: 52200943

Outdoor spotlight (IP65) with tilt motor for strobe, blinder and matrix effects 126 powerful... more

All information about the product:

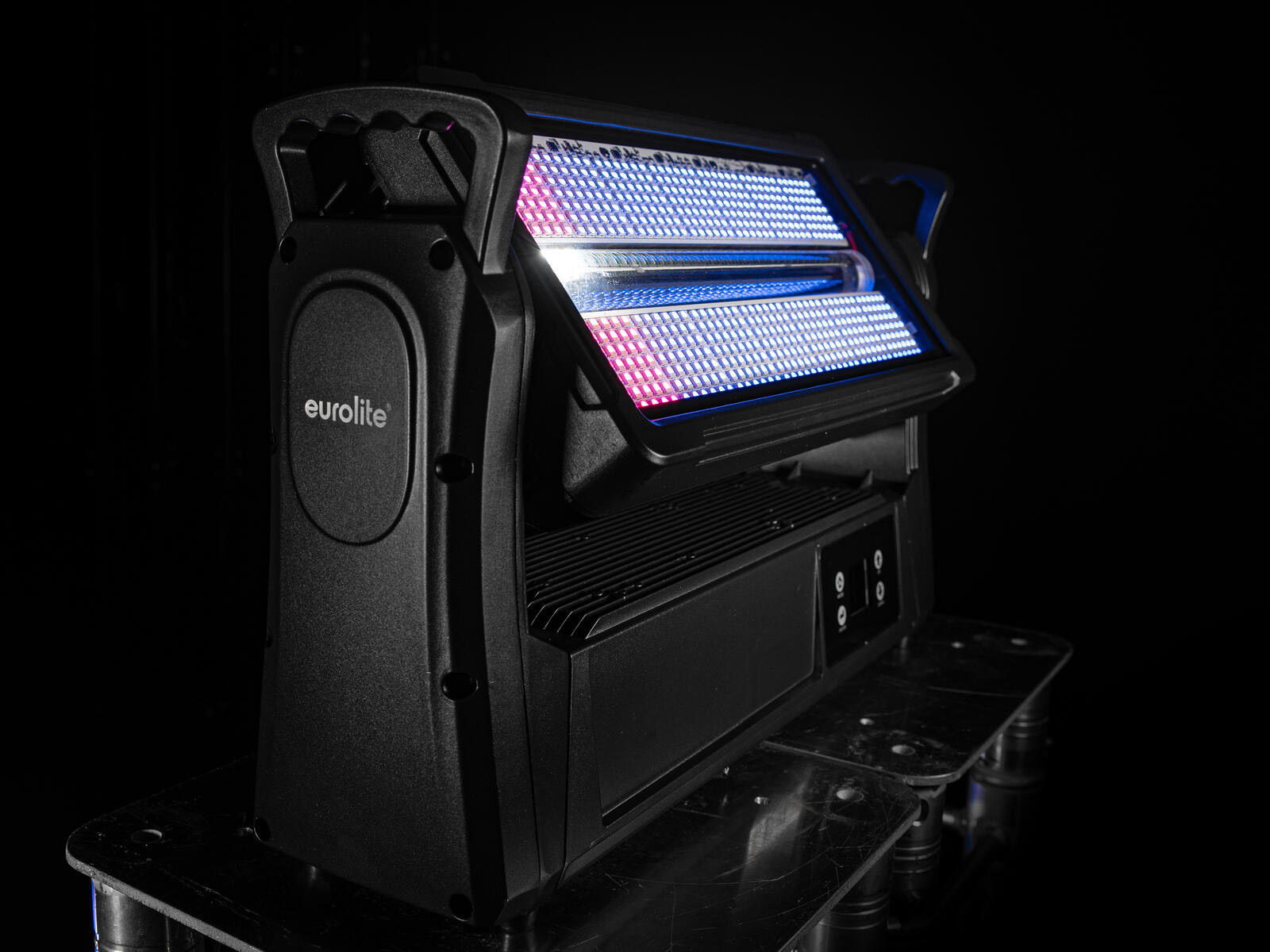

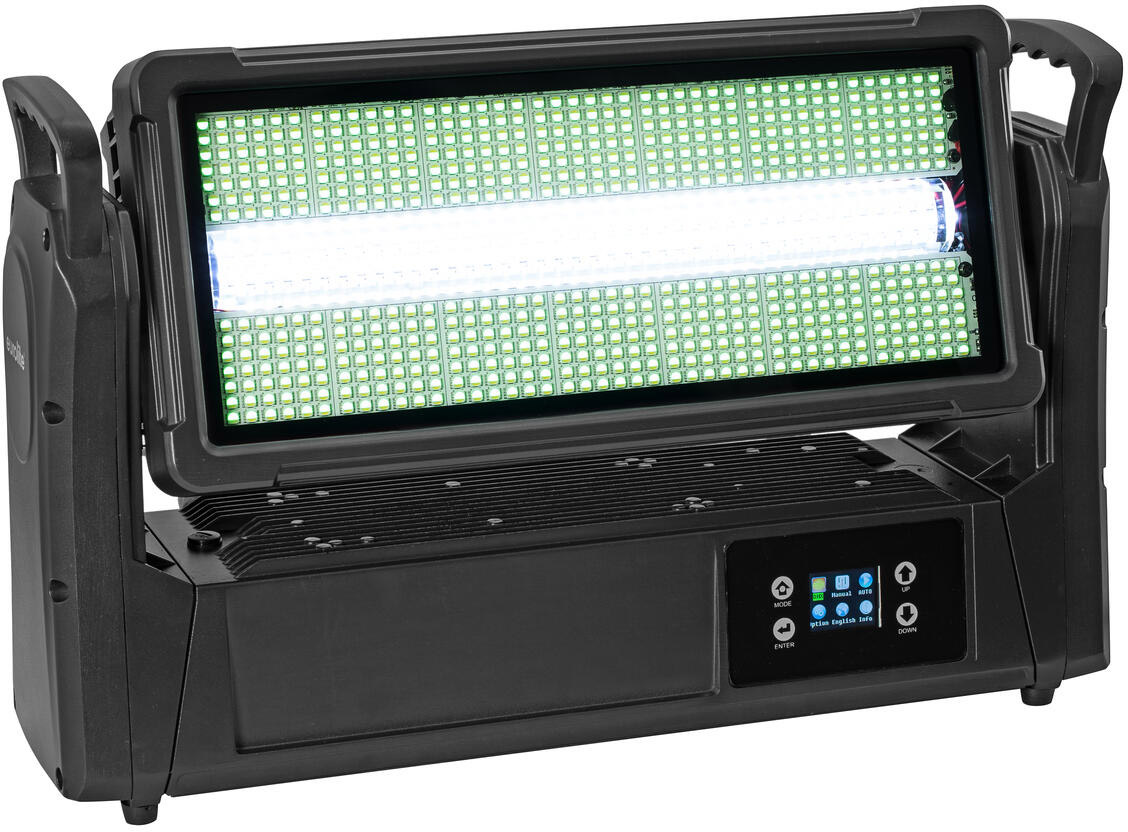

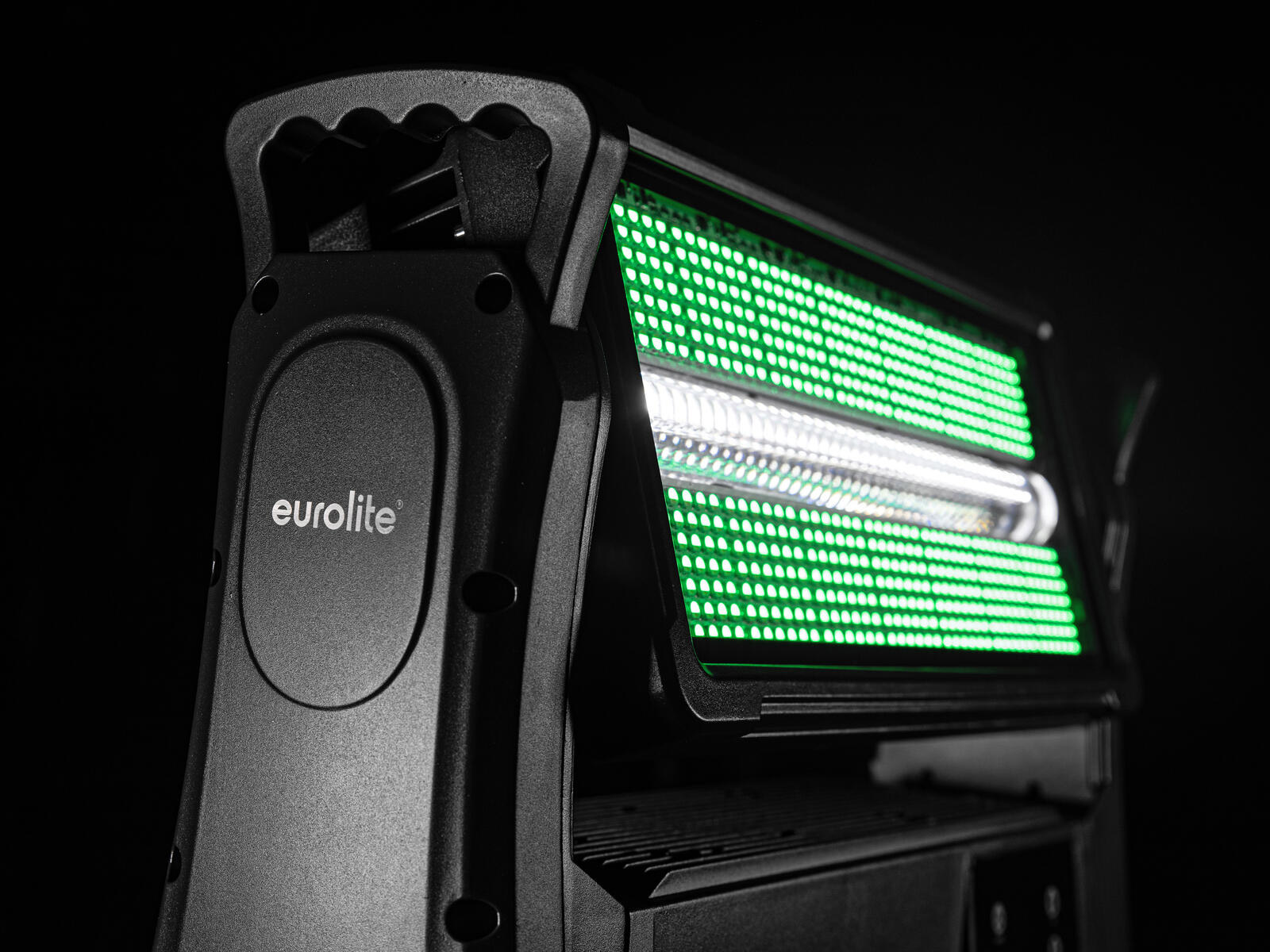

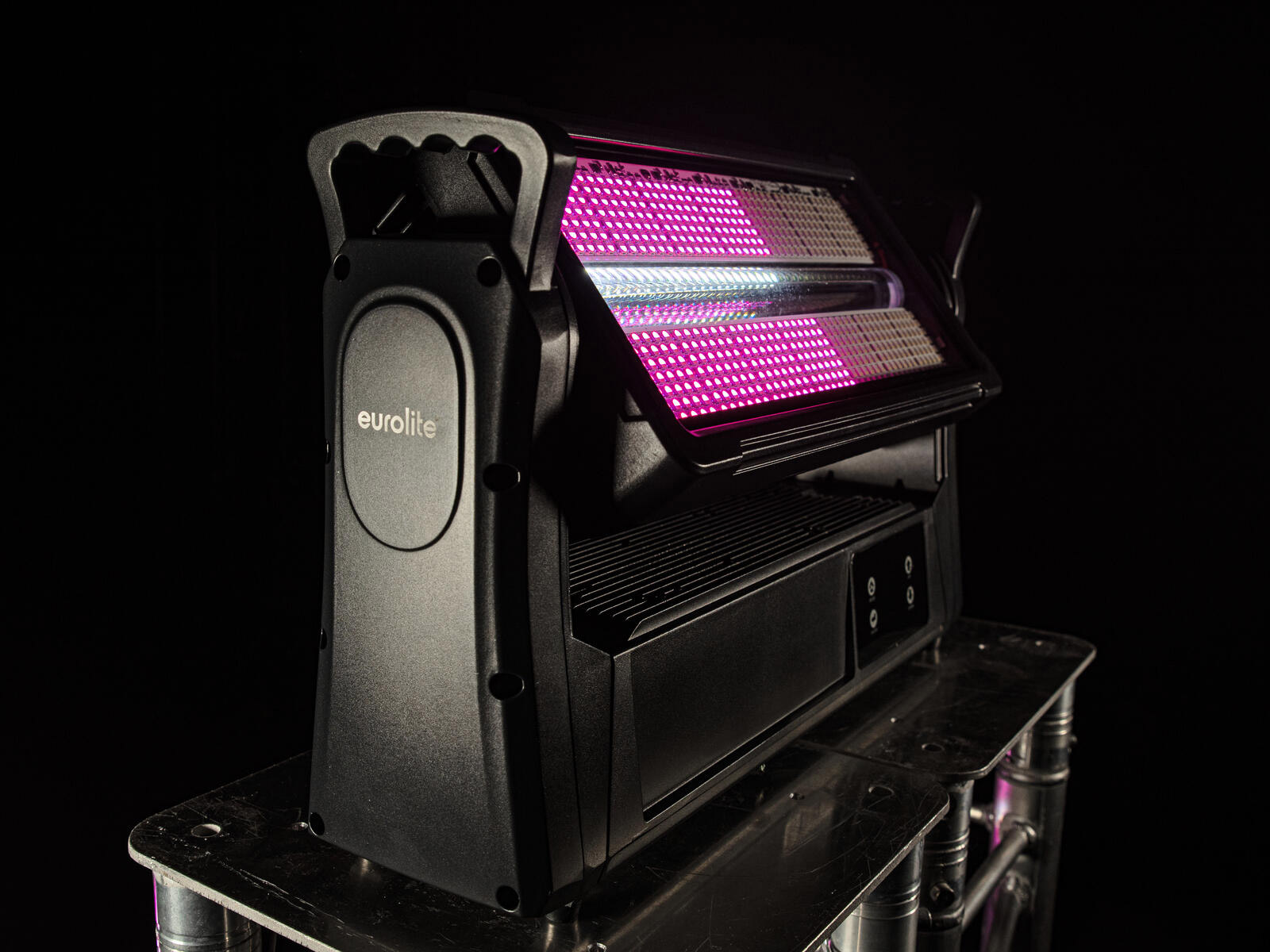

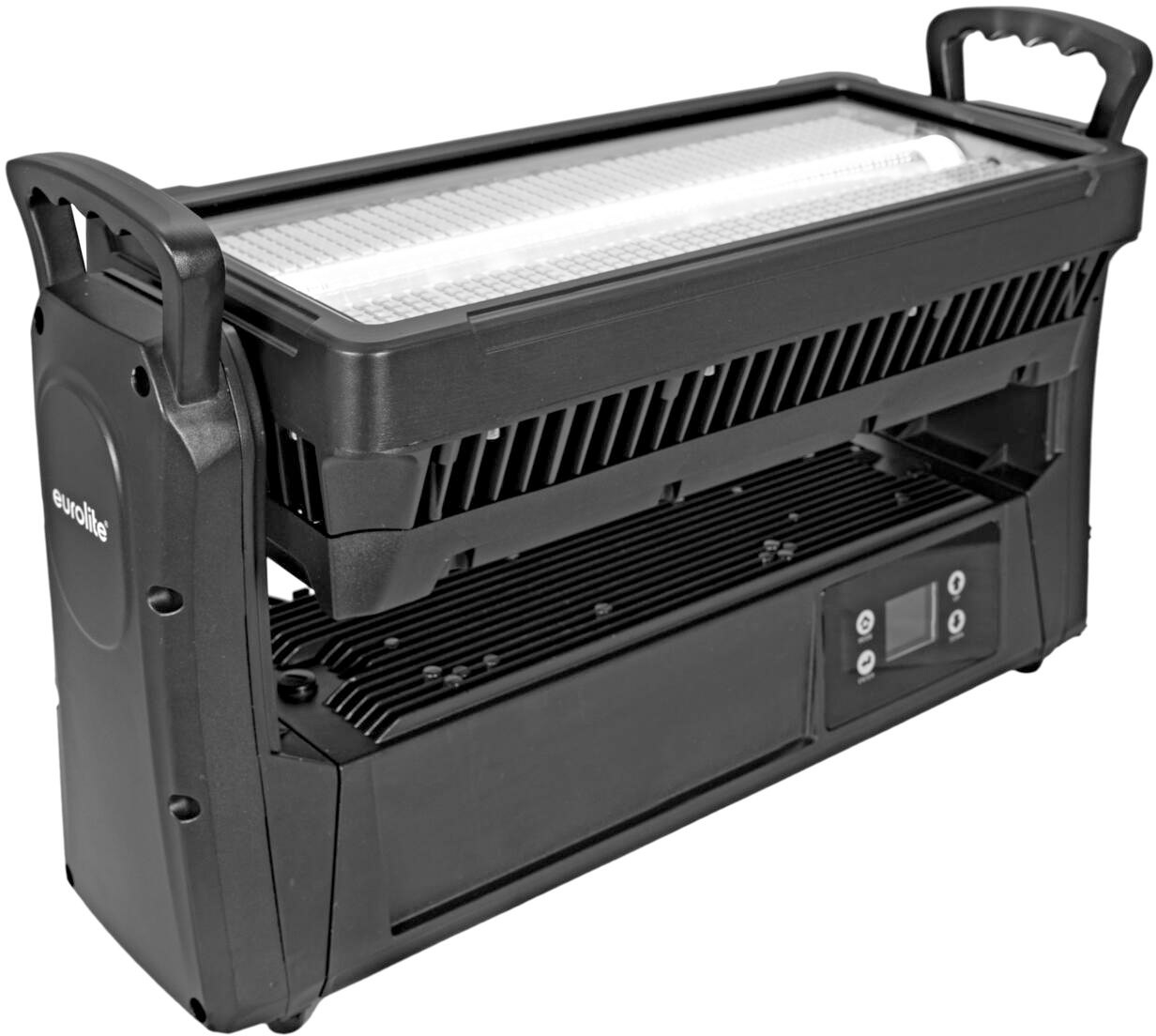

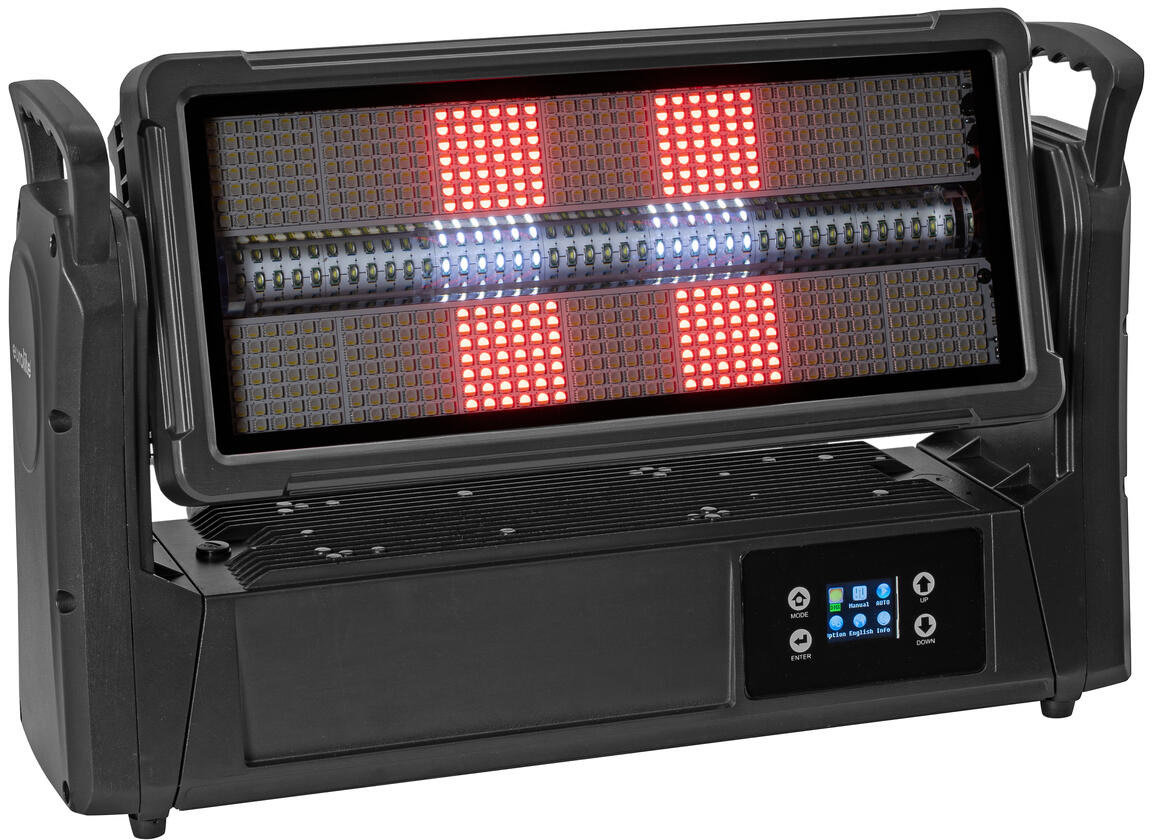

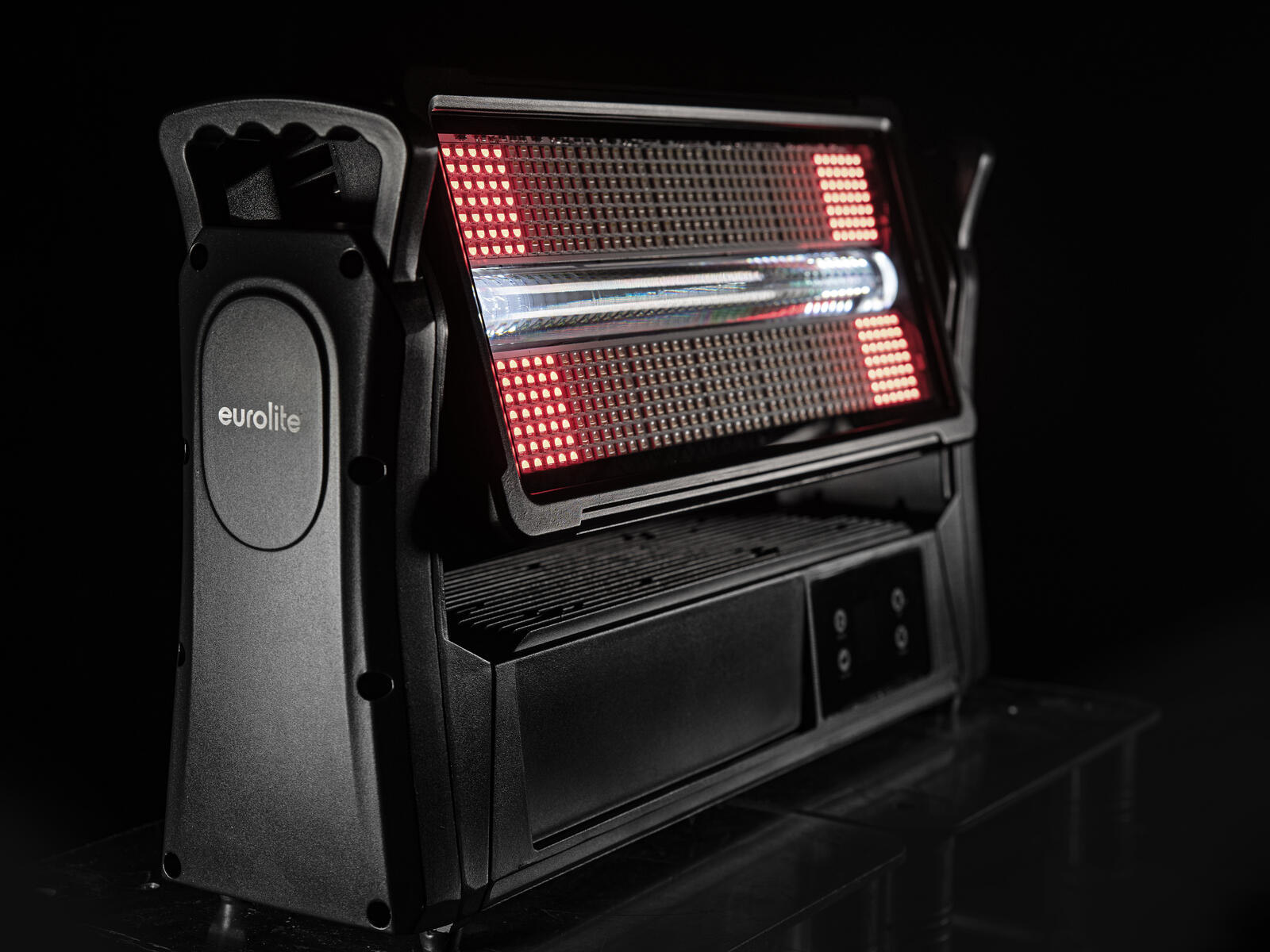

"EUROLITE LED IP Mega PIX Strobe 714 Swing"

Outdoor spotlight (IP65) with tilt motor for strobe, blinder and matrix effects

126 powerful LEDs 3 W SMD 3535 cold white (CW)
7 segments controlled separately
588 powerful LEDs 0,25 W SMD 5050 4in1 QCL RGBW (homogenous color mix)
14 segments controlled separately
Positioning within 200° TILT
Dimmer
Color macros adjustable; background color adjustable; Dimmer electronic; color blend stepless; program speed adjustable; program selection adjustable; running light adjustable

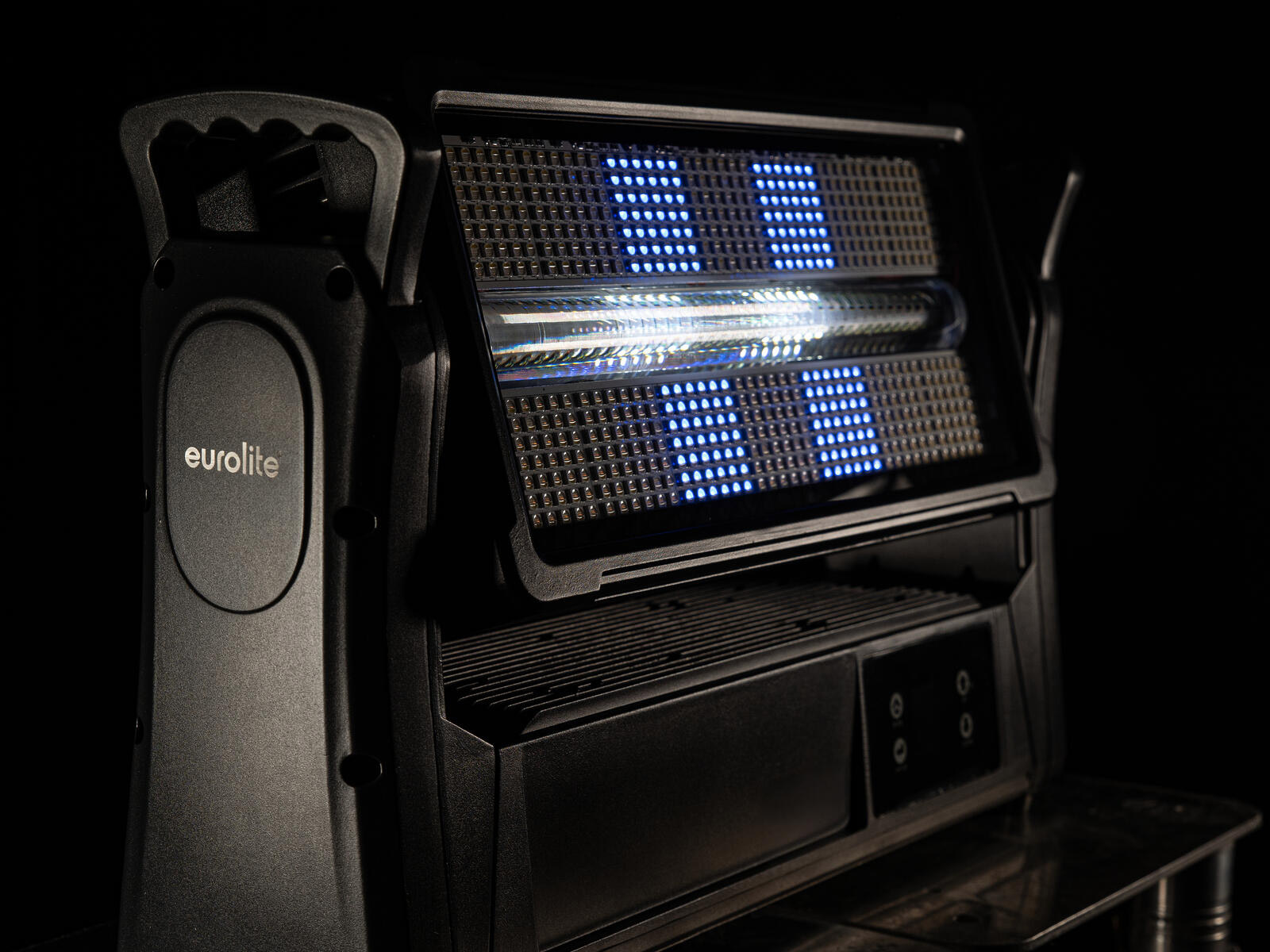

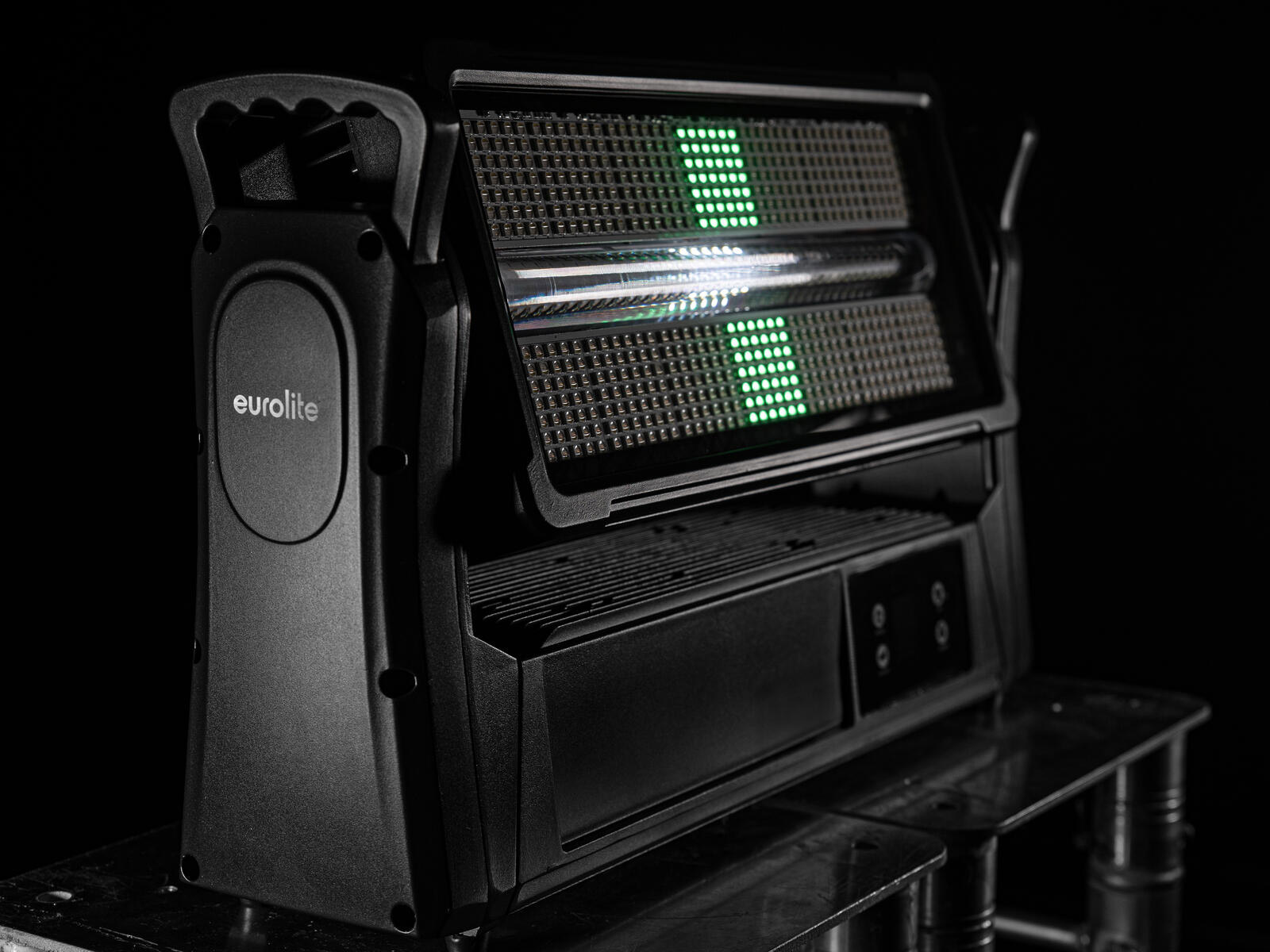

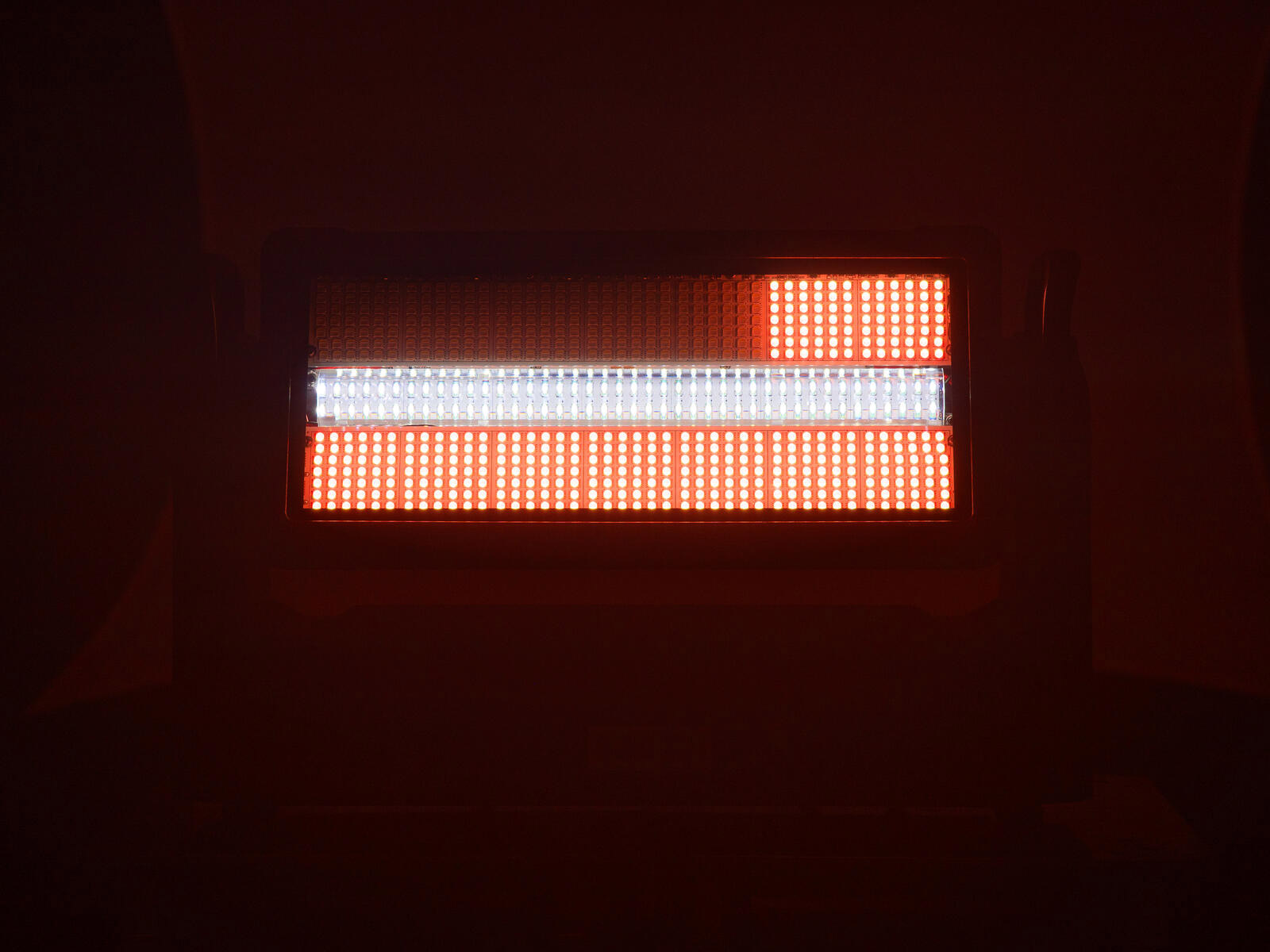

Matrix effect; strobe effect; Blinder effect
46 integrated show programs
The device is cooled by cooling fan at the base; temperature-controlled fan at the Head
Control via DMX; RDM; stand-alone; master/slave function
Preprogrammed in Light Captain
Flicker-free
With a beam angle of 120°
With omega bracket
Multicolor TFT display
2 Rugged carrying handles
4 x rubber feet
Mains input and output for power linking up to 8 units
Built with SEETRONIC connector
Suitable for outdoor use IP65
With pressure compensation membrane
For application areas such as: Architecture; mobile use; stage; rental
Application possibility: Standing; suspended

Package contents

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	365 W
IP classification:	IP65
Protection class:	Protection class I
Power connection:	Mains input via IP T-Con (M) mounting version power supply cord with safety plug
Cable construction:	3 x 1,5 mm² H07RN-F
Power output:	IP T-Con (F) mounting version
Lamp type:	LED lamp
LED type:	126 x 3 W SMD 3535 cold white (CW) 588 x 0,25 W SMD 5050 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement:	200° positioning auto position correction (feedback)
Flash rate:	0,5 - 17 Hz
Equipment:	Dimmer
DMX channels:	8; 9; 11; 12; 17; 18; 71
DMX input:	3-pin XLR (M) mounting version IP 1 x 5-pin XLR (M) mounting version IP
DMX output:	3-pin XLR (F) mounting version IP 1 x 5-pin XLR (F) mounting version IP
Cooling:	1 x cooling fan at the base 2 x temperature-controlled fan at the Head
Control:	DMX; RDM; stand-alone; master/slave function
Preprogrammed in:	Light Captain
Projection:	Flicker-free
PWM frequency:	4100 Hz
Beam angle:	120°
Beam angle (1/2 peak):	Matrix effect 120°
Beam angle (1/10 peak):	Matrix effect 170°
Housing color:	Black

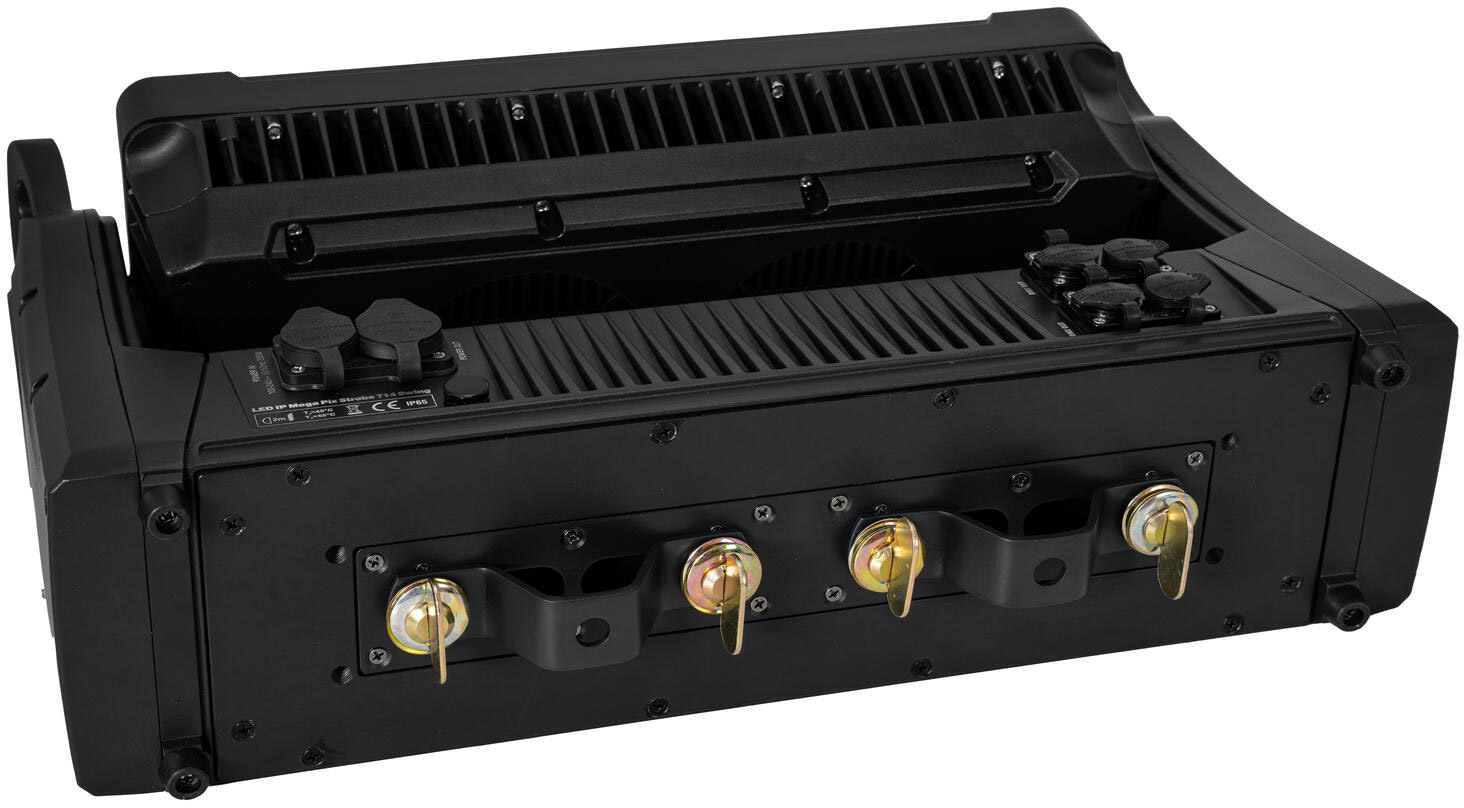

Attachment system:	2x omega bracket
Display type:	Multicolor TFT display
Carrying handle:	2 pc/pcs
Transport aid:	4 x rubber feet
Use of brands:	Built with SEETRONIC connector
Material:	Aluminum casting
Dimensions:	Width: 52,5 cm Depth: 14,0 cm Height: 33,5 cm
Weight:	12,85 kg
Noise classification:	Class 2 (slight noise)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Further links

Further products by Eurolite
Information about the manufacturer

Obligation to provide information on product safety (GPSR)

Manufacturer:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
DE-97297 Waldbüttelbrunn
[email protected]
Safety instructions and warnings

Safety instructions and warnings (GPSR)

Specific safety instructions that apply to the product can be found in the operating instructions for the product.
