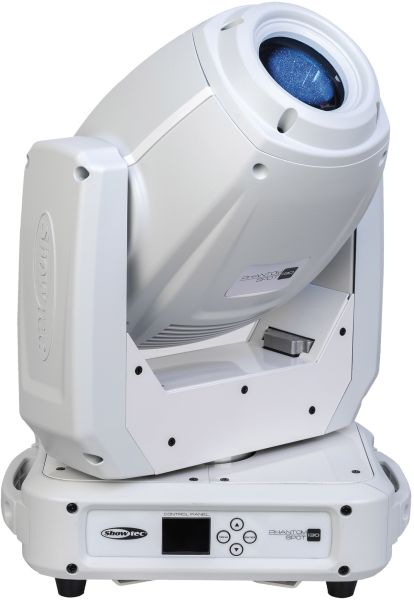

SHOWTEC Phantom 130 Spot 130 W LED Spot Moving Head - white

The Showtec Phantom series offers a wide range of reliable and high performance moving light effects, consisting of various types of Moving Head fixtures (Spot, Wash, Beam, Hybrid, and Matrix FX) and a Moving Zoombar. They all look stylish and create amazing (dynamic) optical effects. Each Phantom fixture can be controlled manually but also has other control options, like DMX and Master/Slave. Phantom units are not only user-friendly, they also contribute to quick rigging on stage due to their lightweight and compact design with a Quick Lock Bracket system or one-clamp mount.

The Phantom series consists of a diverse range of moving show light units. Consider, for example, the Phantom Spots with a wide beam angle, which covers a large surface with colourful moving gobos. If you prefer a razor-sharp beam for events with a high energy level, then the Phantom 3R Beam is an excellent option in combination with smoke or mist. The Phantom 180 Wash offers yet another Moving Head effect, providing a soft edged output with four separately controllable sections and a wide adjustable beam angle, perfect for vivid colour-mixing on stage.

The Phantom Hybrid and Matrix FX are special units. The Hybrid is able to create Spot, Wash and Beam effects while the Matrix FX offers Individual Pixel Control (5 x 5) on which you can display detailed animations, such as characters and numbers.

Each fixture offers multiple control options, functionalities and effects. Also, optional dedicated flight cases are available for safe and easy transport. Contact us now for free advice and receive an offer you cannot refuse or check out our product pages for more information.

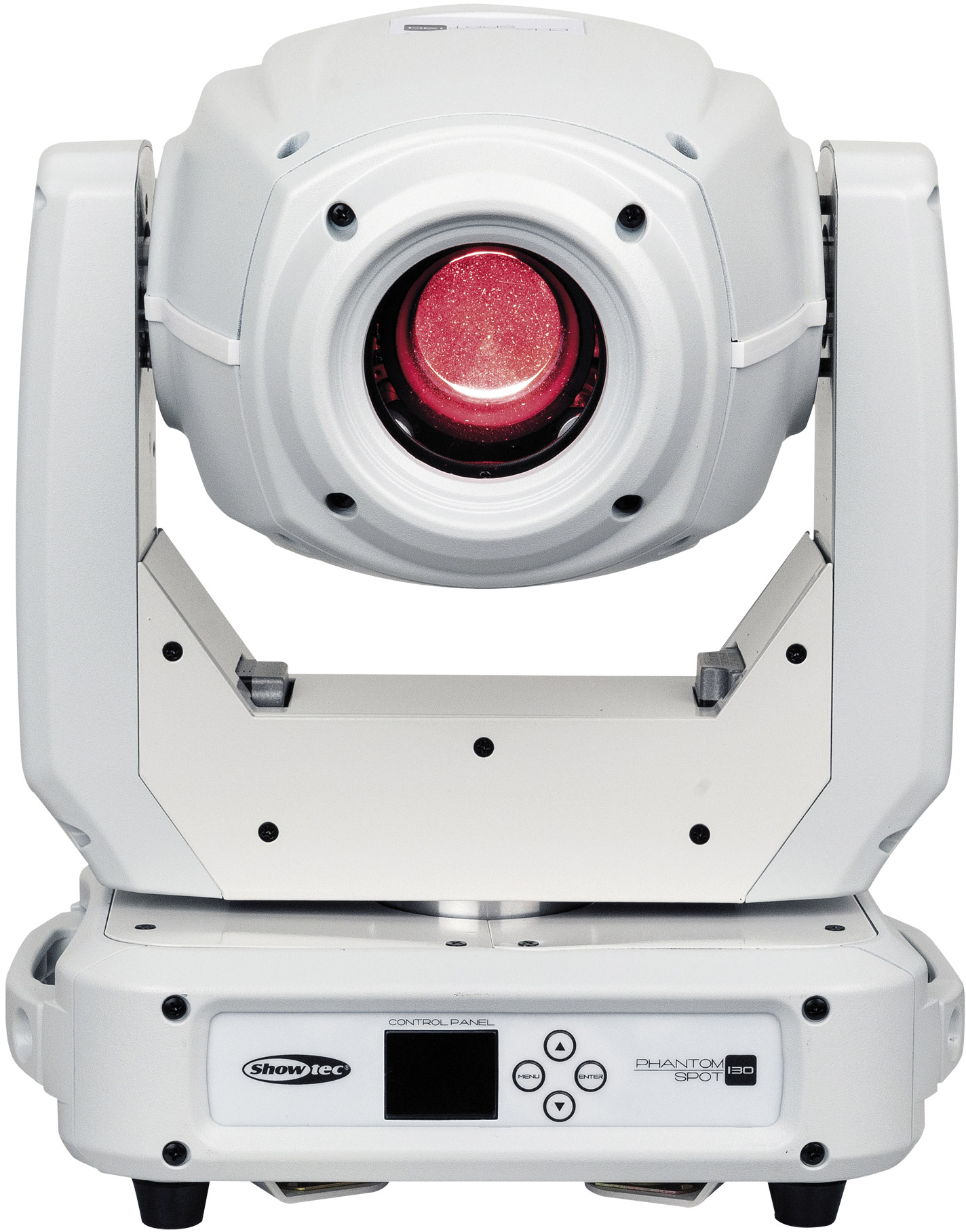

The Showtec Phantom 130 Spot is a medium-sized, yet powerful 130 watt LED Spot Moving Head including motorised zoom and focus, suitable for indoor venues. It has better features than the Phantom 100, like a 6-facet circular & 5-facet linear rotating prism and a bigger 12° - 21° motorised zoom range. Besides, the Phantom 130 Spot is W-DMX prepared for wireless communications. It creates stunning optical effects with 7 precise bi-rotating gobos + open and 7 dichroic colours + white. The mid-range priced Phantom 130 with razor sharp light beams and spectacular gobos, deliver a high performance/value ratio.Technical data:

Light Source Type:	LED
Light Source Quantity:	1
Light Source Power:	130 W
LED Colour Type:	CW
Illuminance @ 5 m:	5200 lx
Luminous Flux (Total):	5200 lm
Beam Angle Minimum (Circular):	12°
Beam Angle Maximum (Circular):	21°
Zoom Type:	Motorised
Zoom Minimum:	12°
Zoom Maximum:	21°
Focus:	Motorised
Control Mode:	Auto / DMX / Manual / Master Slave / Sound
DMX Channels:	12 / 16
Protocols:	DMX
Wireless:	Optional
Display:	LCD
Dimmer:	0-100 %
Strobe:	0-20 Hz
Prism 1:	6-facet Circular
Prism 2:	5-facet Linear
Prism Overlay:	No
Prism Index & Rotate:	Yes
Colour System:	Colour Wheel
Colour Wheel Index & Rotate:	Yes

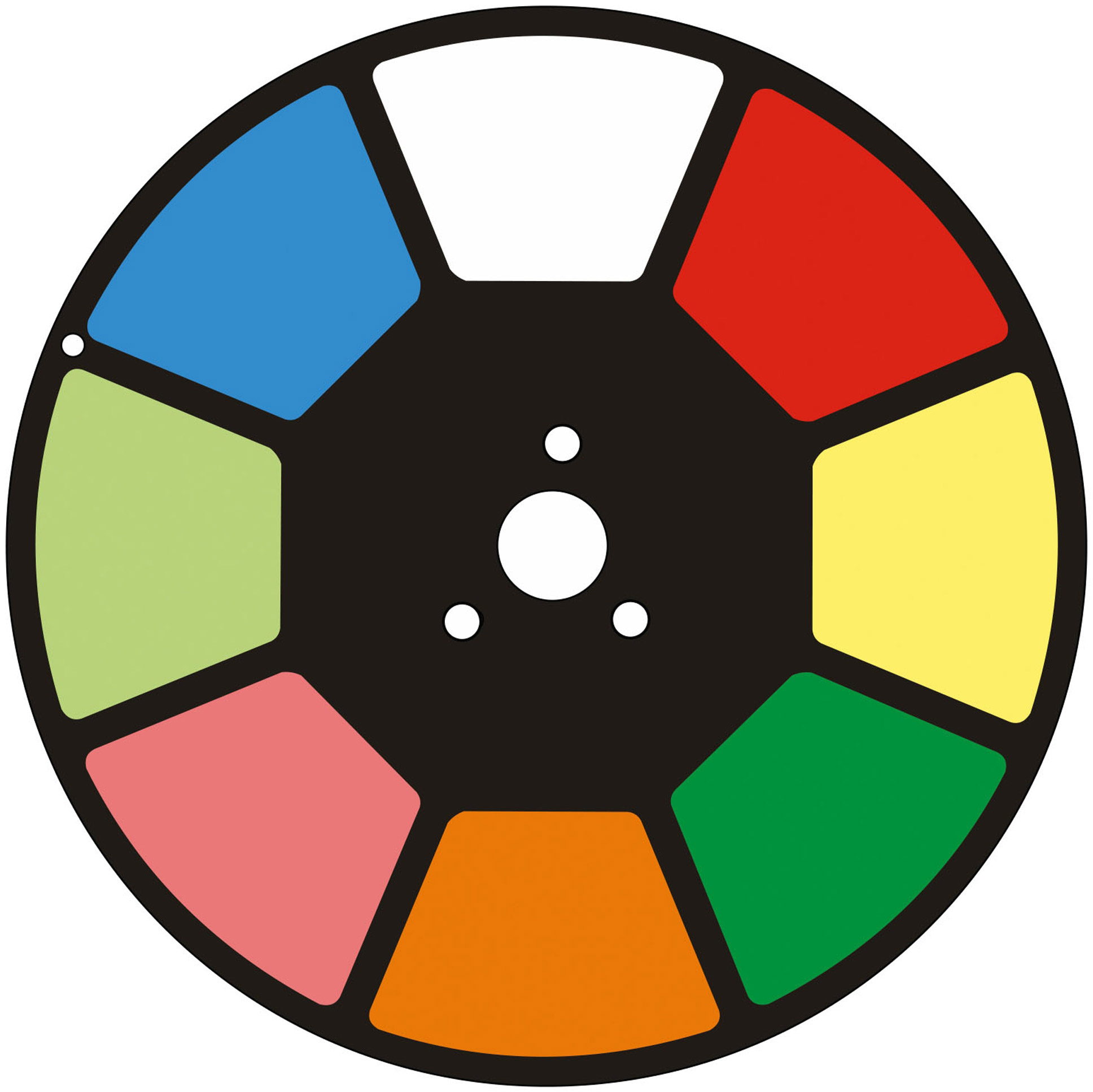

Dichroic Colour Wheel 1:	7 + Open
Gobo System:	Glass + Metal
Gobo Wheel Index & Rotate:	Yes

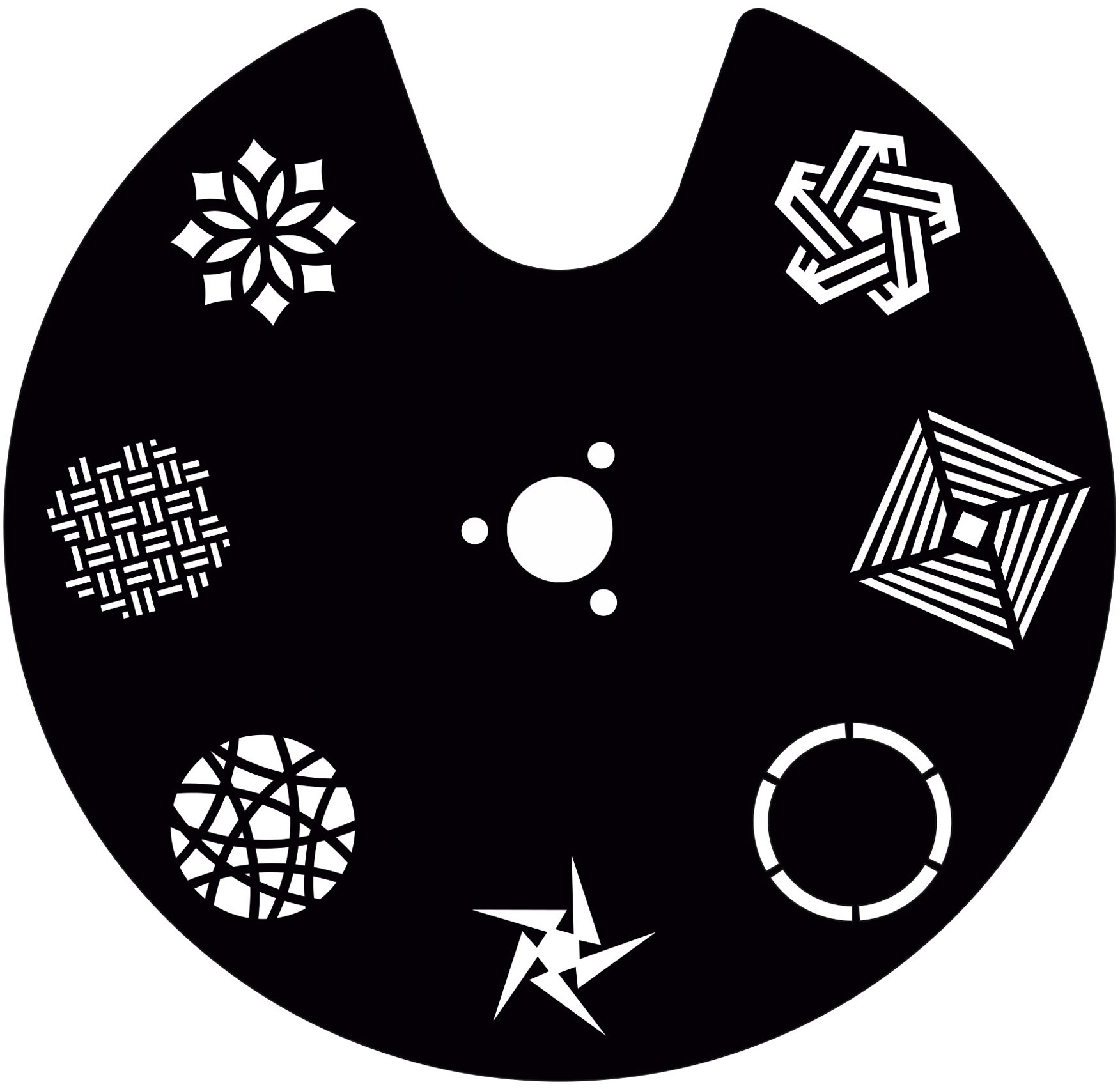

Gobo Wheel 1:	7 + Open

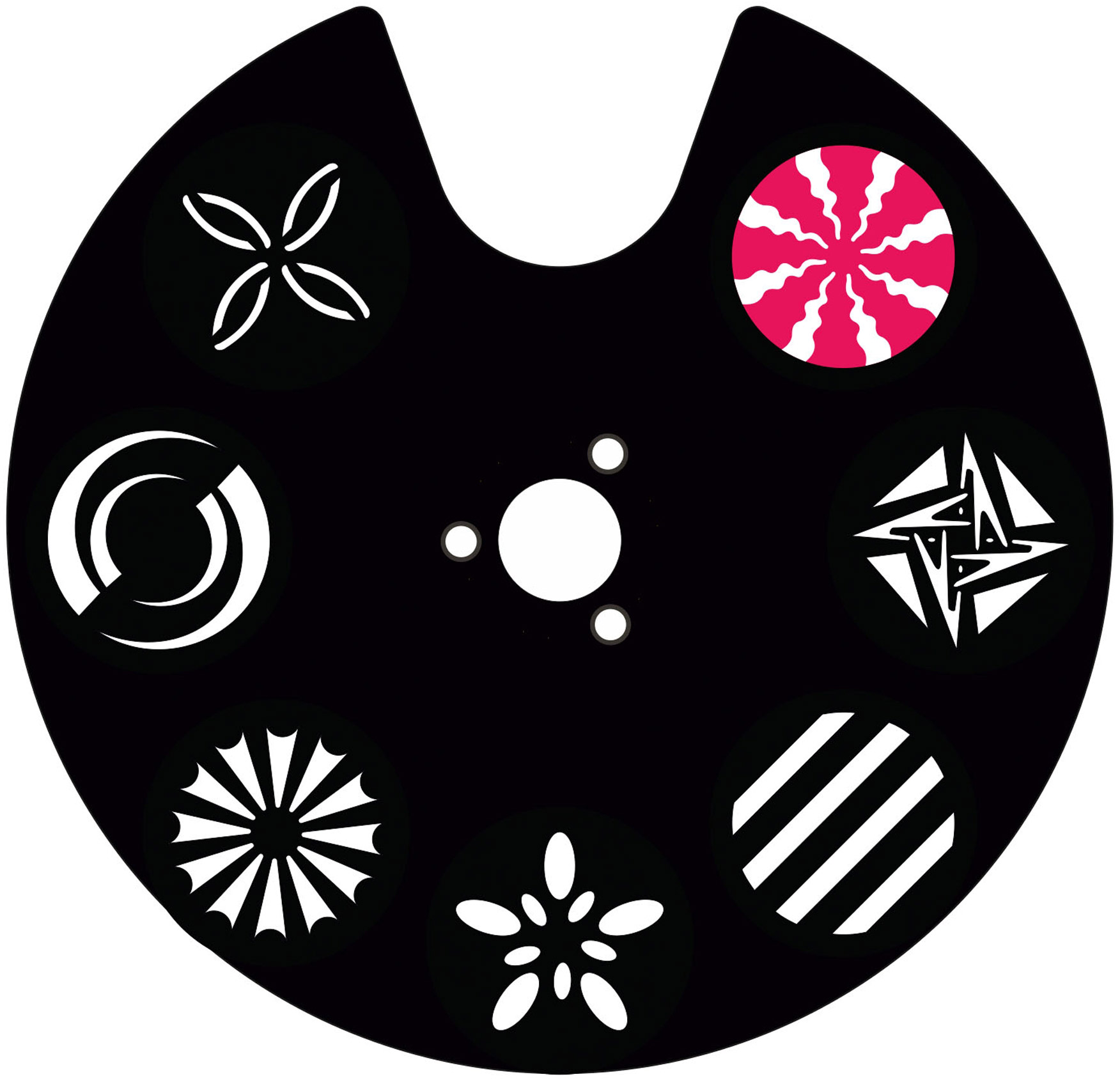

Gobo Wheel 2:	7 + Open
Gobo Size:	24 mm
Image Diameter:	21 mm
Pan:	540°
Tilt:	245°
Pan/Tilt Resolution:	16-bit

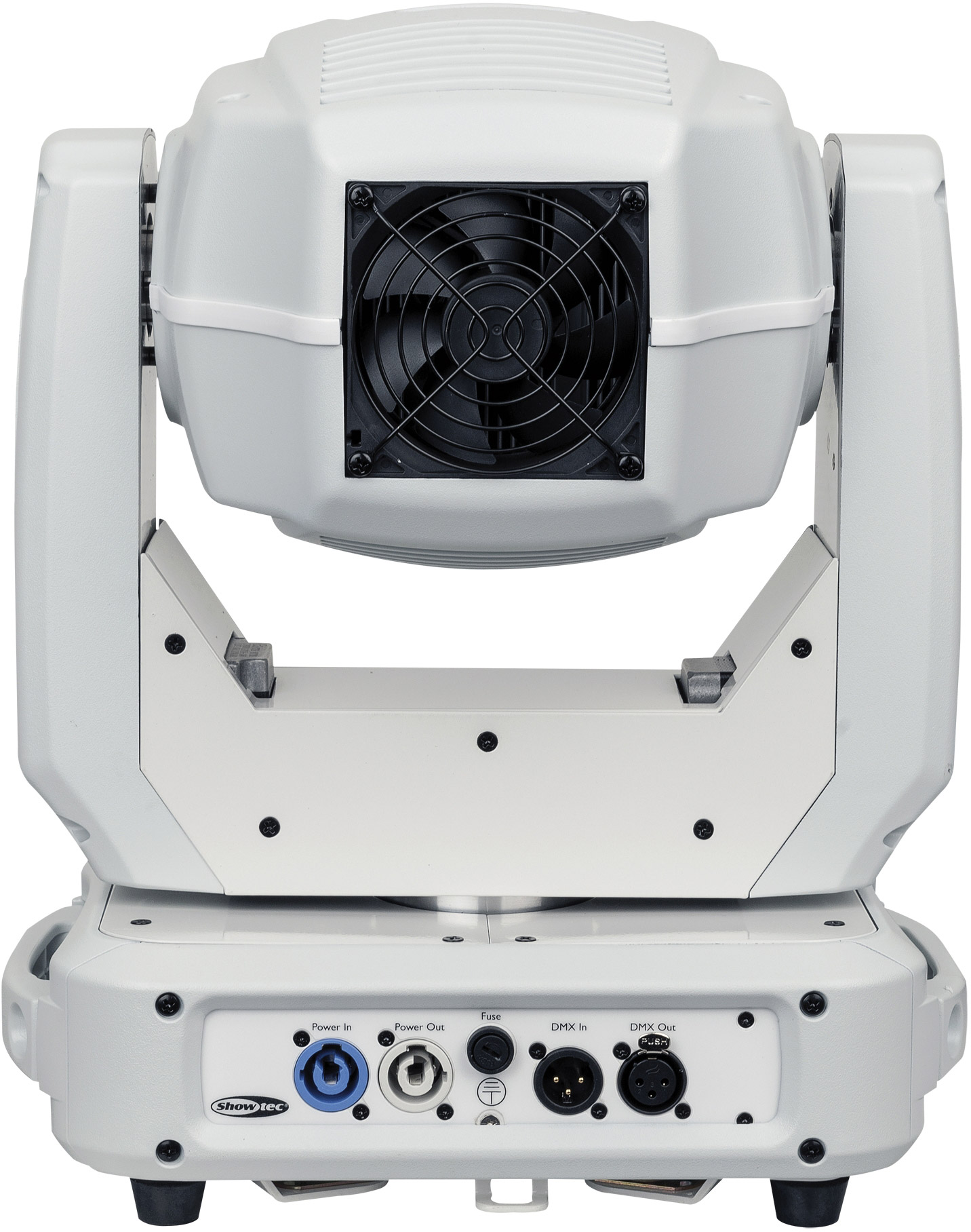

Power Supply:	100-240 V AC 50/60 Hz
Power Consumption:	300 W
Fuse:	5 A
Power Connector In:	Power Pro Blue
Power Connector Out:	Power Pro Grey
DMX Connector:	XLR 3P In/Out
DMX Connector In:	XLR 3P
DMX Connector Out:	XLR 3P
Length (mm):	321 mm
Width (mm):	211 mm
Height (mm):	462 mm
Weight:	13 kg
IP Rating:	IP20 (indoor use only)
Housing:	Metal / Plastic
Colour:	White
Cooling:	Axial fan
Mounting Options:	Quick-Lock
Safety Attachment:	Yes
Maximum Ambient Temperature:	40 °C
Included Cables:	powerCON cable
Included Rigging:	Quick-Lock Bracket
