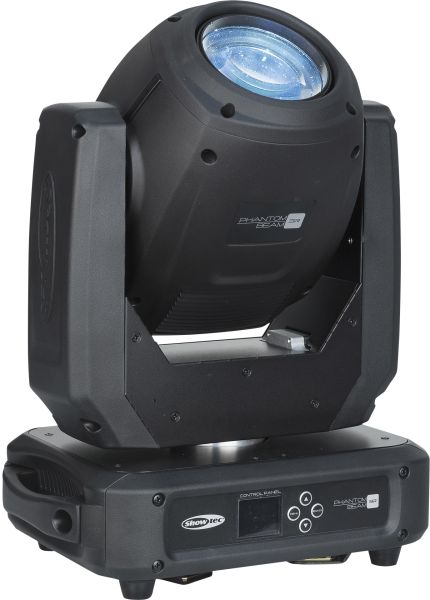

SHOWTEC Phantom 3R Beam Compact 150 W Beam Moving Head Including Osram R3 bulb

The Showtec Phantom series offers a wide range of reliable and high performance moving light effects, consisting of various types of Moving Head fixtures (Spot, Wash, Beam, Hybrid, and Matrix FX) and a Moving Zoombar. They all look stylish and create amazing (dynamic) optical effects. Each Phantom fixture can be controlled manually but also has other control options, like DMX and Master/Slave. Phantom units are not only user-friendly, they also contribute to quick rigging on stage due to their lightweight and compact design with a Quick Lock Bracket system or one-clamp mount.

The Phantom series consists of a diverse range of moving show light units. Consider, for example, the Phantom Spots with a wide beam angle, which covers a large surface with colourful moving gobos. If you prefer a razor-sharp beam for events with a high energy level, then the Phantom 3R Beam is an excellent option in combination with smoke or mist. The Phantom 180 Wash offers yet another Moving Head effect, providing a soft edged output with four separately controllable sections and a wide adjustable beam angle, perfect for vivid colour-mixing on stage.

The Phantom Hybrid and Matrix FX are special units. The Hybrid is able to create Spot, Wash and Beam effects while the Matrix FX offers Individual Pixel Control (5 x 5) on which you can display detailed animations, such as characters and numbers.

Each fixture offers multiple control options, functionalities and effects. Also, optional dedicated flight cases are available for safe and easy transport. Contact us now for free advice and receive an offer you cannot refuse or check out our product pages for more information.

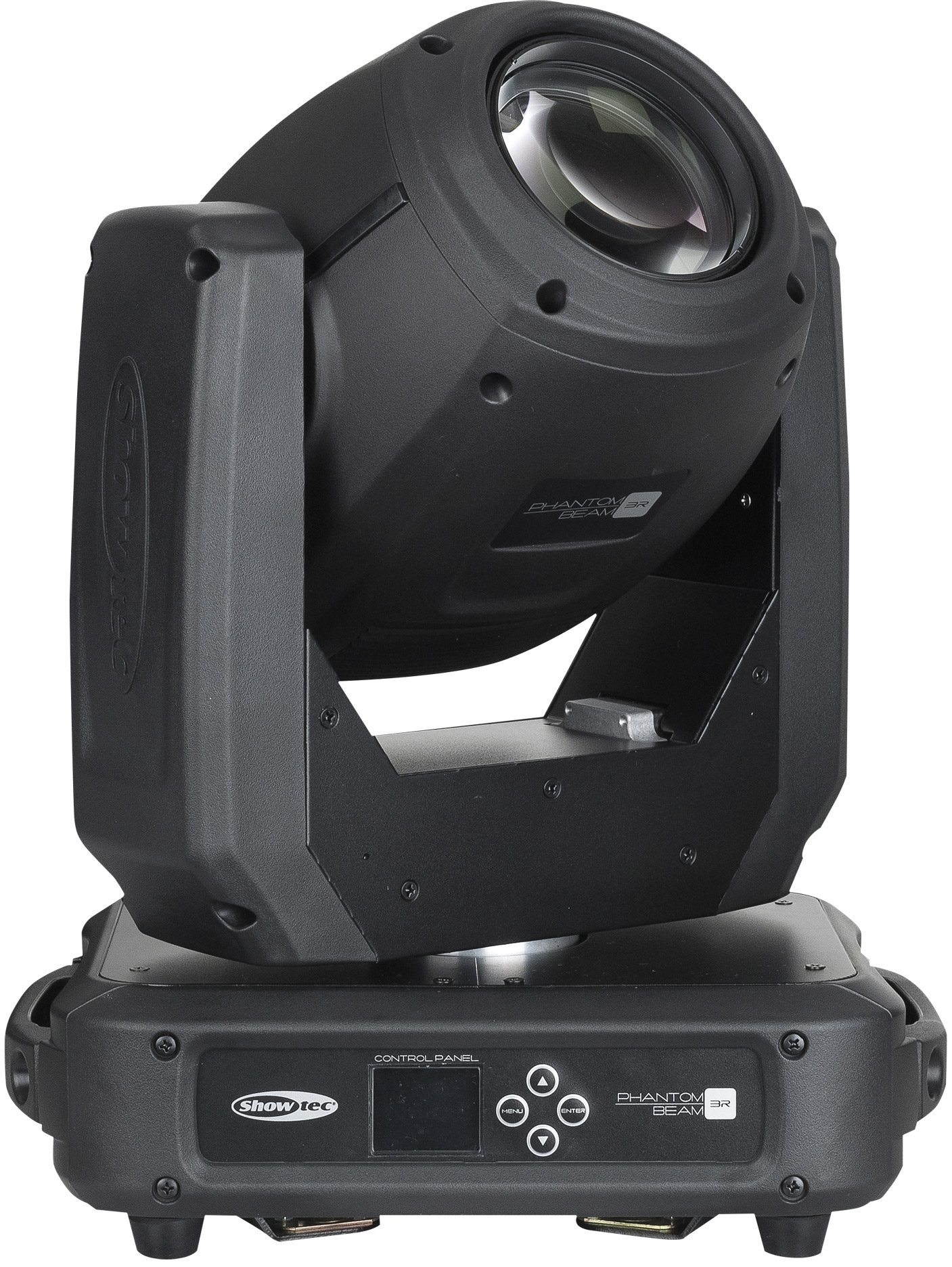

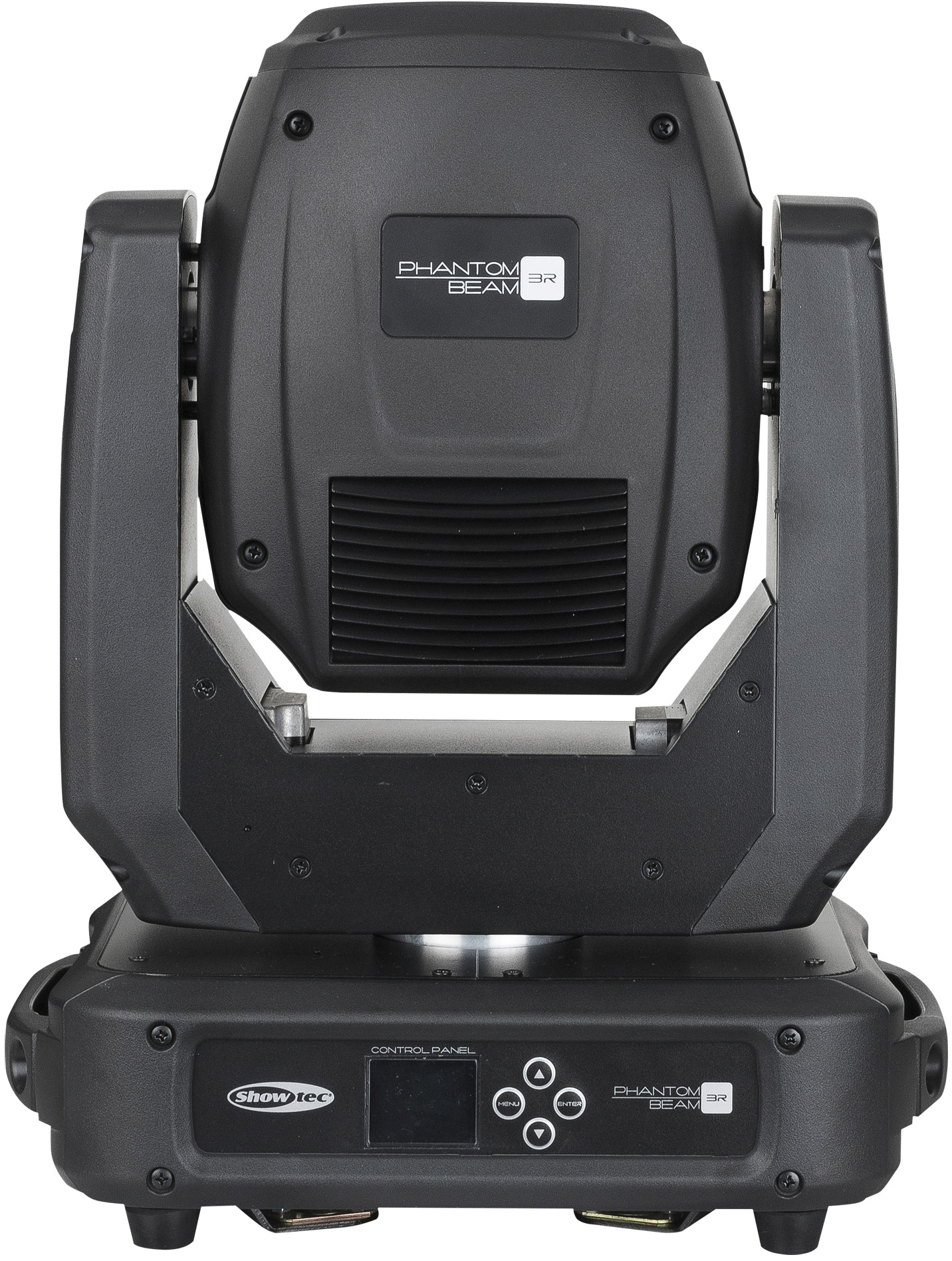

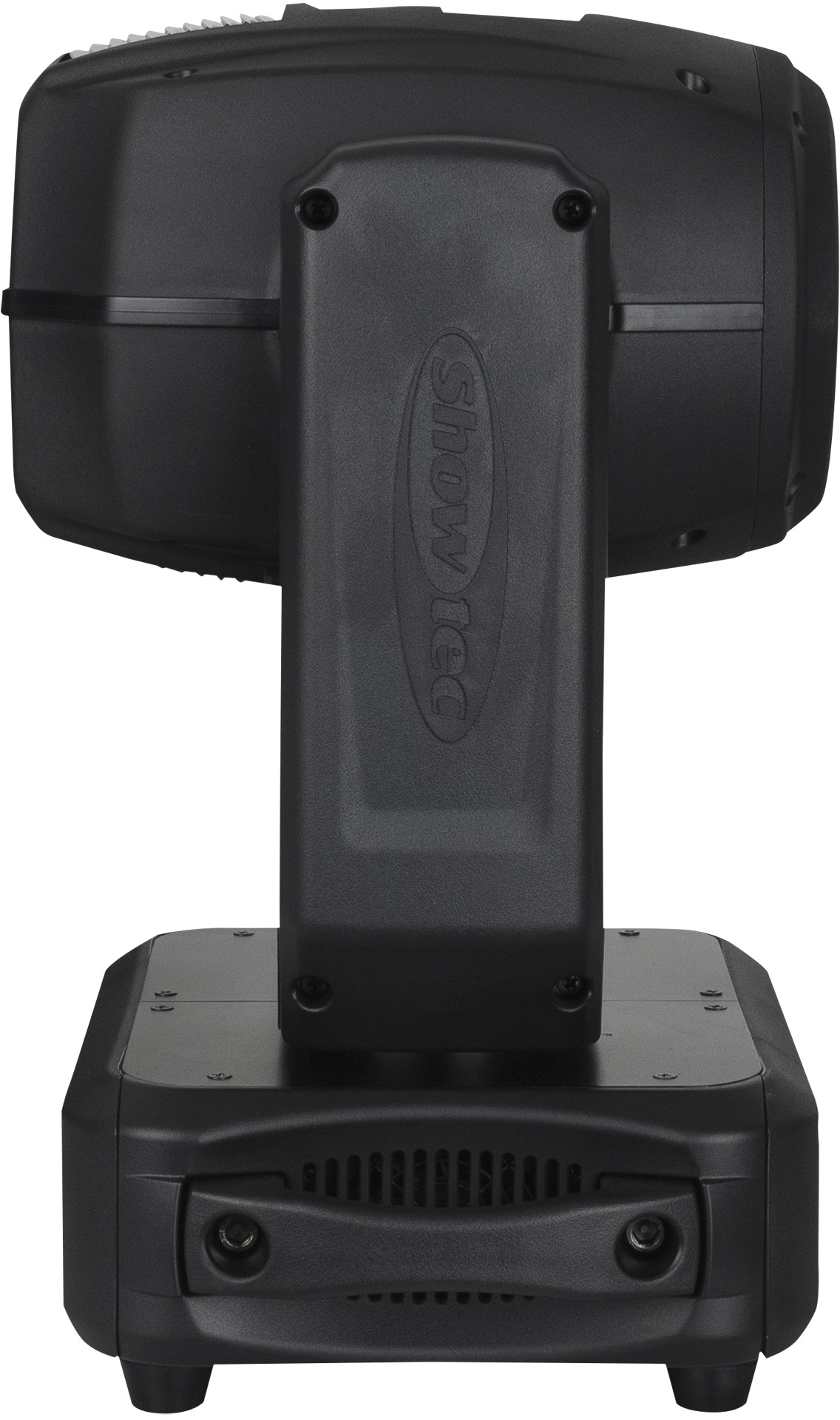

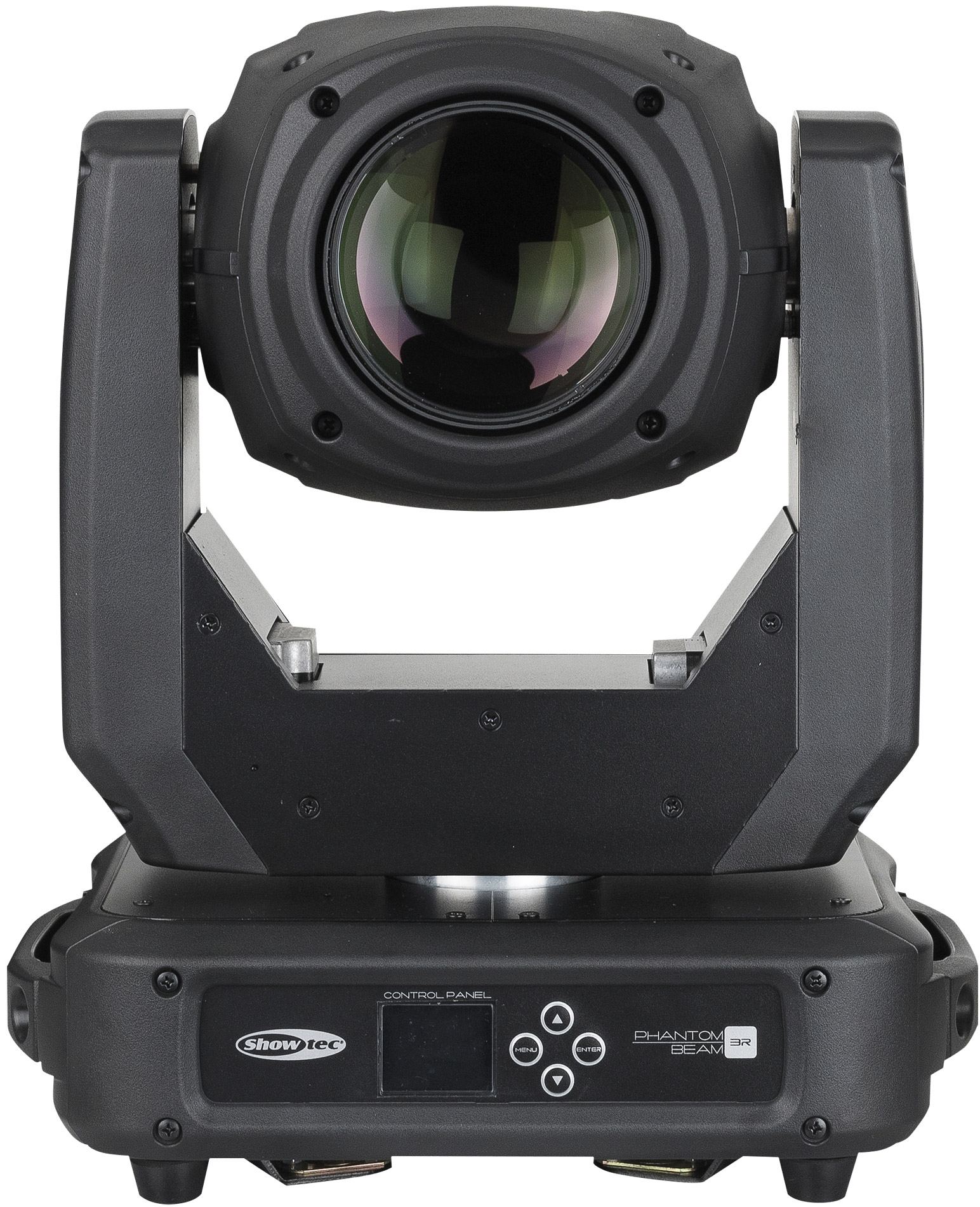

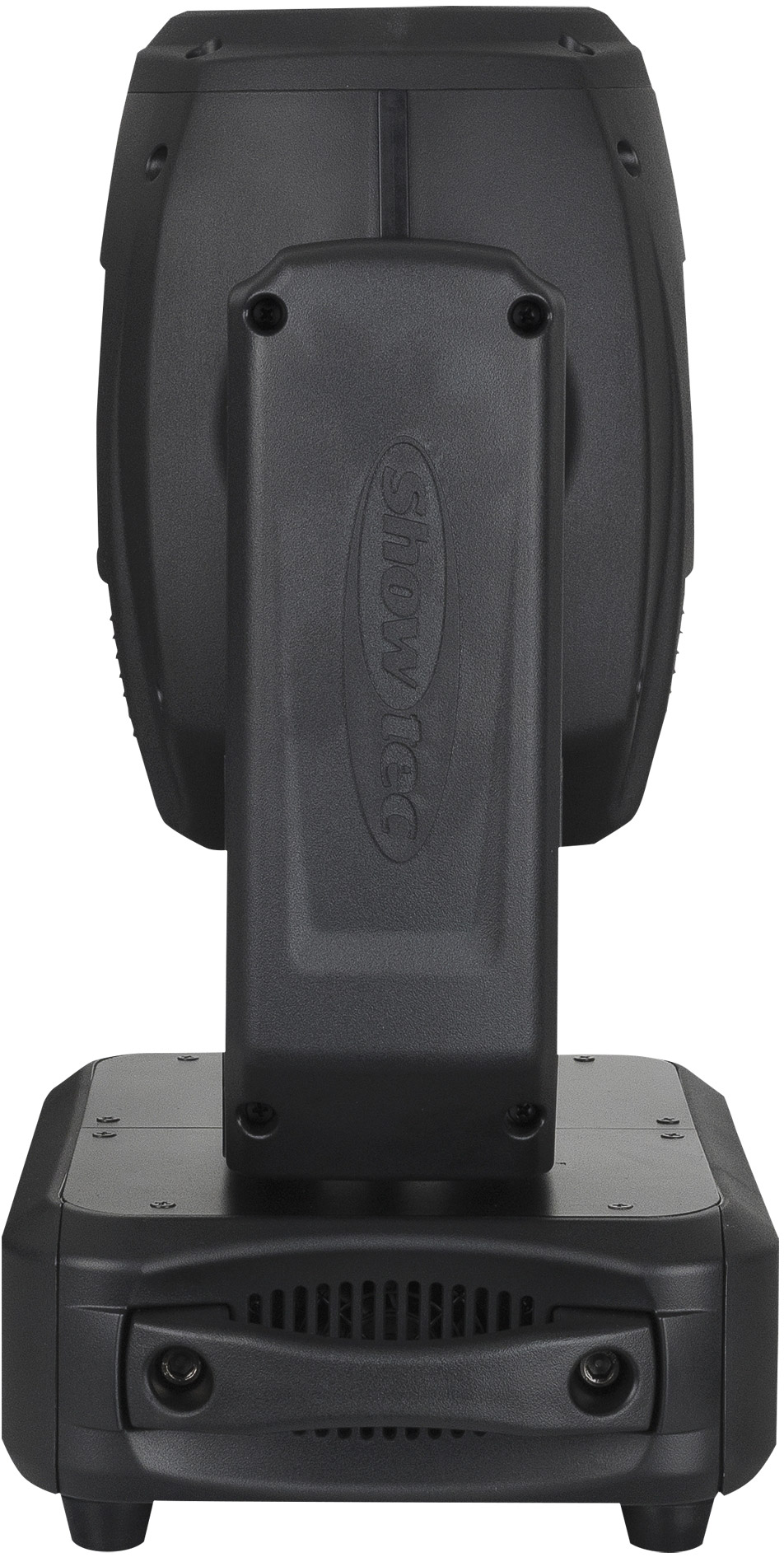

The Showtec Phantom 3R Beam is a compact, yet powerful Beam Moving Head with a bright 150 watt discharge light engine providing a highly focused 3.5° beam angle, suitable for indoor venues. Its motorised frost filter and focus converts the tight beam to a wide wash for covering large areas, suitable for various applications. The Phantom 3R Beam is equipped with 17 gobos + open, 14 colours + white, 16-facet circular rotating prism and various colour effects, such as split colours and rainbow flow, for creating stunning optical effects. Optionally, you can upgrade the Phantom 3R Beam for wireless DMX communications.Technical data:

Light Source Type:	Discharge
Light Source Quantity:	1
Light Source Power:	150 W
Life Expectancy:	6000 h
Luminous Flux (Total):	9200 lm
CCT:	8600 K
Beam Angle Maximum (Circular):	3.5°
Frost:	Yes
Focus:	Motorised
Control Mode:	Auto / DMX / Manual / Master Slave / Sound
DMX Channels:	10 / 14
Protocols:	DMX
Wireless:	Optional
Display:	LCD
Dimmer:	0-100 %
Strobe:	0-20 Hz
Shutter:	Yes
Prism 1:	16-facte Circular
Prism Index & Rotate:	Yes
Colour System:	Colour Wheel
Colour Wheel Index & Rotate:	Yes

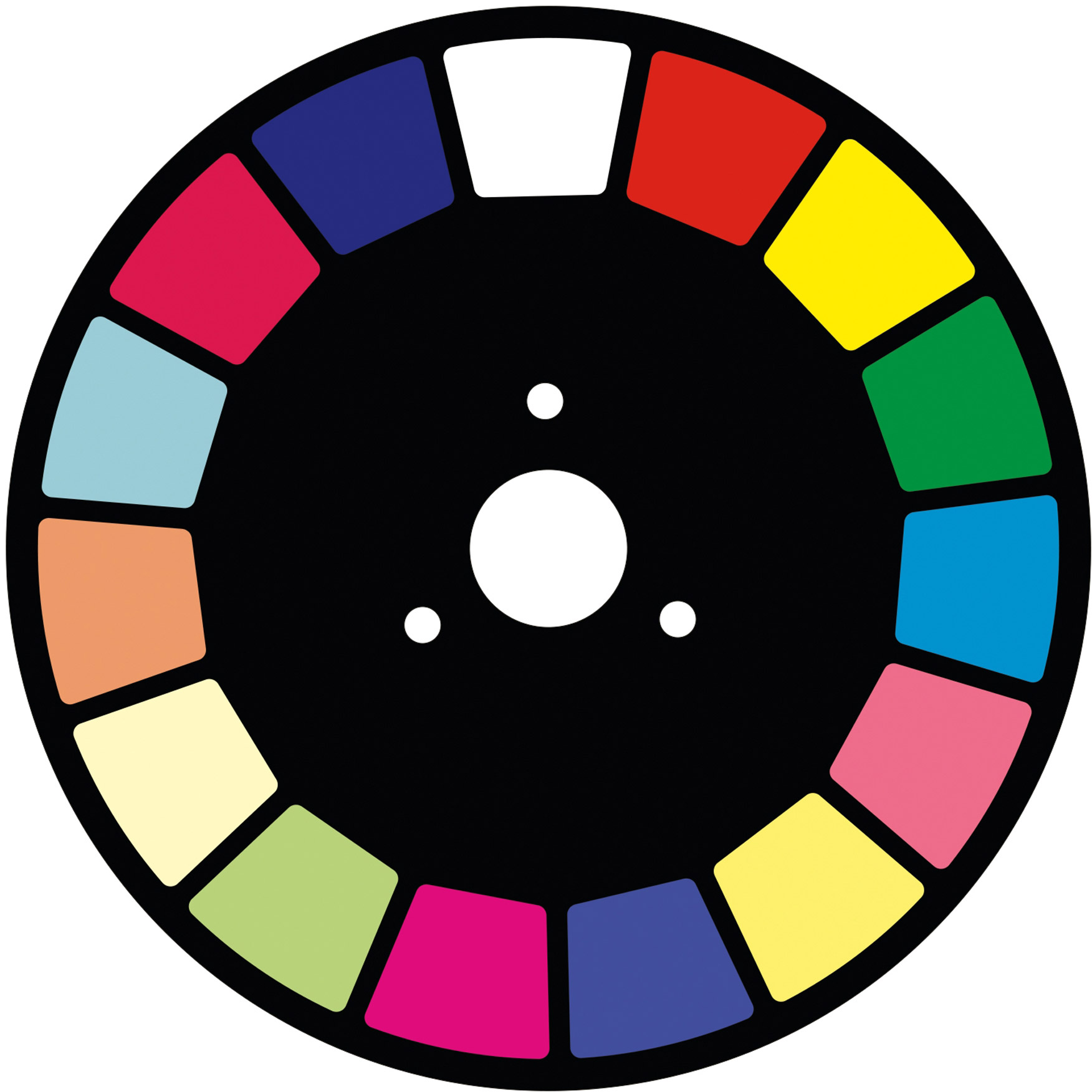

Dichroic Colour Wheel 1:	14 + Open
Gobo System:	Metal
Gobo Wheel Index & Rotate:	Yes

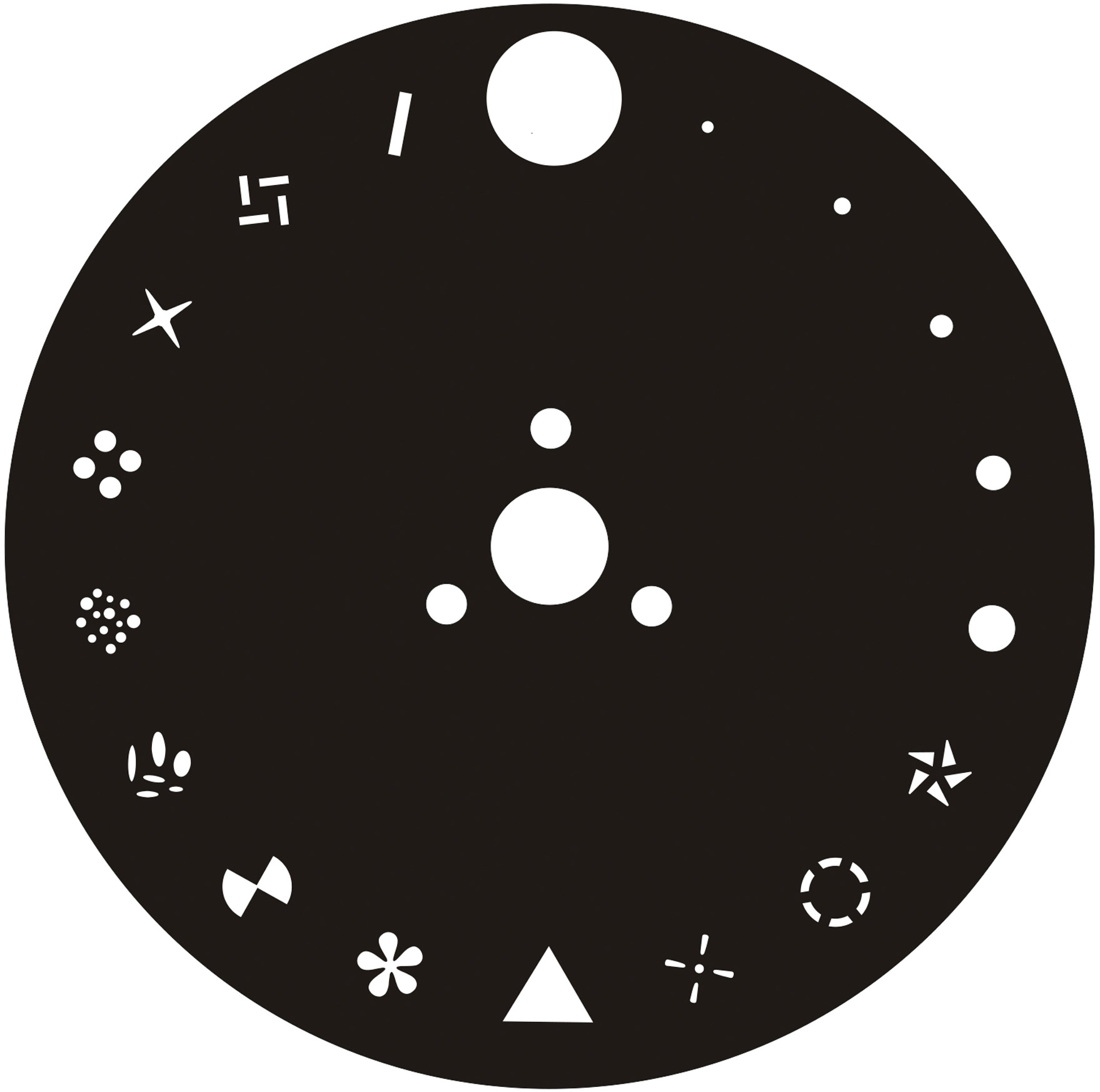

Gobo Wheel 1:	17 + Open
Pan:	540°
Tilt:	270°
Pan/Tilt Resolution:	16-bit
Power Supply:	100-240 V AC 50/60 Hz
Power Consumption:	255 W
Fuse:	4 A

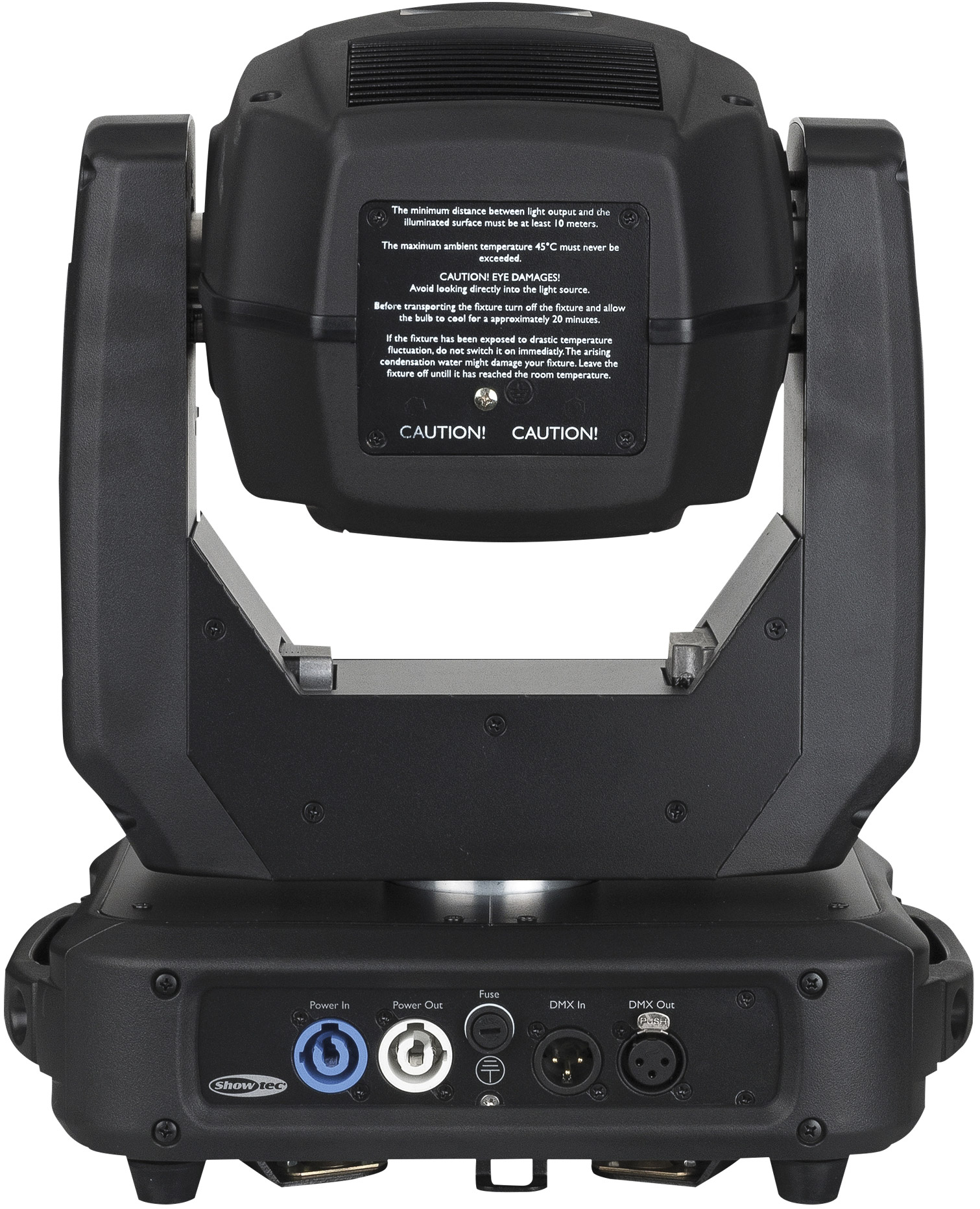

Power Connector In:	Power Pro Blue
Power Connector Out:	Power Pro Grey
DMX Connector:	XLR 3P In/Out
DMX Connector In:	XLR 3P
DMX Connector Out:	XLR 3P
Length (mm):	325 mm
Width (mm):	210 mm
Height (mm):	420 mm
Weight:	13 kg
IP Rating:	IP20 (indoor use only)
Housing:	Metal / Plastic
Colour:	Black
Cooling:	Axial fan

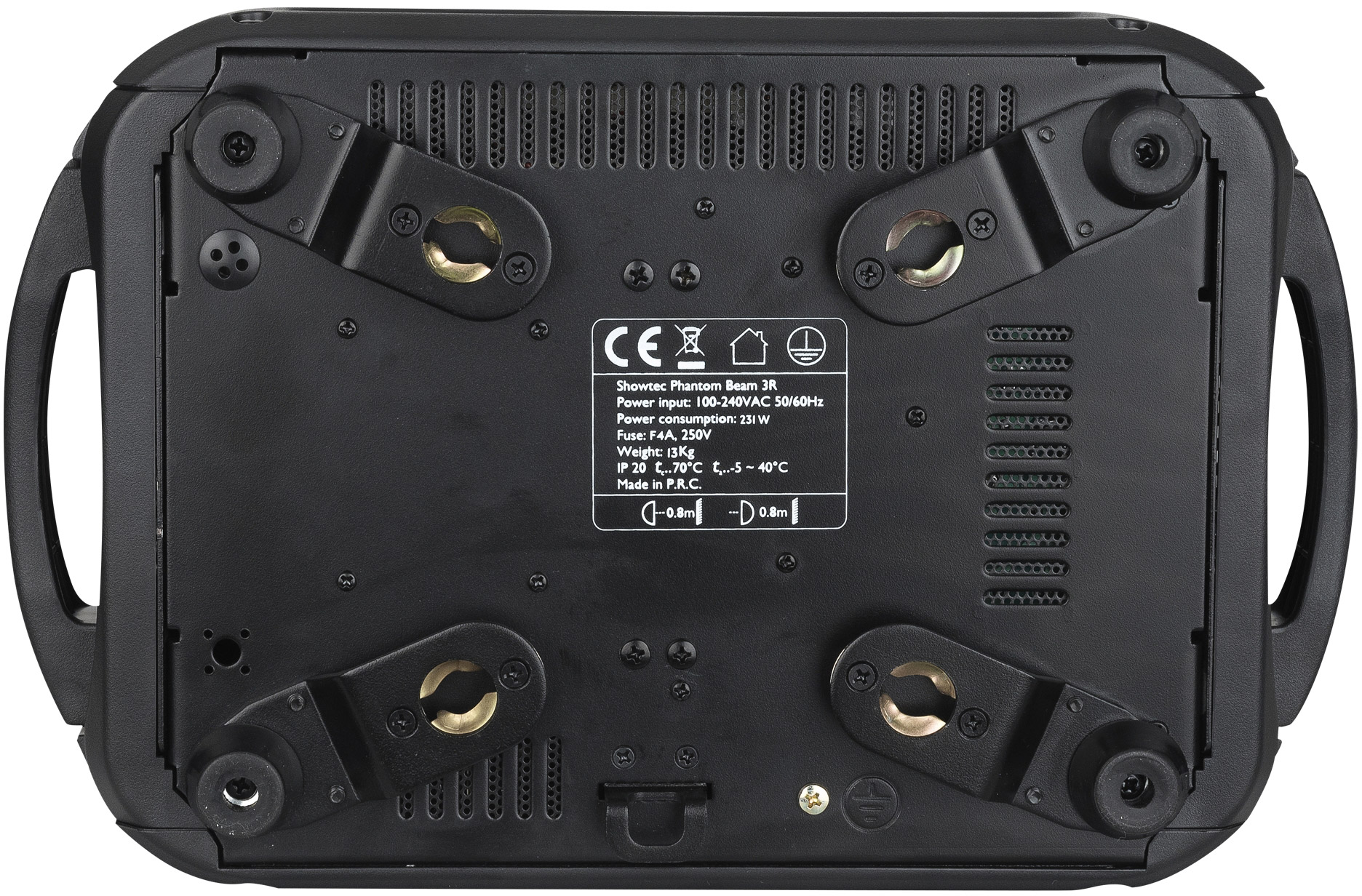

Mounting Options:	Quick-Lock
Safety Attachment:	Yes
Maximum Ambient Temperature:	40 °C
Maximum Surface Temperature:	70 °C
Minimum Distance to Objects:	10 m
Included Cables:	powerCON cable
Included Rigging:	Quick-Lock Bracket
