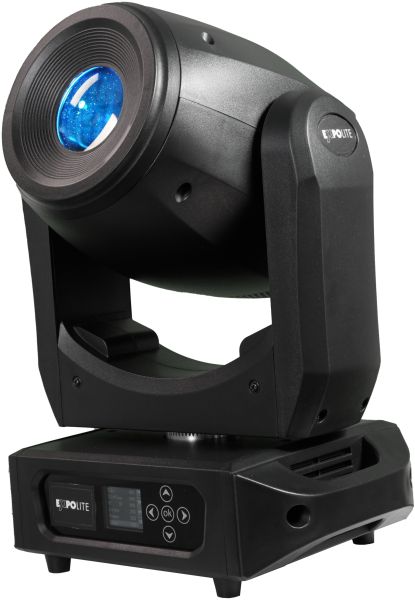

Expolite Dragon Spot 200
Delivery time: approx. 2 weeks

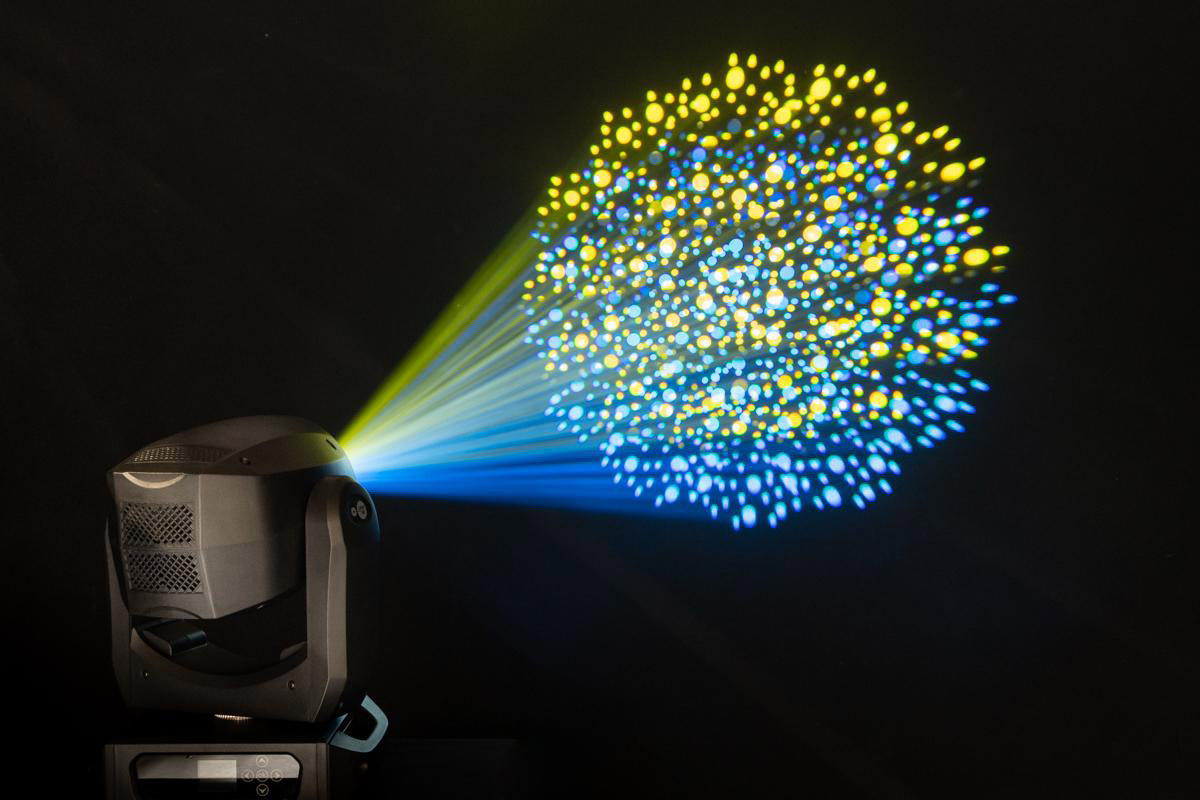

The Expolite Dragon Spot 200 is a compact and reliable LED moving head that delivers razor-sharp projections with its 200W LED and precise 12° beam angle. Ideal for touring productions and fixed installations, this fixture combines high light output with creative flexibility. A dual overlapping prism provides impressive multi-beam effects, while the linear frost filter enables soft wash effects. Stepless dimming from 0–100% allows precise control of light intensity. With pan and tilt movements of 540° and 270° respectively, and a resolution of 8/16-bit, the spotlight offers precise and smooth motion sequences. The Dragon Spot 200 supports 14 or 16 DMX channels and can be operated via DMX512 in master-slave, auto-run or music mode. The device operates with a power consumption of 300 W in a voltage range of 100–240 V AC and has 3-pin XLR and PowerCON In/Out connections. Thanks to its low weight and versatile features, the Dragon Spot 200 is the perfect choice for lighting designers who value razor-sharp spot effects and flexible control.
Technical data:| Dimensions: | 293 x 205 x 416 mm |
| Beam angle: | 12 |
| Connection: | DMX 3-pin/5-pin IN/OUT | PowerCon True1 IN/OUT |
| Dimmer: | 0-100% linear |
| Display: | 180° reversible LCD color display |
| Color: | black |
| Color wheel: | 7 colors plus white |
| Color temperature: | 7,600K plus 200K |
| Weight: | 9.30 kg |
| Goborad: | 6 gobos plus open |
| Light intensity: | 7,900 lm |
| DMX channels: | 14/16 |
| Max. power consumption: | 300 W |
| Light source: | 200 W LED |
| Pan: | 540 |
| Minutes: | DMX512/Master-Slave/Auto Run |
| Protection class: | IP20 |
| Strobe: | variable speed |
| Tilt: | 270 |
| Features: | Auto repositioning |
| Focus: | linear |
| Frost: | linear |
| Prism 1: | 6-fold prism |
| Prism 2: | 8-fold prism |
| Prism features: | Rotatable in both directions at variable speeds Prisms can be stacked on top of each other |
| Voltage: | AC 100-240V 50/60Hz |
| Ambient temperature: | -15°F to 45°F |
