SHOWTEC Phantom 1220 Zoombar 240 W RGBW Moving LED Bar

The Showtec Phantom series offers a wide range of reliable and high performance moving light effects, consisting of various types of Moving Head fixtures (Spot, Wash, Beam, Hybrid, and Matrix FX) and a Moving Zoombar. They all look stylish and create amazing (dynamic) optical effects. Each Phantom fixture can be controlled manually but also has other control options, like DMX and Master/Slave. Phantom units are not only user-friendly, they also contribute to quick rigging on stage due to their lightweight and compact design with a Quick Lock Bracket system or one-clamp mount.

The Phantom series consists of a diverse range of moving show light units. Consider, for example, the Phantom Spots with a wide beam angle, which covers a large surface with colourful moving gobos. If you prefer a razor-sharp beam for events with a high energy level, then the Phantom 3R Beam is an excellent option in combination with smoke or mist. The Phantom 180 Wash offers yet another Moving Head effect, providing a soft edged output with four separately controllable sections and a wide adjustable beam angle, perfect for vivid colour-mixing on stage.

The Phantom Hybrid and Matrix FX are special units. The Hybrid is able to create Spot, Wash and Beam effects while the Matrix FX offers Individual Pixel Control (5 x 5) on which you can display detailed animations, such as characters and numbers.

Each fixture offers multiple control options, functionalities and effects. Also, optional dedicated flight cases are available for safe and easy transport. Contact us now for free advice and receive an offer you cannot refuse or check out our product pages for more information.

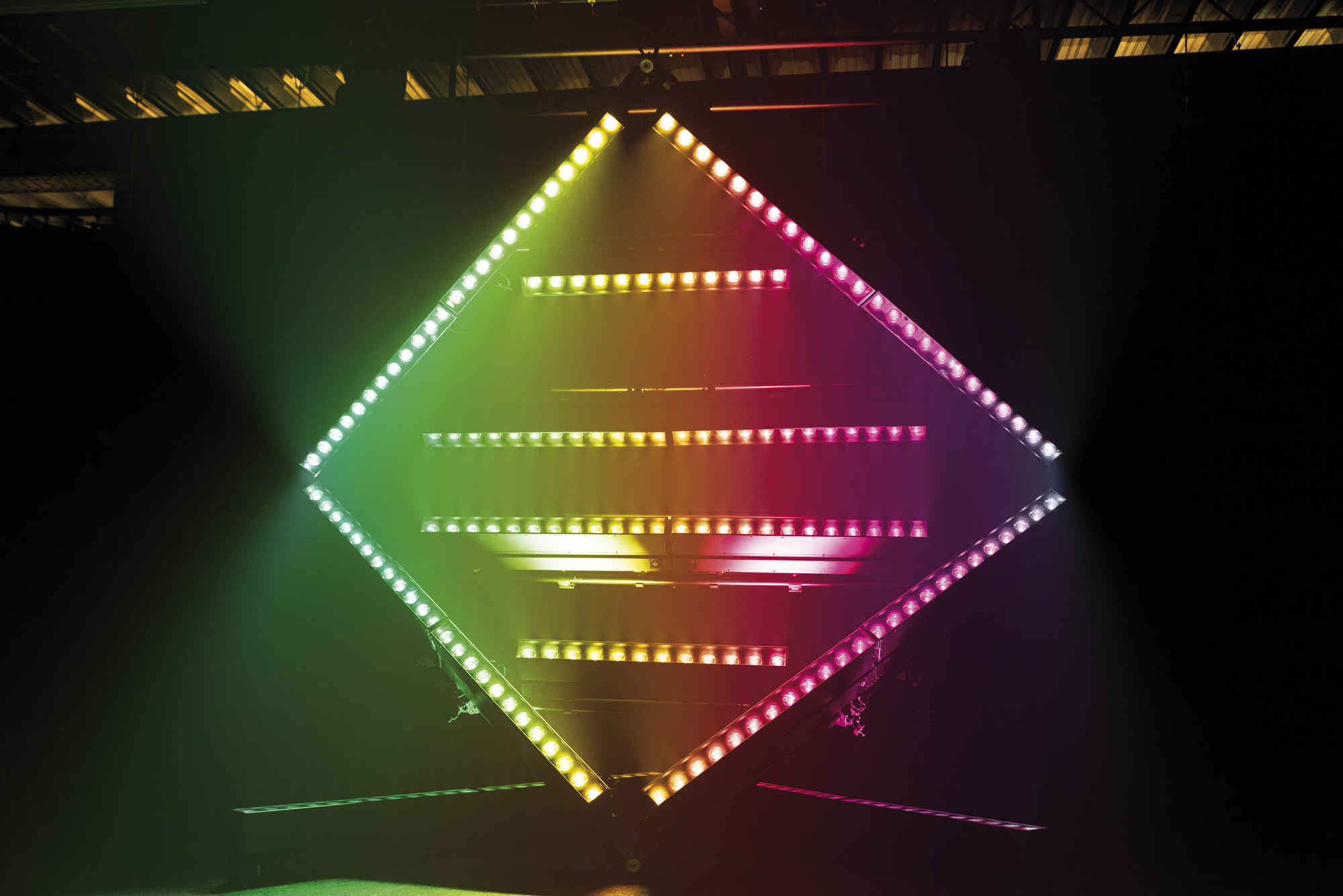

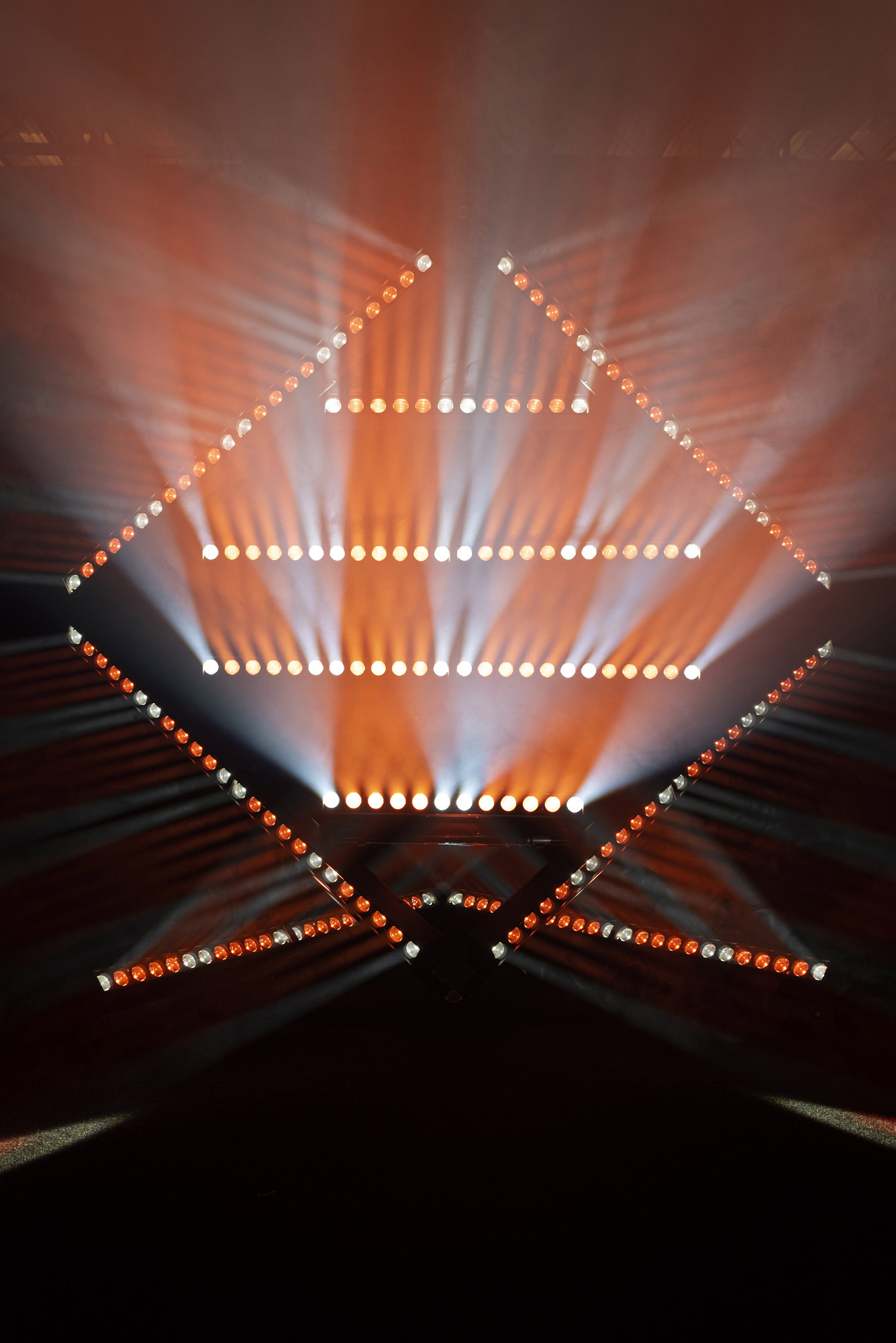

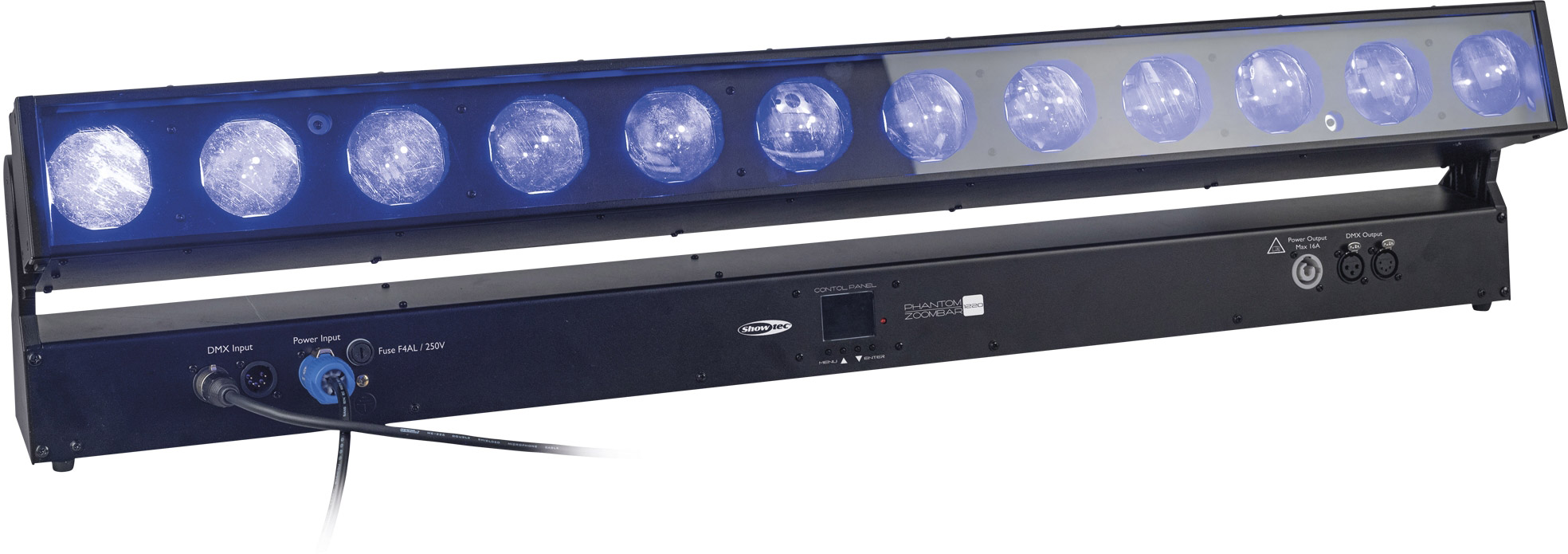

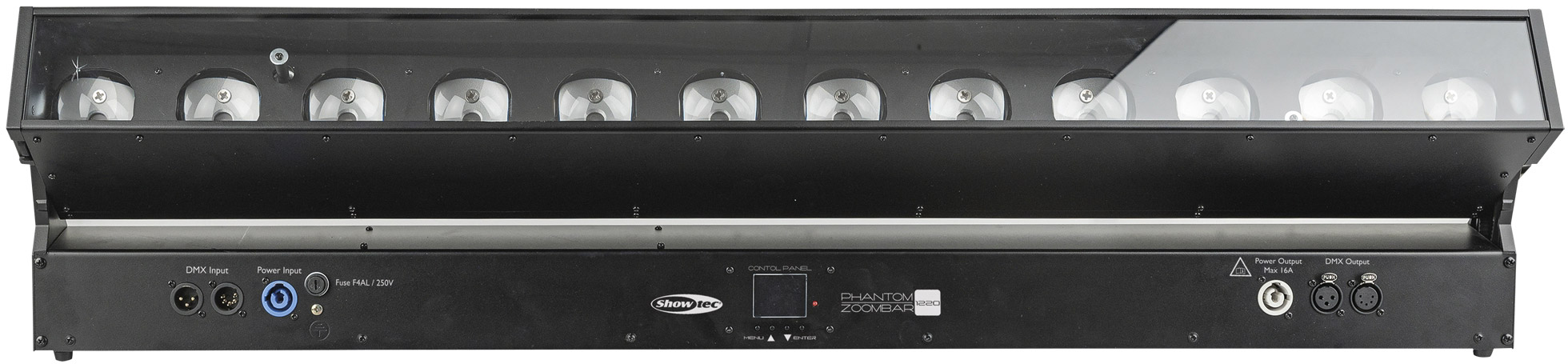

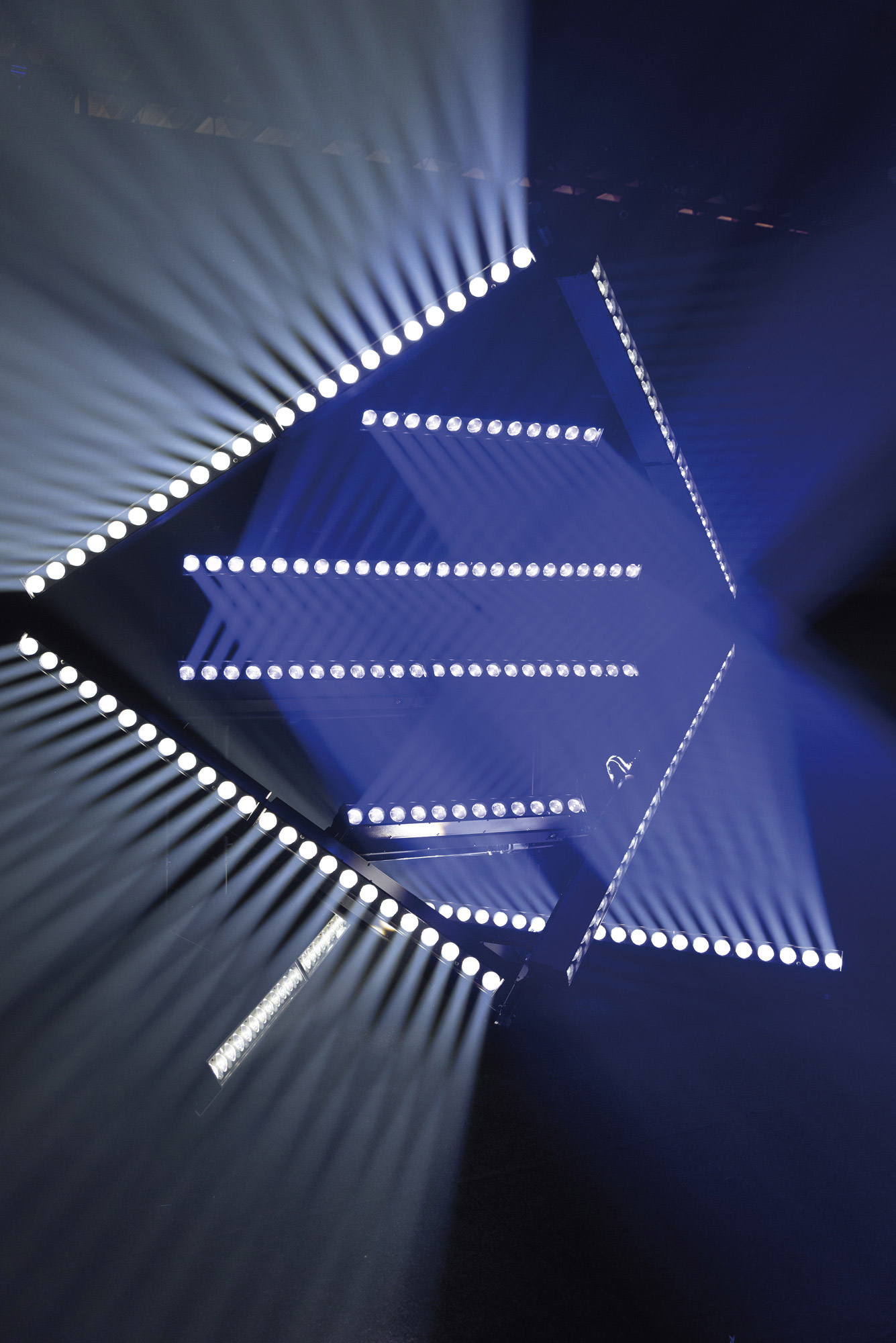

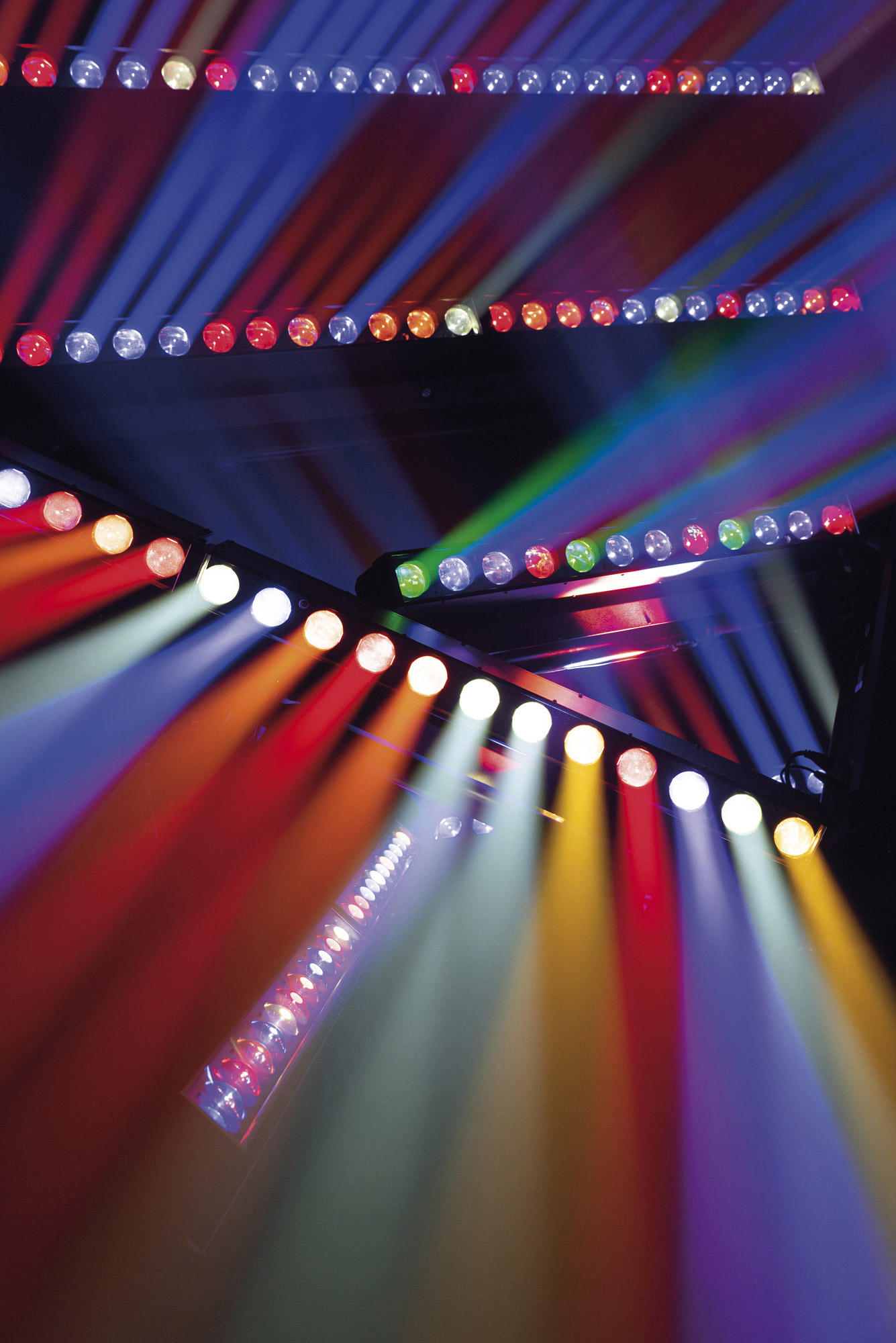

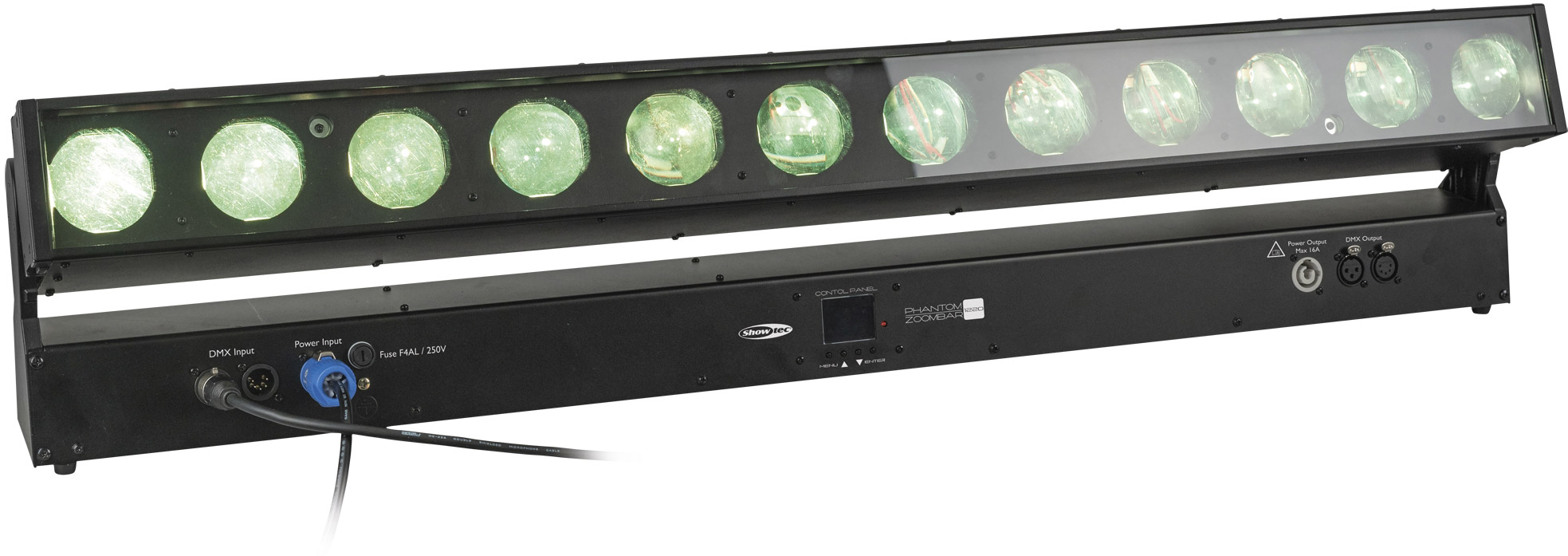

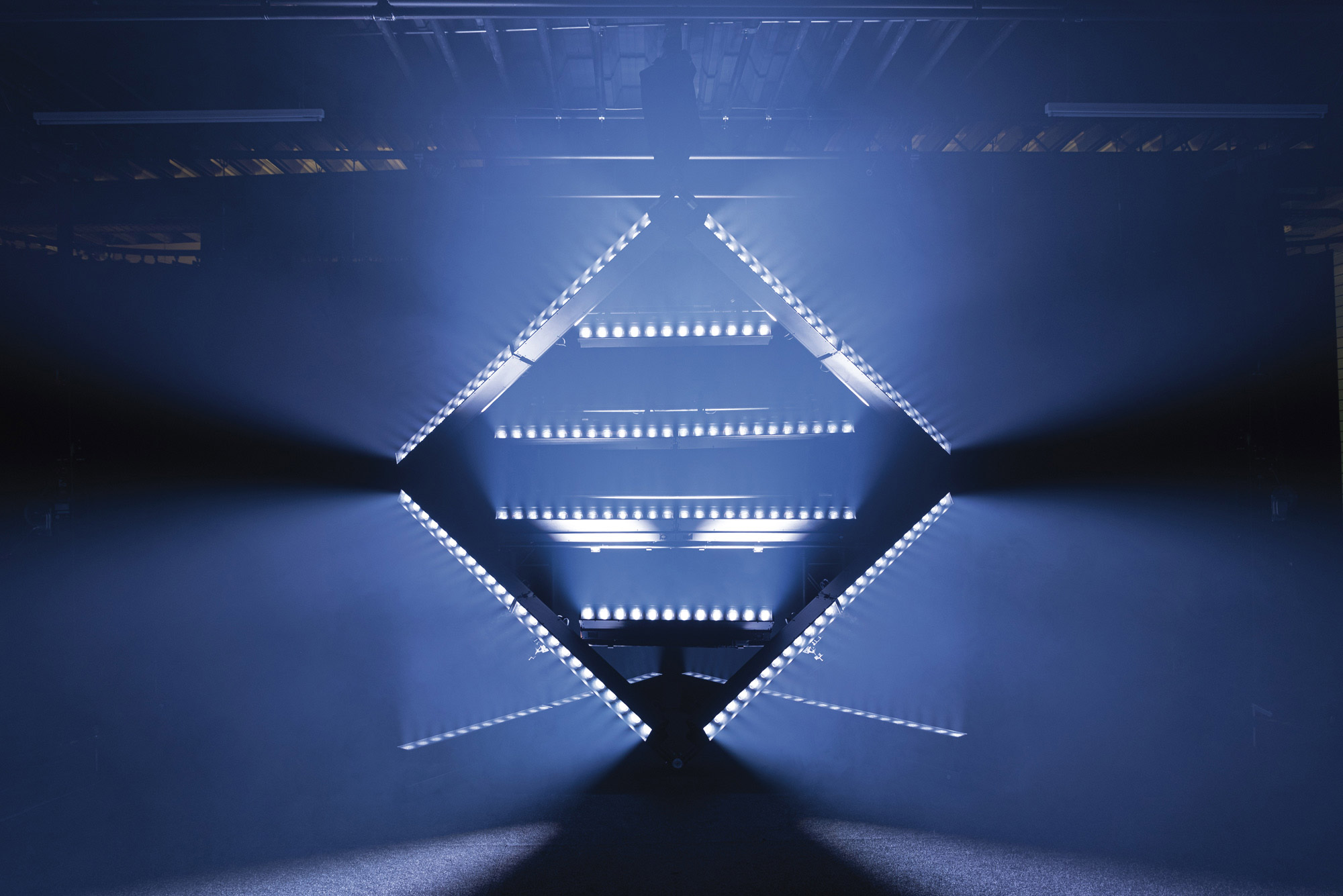

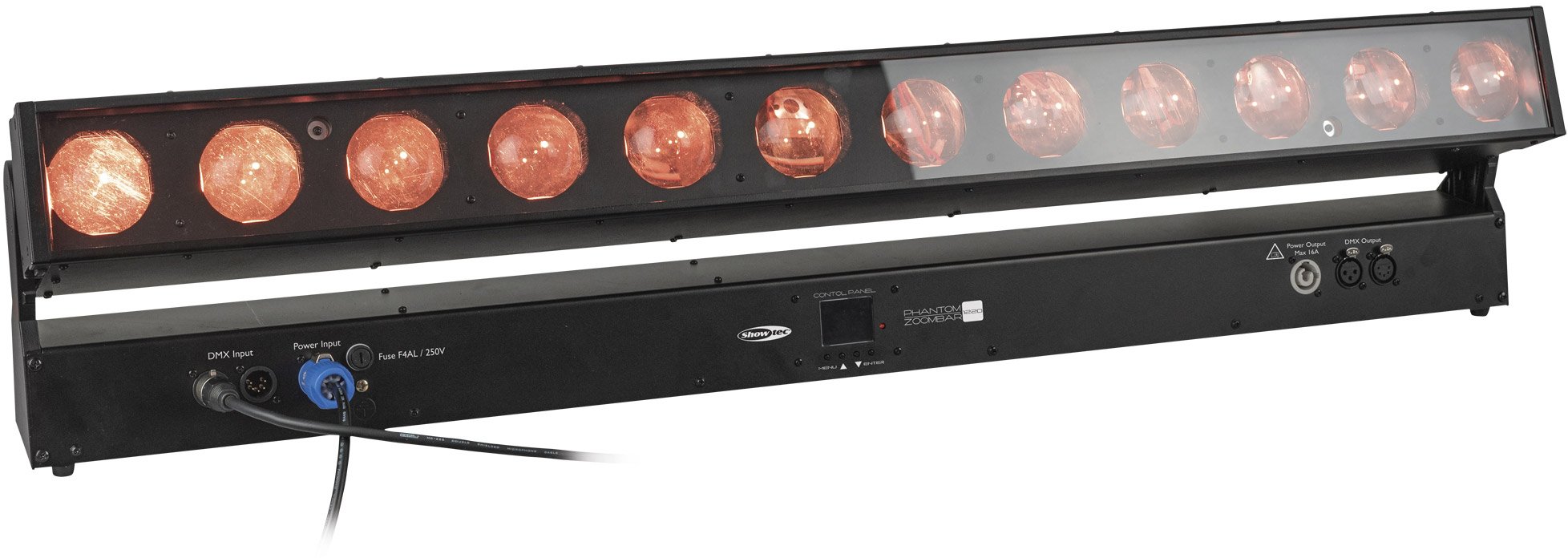

The Showtec Phantom 1220 Zoombar is a 12 x 20 watt RGBW Moving LED Bar within a 5° - 50° motorised zoom range, suitable for indoor venues. It allows you to create a multicoloured light curtain to a nice wash effect. The Phantom 1220 Zoombar has a fast 210° motorised tilt function for quickly changing the LEDs output direction. Its Full Pixel Control allows advanced light designers to set a different colour for every LED. Stunning automated programs can be accessed manually, via DMX and Master/Slave in both Auto Run and Sound-controlled mode.Technical data:

Light Source Type:	LED
Light Source Quantity:	12
Light Source Power:	20 W
LED Colour Type:	RGBW
Refresh Rate (Max.):	15 kHz
Illuminance @ 2 m:	57000 lx
Luminous Flux (Total):	45000 lm
Beam Angle (Circular):	50°
Zoom Type:	Motorised
Zoom Minimum:	5°
Zoom Maximum:	50°
Control Mode:	Auto / DMX / Manual / Master Slave
DMX Channels:	19 / 24 / 72 / 84 / 129
Protocols:	DMX / RDM
Display:	LCD
Dim Curve:	Linear / Square / I-Square / S-Curve
Zone Control (Sections):	12
Dimmer Resolution:	16 bit
Dimmer:	0-100 %
Strobe:	0-20 Hz
Pan:	0°

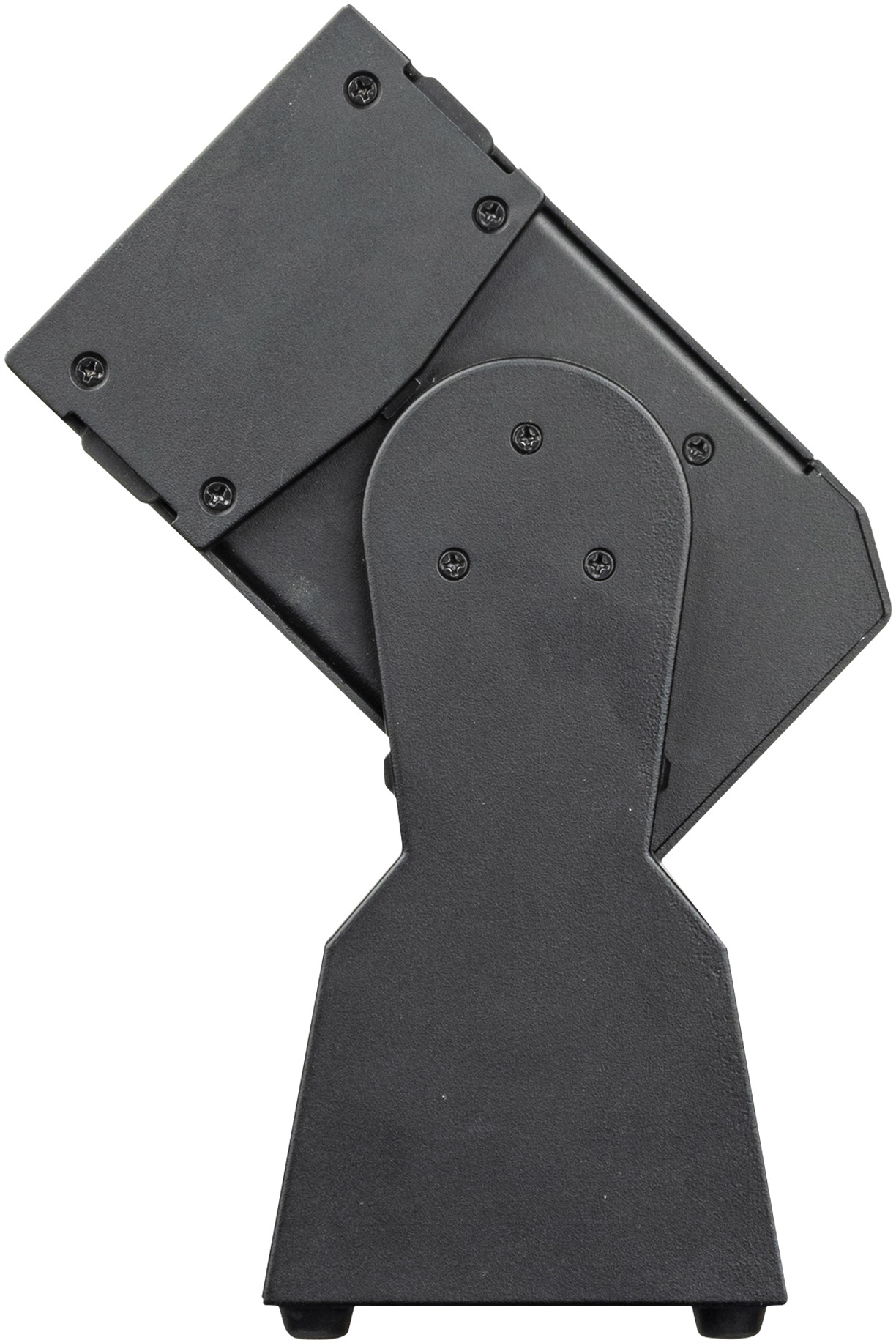

Tilt:	210°
Pan/Tilt Resolution:	16-bit
Power Supply:	100-240 V AC 50/60 Hz
Power Consumption:	240 W
Power Connector In:	powerCON Blue
Power Connector Out:	powerCON Grey
DMX Connector:	XLR 3P In/Out / XLR 5P In/Out
DMX Connector In:	XLR 3P / XLR 5P
DMX Connector Out:	XLR 3P / XLR 5P
Length (mm):	1000 mm
Height (mm):	233 mm
Weight:	13.2 kg
IP Rating:	IP20 (indoor use only)
Housing:	Metal / Plastic
Cooling:	Axial fan
Mounting Options:	Quick-Lock
Safety Attachment:	Yes
Maximum Ambient Temperature:	40 °C
Included Cables:	powerCON cable

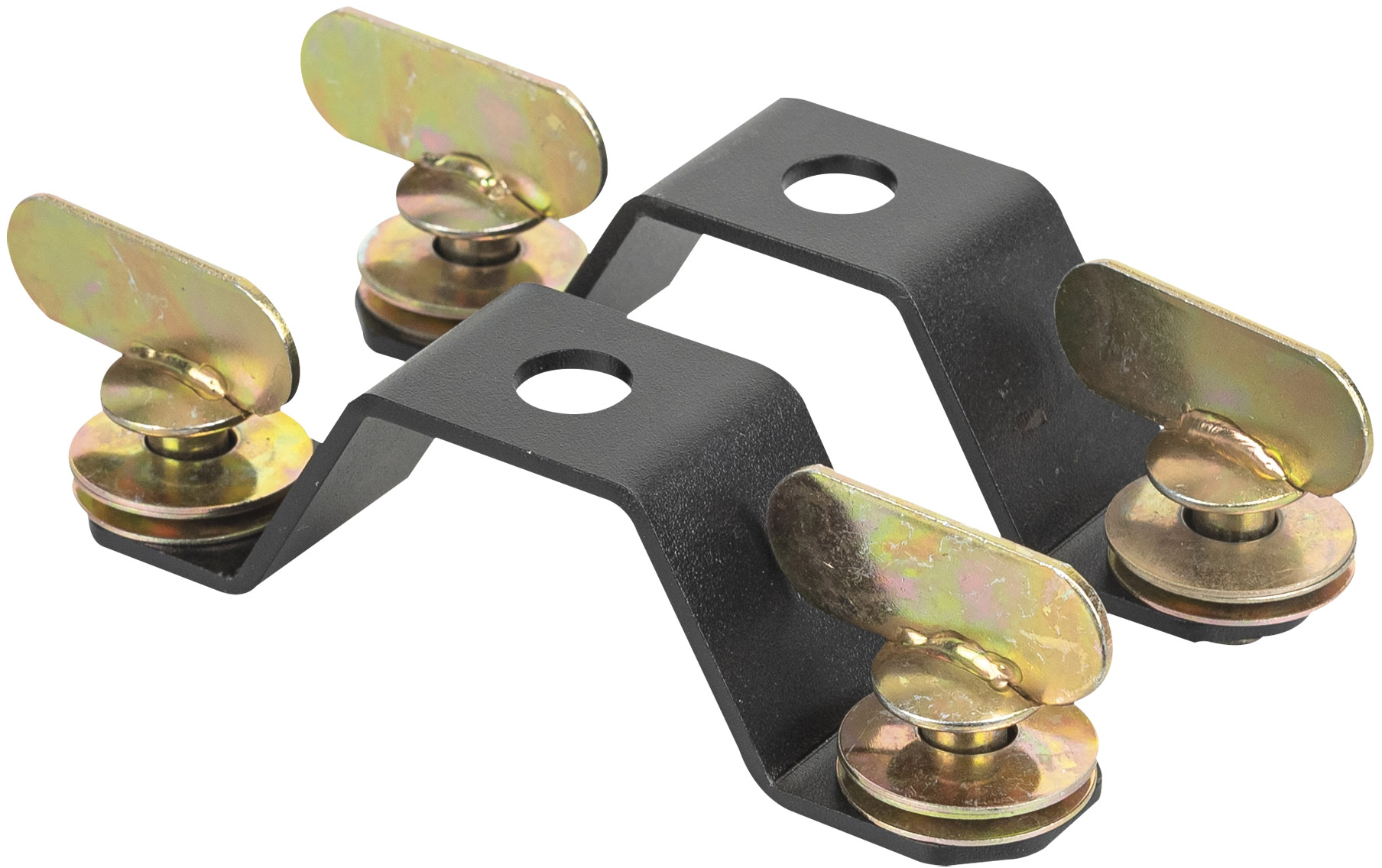

Included Rigging:	Quick-Lock Bracket
