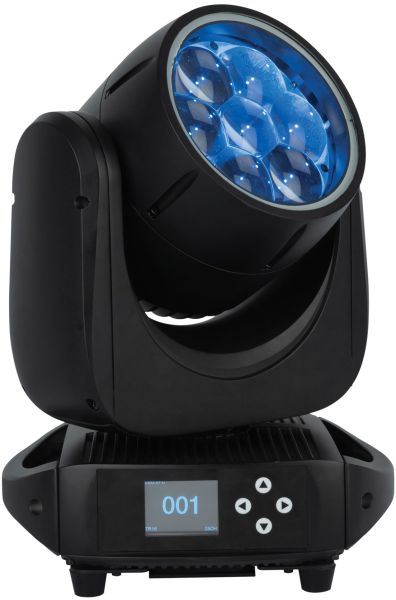

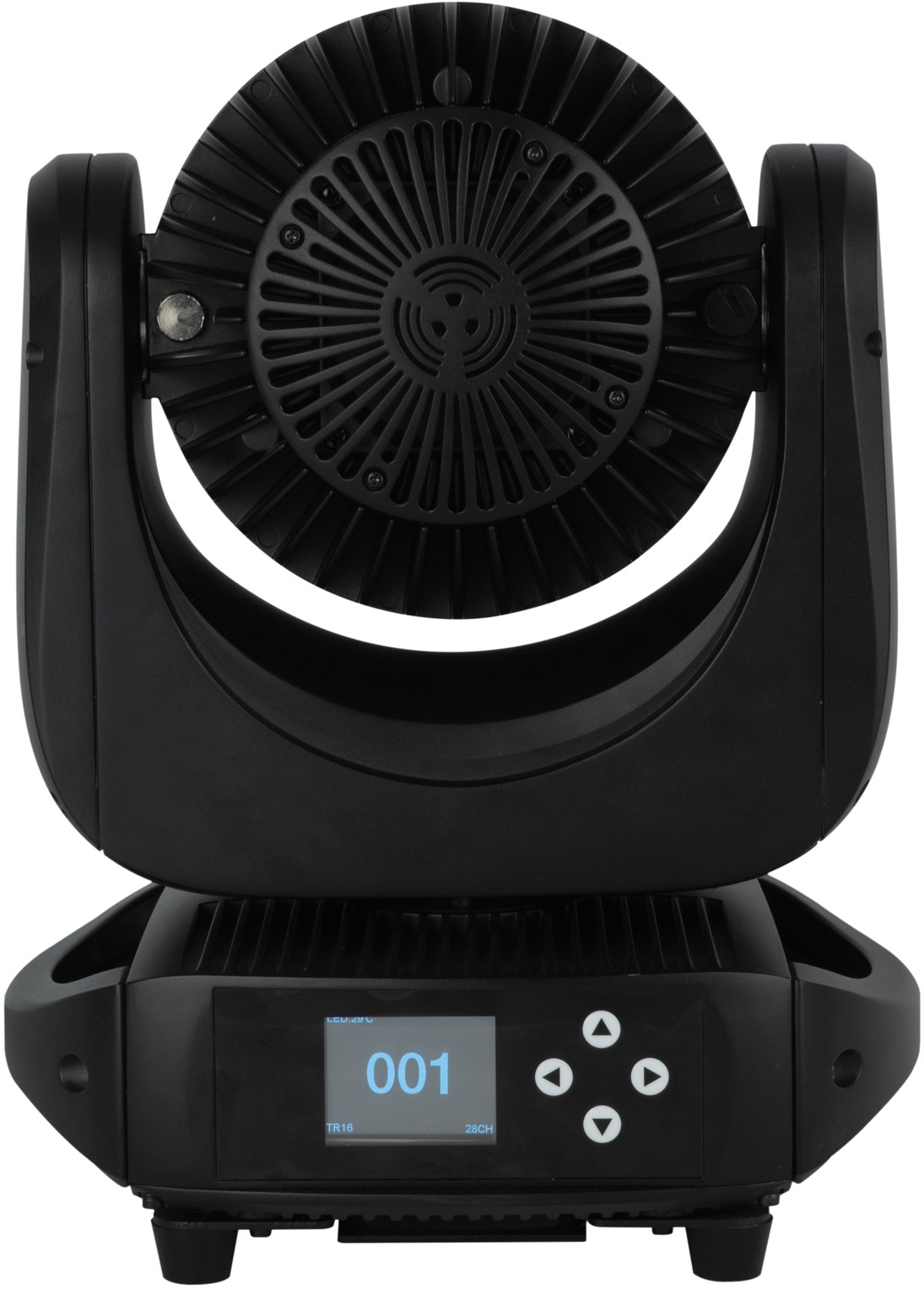

SHOWTEC Polar Wash 740 IP65 7x 40 W RGBL LED Wash Moving Head

The Showtec Polar series offers professional Beam, Wash, and Hybrid Moving Head fixtures with a powerful output and state-of-the-art features, suitable for outdoor venues. All Polar fixtures are IP65 rated and therefore water and dust resistant, making sure that the show can go on, even on a rainy day. They can be controlled via DMX, Art-Net, RDM, sACN and even wireless DMX (W-DMX) which is perfect for a quick setup in combination with their one-clamp mount. Controlling the units is very easy thanks to user-friendly control buttons. The Polar beam control (X/Y movements) is very quick and precise. Working with Polar fixtures enables you to create unique and high-level optical effects at any outdoor location. Each fixture offers multiple control options, functionalities and effects.

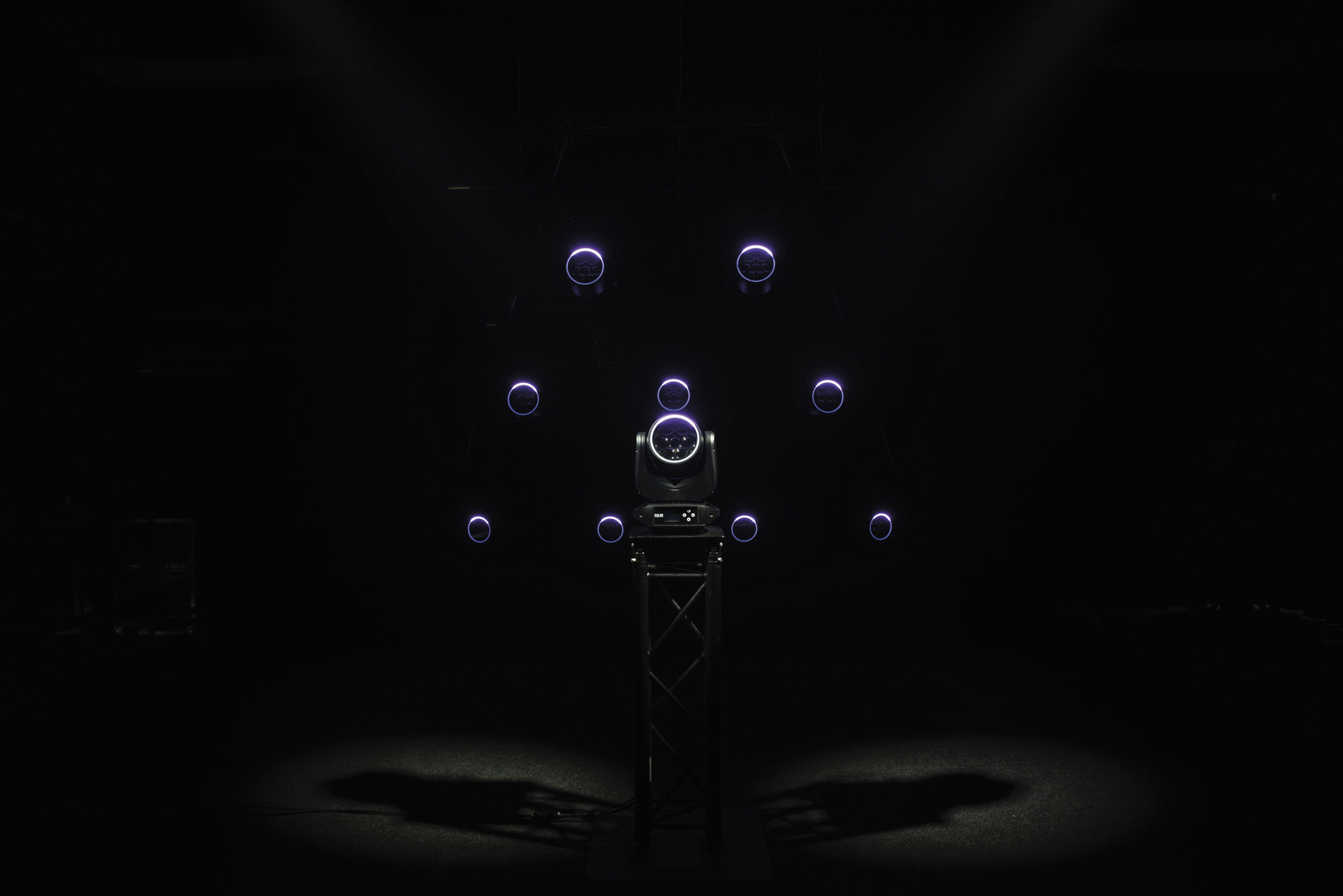

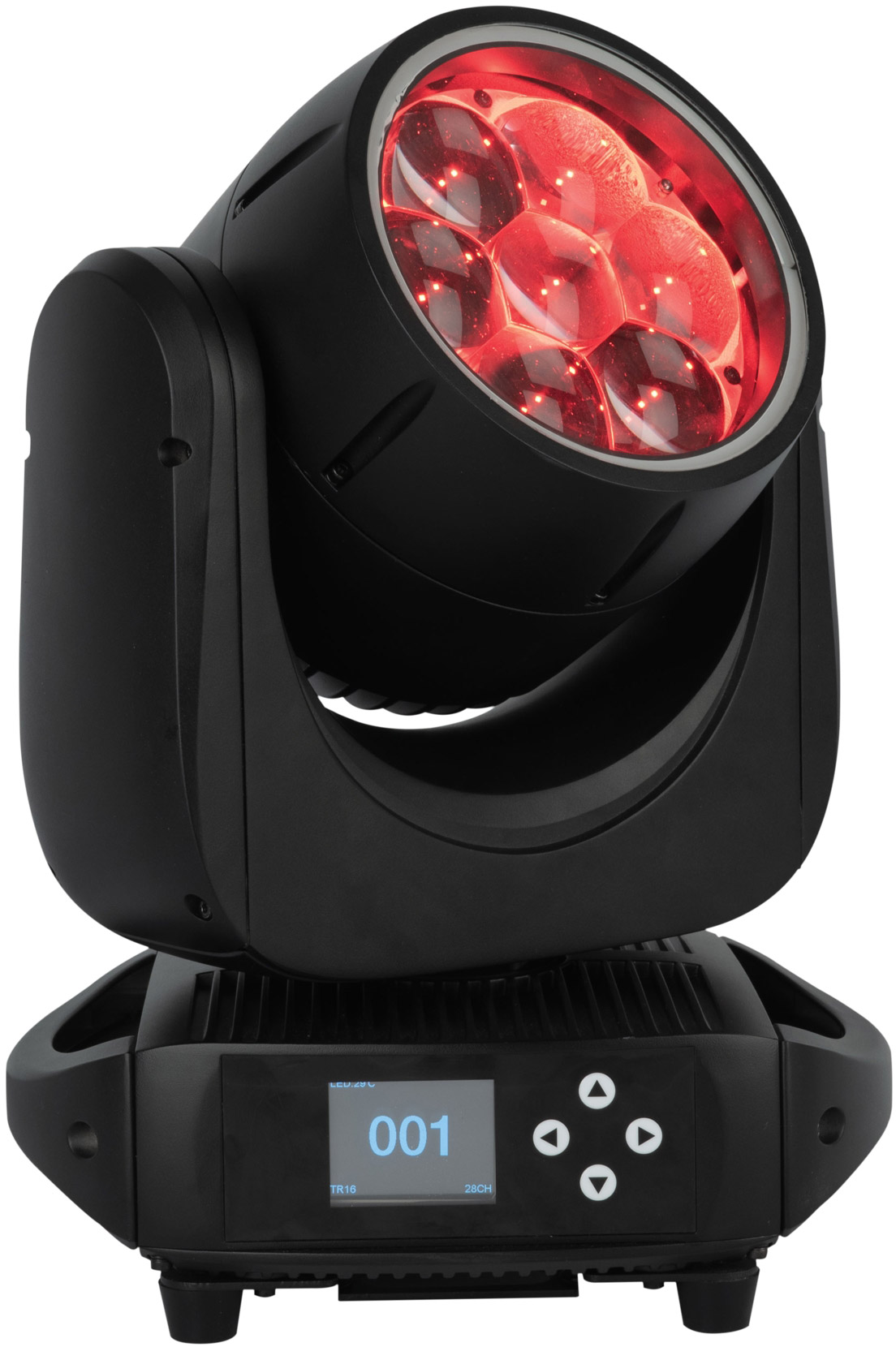

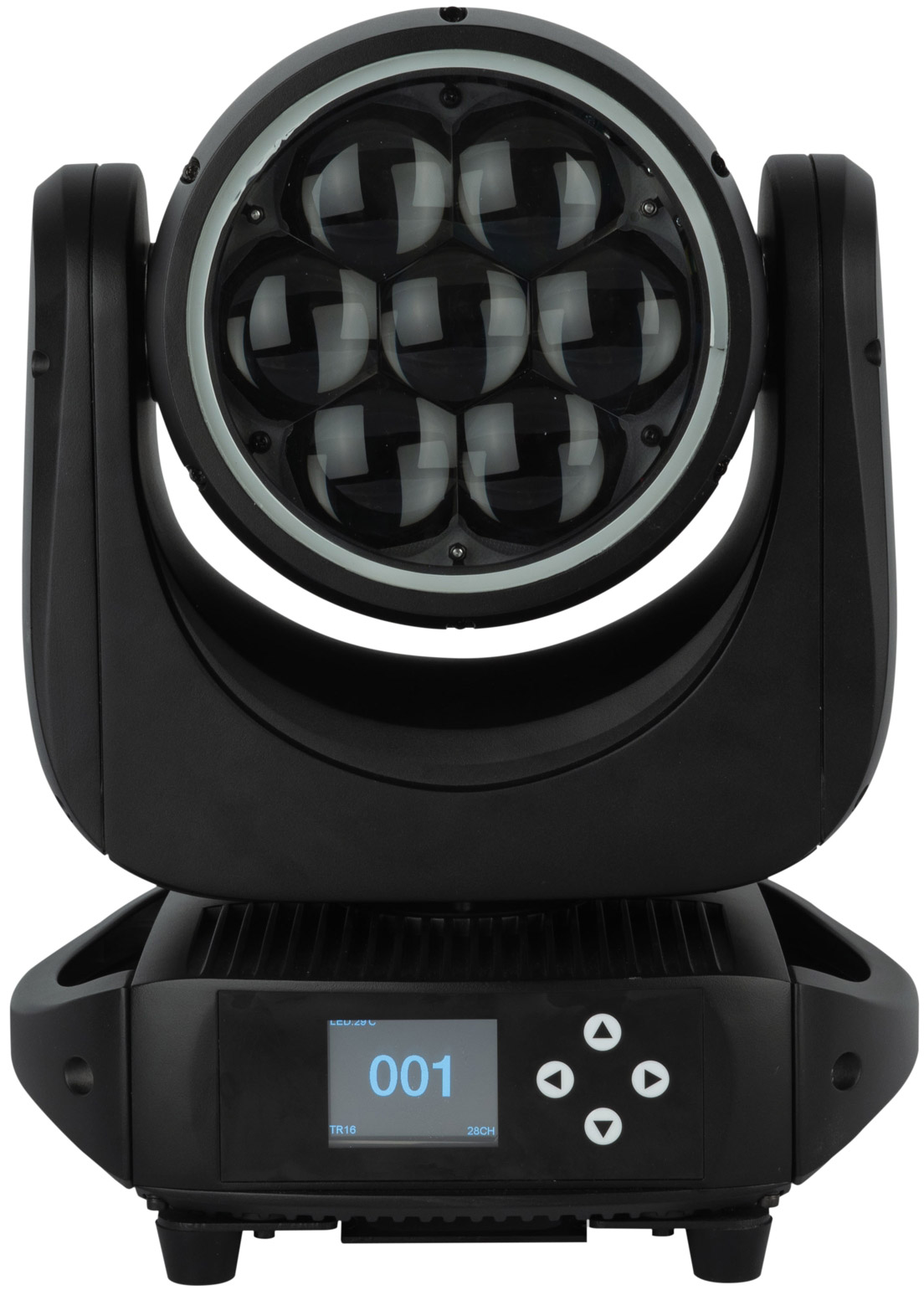

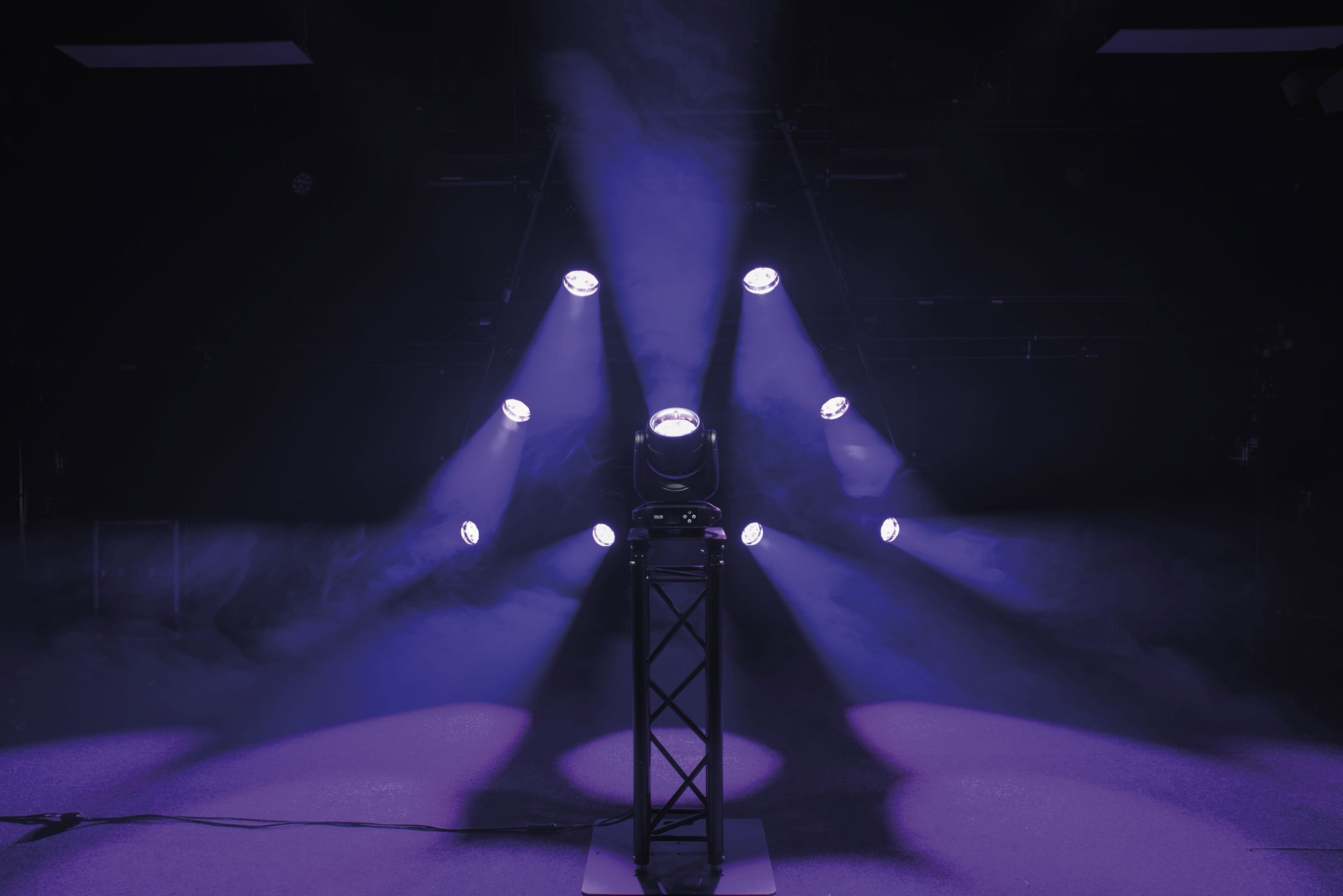

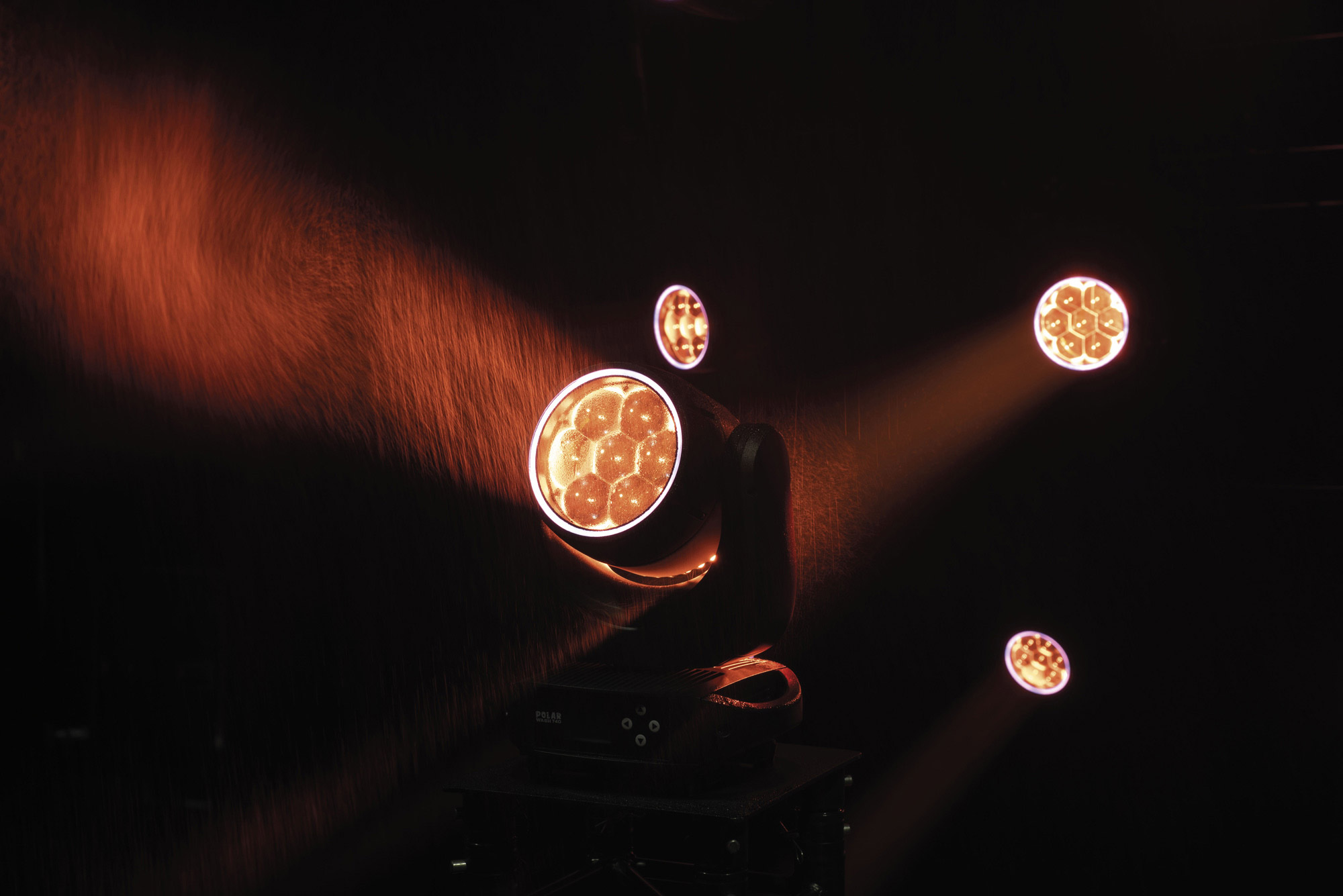

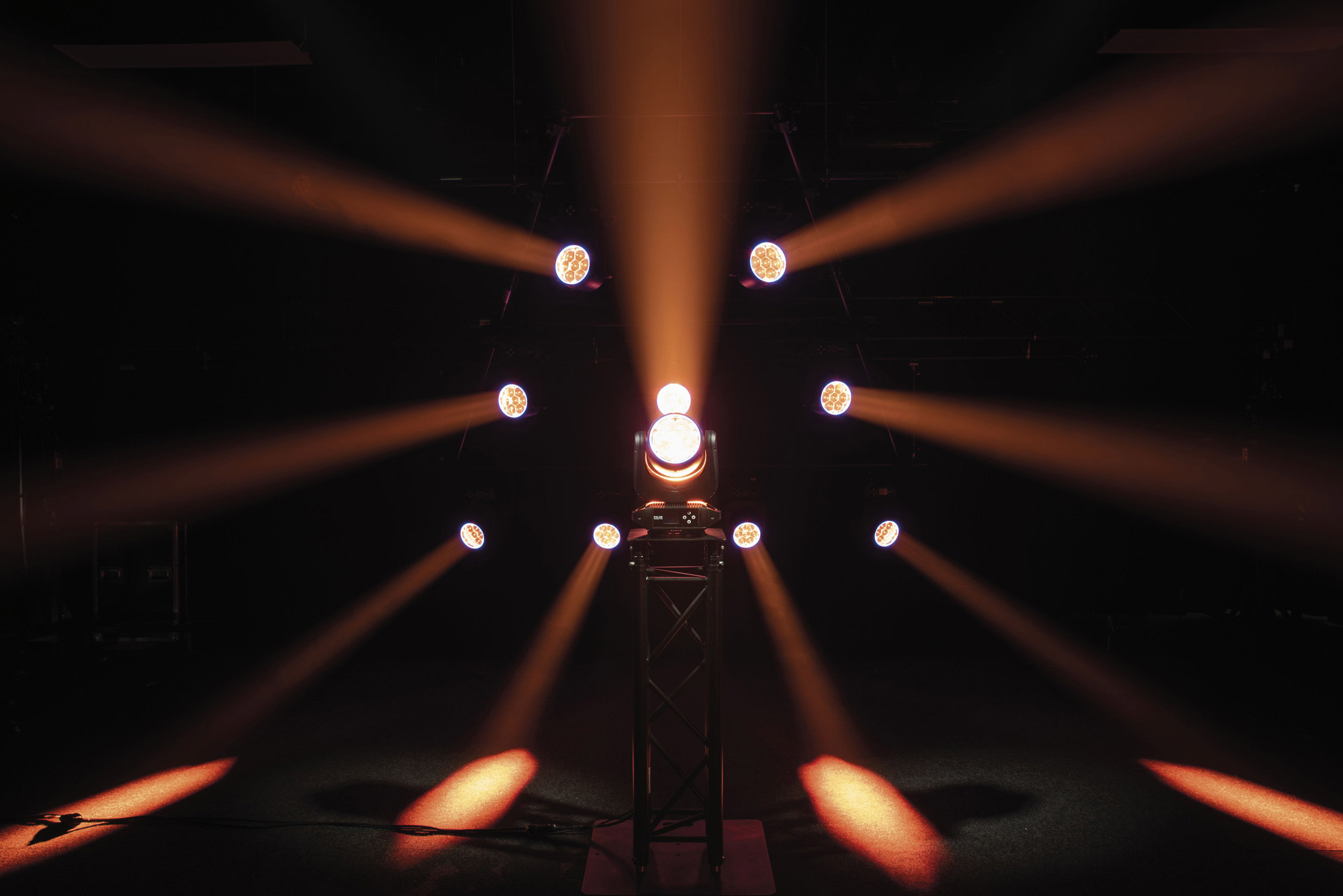

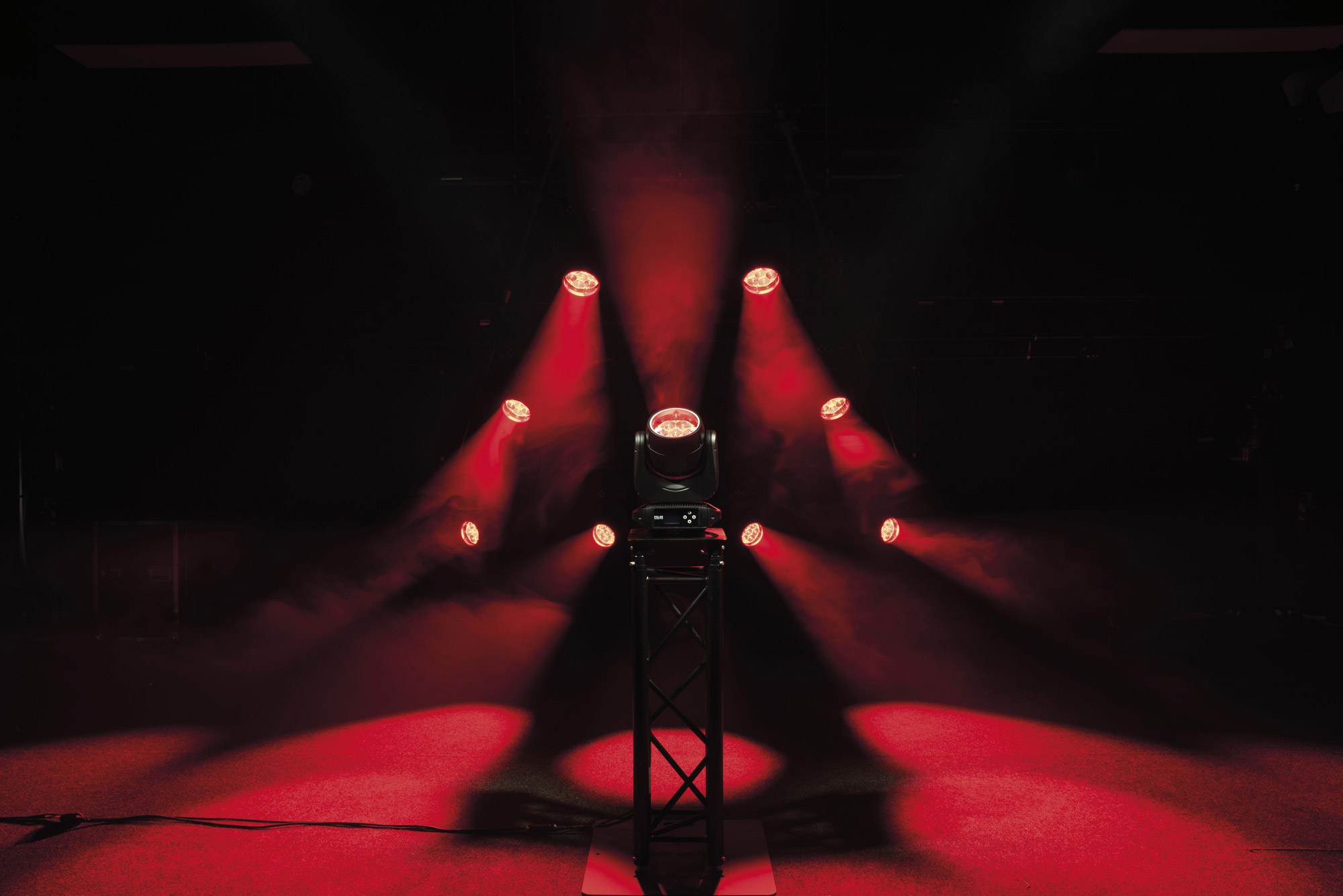

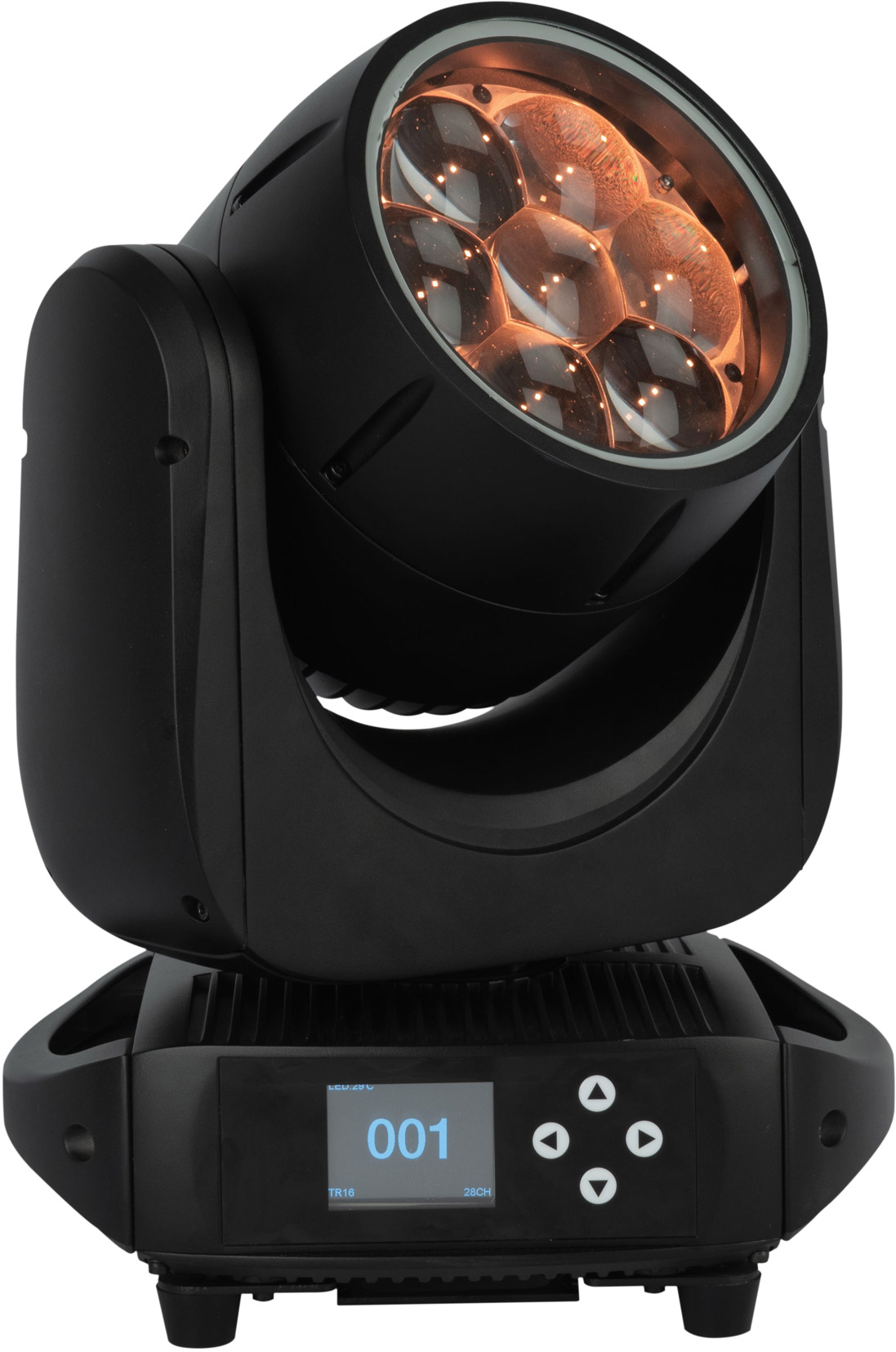

The Showtec Polar Wash 740 is a powerful yet compact and lightweight LED wash moving head with zoom and LED ring effect, suitable for indoor and outdoor applications. Despite its size, its 7 RGBL LEDs of 40 watts each can produce a combined output of over 4000 lumens. With the addition of the lime LED, it achieves a CRI of 85 for its white colours. The Polar Wash 740 creates anything from a vibrant beam of 3.5° to a 44° wash with its motorised zoom. The 7 RGBL LEDs can be controlled in two sections: the centre LED and the outer LEDs. The LED ring around the 7 LEDs can be controlled separately and creates fascinating graphic patterns in selectable colours. You can also index, rotate and bounce these patterns to your own liking.
The Polar Wash 740 has an adjustable PWM, making it suitable for touring and TV applications. Its low noise level of just over 36 dB in silent mode allows for use in noise sensitive applications. The fixture can be controlled via DMX/RDM. It is IP65 rated, allowing for use in the harshest environments. Weighing 9.8 kg, it is light and compact.Technical data:

Light Source Type:	LED
Light Source Quantity:	7
Light Source Power:	40 W
LED Colour Type:	R / G / B / L
Refresh Rate (Max.):	25 kHz
Illuminance @ 2 m:	73388 lx
Illuminance @ 3 m:	32617 lx
Illuminance @ 5 m:	11742 lx
Luminous Flux (Total):	4060 lm
Luminous Flux (Red):	1093 lm
Luminous Flux (Green):	1604 lm
Luminous Flux (Blue):	679 lm
Luminous Flux (Lime):	1800 lm
CRI:	85
Beam Angle Minimum (Circular):	3.5°
Beam Angle Maximum (Circular):	44°
Zoom Type:	Motorised
Zoom Ratio:	1:10
Zoom Minimum:	3.5°
Zoom Maximum:	44°
Control Mode:	DMX
DMX Channels:	19 / 21 / 22 / 25 / 28
Protocols:	DMX / RDM
Wireless:	Optional
Display:	OLED
Fan mode:	Yes
Zone Control (Sections):	2
Dimmer Resolution:	16 bit
Dimmer:	0-100 %
Strobe:	0-25 Hz
Pan:	540°
Tilt:	220°
Pan/Tilt Resolution:	16-bit
Continuous Movement:	No
Power Supply:	100-240 V AC 50/60 Hz
Power Consumption:	320 W
Fuse:	6.3 A

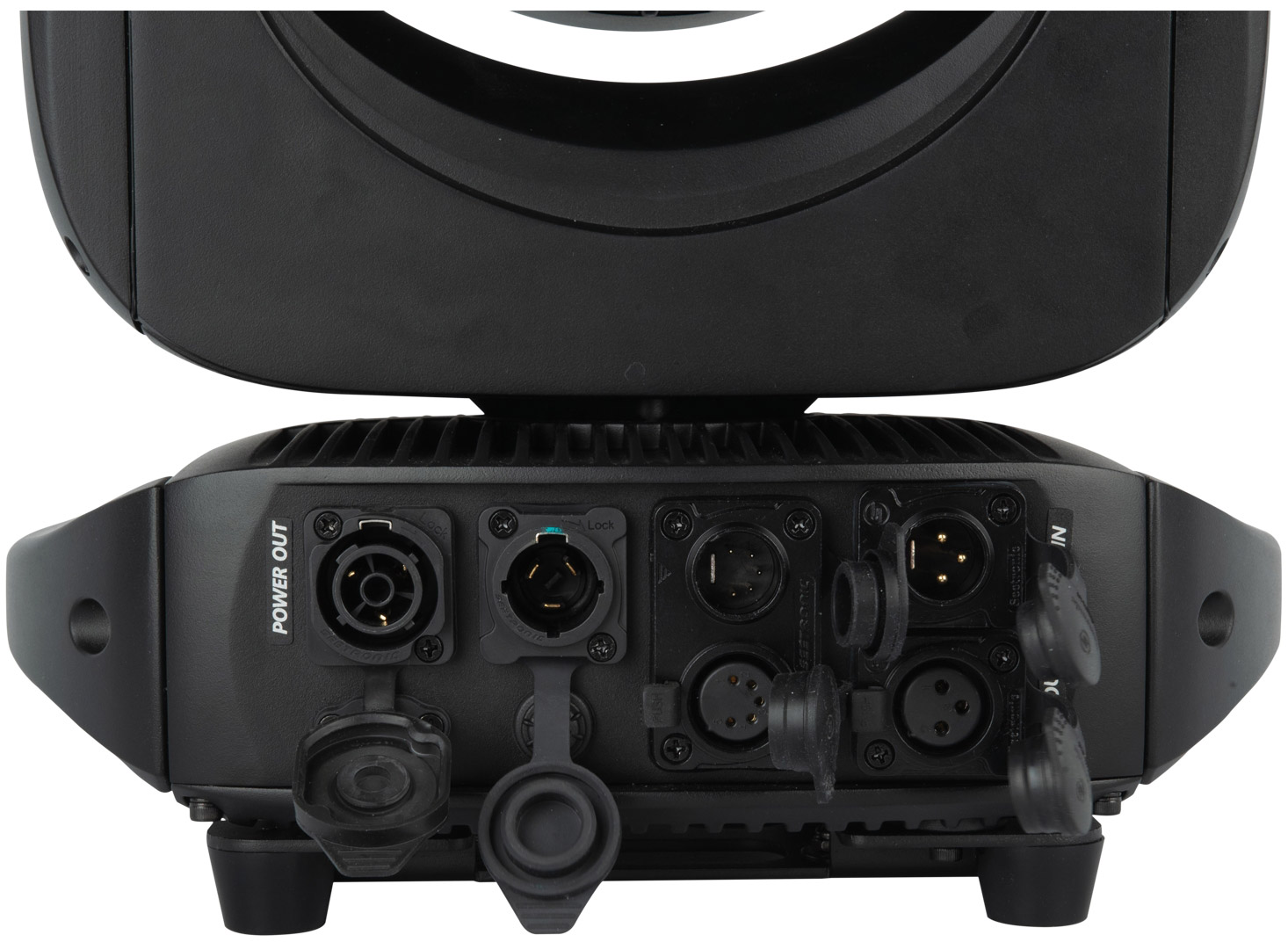

Power Connector In:	Power Pro True
Power Connector Out:	Power Pro True
DMX Connector:	XLR 3P In/Out / XLR 5P In/Out
DMX Connector In:	XLR 3P / XLR 5P
DMX Connector Out:	XLR 3P / XLR 5P
Length (mm):	290 mm
Width (mm):	233 mm
Height (mm):	375 mm
Weight:	9.8 kg
Noise Level Maximum:	45.2 dB
Silent Mode Noise Level:	36.1 dB
IP Rating:	IP65
Housing:	Aluminium die-cast
Colour:	Black
Cooling:	Convection/Axial fan
Mounting Options:	Quick-Lock
Safety Attachment:	Yes
Safety Eyes:	1
Maximum Ambient Temperature:	45 °C
Maximum Surface Temperature:	65 °C
Minimum Operating Temperature:	-20 °C
Included Cables:	Power Pro True Cable
Included Rigging:	Quick-Lock Bracket
