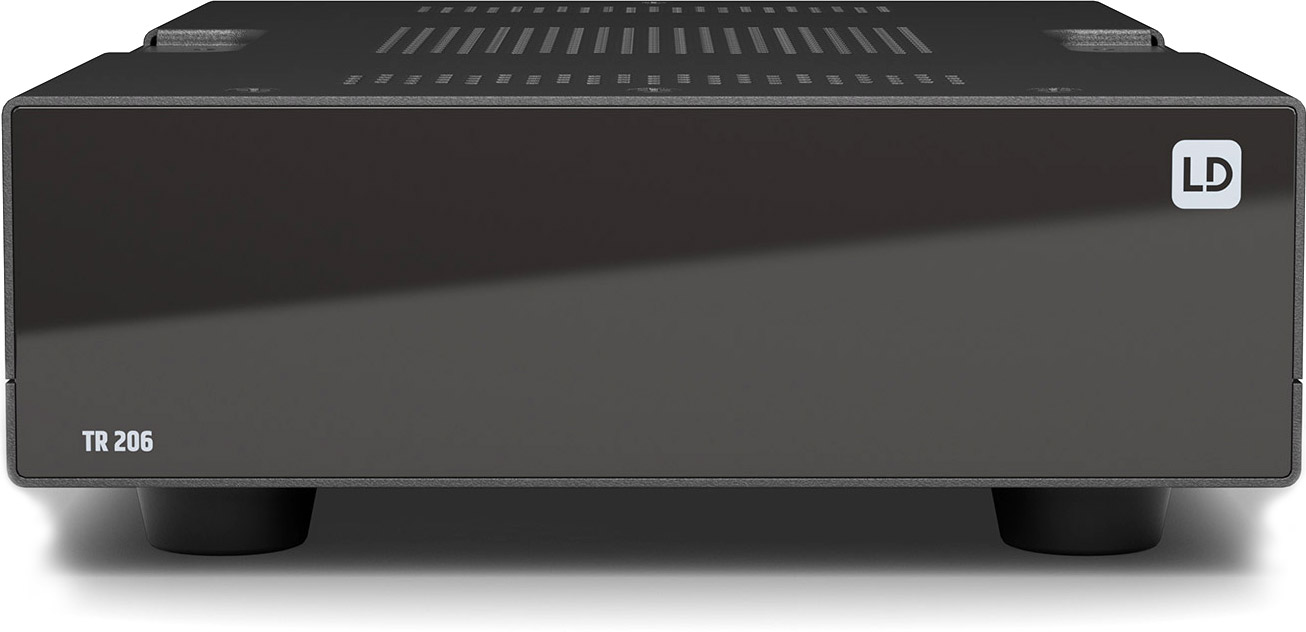

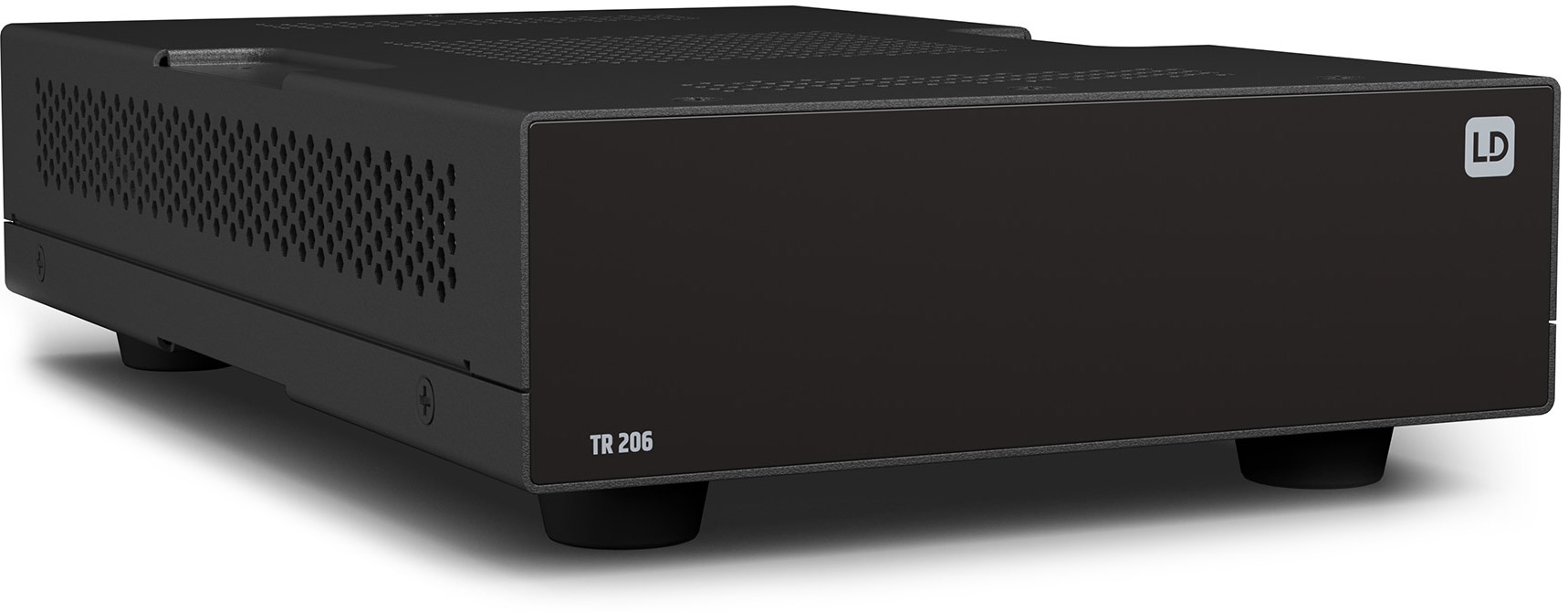

LD Systems TR 206 - 2 x 60W audio line transformer

Preview: LD Systems TR 206 - 2 x 60W Audio-Leitungstransformator

LD Systems TR 206 - 2 x 60W Audio-Leitungstransformator

Sale to reseller only

Express delivery possible

Availability:

Delivery time: 1-3 days

Delivery time: 1-3 days

Product inquiry

Item number: 210906290

EAN: 4049521893094

MPN: LDTR206

2 x 60W audio line transformer 2-channel loudspeaker transformer 60 W power per channel 8,... more

Back to the overview

All information about the product:

"LD Systems TR 206 - 2 x 60W audio line transformer"

2 x 60W audio line transformer

2-channel loudspeaker transformer
60 W power per channel
8, 4 or 2 ohms input impedance
100V, 70V or 25V outputs
Transformer and protective housing in one
Compact and easy to install and connect

The TR206 from the TICA® series is a line transformer with 2 x 60 W channels. It converts a low-impedance amplifier signal into a constant loudspeaker signal so that it can be used in constant voltage audio distribution systems. This means that several 100 V, 70 V or 25 V speakers can be controlled by each of the outputs of a low-impedance amplifier.

Thanks to its compact dimensions of 142 x 44 x 226 mm and the supplied mounting plates, it can be easily and unobtrusively installed.

Alternatively, it also fits into a 1/3 19-inch rack. With the optional rack tray, you can mount up to three products from the TICA® series next to each other, allowing you to put together a system that suits your needs and takes up minimal rack space.

Technical data:

Product type:	Power transformer for constant-voltage speaker cables
Number of channels:	2

entrance area

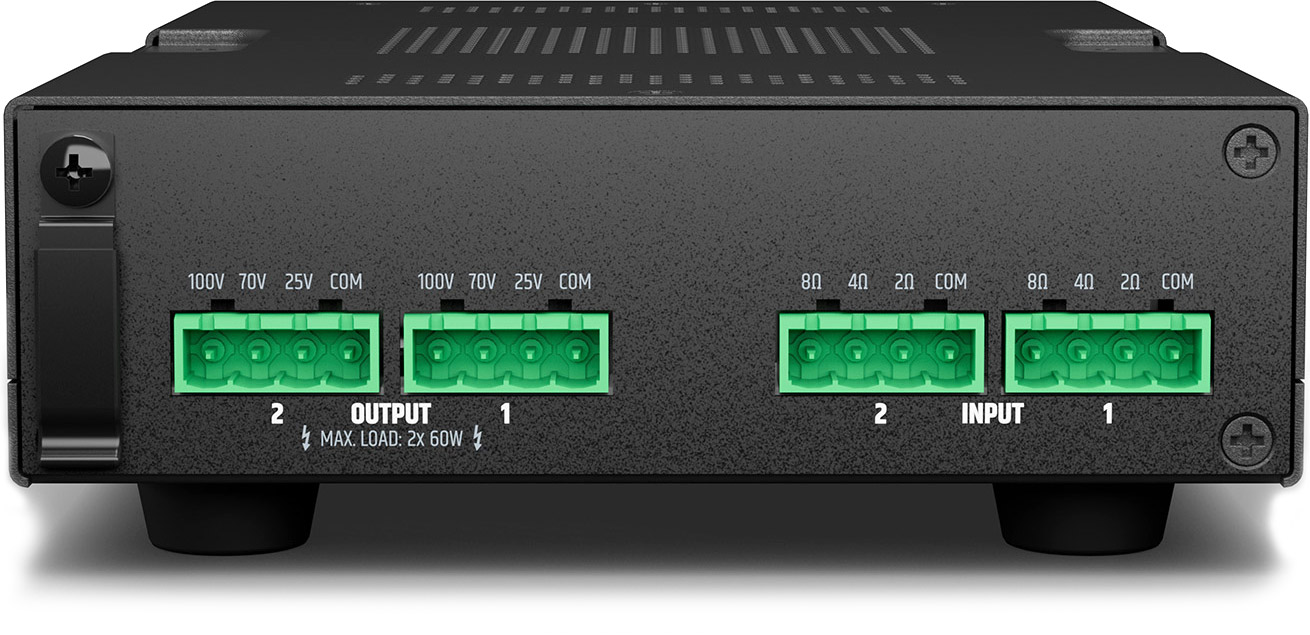

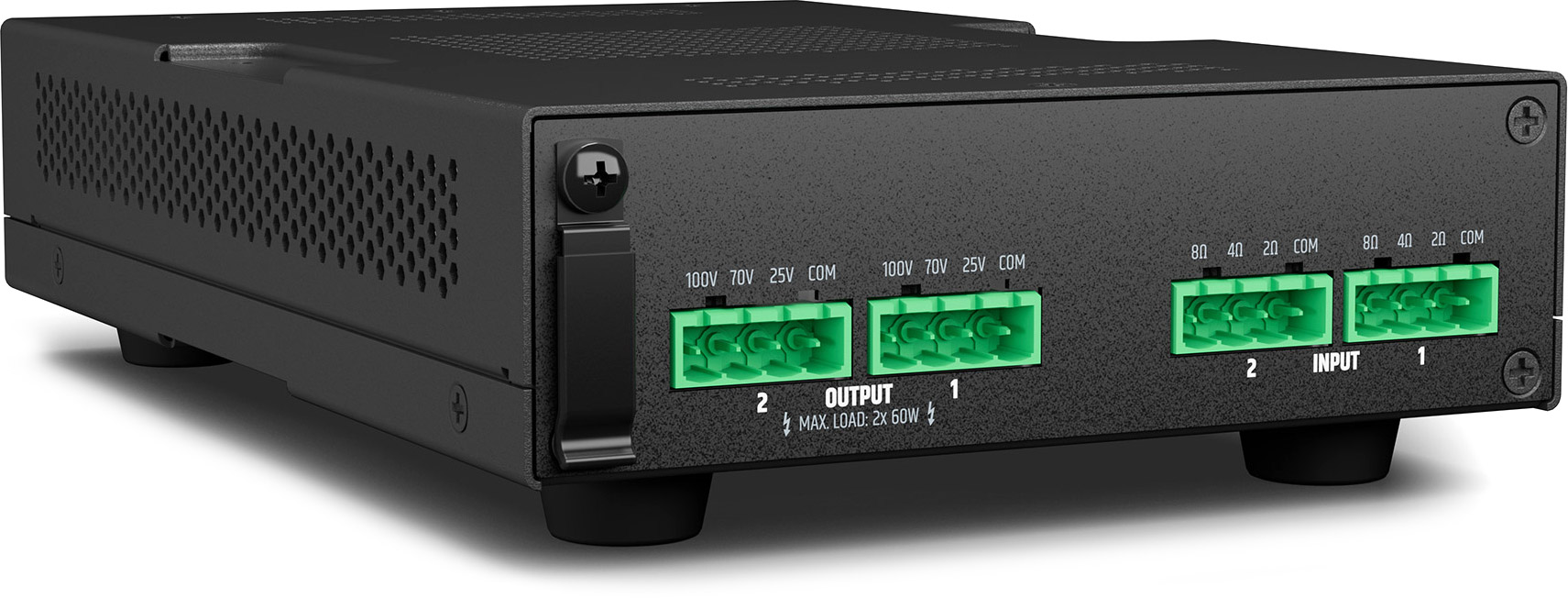

Type of connection:	4-pole Terminal Block. Pitch 5.08mm
Load capacity per channel:	60 W
Input connectors:	2 / 4 / 8 ohms
THD:
Frequency range (-1 dB):	50 Hz - 20000 Hz

starting area

Connection:	4-pole Terminal Block. Pitch 5.08mm
Output connections:	25 / 70 / 100V

General data

Housing material:	Steel casing
Material:	plastic bezel
Operating temperature (non-condensing):	0°C - 40°C;
Transformer type:	toroidal transformer
Dimensions (W x H x D) (height with rubber feet):	142 mm x 53 mm x 226
Weight:	2.3 kg
Accessories (included):	Terminal blocks for electrical connections
Accessories (included):	Mounting plates for surface mounting
Optional accessories:	Rack storage (LDTICARK)
