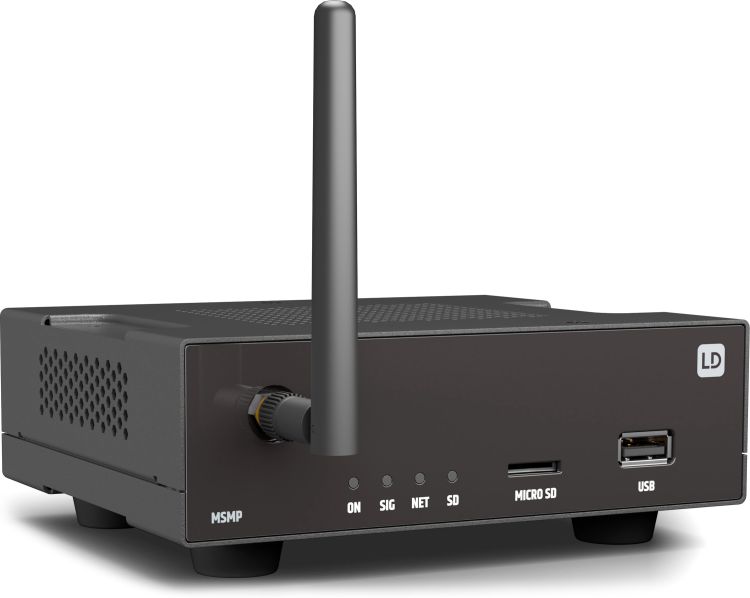

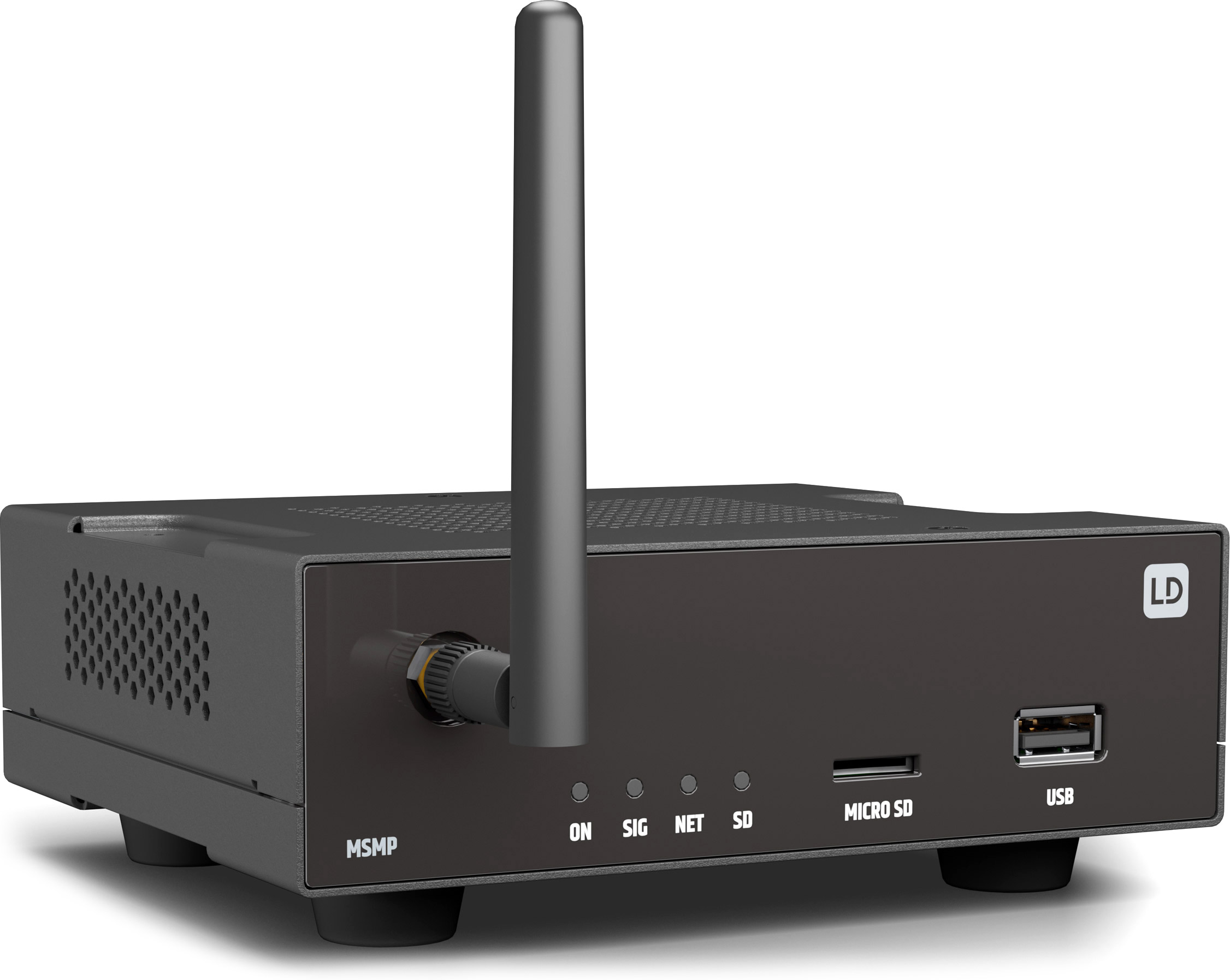

LD Systems MSMP - Message Scheduler-Streamer Music Player
- Stream audio from online sources
- Compatible with Airplay and DLNA
- Audio Message Scheduler
- stereo line output
- Remote-controlled level controller
- Automatic music ducking for announcements
- Audio playback via USB and microSD
- Works with Questra® Design and Management Software
The MSMP is part of the TICA® series and is a compact music player that can connect to audio streaming services via URL sources and play music and announcements via USB or MicroSD. The MSMP is compatible with DLNA and Airplay for full flexibility.

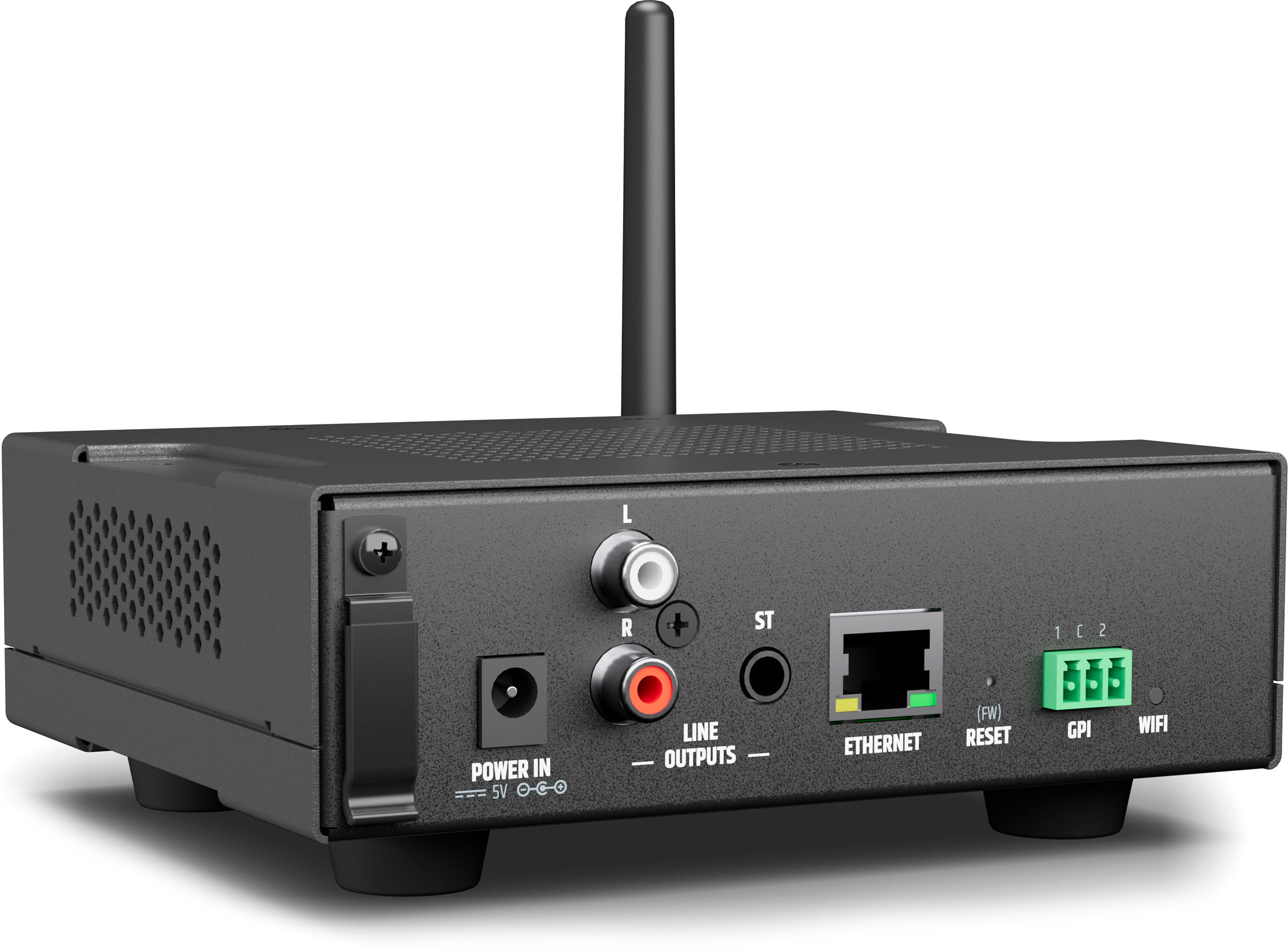

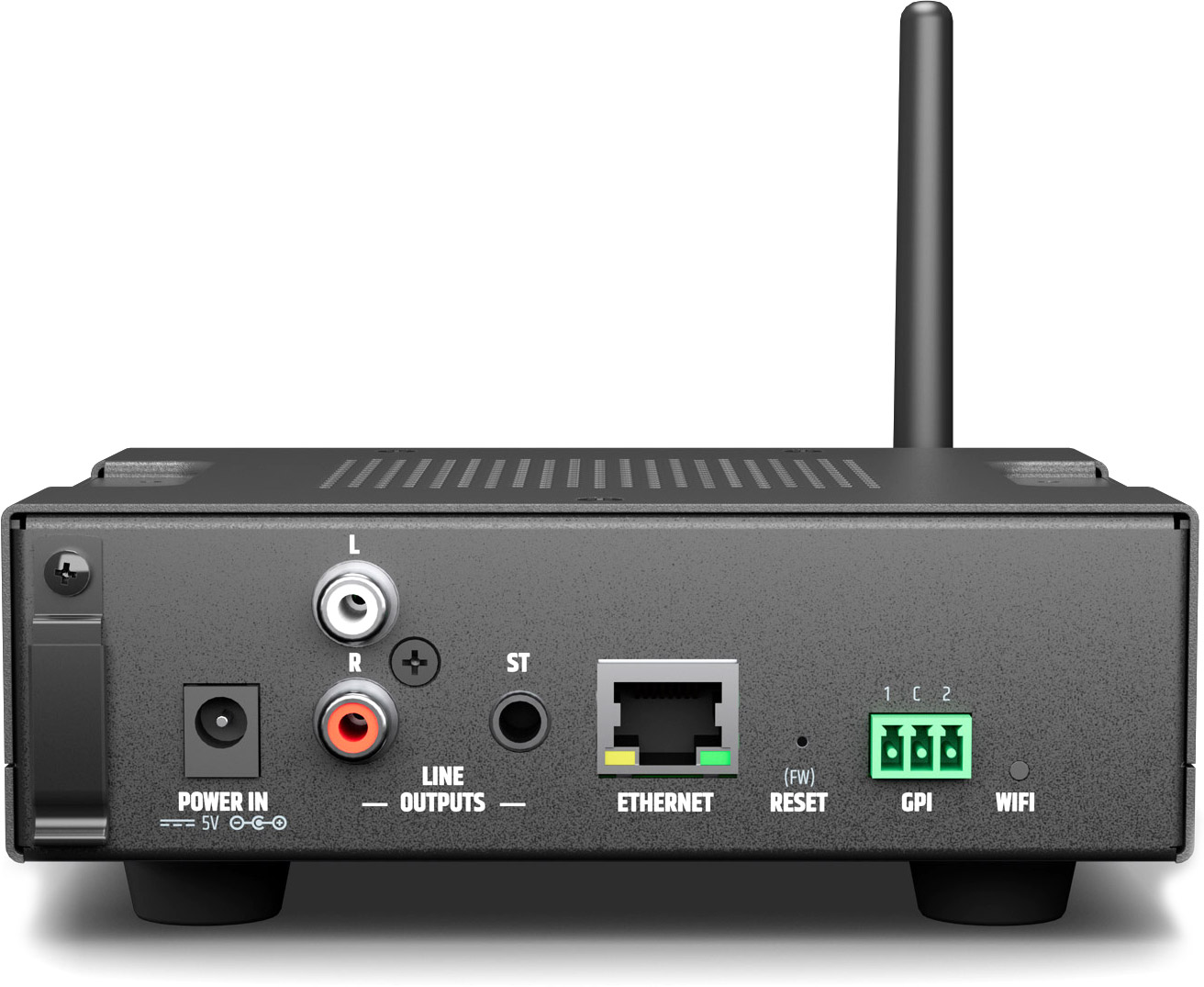

Stereo audio output is provided via both RCA phono and mini-jack. The connection can be made via Wi-Fi or a wired internet connection. Announcements can be scheduled at specific times or at regular intervals, or triggered externally via the two GPI inputs. The MSMP is powered by an external 5V power supply.
MSMP is integrated into the QUESTRA software and enables quick access control when playing. The built-in web configurator gives you access to all configuration menus, including the scheduler. With Questra, you can configure your entire audio system from one place.
Thanks to its compact size of 142 x 44 x 124.2 mm and the included mounting plates, it can be installed almost anywhere inconspicuously. Alternatively, it can also be mounted in a 1/3 19-inch rack. With the optional rack tray, you can mount up to three TICA® series products side by side, allowing you to customize a system that takes up minimal rack space.
MSMP is perfect for any application that requires background music, and gives you even more flexibility by allowing you to manage announcements for employees or customers, depending on the application.
Technical data:| Product type: | Installing Media Player |
| Number of outputs: | 2 |
| Cooling: | convection |
| Audio Modes: | AirPlay |
| Audio Modes: | DLNA |
| Audio Modes: | Player for local storage (USB & microSD) |
| Audio Modes: | URL Radio Streaming |
| Media formats: | AIFF |
| Media formats: | FLAC |
| Media formats: | M3U |
| Media formats: | MP3 |
| Media formats: | Ogg Vorbis |
| Media formats: | PLS |
| Media formats: | WAV file |
| Outputs: | Unbalanced stereo line level |
| Number of output connections: | 2 |
| Type of connection: | Stereo RCA |
| Network connection (cable): | RJ45 |
| Wireless unit connections: | Wi-Fi 802.11a/b/g/n (2.4GHz band) |
| GPI Type: | Dry contact to ground |
| Number of GPI ports: | 2 |
| Connection: | 3-pin terminal block |
| Storage media type: | Micro SD SDXC |
| Storage media type: | USB |
| USB connection: | USB 2.0 high speed (480 Mbps) |
| USB storage capacity: | Up to 2 TB |
| Grid connection: | External SMPS |
| Operating voltage: | 100 V AC - 240 V AC / 50 - 60 Hz |
| Plug for the power supply: | International AC plug set |
| Housing material: | steel |
| Front panel material: | plastic |
| Dimensions (W x H x D) (height with rubber feet): | 142 x 53 x 124.2 mm (height with rubber feet) |
| Rack height: | 1 U |
| Rack width: | 1/3 19" |
| Optional accessories: | rack-mounting hardware ( LDTICARK ) |
| Weight: | 1 kg |
