DAP-Audio CORE Beat 3-channel DJ-mixer

DAP CORE is a DJ series including DJ Mixers and a Table Top. They are all made of high quality materials and built to last and outperform. It's a durable range of DJ gear with a high price-to-quality ratio suitable for club, mobile, karaoke and home DJs from beginner to the more experienced player.

DAP Audio has created two DJ Mixer models which are available in 2, 3 and 4-channel versions. The basic and latest set of mixers are the CORE Scratch (2-Ch), Beat (3-ch) and Club (4 Ch). Next to its basic functionalities, each model has bluetooth playback, a VU channel indication and both a Master and Booth output with separate volume control.

More advanced mixers are the CORE MIX-2 (2-Ch), MIX-3 (3-Ch) and MIX-4 (4-Ch). They are equipped with a USB record module, two built-in USB audio interfaces for MAC/PC and variable FX send / return for each channel. This allows you to record your set, add audio effects and play music from your laptop, table top or even Vinyl player.

The DAP CORE CDMP-750 Table Top is a CD/USB player for completing your DJ setup. It enables you to scratch, Cue, pitch, play memory loops, add built-in audio effects and more! It supports CDs and USB sticks of up to 2 terabyte and works perfectly fine together with the CORE DJ Mixers by using the digital output. Interested in our DAP CORE series? Contact us now for free advice and get an offer you can't refuse or check out our product pages for more information.

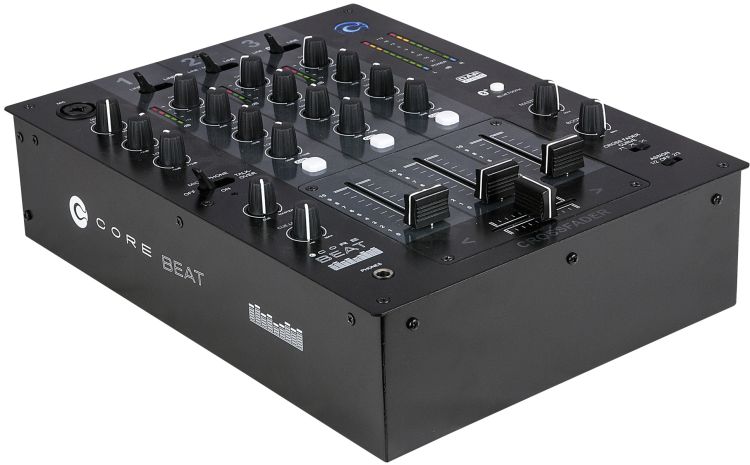

The DAP Core Beat is a 3-channel DJ mixer with six line inputs, microphone input with talkover function and Bluetooth playback module. With this mixer you can mix music from multiple media sources, both wired and wireless. All the important functionalities are there for a DJ to excel and entertain audiences in a simple way. A third channel gives you more flexibility to use different media sources, for example.

The Core Beat has an intuitive and straightforward design so that you can pay maximum attention to your audience. All three channels have VU channel indication and settings (EQ, volume and gain) for smooth track transitions without clipping. You can choose from 3 crossfader options to seamlessly switch between tracks without compromising the atmosphere.

The high-quality components ensure reliability and a long service life. This DJ mixer is well worth the investment and retains its value for a long time.Technical data:

Mono Inputs:	1
Mono Input Connector:	3-pin XLR / TRS balanced 6.3 mm
Stereo Inputs:	6
Stereo Input Connector:	RCA
Main Outputs:	1
Main Output Connector:	RCA
Monitor Outputs:	1
Monitor Output Connector:	RCA
Headphone Output:	1
Headphone Output Connector:	TS unbalanced 6.3 mm
Record Output:	1
Record Output Connector:	RCA
Audio Interface:	No
Media Player:	No
THD Level %:	Signal-to-noise Ratio:> 85 dB
Crosstalk:	75 dBu
Signal-to-noise Ratio (Mic):	> 80 dB
Signal-to-noise Ratio (Line):	> 85 dB
Frequency Response Minimum:	20 Hz
Frequency Response Maximum:	20000 Hz
Phantom Power:	No
Parametric Channel Equalizer:	3 Bands
Input Channel Equalizer Gain Range:	12 dB
Input Channel Fixed Frequencies:	100, 1.000, 10.000 Hz
Microphone Input Equalizer Gain Range:	12 dB
Parametric Microphone Equalizer:	2 Bands
Microphone Input Fixed Frequencies:	100, 10.000 Hz
Bluetooth:	Yes
Bluetooth Audio Profile:	A2DP
Bluetooth Range:	25 m
LED Indicators:	BT Pairing / Input level / Output level / Power
Power Supply:	240 V AC 50/60 Hz
Output voltage:	15 V AC
Power Consumption:	8 W
Power Connector In:	Low Voltage DC plug
Fader Length:	60 mm
Height (mm):	84 mm
Width (mm):	247 mm
Length (mm):	331 mm
Flightcase Size:	12"
Housing:	Metal
Colour:	Black
Weight:	4.1 kg
IP Rating:	IP20 (indoor use only)
Included Accessories:	Adapter
