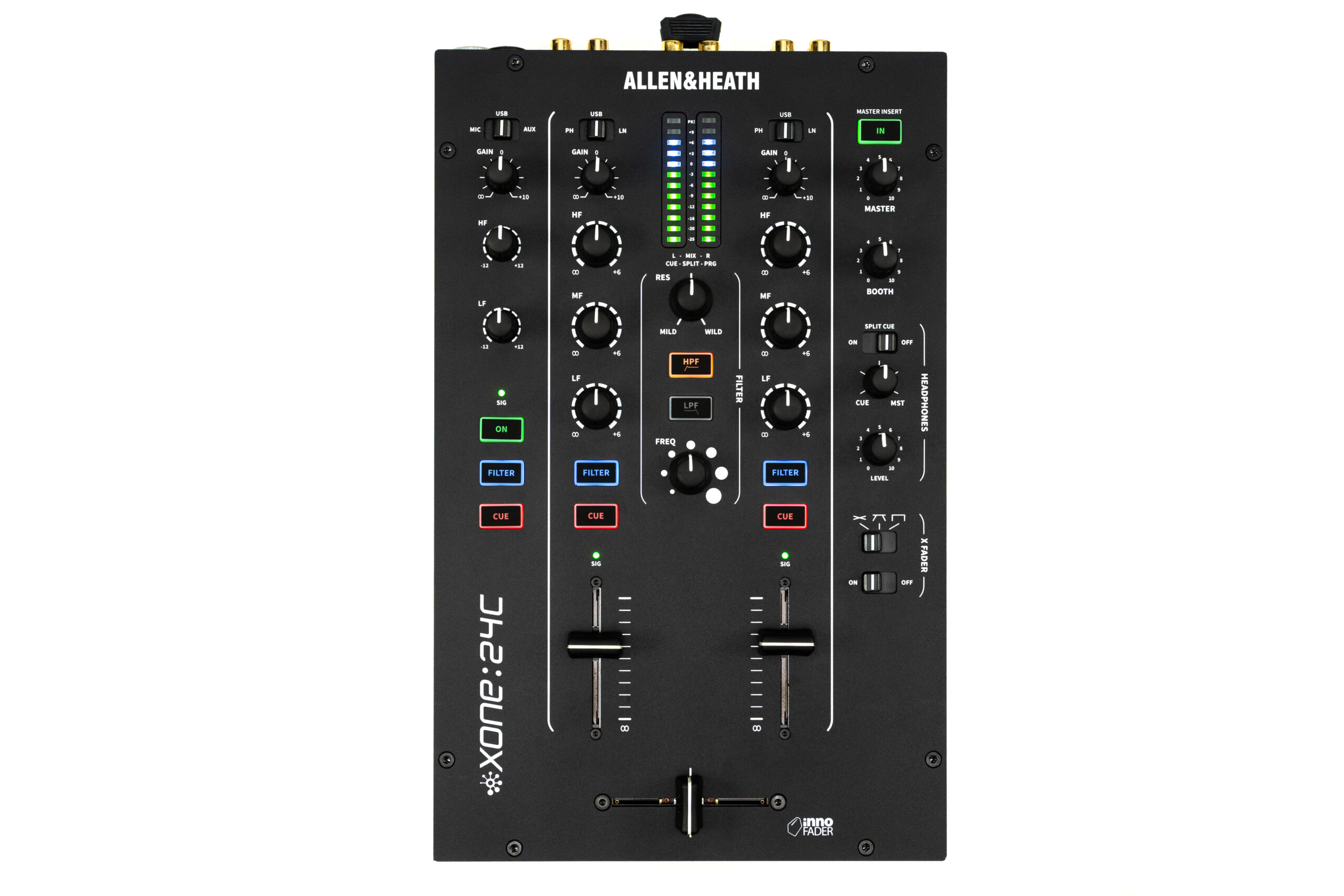

Allen & Heath Xone:24C – 2+1-Channel Analog DJ Mixer with USB-C Interface

The Allen & Heath Xone:24C is a compact 2+1-channel hybrid DJ mixer that combines the signature analog Xone sound with modern digital connectivity. With its fully analog signal path, the legendary Xone:VCF filter, a Mini innoFADER crossfader, and the built-in 24-bit/96-kHz USB-C audio and MIDI interface, the Xone:24C is ideal for DJs, home setups, mobile applications, streaming, DVS, and music production.

The Xone:24C builds on the fully analog Xone:24 and expands the proven design with extensive USB functionality. Two phono/line channels allow for the connection of classic turntables and digital playback devices, while the built-in USB interface enables easy connection to a computer, DAW, and compatible DJ software.

Distinctive Analog Xone Sound

At the heart of the Allen & Heath Xone:24C is a fully analog signal path. High-quality, low-noise RIAA phono preamps ensure detailed vinyl playback, while matched phono and line inputs allow for seamless switching between turntables and digital sources.

The carefully tuned analog summing delivers a powerful low-end as well as open and detailed highs—ideal for demanding DJ sets and high-quality music playback.

3-Band Isolator EQ for Creative Mixing

The built-in 3-band Isolator EQ allows for precise control over the frequency spectrum. DJs can selectively edit individual frequency ranges, swap out basslines, and create creative transitions.

The intuitive user interface provides direct access to the most important mixing functions, making the Xone:24C appealing to both beginners and experienced DJs.

Legendary Xone:VCF Analog Filter

The Xone:24C features the renowned Xone:VCF filter system, whose design was inspired by the professional Xone flagship mixers. Low-pass and high-pass filters are available for creative manipulation of the mix.

The frequency control allows you to create dynamic filter sweeps. The adjustable resonance ranges from subtle filter effects to particularly pronounced and characterful sweeps.

24-bit / 96 kHz USB-C Audio and MIDI Interface

The built-in, class-compliant USB-C audio and MIDI interface operates at up to 24-bit / 96 kHz and enables direct integration of the mixer into digital DJ, streaming, and production setups.

Three different operating modes—Stream, DVS Pro, and DAW—simplify configuration for various applications. This makes the Xone:24C ideal for timecode vinyl, live streaming, recording, and collaboration with a DAW, for example.

Integrated USB-C Hub

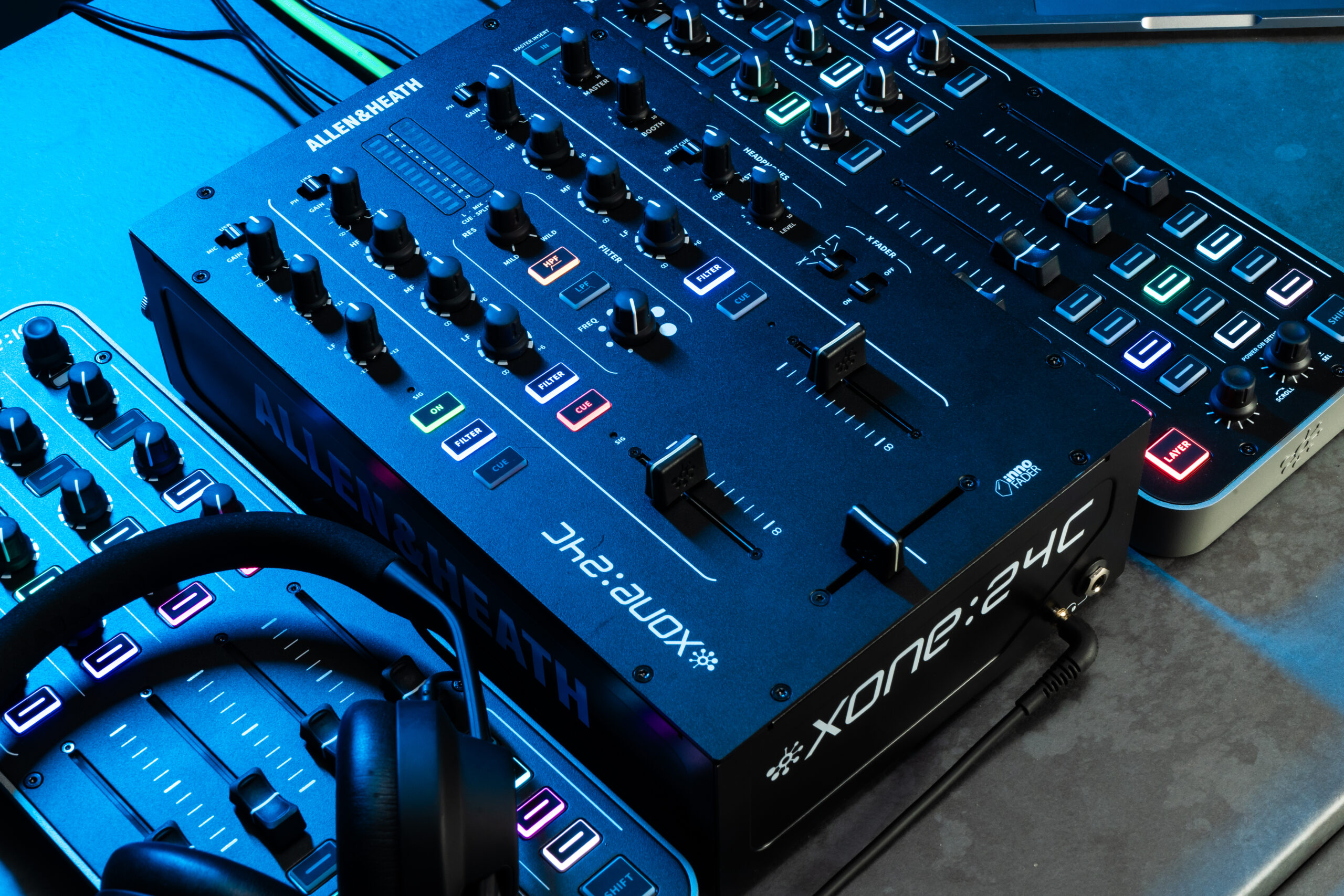

A particular highlight is the dual-port powered USB hub. The additional USB-C ports can be used to connect devices such as Xone:K series controllers or other class-compliant USB-C MIDI and audio devices.

As a result, the Xone:24C can serve as the central hub for a compact digital or hybrid DJ setup, reducing the need for additional USB hubs and connections to the computer.

MIDI Control

In addition to audio transmission, the Xone:24C also sends MIDI data from various control elements to the connected host system. These include, among others, the Mini innoFADER, selected filter functions, cue buttons, channel faders, and the master insert control.

Master Insert for External Effects

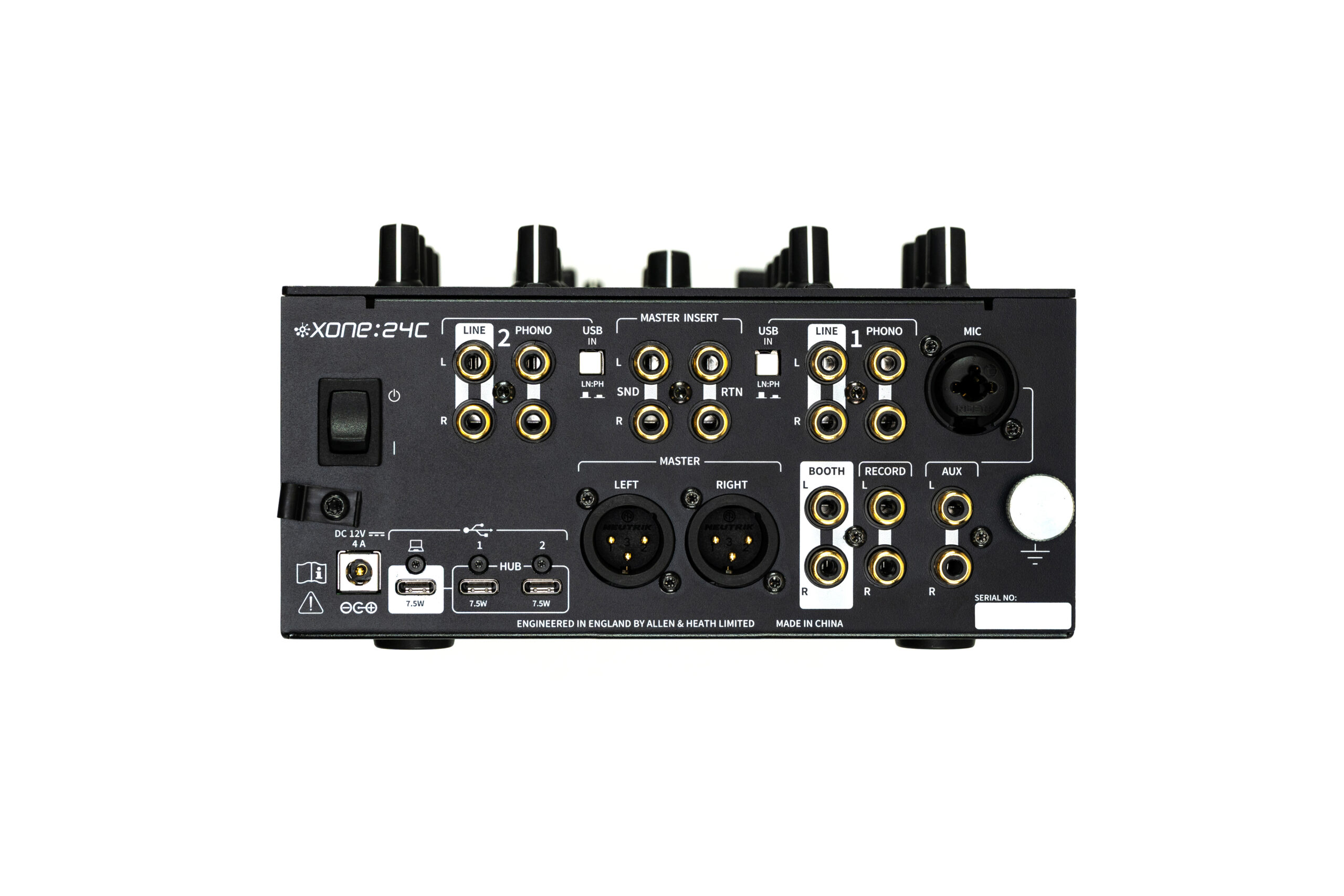

The built-in Master Insert / FX Loop allows external effects units to be conveniently integrated into the signal path. The rear-panel send and return connectors enable the use of external delay, reverb, or other effects processors, for example.

In fixed installations, the Master Insert can also be used to integrate suitable dynamics processors or other devices for processing the main signal.

Mini innoFADER Crossfader

The Mini innoFADER crossfader offers precise and smooth fader response and is designed for high durability. Illuminated buttons, easy-to-read RGB channel level meters, and the extensive range of connections support a fast workflow during live performances.

Highlights

• Compact 2+1-channel hybrid DJ mixer
• Fully analog signal path
• Warm, powerful Xone sound
• Low-noise, high-gain RIAA phono preamp
• Tuned phono/line inputs
• 3-band Isolator EQ
• Legendary Xone:VCF analog filter
• Low-pass and high-pass filters
• Adjustable filter frequency and resonance
• Mini innoFADER crossfader
• USB-C audio and MIDI interface
• 24-bit / 96 kHz audio resolution
• Class-compliant operation
• Stream, DVS Pro, and DAW modes
• Ideal for DVS and timecode vinyl setups
• Suitable for streaming and recording
• Dual-port powered USB hub
• Connectivity for Xone:K controllers
• MIDI output for various mixer controls
• Master insert / FX loop for external effects
• Backlit control buttons
• RGB channel level meters
• Latch and non-latch cue modes

Technical Specifications

• Type: Hybrid Analog DJ Mixer
• Channels: 2+1
• Signal Path: Analog
• Phono Preamps: High-Gain, Low-Noise RIAA
• EQ: 3-band isolator
• Filter: Xone:VCF
• Filter Modes: Low-Pass and High-Pass
• Filter Controls: Frequency and Resonance
• Crossfader: Mini innoFADER
• Audio Interface: USB-C Audio/MIDI
• Audio resolution: 24-bit
• Sampling rate: up to 96 kHz
• USB Modes: Stream, DVS Pro, and DAW
• USB Hub: 2x Powered USB-C
• MIDI output: available
• Effects connection: Master Insert / FX
• Cue modes: Latching / Non-Latching
• Level meter: RGB chromatic channel meters
• Compatibility: Mac, Windows, and iOS

The Allen & Heath Xone:24C DJ mixer combines classic analog Xone sound with modern USB-C connectivity in an exceptionally compact design. Featuring Xone:VCF, a 3-band Isolator EQ, Mini innoFADER, a 24-bit/96-kHz audio interface, and a built-in USB-C hub, the mixer is ideal for vinyl DJs, digital DJ setups, DVS, livestreaming, home DJ applications, and music production.
