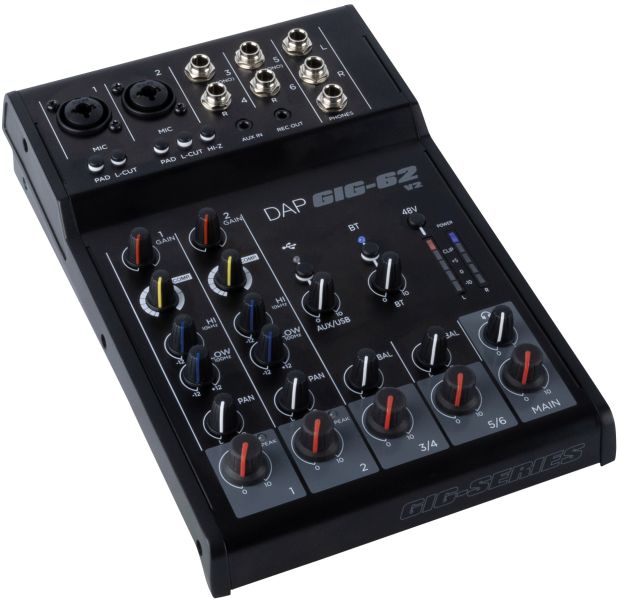

DAP-Audio GIG-62 V2 6-channel analogue mixer

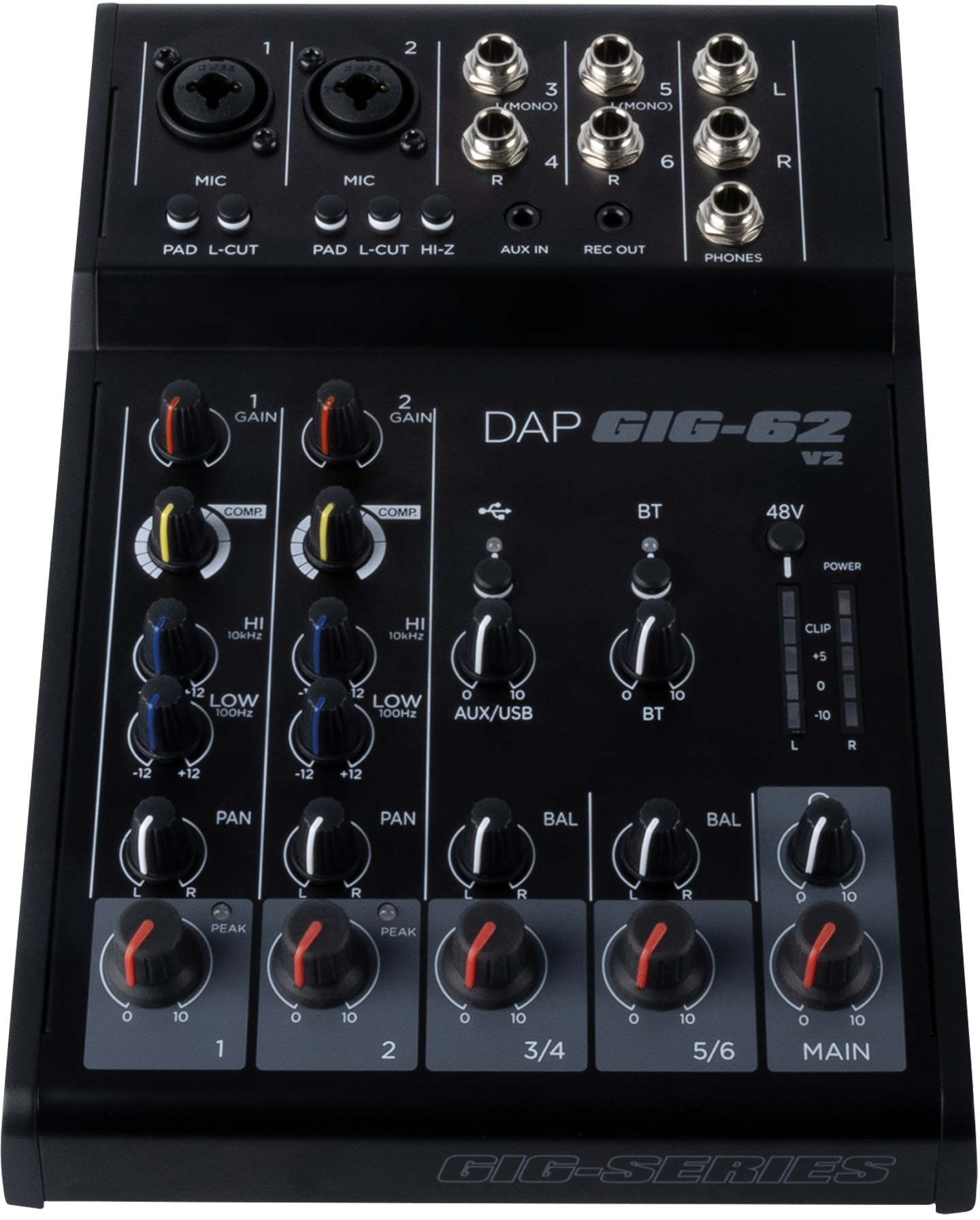

The DAP GIG-62 V2 is a versatile 6-channel analogue mixing console designed for live sound applications, small performances, presentations, and home recording setups. Despite its compact footprint, it offers a wide range of professional features that make it a reliable companion for musicians, sound engineers, and content creators.

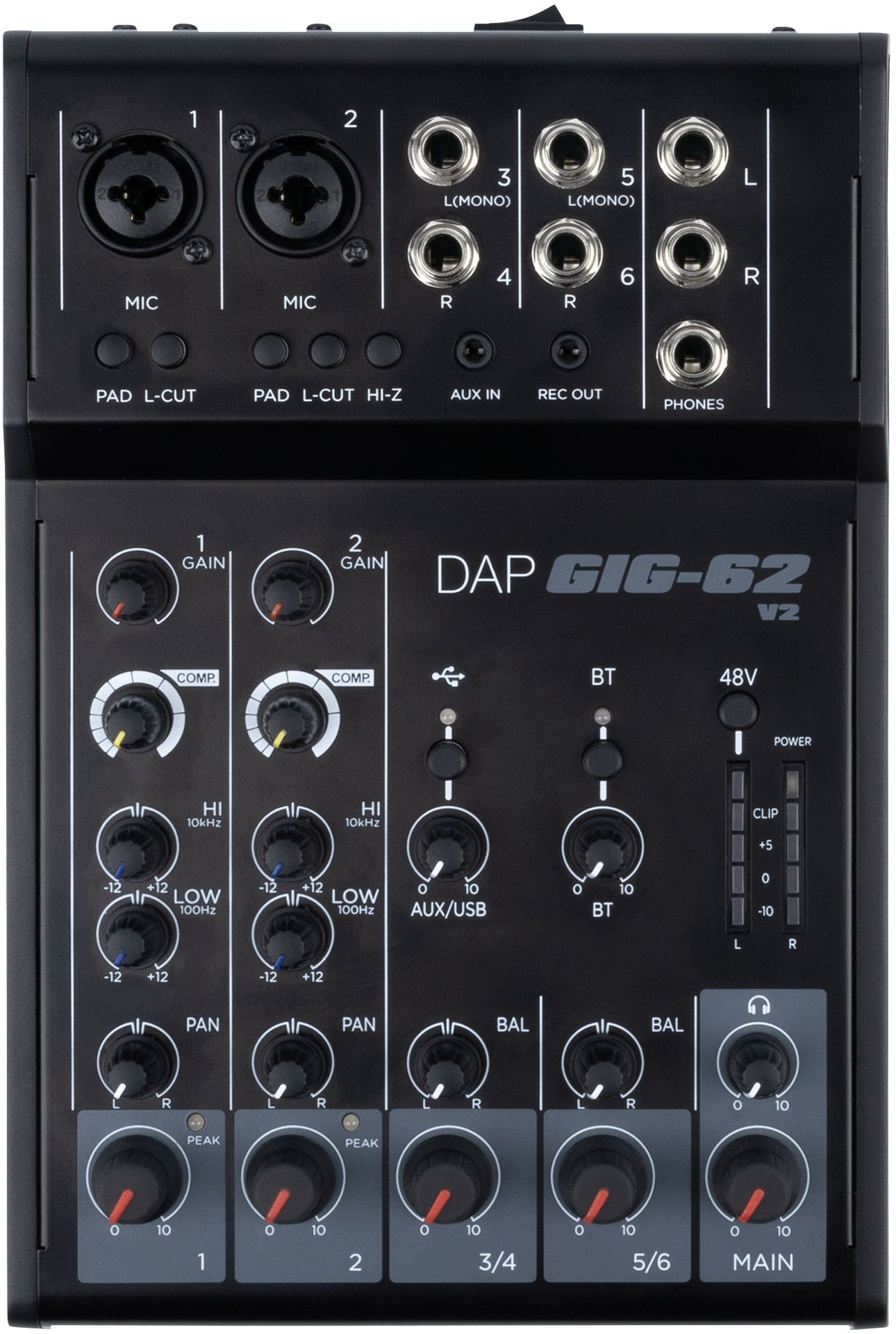

Channels 1 and 2 feature XLR/jack combo inputs with a mic preamp, -20 dB pad switch, 48 V phantom power, and low-cut filter. Channel 2 also includes a Hi-Z mode, allowing direct connection of instruments such as electric guitars. Both channels are equipped with gain control, compressor, high/low EQ knobs, pan control, mix level knobs, and clip LEDs for precise signal management. Channels 3/4 and 5/6 provide stereo line-level inputs via dual 6.3 mm jacks, each with pan and mix level controls. Additional inputs include a 3.5 mm Aux minijack and BT connectivity, both with dedicated mix level knobs and status LEDs.

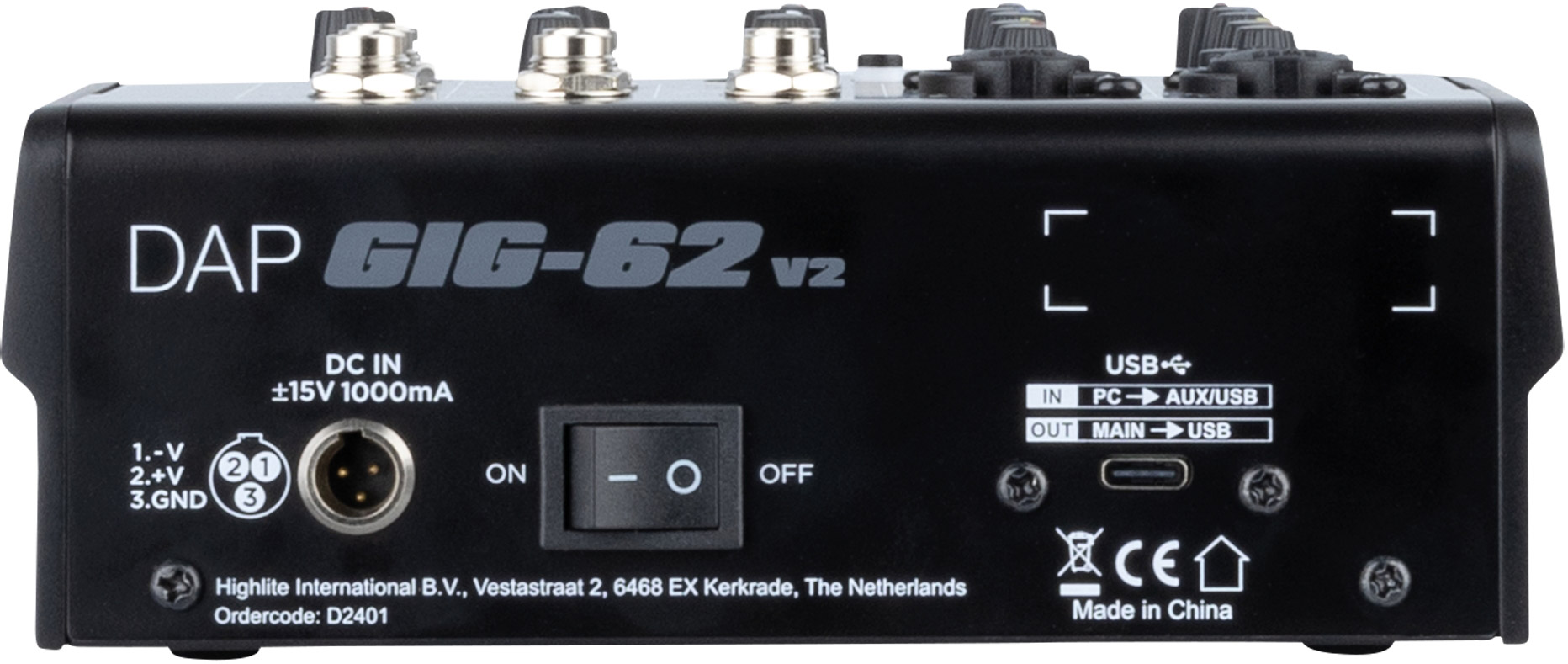

The GIG-62 V2 also features a USB-C interface with 2-in/2-out functionality, shared with the Aux input, making it ideal for recording and playback. Outputs include a pair of balanced 6.3 mm jack main outputs with level control, a headphone output with independent volume knob, and a minijack recording output that mirrors the USB signal. A clear LED VU meter provides visual feedback of output levels, and the mixer is powered by a dedicated ±15V DC external power supply for stable operation.Technical data:

Mono Inputs:	2
Mono Input Connector:	3-pin XLR / TRS balanced 6.3 mm
Mono Input Gain Range:	60 dB
Mono Input Impedance:	3000 Ω
Stereo Inputs:	2
Stereo Input Connector:	TRS balanced 6.3 mm
Stereo Input Gain Range:	20 dB
Stereo Input Impedance:	10000 Ω
Auxiliary Inputs:	1
Auxiliary Input Connector:	TRS balanced 3.5 mm
Auxiliary Input Impedance:	10000 Ω
Main Outputs:	2
Main Output Connector:	TRS balanced 6.3 mm
Main Output Maximum Level:	22 dBu
Main Output Impedance:	100 Ω
Headphone Output:	1
Headphone Output Connector:	TRS balanced 6.3 mm
Headphone Output Impedance:	32 Ω
Audio Interface:	Yes
Audio Interface USB Input:	2
Audio Interface Input Connection:	USB-C
Audio Interface Supported Input Channels:	2
Audio Interface Supported Output Channels:	2
Media Player:	No
THD Level %:	Signal-to-noise Ratio:> 103 dB
Crosstalk:	-86 dBu
Frequency Response Minimum:	20 Hz
Frequency Response Maximum:	22000 Hz
Phantom Power:	48 V
Dynamics Processing:	Compressor
Bluetooth:	Yes
Bluetooth Version:	5.0
Bluetooth Range:	20 m
Power Supply:	100-240 V AC 50/60 Hz
Output voltage:	15 V DC
Power Consumption:	7 W
Power Connector In:	Low Voltage DC plug
Adapter type:	AC-DC adapter
Input voltage:	100-240 V AC, 50/60 Hz
Output voltage:	15 V DC
Output current DC (mA):	1000 mA
Height (mm):	55 mm
Width (mm):	161 mm
Length (mm):	240 mm
Housing:	Metal
Colour:	Black
Weight:	1.15 kg
IP Rating:	IP20 (indoor use only)
LED Indicators:	+48V / BT Pairing / Clip / Data connect / Output level / Power
Handles:	All sides
Included Accessories:	Adapter
