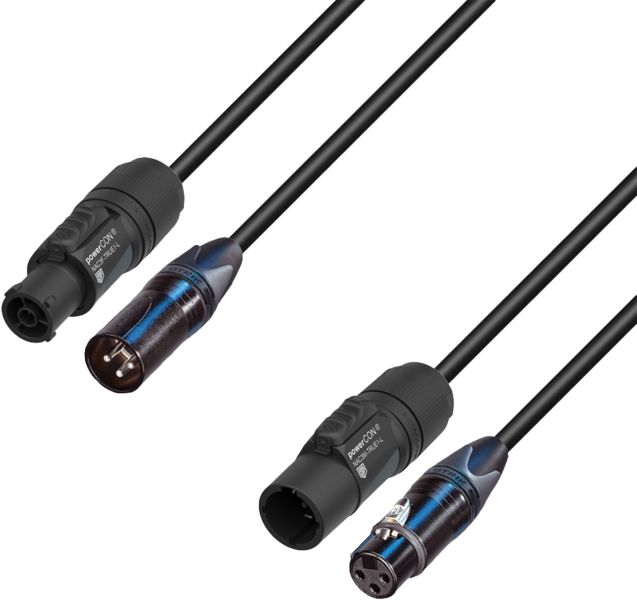

Adam Hall Cables 5 STAR H TCON A 0150 - Hybrid cable audio | Neutrik® XLR x TRUE1® | 1.5 m
Delivery time: approx. 1 week
- Hybrid cable for simultaneous audio and power transmission from our 5 STAR SERIES
- Original Neutrik® connectors for maximum quality and reliability
- XLR connectors with silver-plated contacts for optimal signal transmission
- Neutrik TRUE1® power connector – pluggable under load, standard-compliant, IP67-certified
- Conductor cross-sections: 0.34 mm² for audio, 2.5 mm² for power
- Flexible PVC jacket made from a special soft-PVC compound
- Includes accessories: Velcro cable tie and two transparent heat-shrink tubes for labelling
- Ideal for professional audio setups (e.g. connecting LD Systems MAILA systems)
- Developed by the Adam Hall Cables® crew in Germany, manufactured in the EU
The 5 STAR H TCON A is a premium hybrid cable from the Adam Hall 5 STAR SERIES, designed for professional applications where top-tier quality and reliability are essential. By transmitting audio and power signals simultaneously, it enables efficient cabling while reducing clutter ? perfect for live events, theatre productions and fixed installations.
The 5 STAR H TCON A is built with high-end components to ensure optimal signal transmission and long-lasting durability. It features original Neutrik® connectors renowned for their exceptional reliability and longevity. The XLR connectors are equipped with silver-plated contacts to ensure outstanding signal quality and minimize loss. For power transmission, a Neutrik TRUE1® connector is used, which is pluggable under load, standard-compliant and IP67-certified for protection against dust and water.
The cable boasts a conductor cross-section of 0.34 mm² for audio and 2.5 mm² for power, making it ideal for professional applications. Its flexible PVC jacket, made from a special soft-PVC compound, offers high durability while remaining easy to handle. The package also includes a hook-and-loop cable tie and two transparent heat-shrink tubes for individual labelling.
Whether for a concert, theatre production or event with demanding audio control, the 5 STAR H TCON A ensures minimal signal loss and reduced voltage drops for a reliable performance. Developed in Germany and manufactured in the EU, it meets the highest standards and guarantees a seamless show without compromise.
Technical data:General| Cable length: | 1.5 m |
| Split end length: | 40 cm |
| Cable jacket: | PVC (Polyvinyl chloride) |
| Cable diameter: | 17 mm |
| Cable colour: | Black |
| Connector type plug 1: | XLR 3-pole male |
| Model name plug 1: | Neutrik NC3MXX-BAG |
| Contact material plug 1: | Silver plated |
| Connector type plug 2: | XLR 3-pole female |
| Model name plug 2: | Neutrik NC3FXX-BAG |
| Contact material plug 2: | Silver plated |
| Conductor material: | OFC (Oxygen-free copper) |
| Conductor cross-section: | 2 x 0,34 mm² |
| AWG: | 22 |
| Capacity/m: | 55 pF |
| Conductor impedance/km: | 85 Ohm |
| Shield: | Spiral copper shielding |
| Cable jacket: | PVC (Polyvinyl chloride) |
| Cable diameter: | 5 mm |
| Plug type connector 1: | Mains plug device outdoor female & TRUE1® |
| Model name connector 1: | Neutrik NAC3F-TRUE1-L |
| Plug type connector 2: | Mains plug device outdoor male & TRUE1® |
| Model name connector 2: | Neutrik NAC3M-TRUE1-L |
| Conductor material: | OFC (Oxygen-free copper) |
| Conductor cross-section: | 3 x 2,5 mm² |
| AWG: | 13 |
| Cable jacket: | PVC (Polyvinyl chloride) |
| Cable diameter: | 10 mm |
| Weight: | 867 g |
