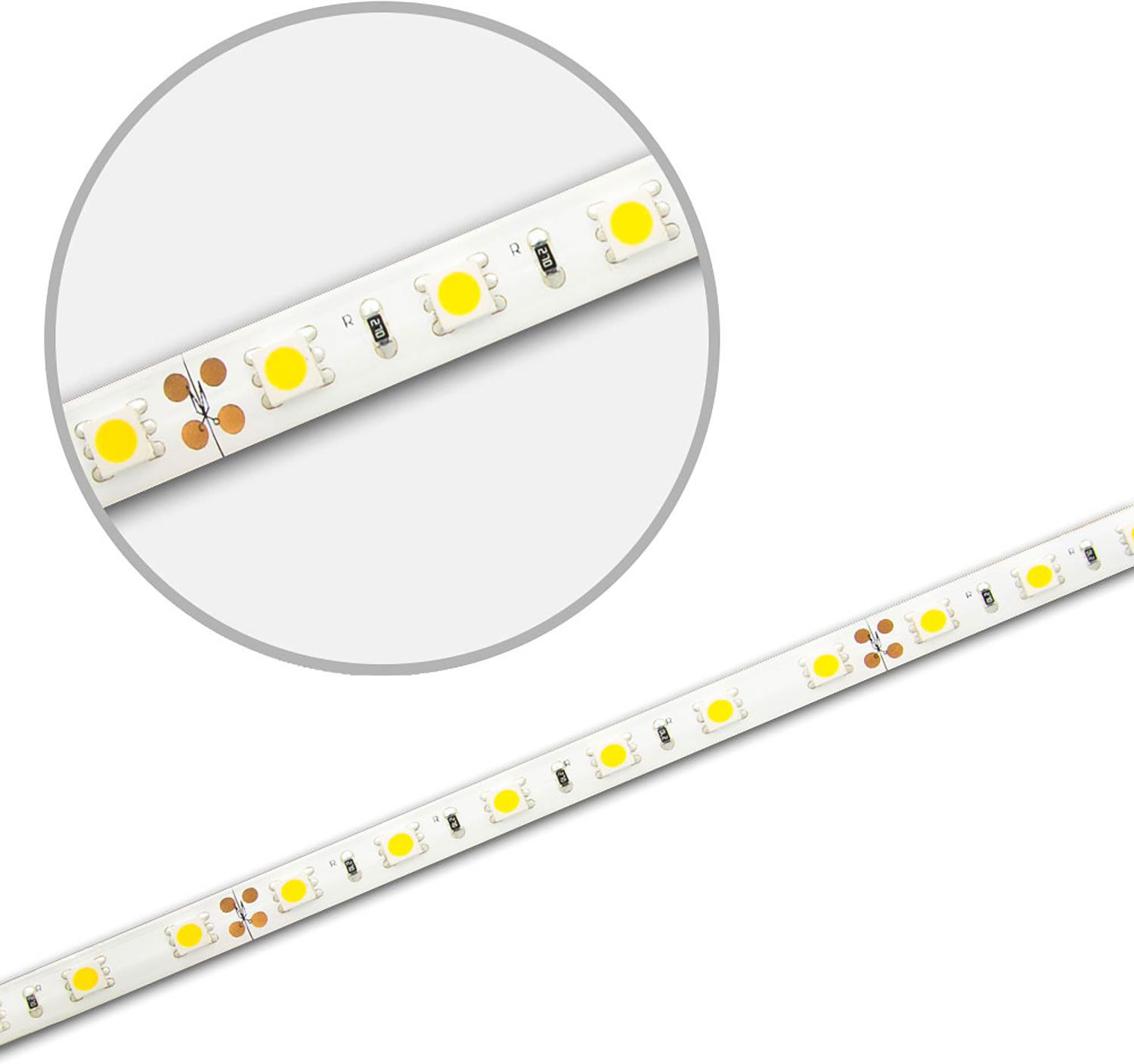

ISOLED LED HEQ852 flex stripe Classic, 24V, 14,4W, IP66, cold white

€79.88 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111000120
LED HEQ852 flex stripe Classic, 24V, 14,4W, IP66, cold white Length: 5000mm Width: 10mm... more
All information about the product:
"ISOLED LED HEQ852 flex stripe Classic, 24V, 14,4W, IP66, cold white"
LED HEQ852 flex stripe Classic, 24V, 14,4W, IP66, cold white
Length:5000mm
Width:10mm
Height:3mm
Net weight:234g
LED type:300xSMD5050
Nominal voltage:24V DC
Rated power:13 W/m
Colour temperature:5200K
Beam angle:120°
Light intensity:1903cd
Colour rendering:> 86 CRI
Lifetime:50000h
Switching cycles:30000
Protection class:IP66
Energy efficiency class:A+
Dimmable: Yes
dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer
Material:PCB copper/white, epoxy resin
Incl. illuminant:No
Special features:Separation point: 100mm | Pitch (chip center-center): 16.66mm | 1 roll= 5m | Length Tolerance 1% | max. flex band length per feed-in: 5m | Clean and degrease the substrate before gluing! Do not replace again! | Cooling profile required!
