ISOLED LED CRI919/940 CCT flex stripe 24V, 20W|20W, IP20, 500cm, 480 LED/m

€143.68 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Not in stock
Delivery time: approx. 2 weeks

Delivery time: approx. 2 weeks

Item number: 111020495

EAN: 9009377174339

MPN: 117279

ISOLED LED CRI919/940 CCT flex stripe 24V, 20W|20W, IP20, 500cm, 480 LED/m Technical data:... more

All information about the product:

"ISOLED LED CRI919/940 CCT flex stripe 24V, 20W|20W, IP20, 500cm, 480 LED/m"

ISOLED LED CRI919/940 CCT flex stripe 24V, 20W|20W, IP20, 500cm, 480 LED/mTechnical data:

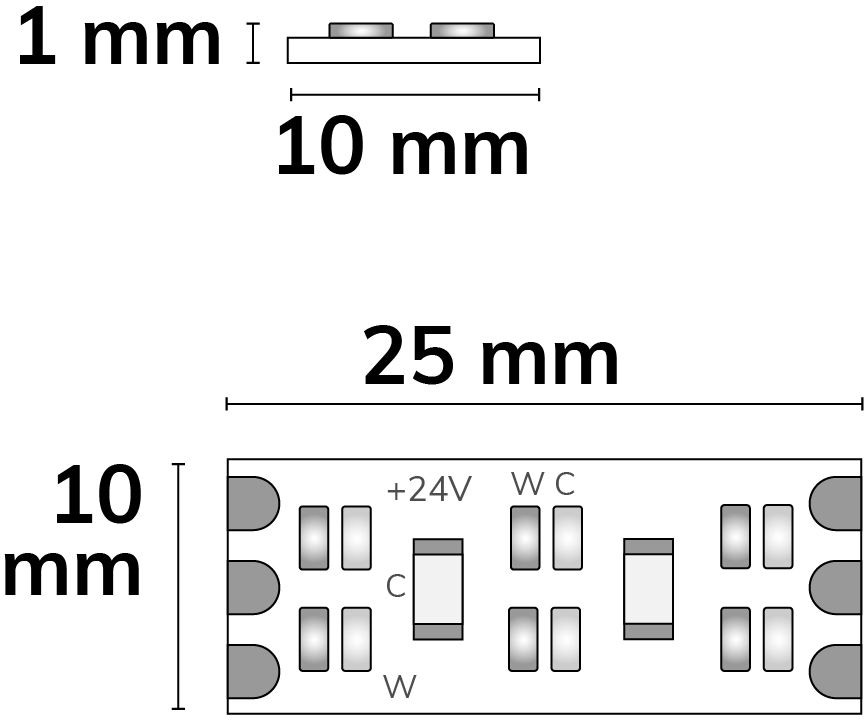

Length:	5000 mm
Width:	10 mm
Height:	1 mm
Weight:	72 g
Nominal voltage:	24 V
Nominal power:	19 W
Rated power:	20 W
Colour temperature:	1900K - 4000K
Beam angle:	120°
Luminous flux:	1650 lm
Light intensity:	332 cd
Colour rendering:	92 CRI
Dimmable:	Yes Light output at 1900K: 1100lm/m, at 4000K: 1650lm/m. Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer
Lifetime:	35000 h
Protection class:	IP20
Energy efficiency class:	G
LED type:	SMD2110
Colour:	white
Indoor and outdoor:	Yes
Incl. illuminant:	No
Special features:	Separation point: 25 mm with 12 SMD each \| Pitch (light point center-center): 4,16 mm \| 1 unit (roll) = 5 m \| max. flex stripe length per infeed: 5 m \| length tolerance + thermal expansion: 1% \| required cooling mass min. 140 gr/m \| incl. 3M 300LSE adhesive tape \| Clean and degrease surface before application! Do not remove again! \| 3-pole connection cable on both sides
