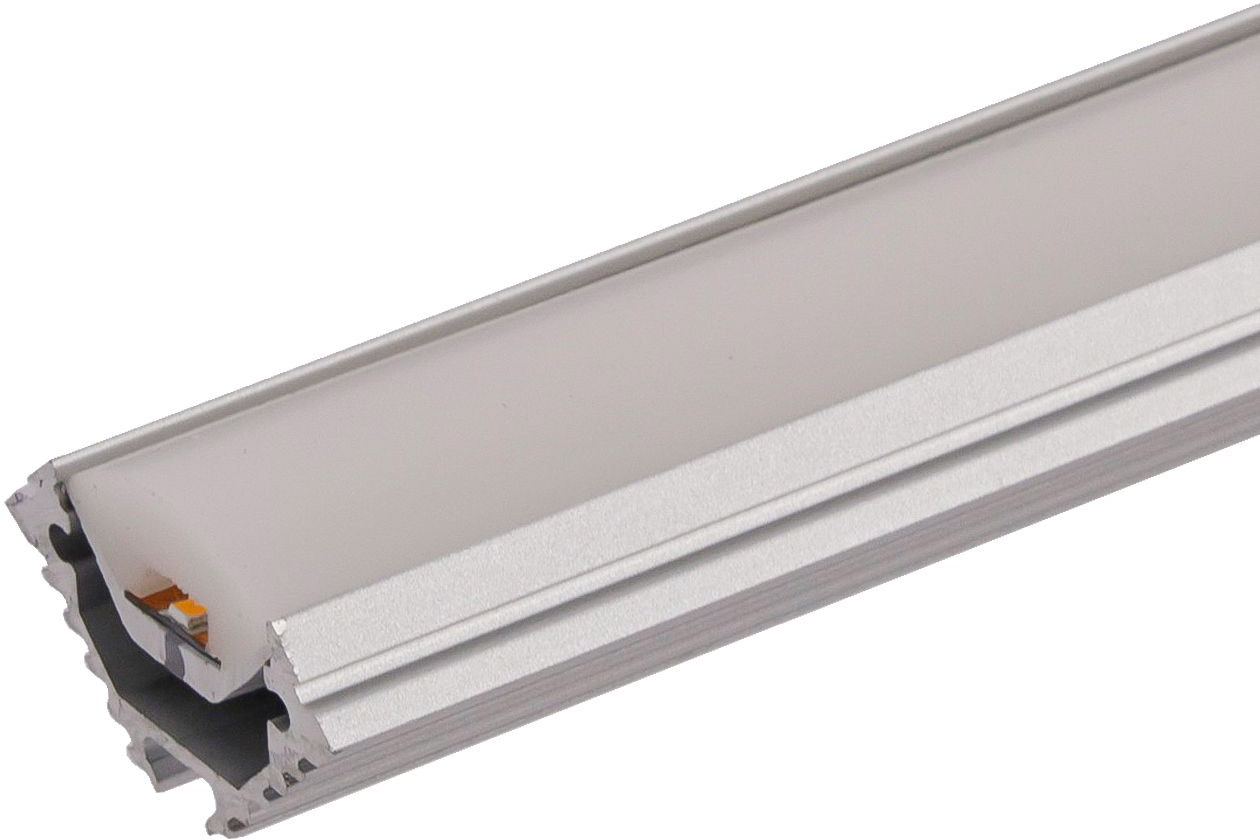

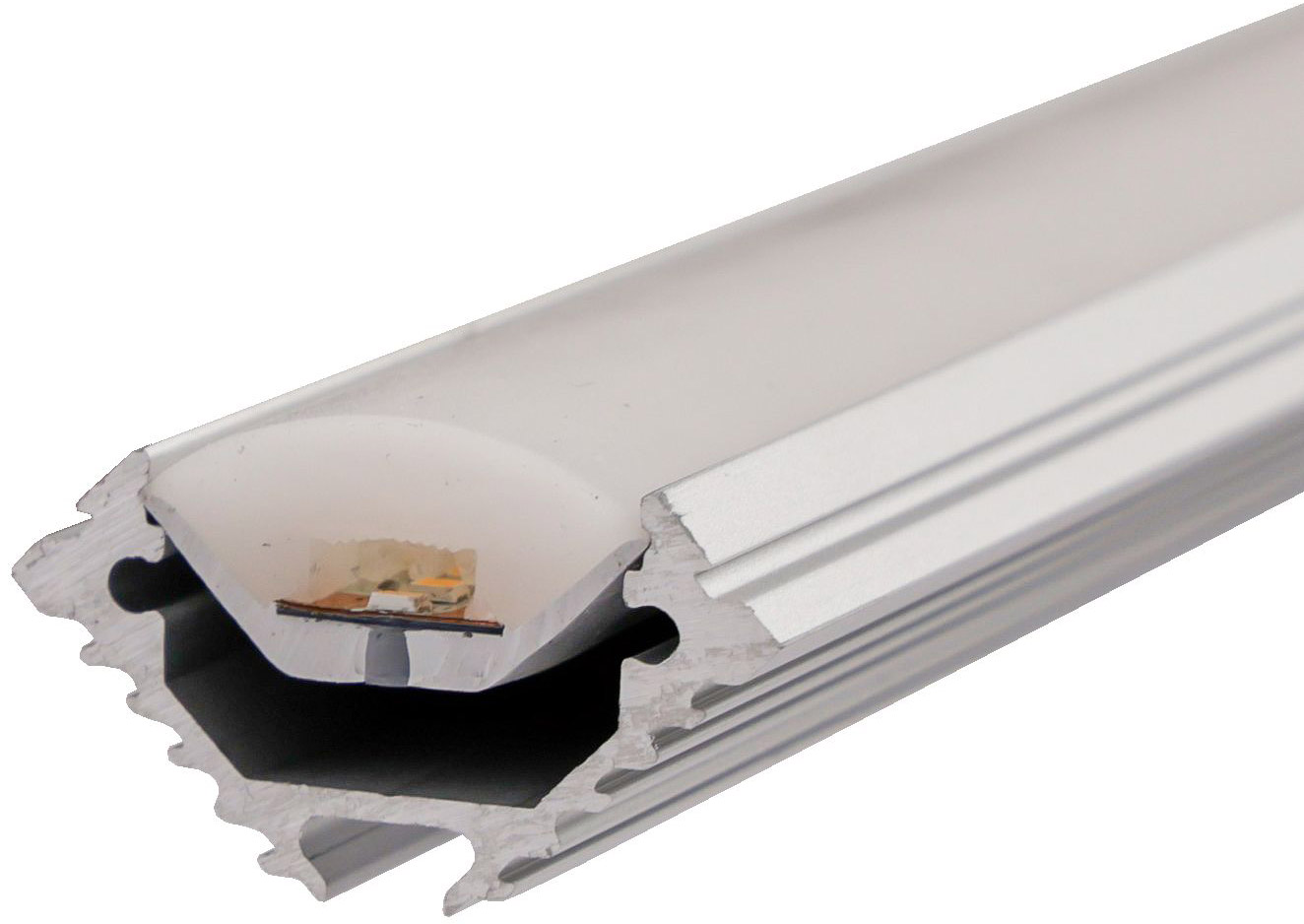

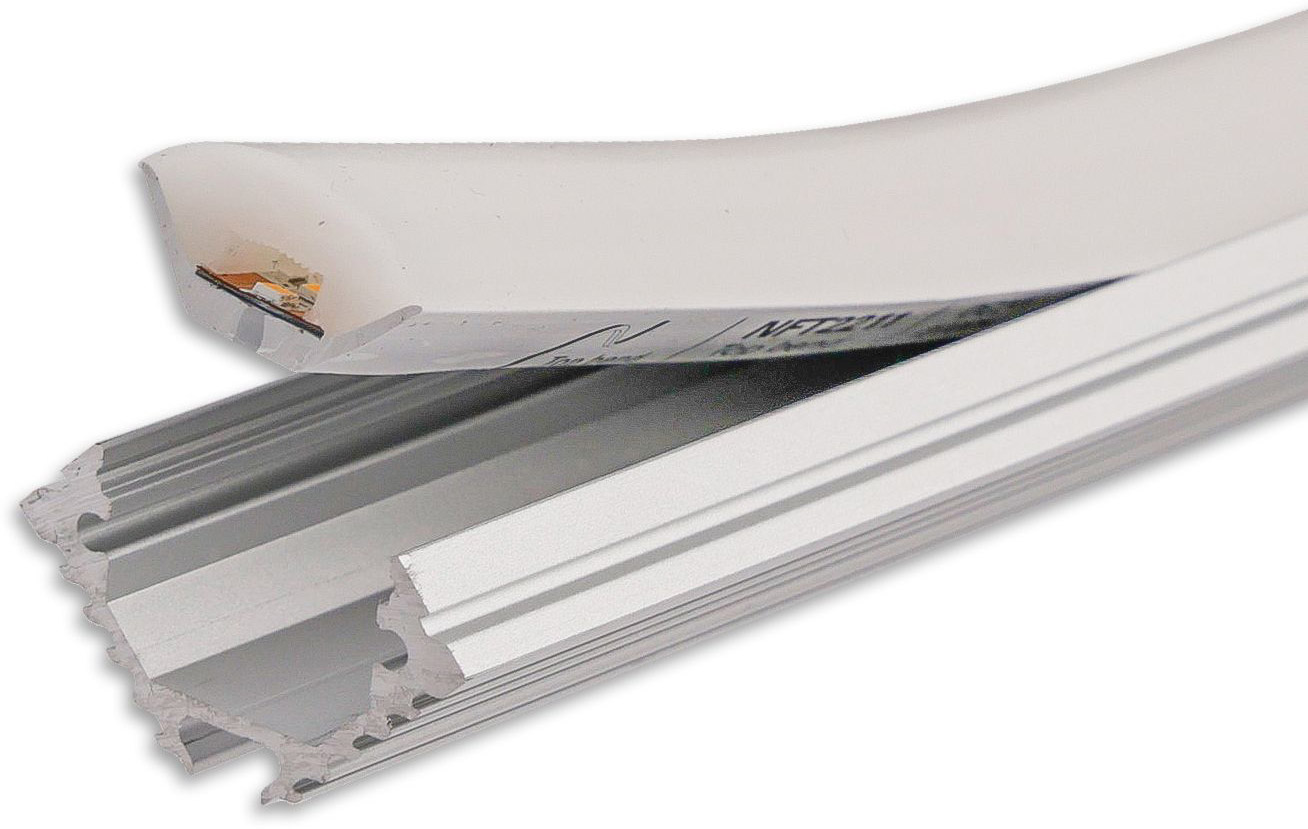

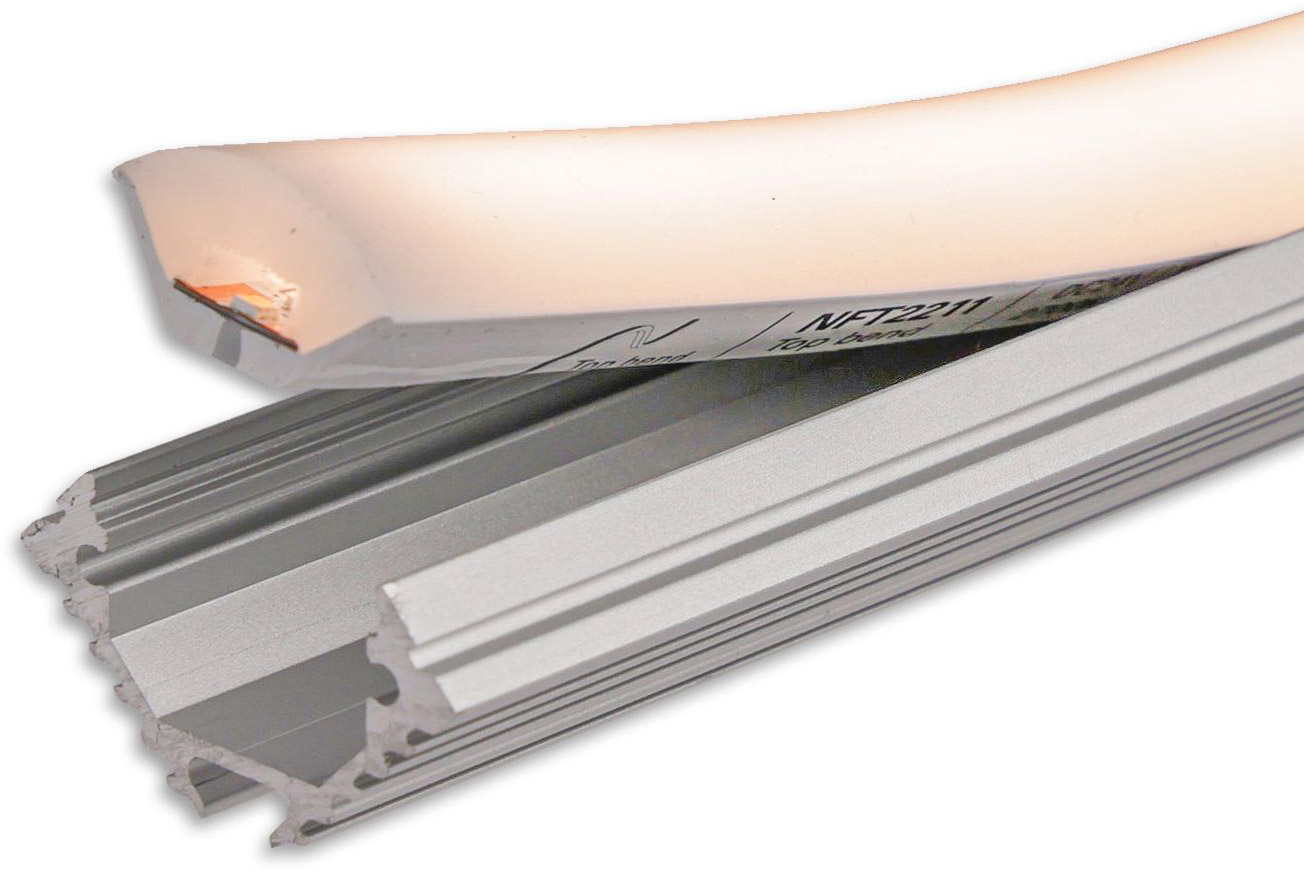

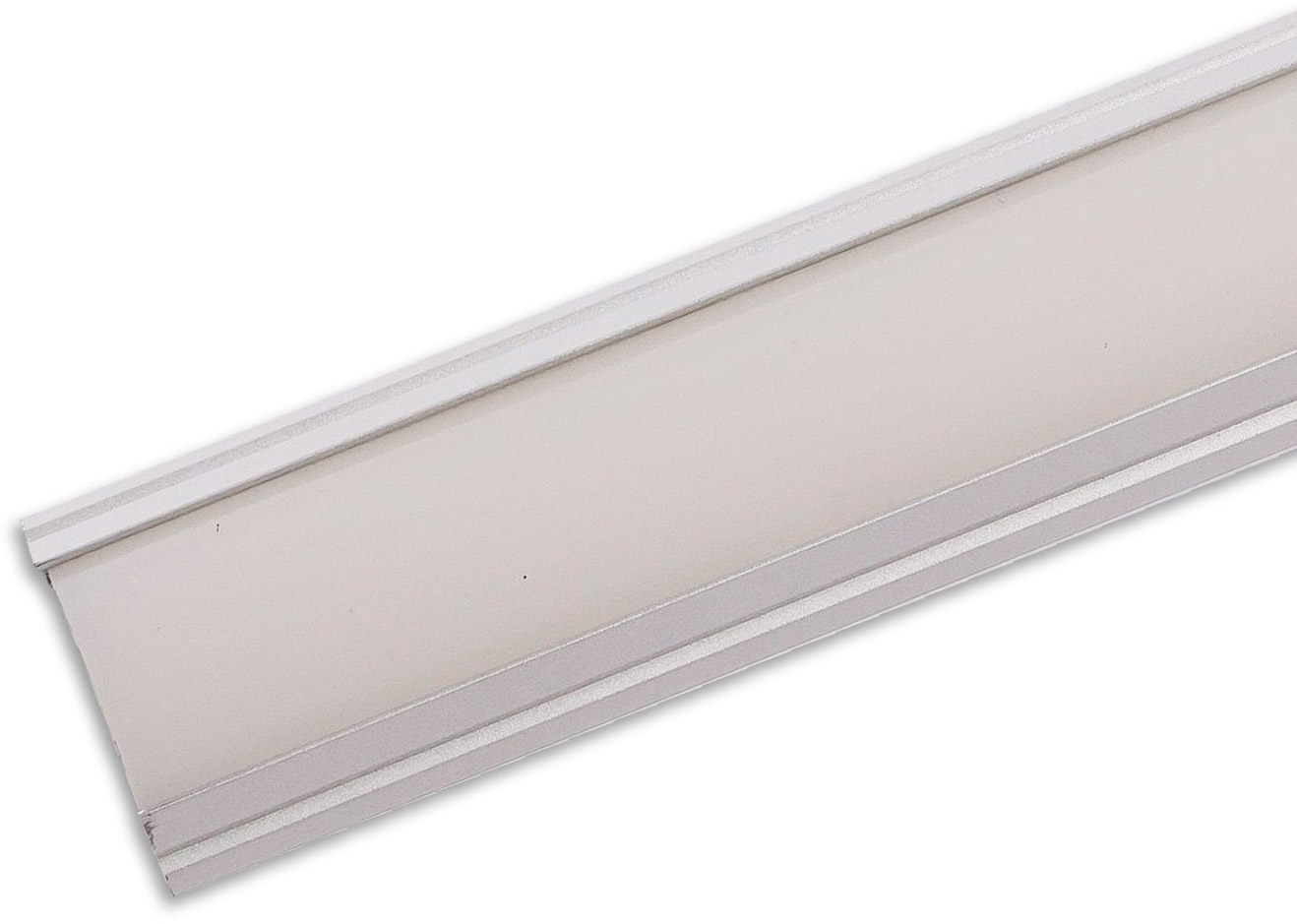

ISOLED LED NeonPRO940 Custom flex stripe B22H11, 24V DC, 12W, IP54, 4000K, 240 LED/m

NEW
€143.68 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Currently not available
Currently not available
Please choose a variant.
Item number: 111021804
EAN: 9009377180231
MPN: 117729
NEW
ISOLED LED NeonPRO940 Custom flex stripe B22H11, 24V DC, 12W, IP54, 4000K, 240 LED/m Technical... more
All information about the product:
"ISOLED LED NeonPRO940 Custom flex stripe B22H11, 24V DC, 12W, IP54, 4000K, 240 LED/m"
ISOLED LED NeonPRO940 Custom flex stripe B22H11, 24V DC, 12W, IP54, 4000K, 240 LED/mTechnical data:
Length:5000 mm
Width:11 mm
Height:22 mm
Weight:1235 g
Nominal voltage:24 V
Nominal power:12 W
Rated power:12 W
Colour temperature:4000K
Beam angle:120°
Luminous flux:780 lm
Light intensity:248 cd
Colour rendering:90 CRI
Dimmable: Yes
Lifetime:38000 h
Protection class:IP67
Energy efficiency class:G
LED type:SMD2216
Material:Silicone
Indoor and outdoor:Yes
Incl. illuminant:No
Special features:Separation point: 4.17 mm with 1 SMD each | Pitch (light point center-center): 4.17 mm | 1 unit (roll) = 5 m | max. flex strip length per infeed: 5 m | Length tolerance + thermal expansion: 1% | No cooling profile required | No adhesive tape! | Silicone encapsulation | Special feature: 50 cm 2-pole sheathed cable on both sides, white, connection at the front, with MiniAmp | Note: End caps flush with the width and height, horizontally bendable (bending radius min. 60 mm) | Flame-retardant and flame-resistant (IEC 60695-11-5), IK08 (IEC 62262), salt spray resistant (IEC 60068-2-11:2021), UV resistant (ASTM G154-2016)
