ARTECTA Havana Neon 2835 - 120 - CCT 2700 K - CRI 90 - 120 LEDs/m - 14 W/m - 24 V

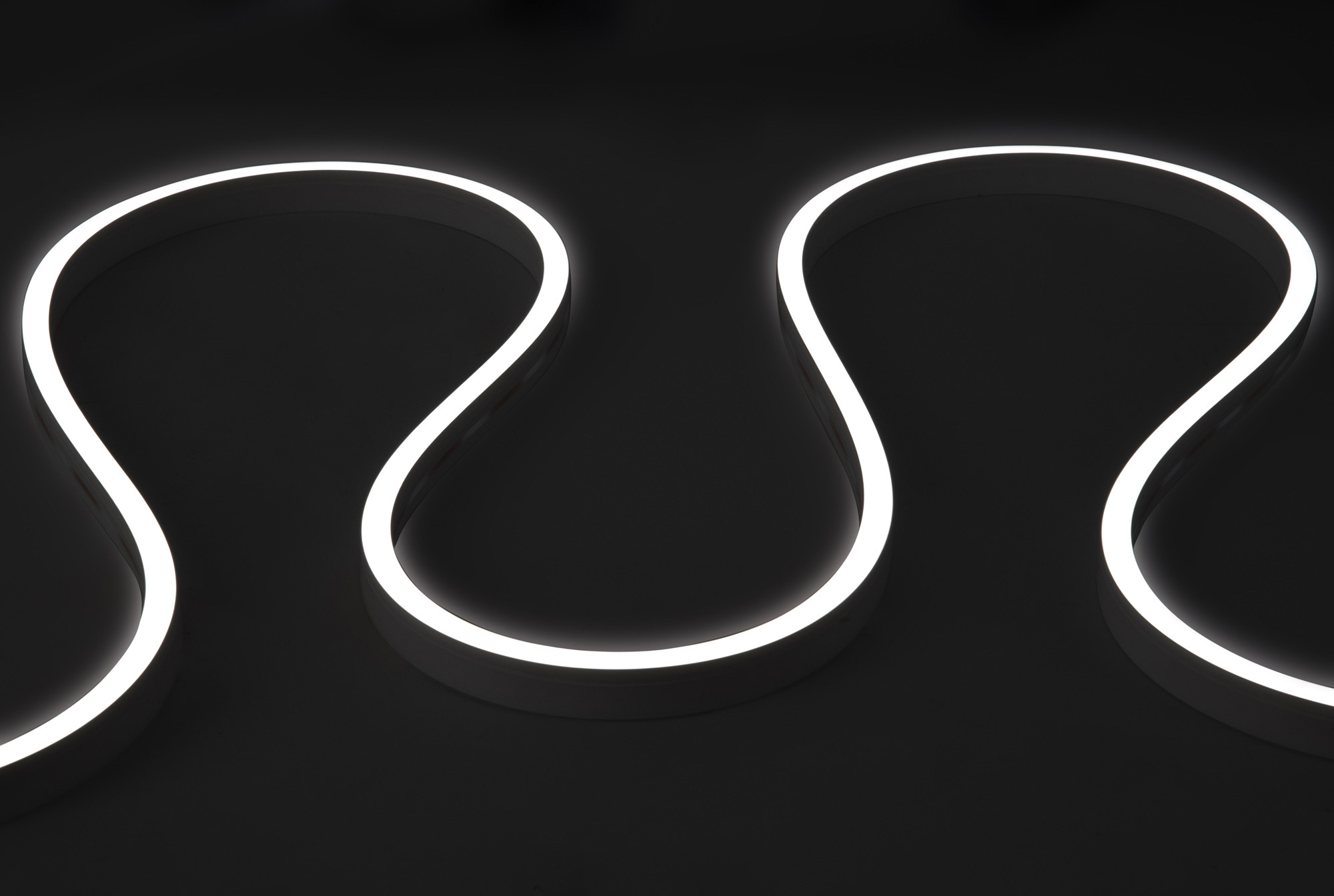

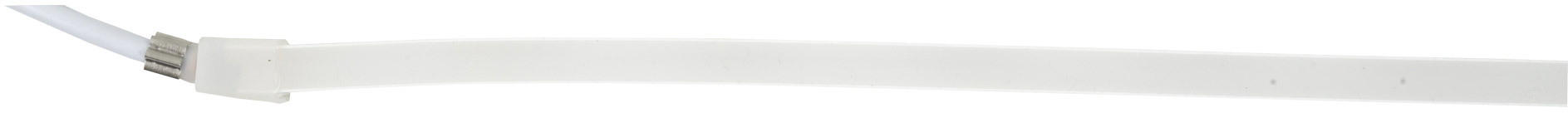

The Artecta Havana Neon 1018 is an LED strip that can perfectly simulate traditional neon lighting. With a width of no less than 10 mm and a height of 18 mm, it is very suitable for making larger logos or figures where wide lines are desired. Despite its width, it has high flexibility with a bending radius of 80 mm.

The neon effect is created by the diffuse silicone cap and 120 LEDs per metre. In addition, you will find a cutting spot every 5 cm, so that you can determine the correct length for your desired application.

It is easy to mount with the included clips, but can also be used in a profile. Thanks to its IP67 certification, you can install the LED strip both indoors and outdoors.

A wide range of accessories complete the installation of your Havana Neon 1018. Consider, for example, suitable mounting clips, input / inline connectors and end caps. An LED driver can be connected to control the output.Technical data:

Light Source Type:	LED
Light Source Quantity/m:	120
Light Source Power:	1 W
LED Colour Type:	W
Light Source System:	SMD2835
Luminous Flux (Total):	450 lm
CRI:	90
CCT:	2700 K
Beam Angle (Circular):	120°
Dimmable:	Yes
Power Supply:	24 V DC
Power Consumption:	70 W
Power/1 m:	14 W
Pins:	2
Driver:	Excluded
Length (m):	5 m
Cutting Length:	50 mm
Height (mm):	18 mm
Width (mm):	10 mm
Weight:	1.27 kg
IP Rating:	IP67
PCB Colour:	White
Bending Radius:	60 mm
Maximum Ambient Temperature:	60 °C
Minimum Ambient Temperature:	-25 °C

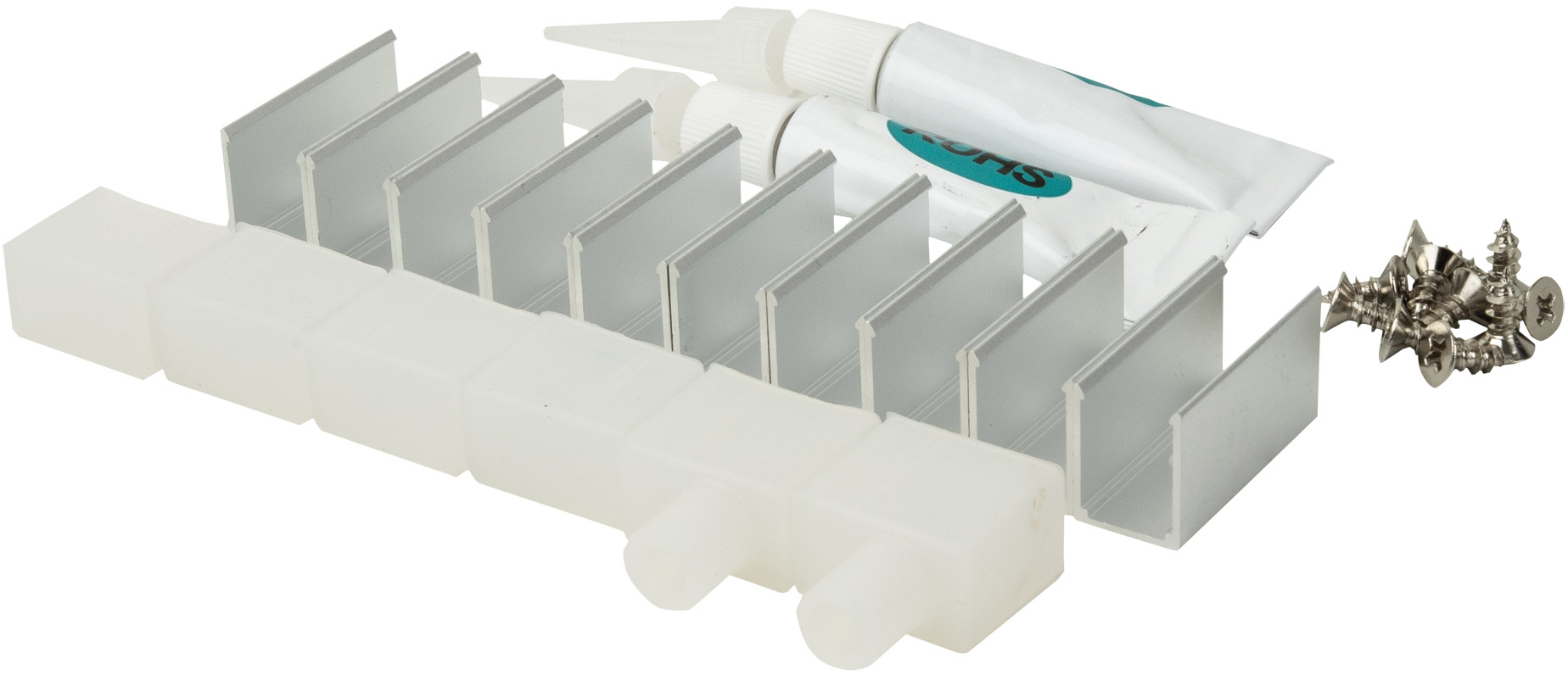

Included Accessories:	Bracket / Cable Glands / End Cap / Screws
