EUROLITE LED TL-4 QCL RGB+UV Trusslight
€109.00 *
Availability:
Delivery time: 3-5 days
Delivery time: 3-5 days
Item number: 120031665
EAN: 4026397658286
MPN: 51915448

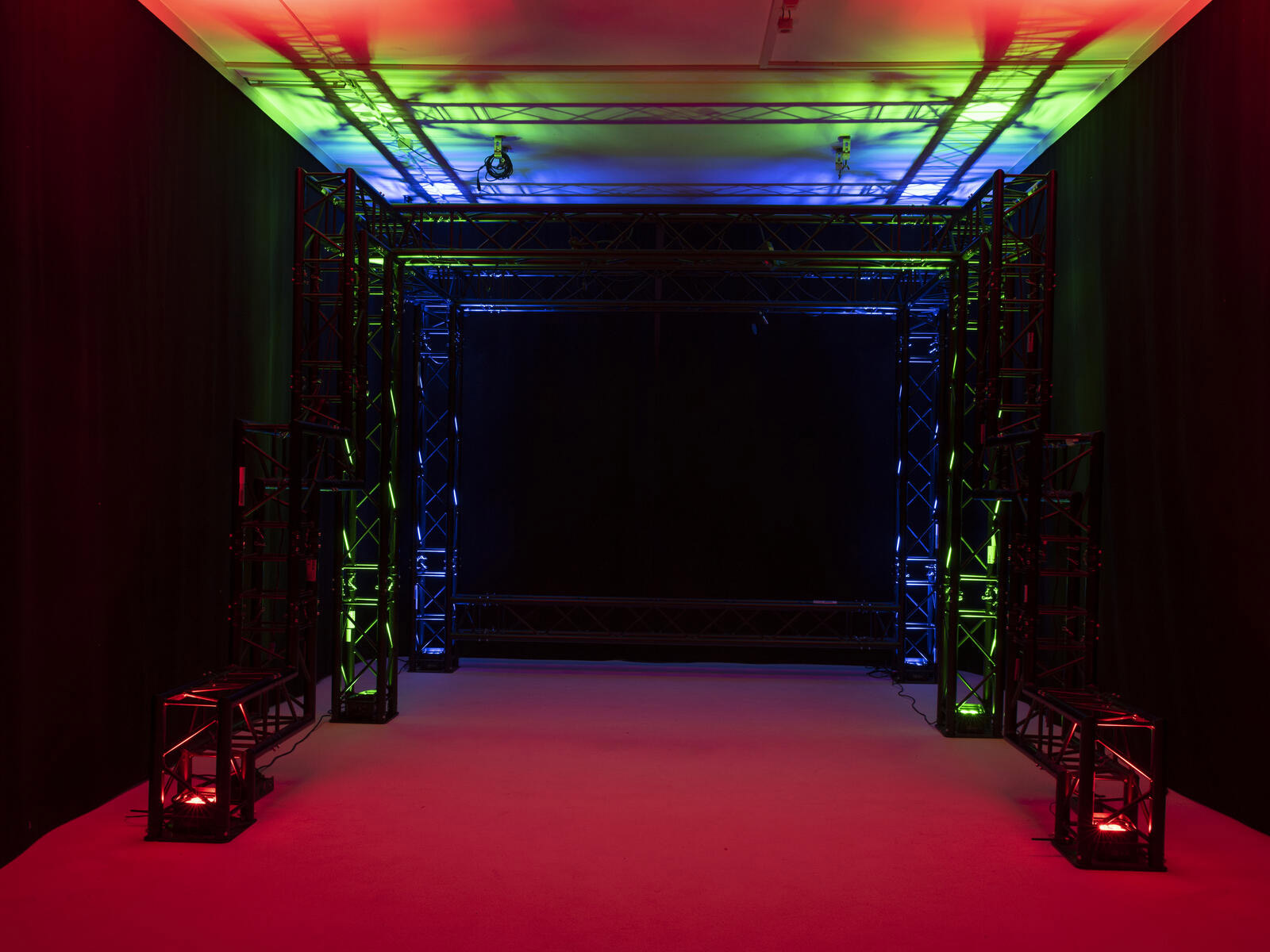

Variable truss light and uplight with bright 4 x 8 W RGB+UV LED Compact and bright Perfect... more
All information about the product:
"EUROLITE LED TL-4 QCL RGB+UV Trusslight"

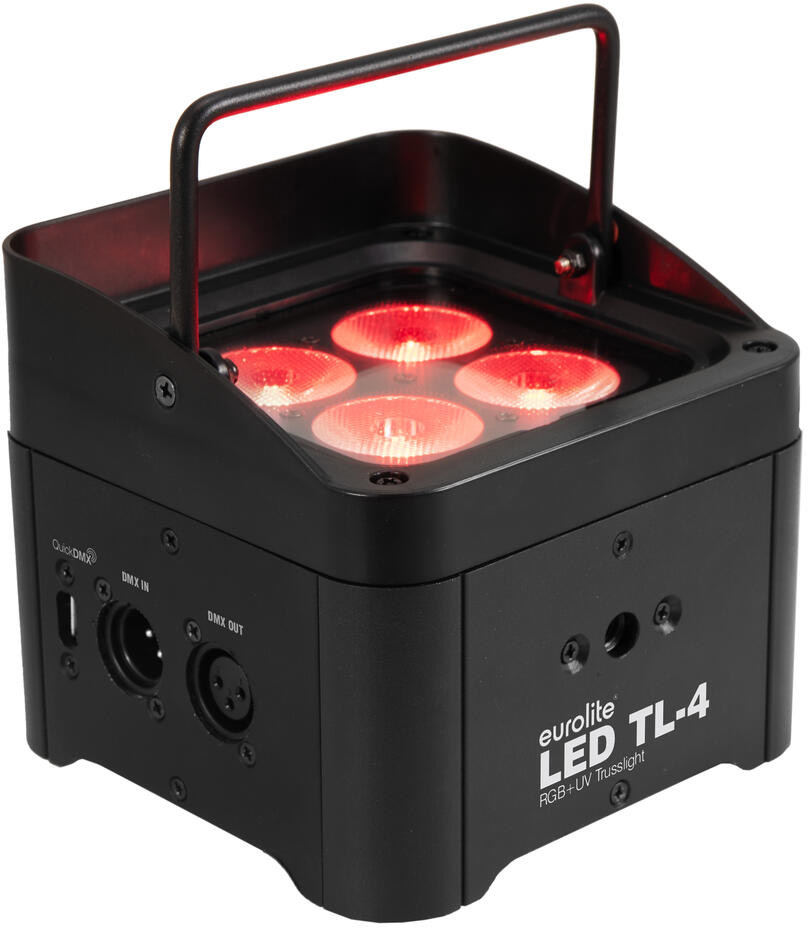

Variable truss light and uplight with bright 4 x 8 W RGB+UV LED
- Compact and bright

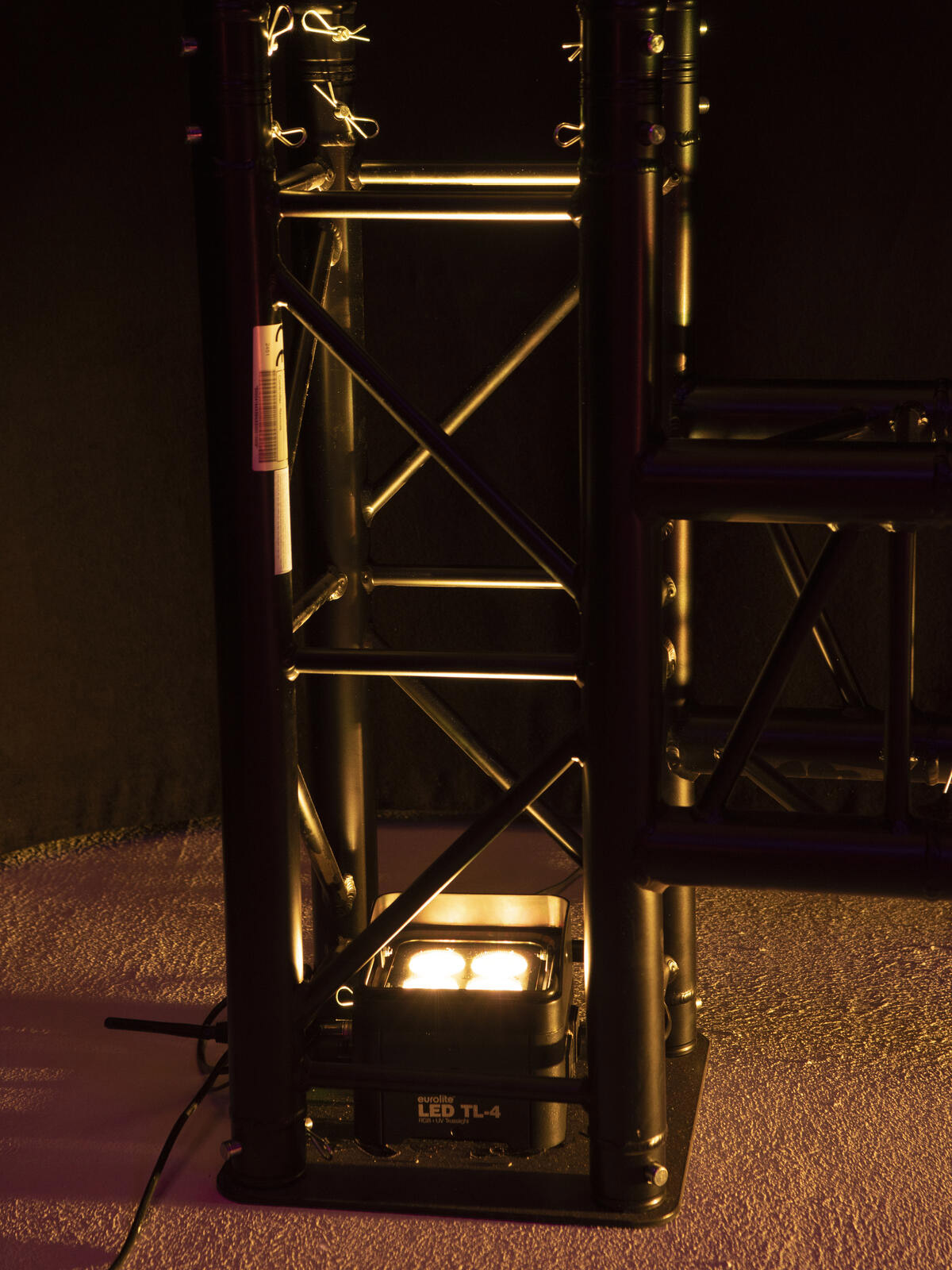

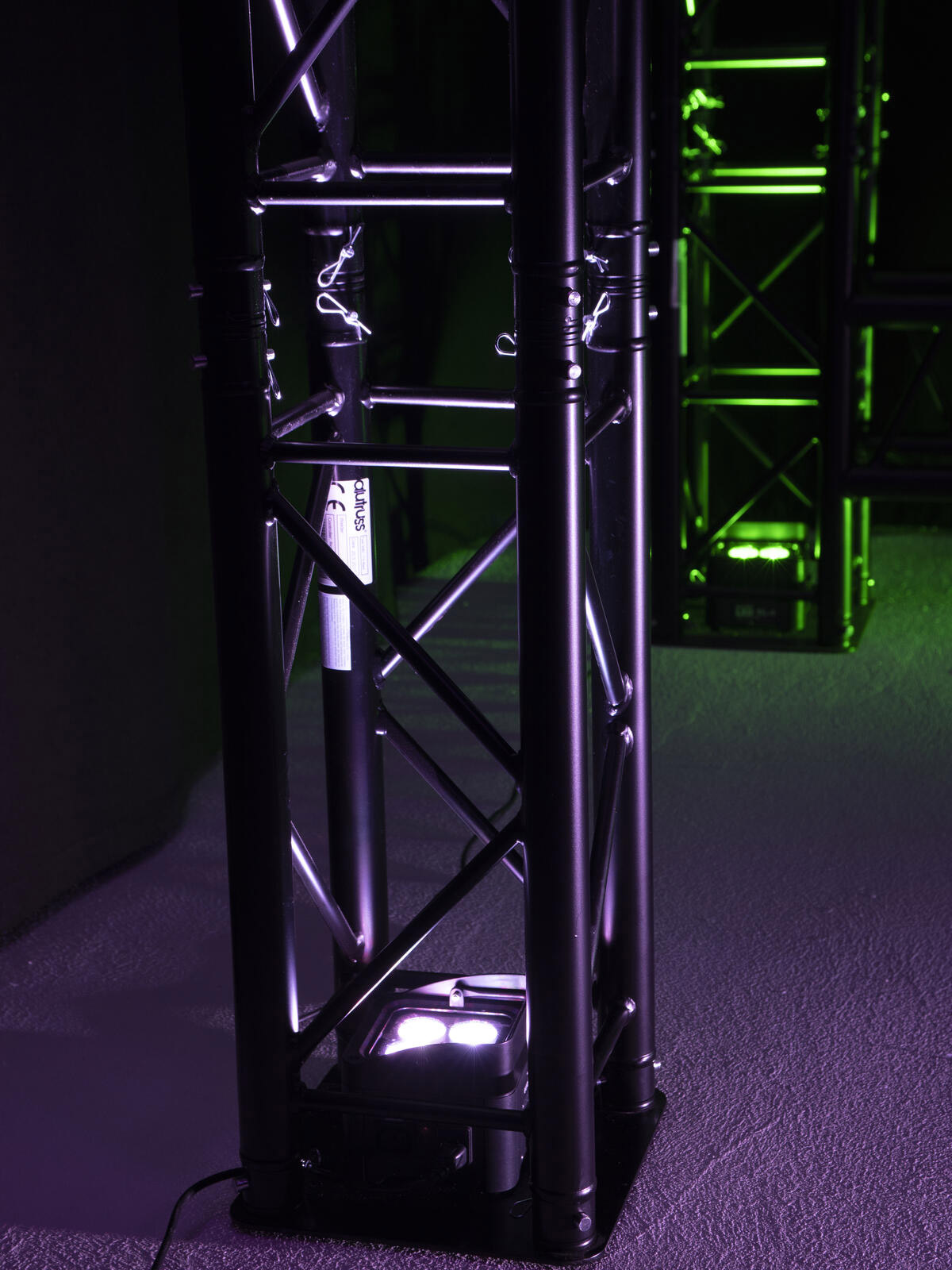

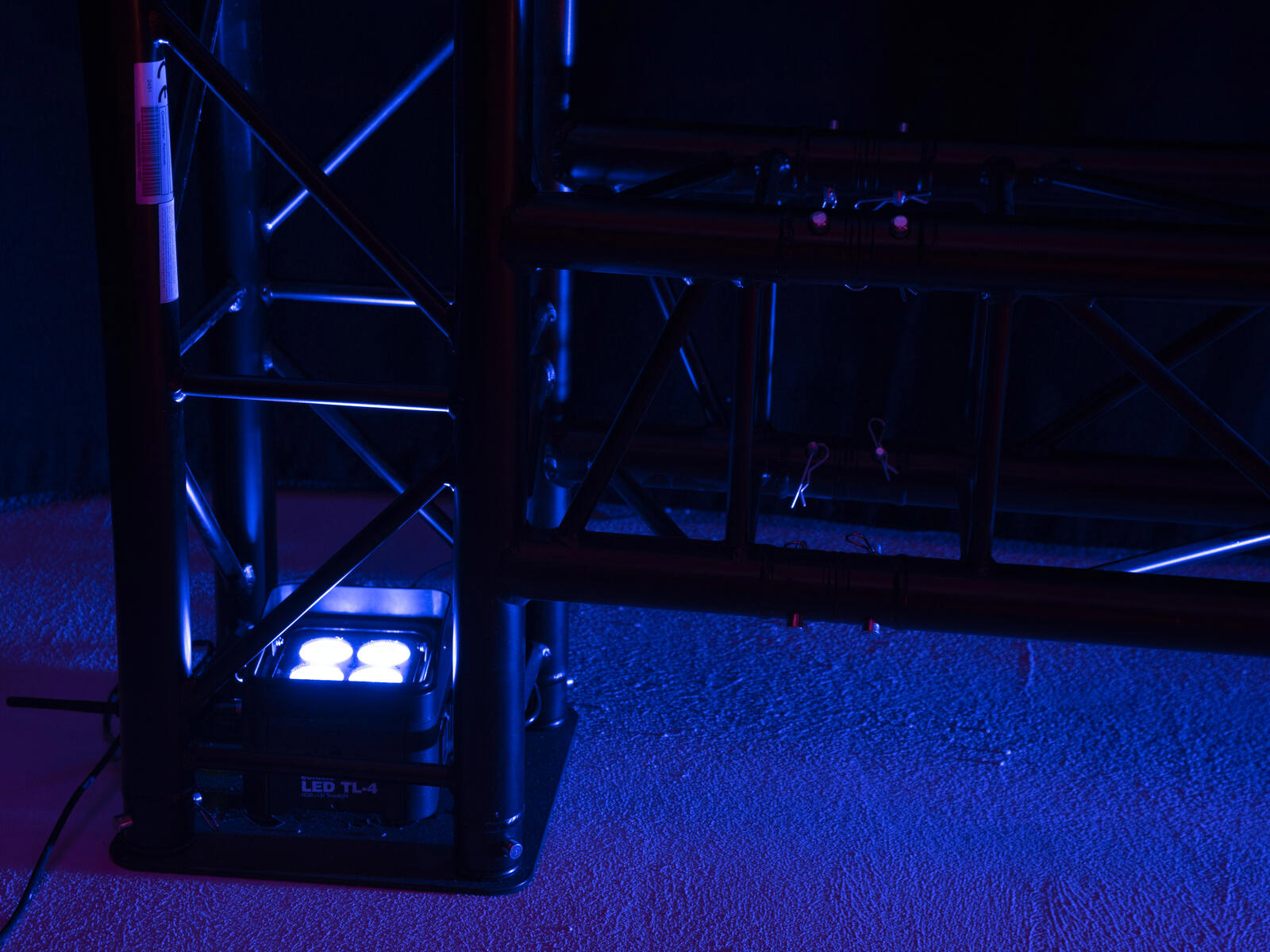

- Perfect for ALUTRUSS 4 point system QUADLOCK

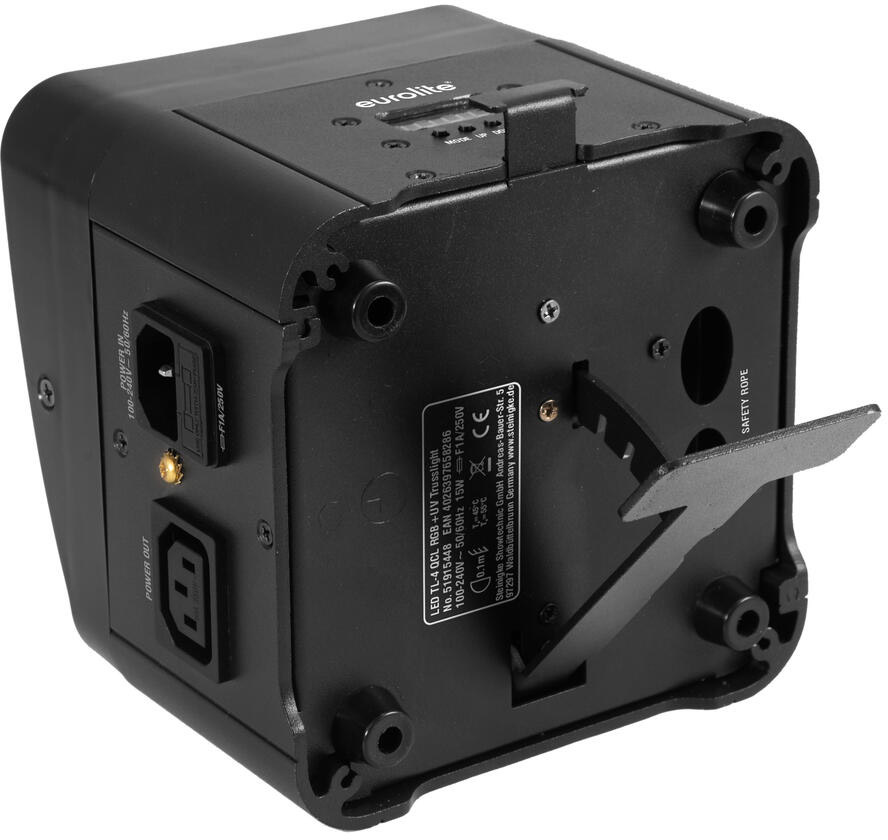

- Folding foot adjustable in 5 steps for flexible placement
- 4 powerful LEDs 8 W high-power 4in1 QCL RGB/UV (homogenous color mix)
- Color change adjustable; Dimmer electronic; color blend stepless
- Strobe effect
- Integrated show programs
- Direct color selection for 18 preset colors
- The device is cooled by passive convection cooling
- Control via DMX; sound to light via microphone; IR remote control; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); stand-alone
- With a beam angle of 13°

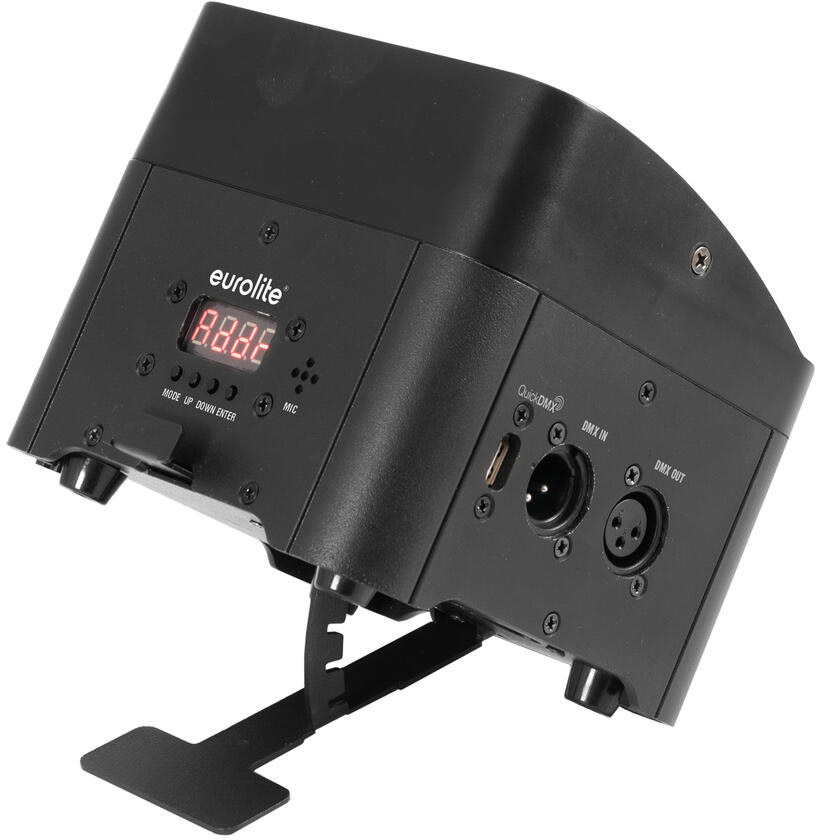

- Monochrome 4 digit 7-segment LED display
- Silent operation
- Preprogrammed in LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief
- Rubber feet

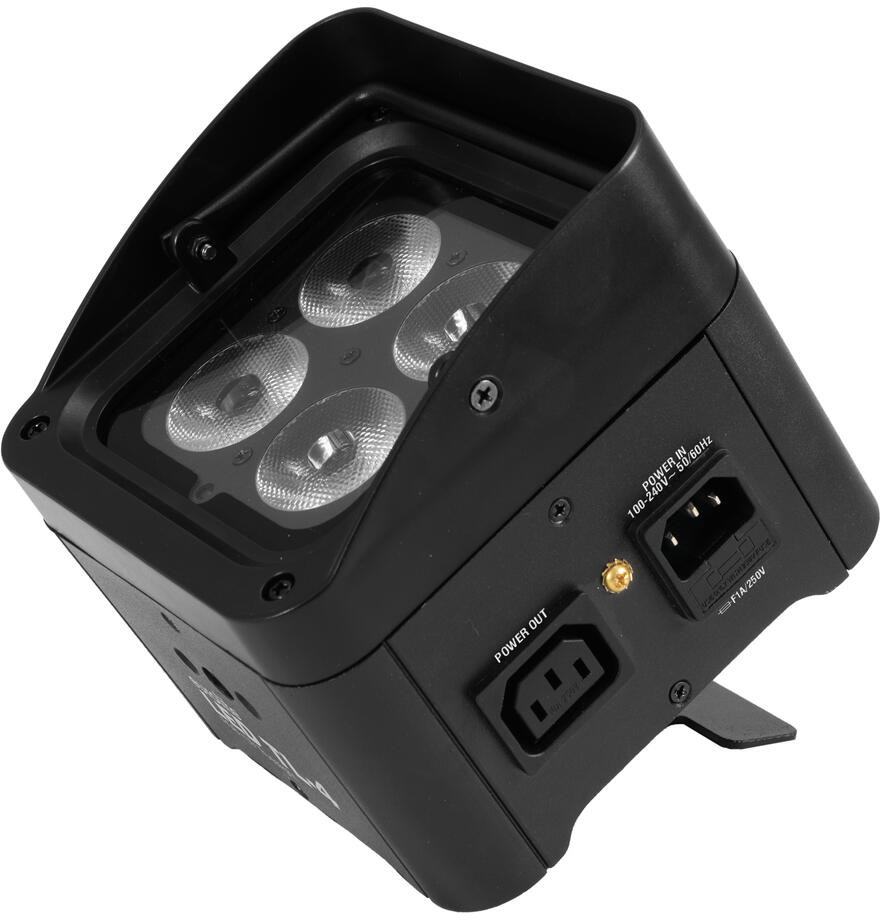

- Mains input and output for power linking up to 8 units

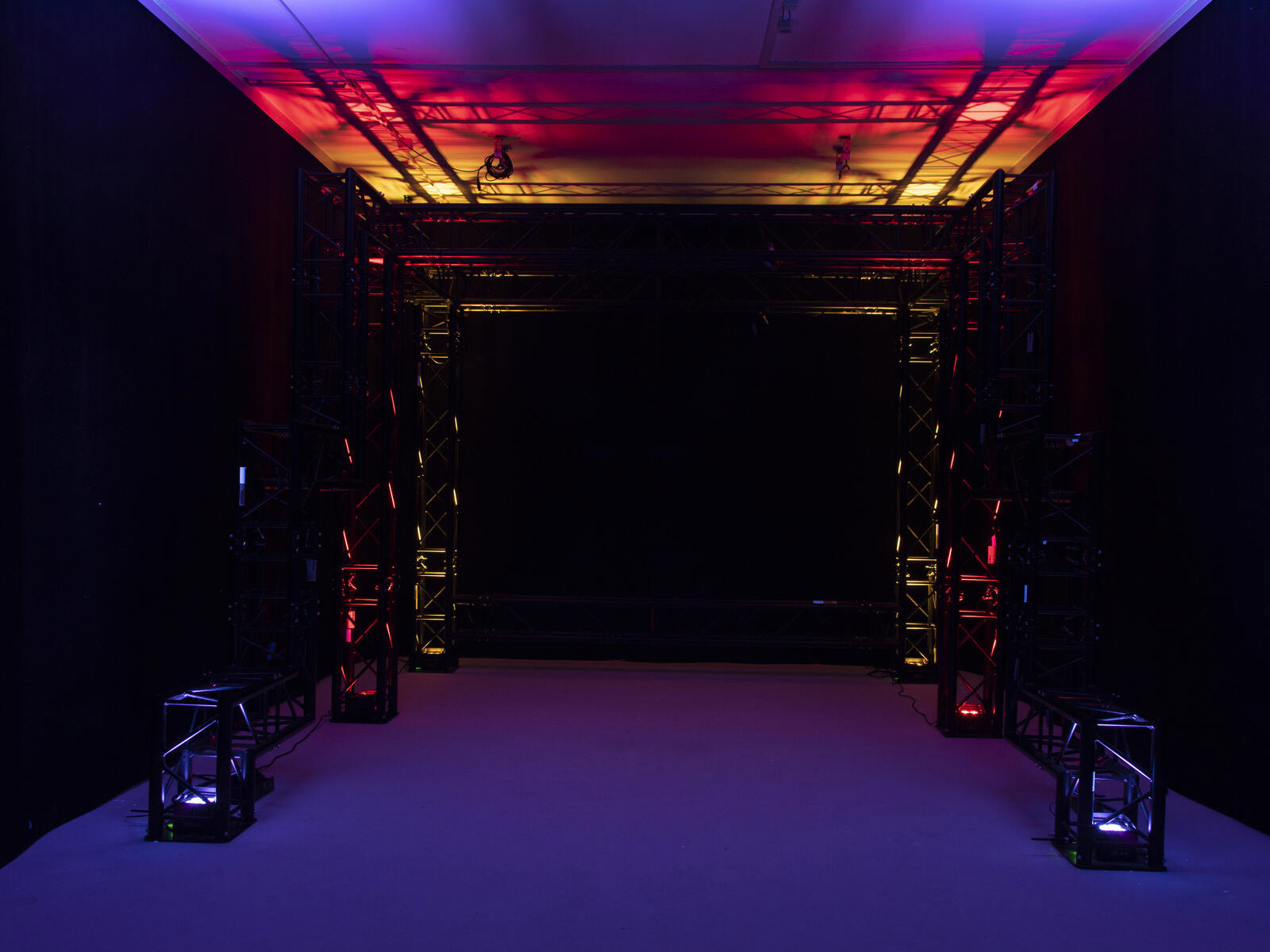

- For application areas such as: Clubs/dancing school; wedding/gala/events; stage; mobile djs / entertainer
- Application possibility: Standing; suspended
Package contents
- 1 x spotlight, 1 x power cord, 1 x remote control, 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 15 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| LED type: | 4 x 8 W high-power 4in1 QCL RGB/UV (homogenous color mix) |
| Flash rate: | 0 - 20 Hz |
| DMX channels: | 3; 4; 8 |
| DMX input: | 1 x USB, type A 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | DMX; sound to light via microphone; IR remote control; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); stand-alone |
| Preprogrammed in: | LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief |
| Beam angle: | 13° |
| Beam angle (1/2 peak): | 13° |
| Beam angle (1/10 peak): | 30° |
| Housing color: | Black |
| Attachment system: | M10 thread |
| Display type: | Monochrome 4 digit 7-segment LED display |
| Transport aid: | Rubber feet |
| Dimensions: | Length: 15,5 cm Width: 14,5 cm Height: 13,0 cm |
| Weight: | 1,56 kg |
| Noise classification: | Class 0 (no noise at all) |
| Photobiological safety: | Risk Group 0 |
| Power cord | |
| Cable construction: | 3 x 0,75 mm² H05VV-F |
| Cable length: | Approx. 1,1 m |
| Color: | Black |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
