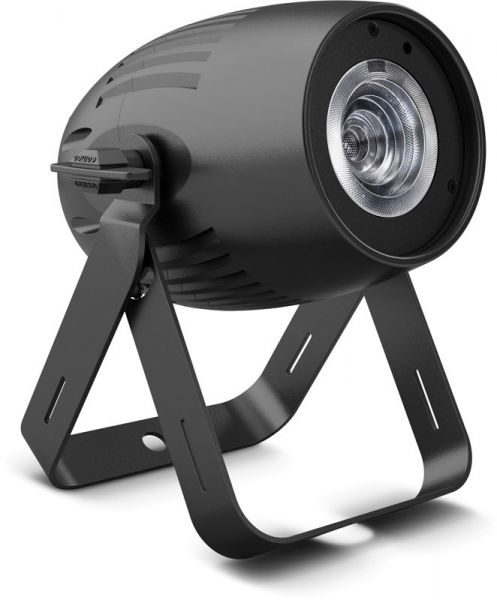

Cameo Q-SPOT 40 WW Kompakter Spot mit 40W WW-LED in schwarzer Ausführung

€205.68 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Near-term available
Delivery time: approx. 1 week

Delivery time: approx. 1 week

Item number: 131001395

EAN: 4049521263040

MPN: CLQS40WW

Compact Spot with 40 W WW-LED Finished in Black Compact LED spot light with single 40W warm... more

Back to the overview

All information about the product:

"Cameo Q-SPOT 40 WW - Compact Spot with 40 W WW-LED Finished in Black"

Compact Spot with 40 W WW-LED Finished in Black

Compact LED spot light with single 40W warm white LED
3,000 K color temperature
Custom lens with 4.5° beam spread for uniform light intensity

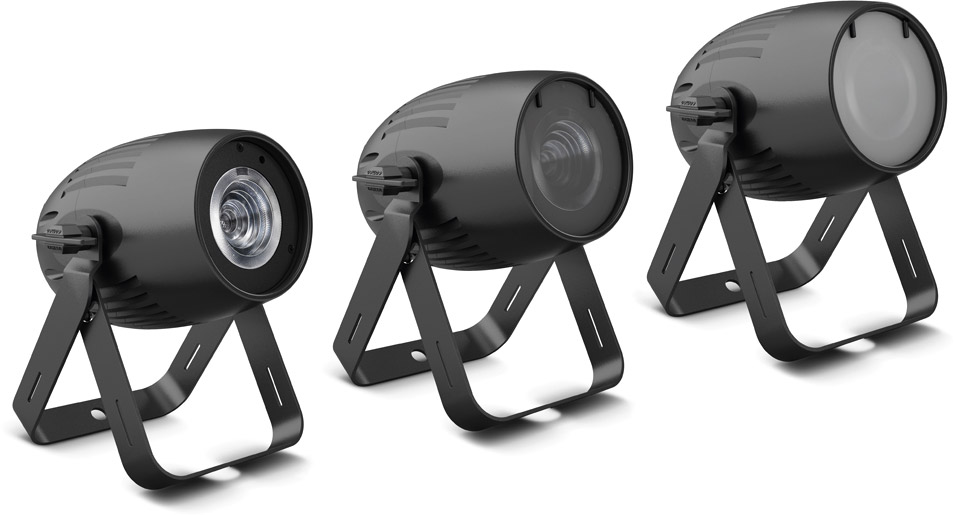

Includes 2 replacement lenses for 10° or 25° beam angles
RDM enabled
16-bit technology for ultra smooth dimming
Flicker free, ideal for motion picture and TV applications
4 high resolution dimming curves with adjustable response
DMX control, sound activation plus master, slave and standalone capability
4-button OLED display for easy configuration
Convection cooling for noiseless performance
Infrared remote control available as accessory

This compact Cameo Q-Spot is equipped with a powerful 40 watt warm white LED that has a 50,000 hour life expectancy. The RDM enabled PAR light sports a custom lens for a tightly focussed 4.5° beam spread and comes with two replacement lenses offering versatility with a choice of 10° and 25° angles. Using 16-bit technology, the fixture provides ultra smooth dimming with selectable curves and response. Highly efficient convection cooling ensures silent operation, and the 3,600 Hz refresh rate and flicker-free performance make it ideal for motion picture and TV applications. .

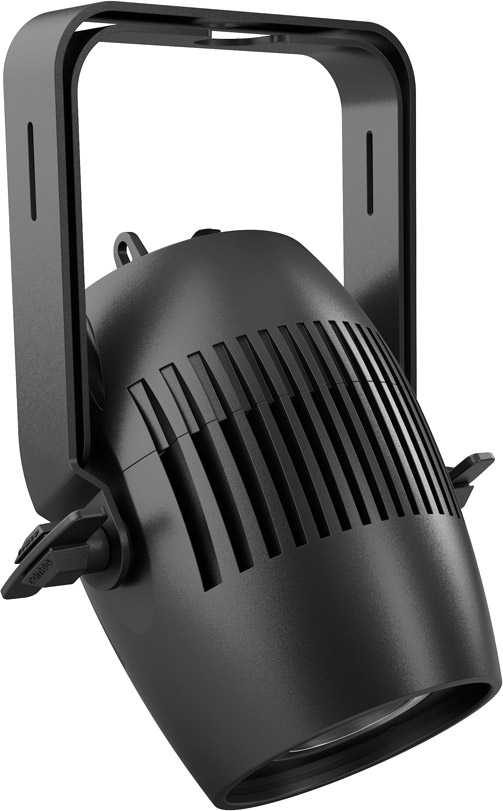

The white light Q-Spot 40 features 3-channel DMX control, sound activation and master, slave and standalone capability. A convenient infrared remote control unit is available as accessory. The spotlight features a high-speed strobe function and a 4- button OLED display for easy configuration. The rugged all-metal housing provides 3-pin DMX inputs and outputs plus blue and grey Power Twist connectors for trouble-free daisy-chaining and power linking. The Q-Spot 40 WW is available with a black (item no. CLQS40WW) or white housing (item no. CLQS40WWWH).

Technical data:

Product type:	LED PAR Lighting
Type:	Indoor
Colour spectrum:	warm white
Number of LEDs:	1
Average LED lifetime:	50,000 h
Color temperature:	3000 K
LED type:	40 W
Refresh rate:	3600 Hz
Dispersion:	4.5°, 10°, 15 °
DMX input:	XLR 3-pin male
DMX output:	XLR 3-pin female
RDM:	Yes
Protocols:	USITT DMX-512
DMX mode:	3-channel
DMX Functions:	master dimmer
DMX Functions:	sound control
DMX Functions:	strobe
Wireless DMX:	no
Strobe flash rate:	1–20 Hz
Standalone modes:	Master / Slave mode
Standalone modes:	sound control
Controls:	Enter
Controls:	Mode
Controls:	Value Down
Controls:	Value Up
Indicators:	OLED Display
Operating voltage:	100 V AC - 240 V AC, 50 - 60 Hz
Power consumption:	55 W
How many devices can be connected (110 V):	5
How many devices can be connected (240 V):	5
Power connector:	Blue Power Twist, male
Power supply connection:	Grey Power Twist, female
Housing material:	Metal
Cabinet colour:	Black
Protection class IP:	IP20
Cooling:	Convection
Illuminance:	11300 lx @ 3 m
Illuminance:	71000lx @ 1m
Luminous flux:	940 lm

Dimensions without mounting bracket

Width:	151 mm
Height:	130 mm
Length:	220 mm
Weight:	2,75 kg
