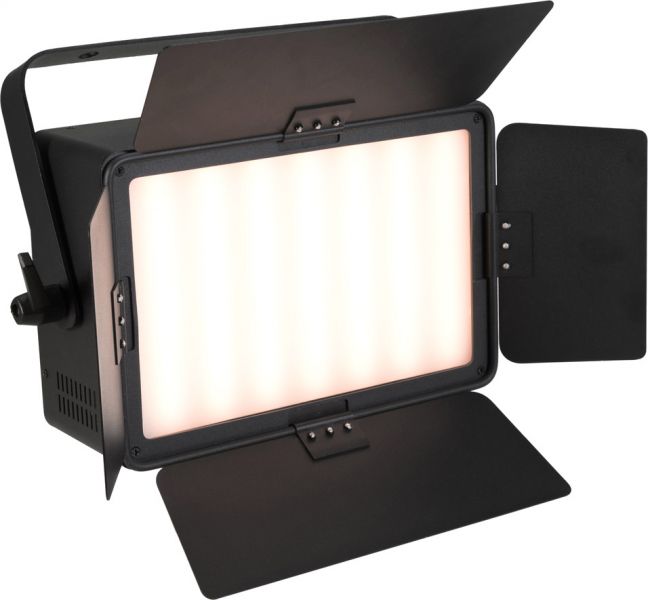

EUROLITE AKKU PLL-168 WW/CW Panel

€287.51 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: 3-5 days

Item number: 120034850

EAN: 4026397703016

MPN: 40001845

Battery-powered surface light with 168 dual white LEDs, QuickDMX port and barn doors 84... more

All information about the product:

"EUROLITE AKKU PLL-168 WW/CW Panel"

Battery-powered surface light with 168 dual white LEDs, QuickDMX port and barn doors

84 powerful LEDs 0,5 W SMD 2835 cold white (CW)
84 powerful LEDs 0,5 W SMD 2835 warm white (WW)
Variable color temperature 2800 K - 6500 K
4 barn doors to avoid blinding the audience and for protection during transport
Dimmer electronic; pulse-width modulation variable; Energy-saving mode
Battery operation up to 8h depending on program used
Integrated show programs
Direct color selection for 38 preset colors
The device is cooled by passive convection cooling
Control via stand-alone; sound to light via microphone; master/slave function; DMX; quick select potentiometer for brightness and color temperature; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
With a beam angle of 120°
Very high color rendering index (CRI)
With mounting bracket
Slim, rugged metal housing
4 digit 7-segment LED display
Preprogrammed in Light Captain
Cordless, flexible and versatile
Mains input and output for power linking up to 8 units
For application areas such as: Video and photography; stage; mobile use; small rental
Silent operation
Application possibility: Suspended; on stand

Package contents

Power supply:	100-240 V AC, 50/60 Hz
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 1 A fuse replaceable
Battery pack type:	1 x lithium ion 22,2 V, 4400 mAh, 97,68 Wh
Battery pack:	Battery operation up to 8h depending on program used Recharging time 4h
Lamp type:	LED lamp
LED type:	84 x 0,5 W SMD 2835 cold white (CW) 84 x 0,5 W SMD 2835 warm white (WW)
Flash rate:	0 - 20 Hz
DMX channels:	2; 4; 6
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	Stand-alone; sound to light via microphone; master/slave function; DMX; quick select potentiometer for brightness and color temperature; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:	Light Captain
Projection:	Flicker-free
Beam angle:	120°
Beam angle (1/2 peak):	120°
Color temperature:	2800K - 6500K adjustable
Color rendering index (CRI):	92 Ra
Housing color:	Black
Attachment system:	Mounting bracket
Display type:	4 digit 7-segment LED display
Dimensions:	Width: 35,7 cm Depth: 11,7 cm Height: 22,0 cm
Weight:	3,60 kg
Noise classification:	Class 0 (no noise at all)
Photobiological safety:	Risk Group 0
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
