ADJ Saber Spot RGBL

€159.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: 3-5 days

Item number: 250803400

EAN: 810087372825

MPN: 1226100501

Building on the success of its predecessor, the ADJ Lighting Saber Spot RGBL expands on the... more

Back to the overview

All information about the product:

"ADJ Saber Spot RGBL"

Building on the success of its predecessor, the ADJ Lighting Saber Spot RGBL expands on the versatility of the modern LED pinspot. Featuring a 20-Watt RGBL (red, blue, green and lime) LEDs source, advanced ACL lens and a tight 5.7-degree beam angle, the Saber Spot RGBL is designed for spotting tables, objects or mirror balls, and creating mid-air beam effects for lightshows.

This fixture is DMX and RDM compliant with 12 DMX channel modes, 63 built-in color macros, 13 built-in color changing programs and has white color temperature presets ranging from 2000K to 9900K.

A lens kit is supplied with the fixture giving lighting designers the option to change the beam angle to 10 or 45-degrees. Its scissor yoke allows for a variety of hanging options.

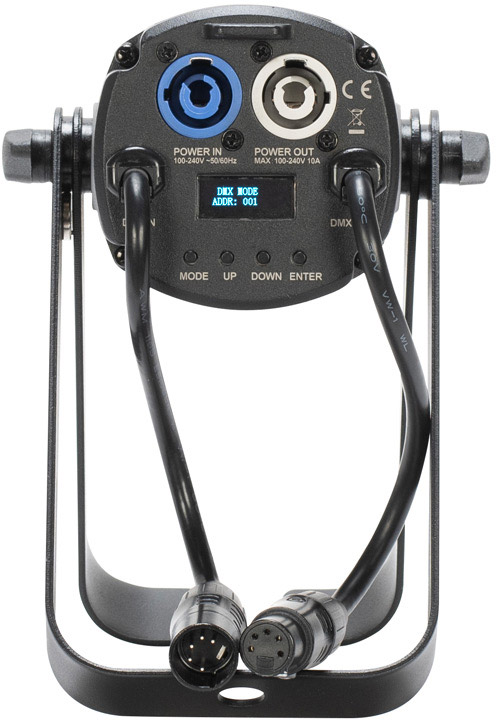

The Saber Spot RGBL has a 4-button digital display to navigate through the features and controls, plus indoor power locking In/Thru and 5-pin DMX In/Out pigtails are neatly situated at back of the fixture.

Technical data:

Specification

Source:

Light Source: 20-Watt, RGBL LED
LED Life Expectancy: 30,000 Hrs
Beam Angle: 5.7°
Includes 2 interchangeable Frost Filter Lens (10-degree & 45-degree)
LED Refresh Rate: 3.6KHz

Features:

DMX and RDM Compliant
Color Temperature Presets (2000K – 9900K)
63 Built-in Color Macros
13 Built-in Color Changing Programs
4-button Digital Display for easy navigation
Electronic Dimming 0 – 100%
Includes a Scissor Yoke to be hung, or set on the ground

Connections:

Power Input: Indoor Power Locking
Power Pass through: Indoor Power Locking
Control: 5-pin DMX In/Out Pigtails
With Wired Digital Communication Network

Control:

12 DMX Channel Modes: 3 HSI/4 RGBL/4 HSI+/5 RGBL/6 sRGBLI/6 RGBL/7 RGBL/8 RGBL/8 16bit/10 HSI/12 sRGBLI/13 RGBL
RDM Compliant

Electrical:

Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
Power draw:16.7W
Power Linking: 95pcs @230V

Dimensions & weight:

Dimensions (LxWxH): 170 x 135 x 215mm
Weight: 1.45 kg.
Black Die Cast Housing

Approvals/Ratings:

CE
ETL (Pending)
IP20

What's Included:

1.83m Indoor locking power cord
2 Frost Filter Lens (10-degree & 45-degree)
Metal clip ring for frost filter lens
