Matrix spotlight with RGB/WW LEDs, pixel control & macros for sequences Create sensational... more

All information about the product:

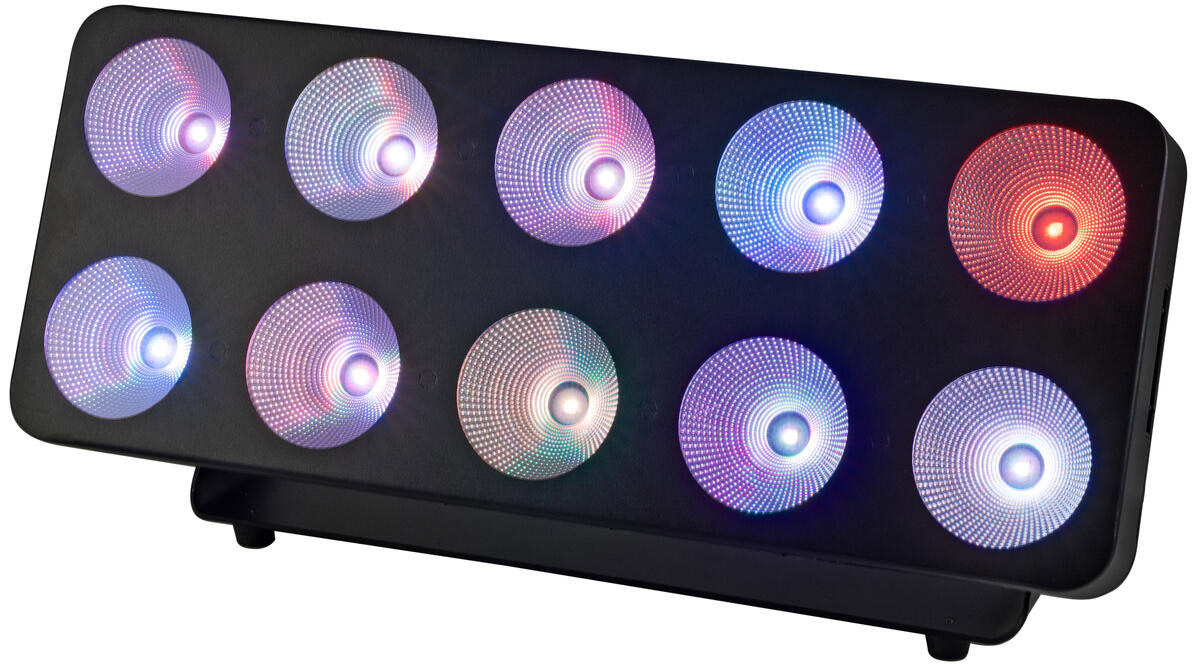

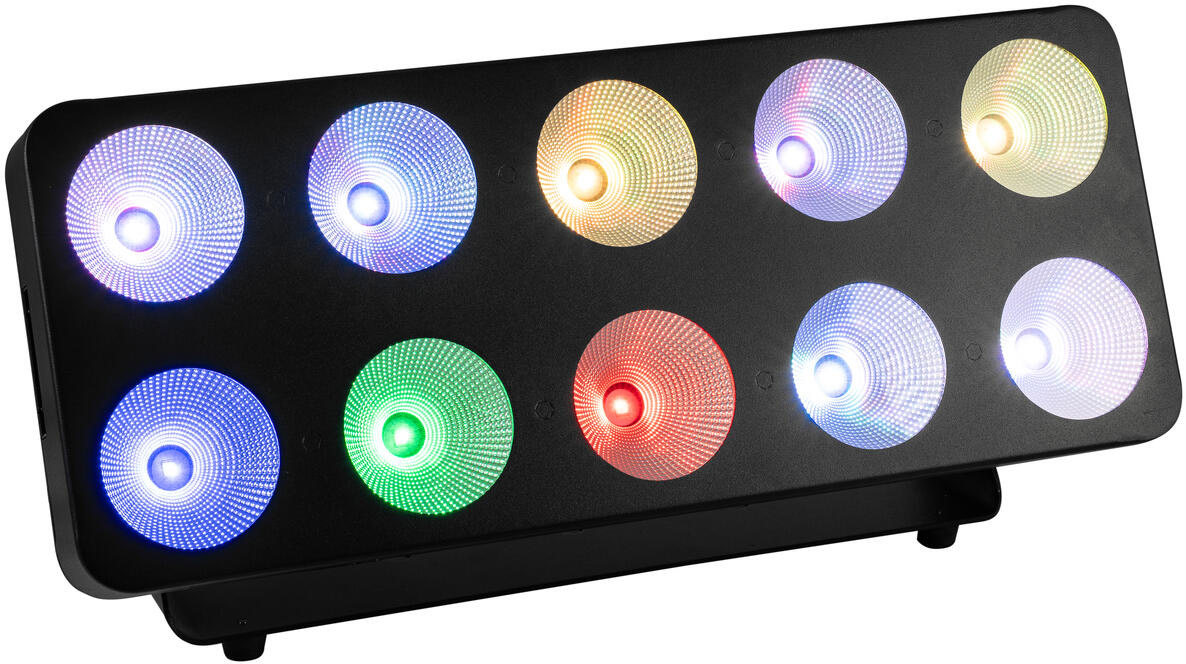

"EUROLITE LED Pixel Matrix Panel 2x5 RGB/WW"

Matrix spotlight with RGB/WW LEDs, pixel control & macros for sequences

Create sensational light effect surfaces by connecting several devices
10 powerful LEDs 12 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix)
LEDs controlled separately
Dimmer electronic; color change; color fade; foreground color adjustable; background color adjustable; color macros adjustable
Blinder effect; matrix effect; strobe effect
9 integrated show programs
The device is cooled by passive convection cooling
Control via stand-alone; DMX; QuickDMX via USB (optional); RDM; Art-Net; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); sound to light; master/slave function
Preprogrammed in Light Captain
Flicker-free
DMX fail mode (hold; blackout)
With a beam angle of 45°
With mounting bracket; with bracket for floor use
Multicolor LCD display
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; wedding/gala/events; stage; mobile djs / entertainer
Very quiet working noise
Application possibility: Standing; suspended; on stand

Package contents

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	60 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:	P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 2 A fuse replaceable
Lamp type:	LED lamp
LED type:	10 x 12 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix)
Flash rate:	0,4 - 11 Hz
DMX channels:	4; 10; 15; 40; 42
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Network connection:	Protocol: Art-Net 3 via 2x RJ-45 E-Con (F) mounting version
Cooling:	Passive convection cooling
Control:	Stand-alone; DMX; QuickDMX via USB (optional); RDM; Art-Net; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); sound to light; master/slave function
Preprogrammed in:	Light Captain
Projection:	Flicker-free
PWM frequency:	2900 Hz
DMX fail mode:	Hold; blackout
Beam angle:	45°
Beam angle (1/2 peak):	45°
Beam angle (1/10 peak):	82°
Housing color:	Black
Attachment system:	Mounting bracket Bracket for floor use
Display type:	Multicolor LCD display
USB port:	Type A
Diameter mounting holes:	3 x Ø10mm
Material:	Metal
Dimensions:	Width: 45,0 cm Depth: 13,5 cm Height: 20,3 cm
Weight:	5,00 kg
Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
