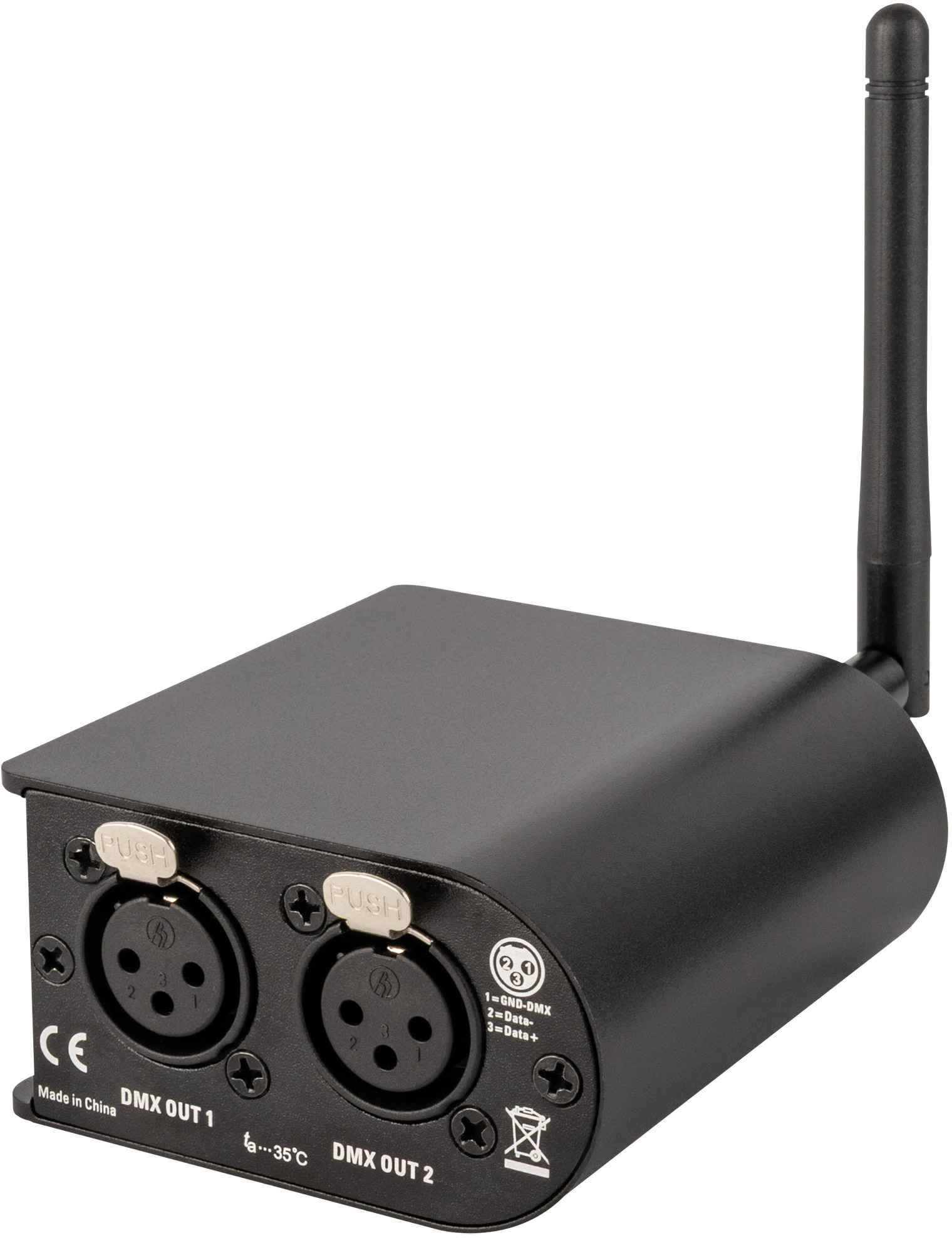

SHOWTEC Quick DMX D1024-W 2x 512 DMX channels

The Quick DMX D1024-W supports 1024 (2x 512) DMX channels and 1536 Art-Net channels through the Quick DMX software via USB or Wi-Fi. It is able to play up to 16 scenes over 4 different zones with high-resolution (16-bit) channel management, without a computer. The scenes can be triggered by Android or iOS apps as well as by Ethernet messages from a 3rd party app. The Quick DMX D1024-W DMX interface is compatible with Windows, macOS, Linux, Raspberry Pi, Android and iOS.

Access product-specific tutorials and usage instructions on the Highlite Vimeo platform.Technical data:

Supported Operating Systems:	Android / iOS / Linux / Mac / Windows
Control Mode:	DMX
DMX Channels:	1024
Wireless:	Wifi
Universes:	2
Power Supply:	5 V DC
Power Consumption:	5 W
Power Connector In:	USB
DMX Connector Out:	XLR 3P
Data Connector In:	USB A
Length (mm):	84 mm
Width (mm):	75 mm
Height (mm):	40 mm
Weight:	0.19 kg
IP Rating:	IP20 (indoor use only)
Housing:	Metal
Colour:	Black
LED Indicators:	DMX Green Signal / Power
Maximum Ambient Temperature:	40 °C
Minimum Ambient Temperature:	0 °C
Minimum Operating Temperature:	0 °C
