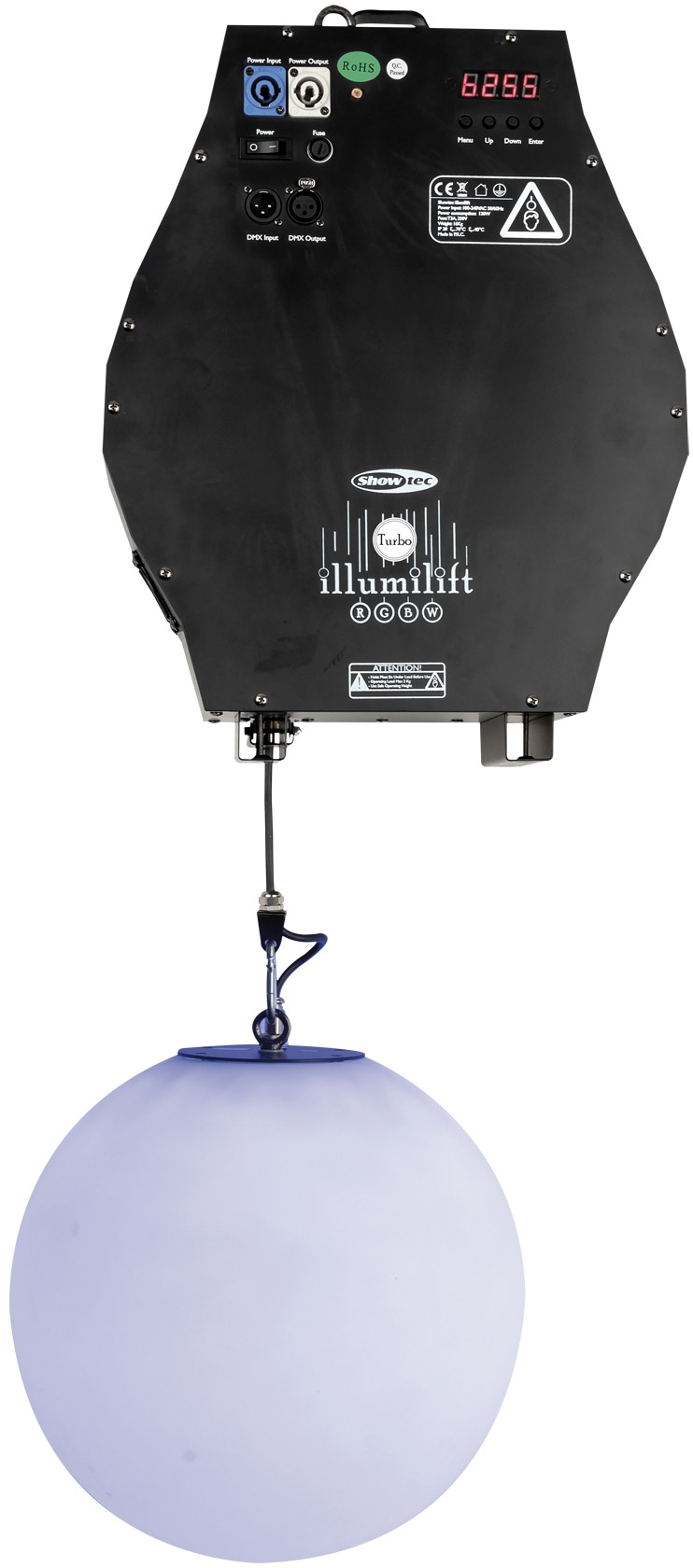

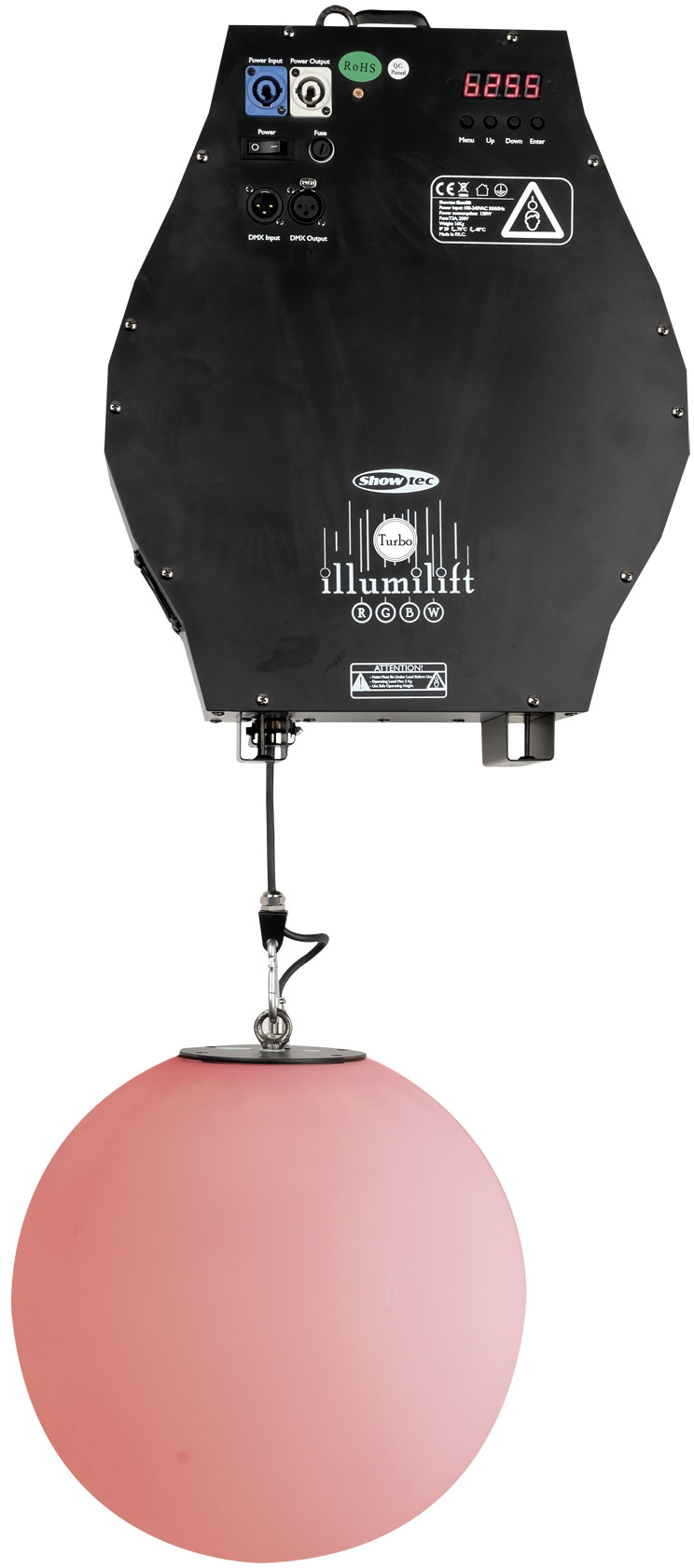

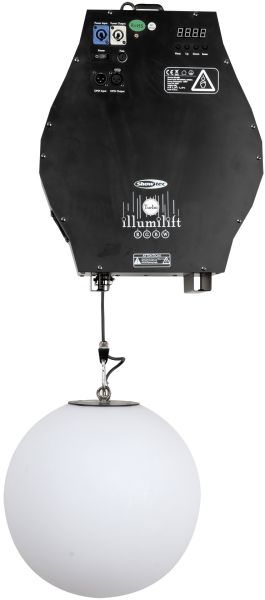

SHOWTEC Illumilift RGBW Turbo 6 m High Speed Hoist / 35 cm LED sphere

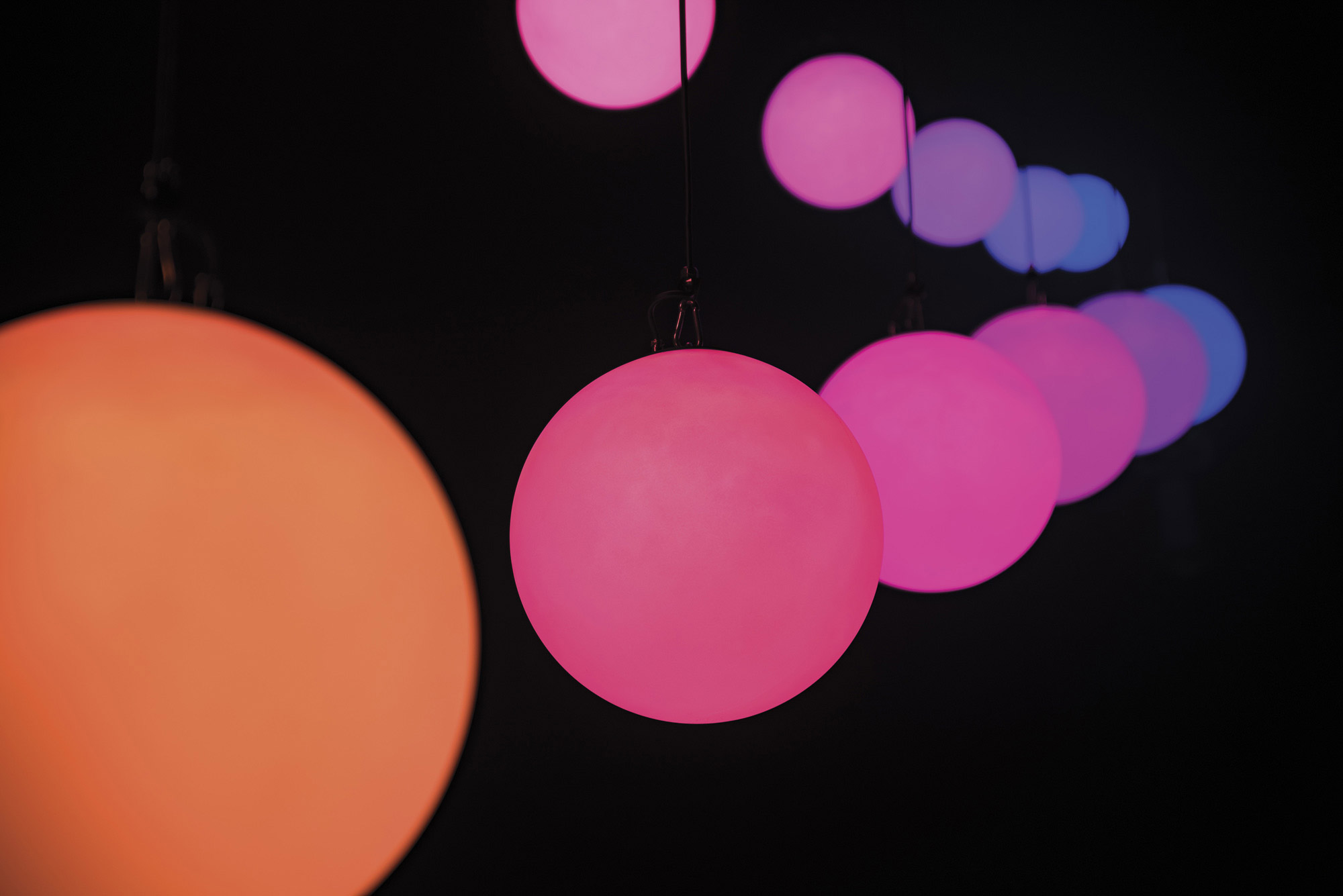

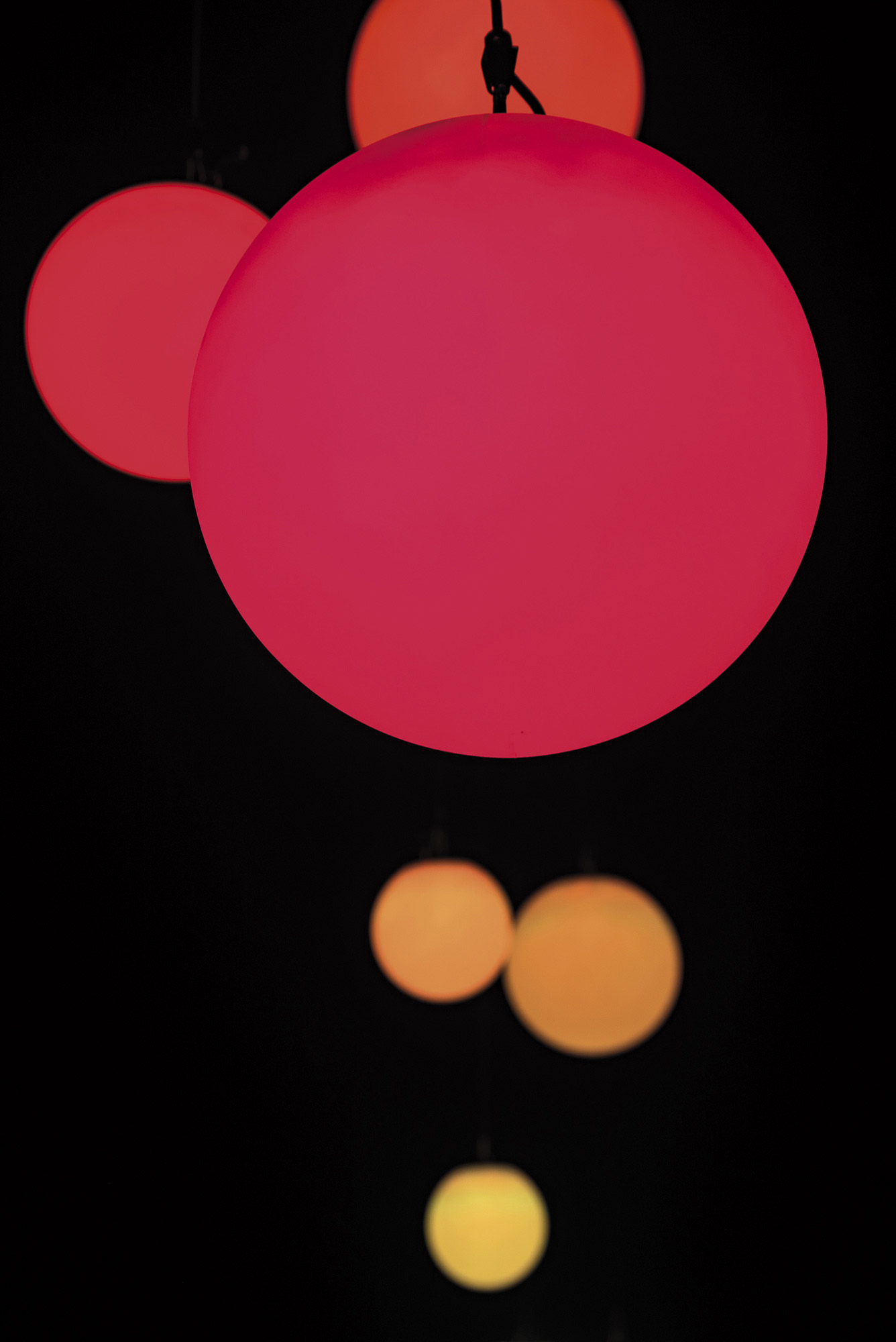

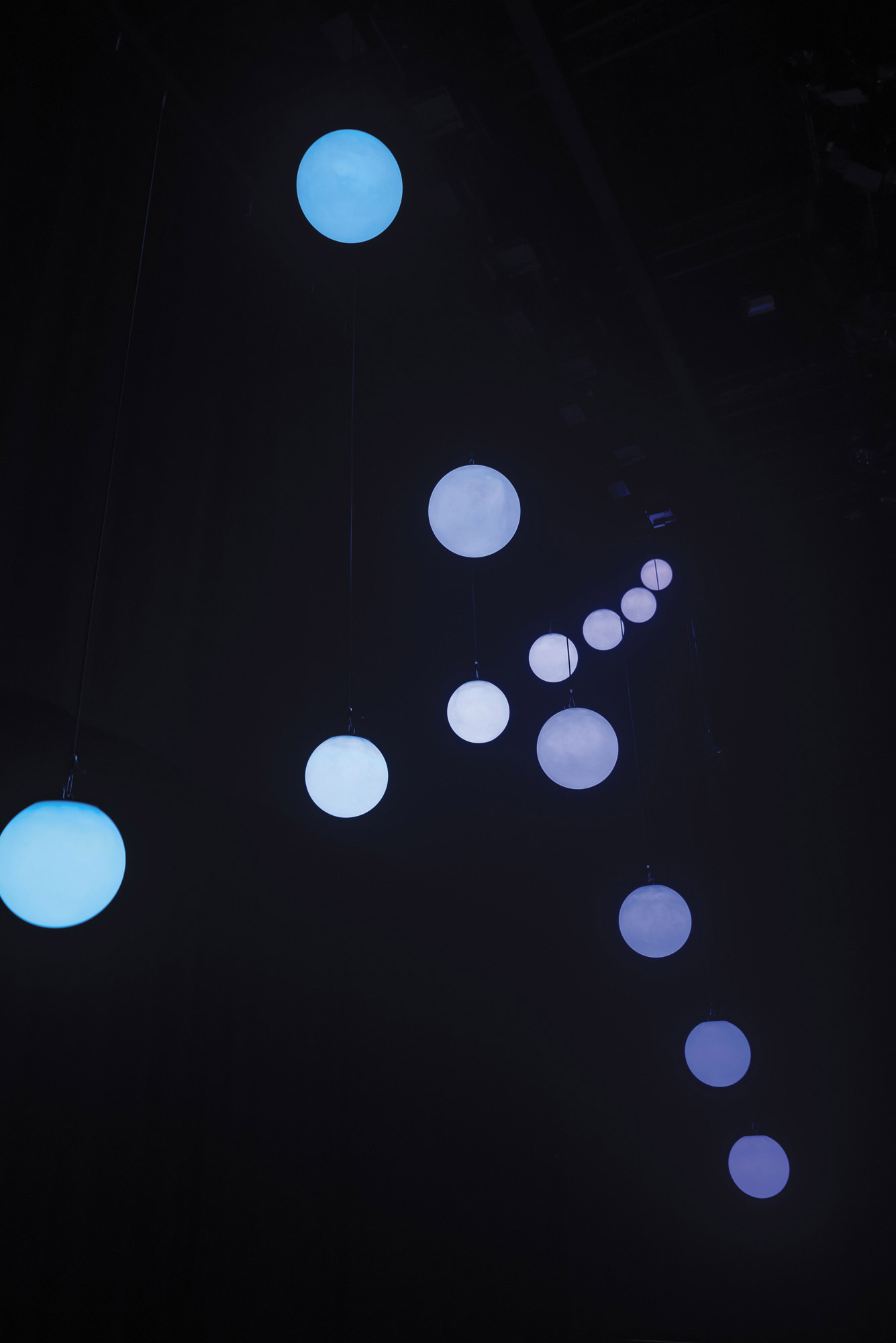

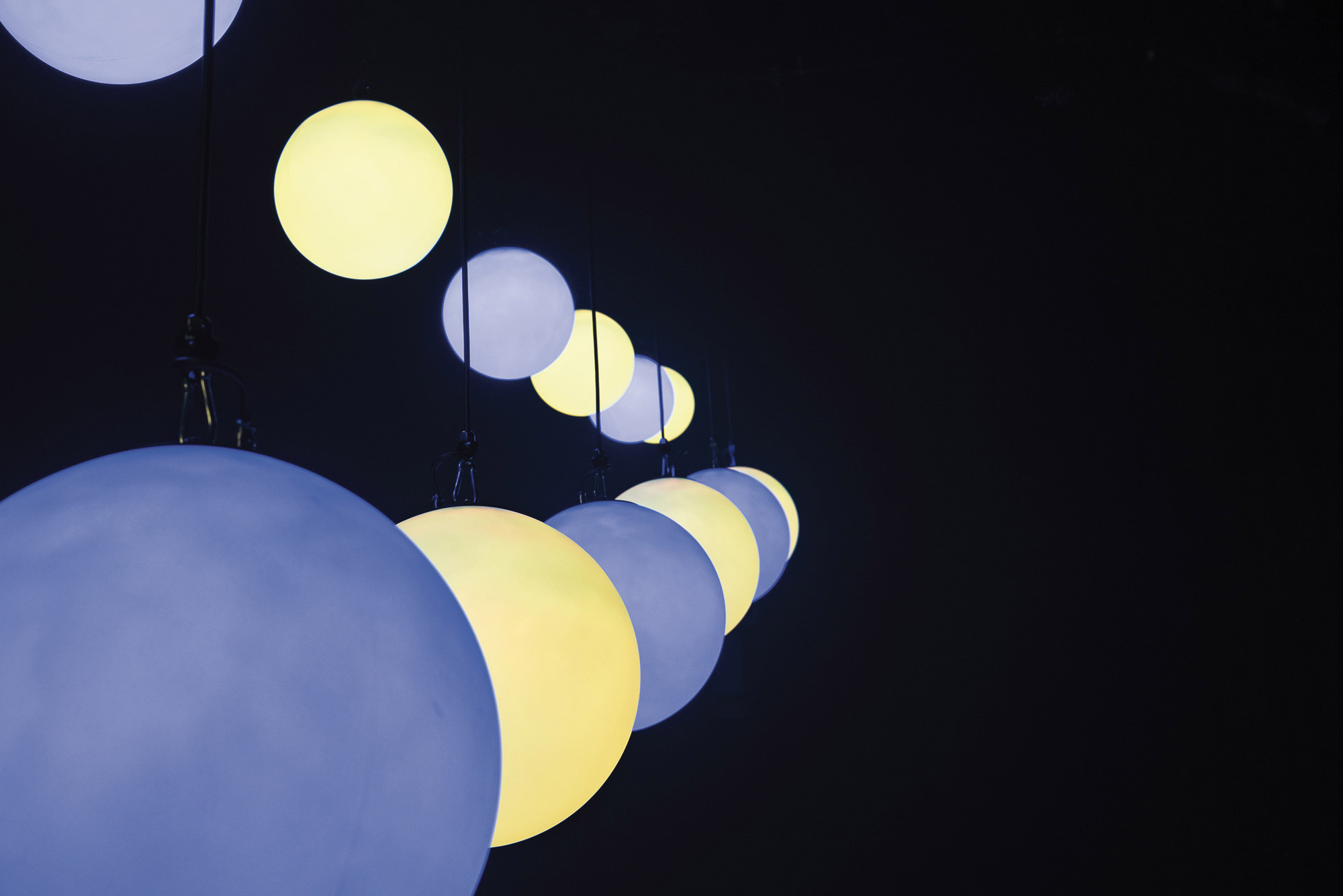

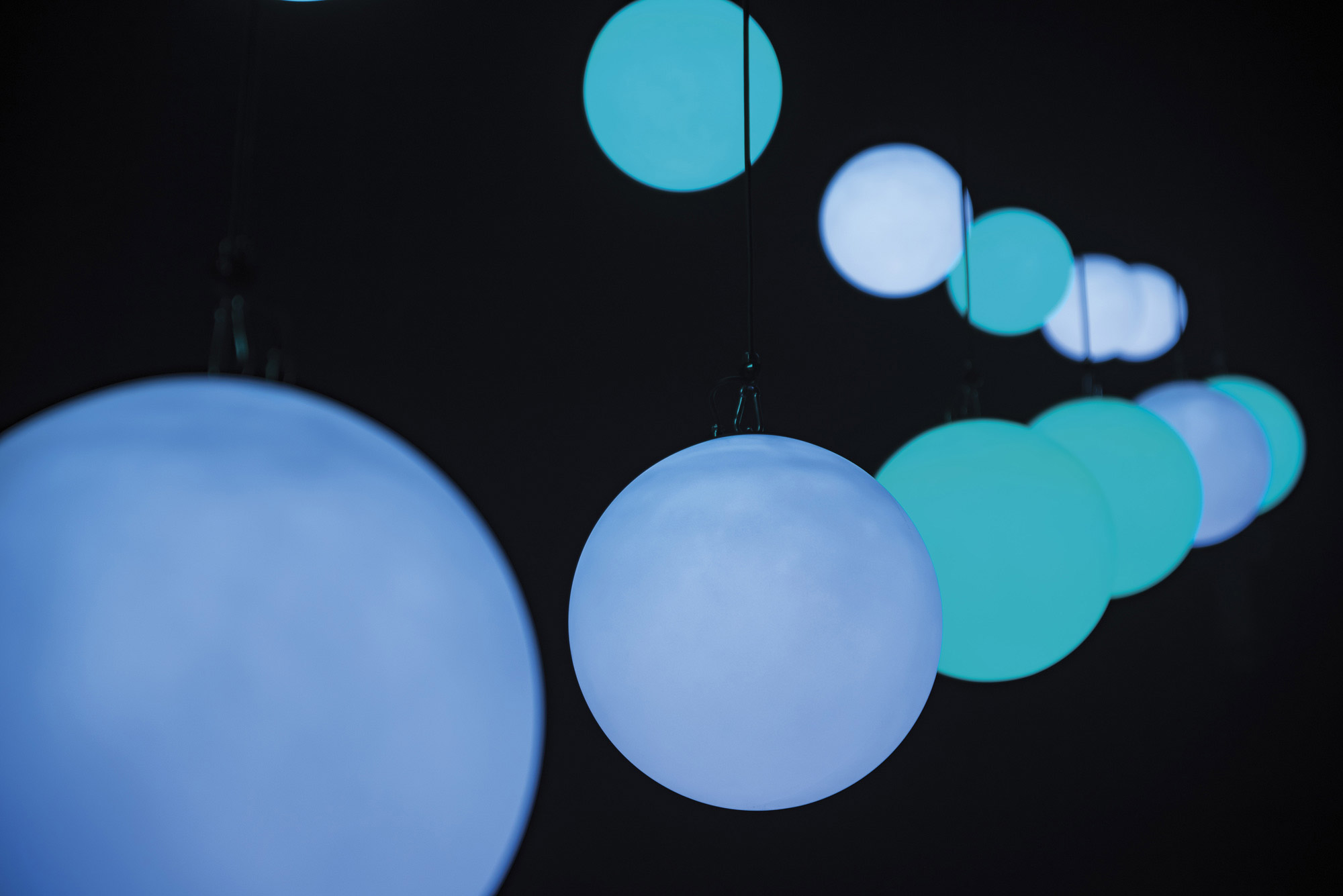

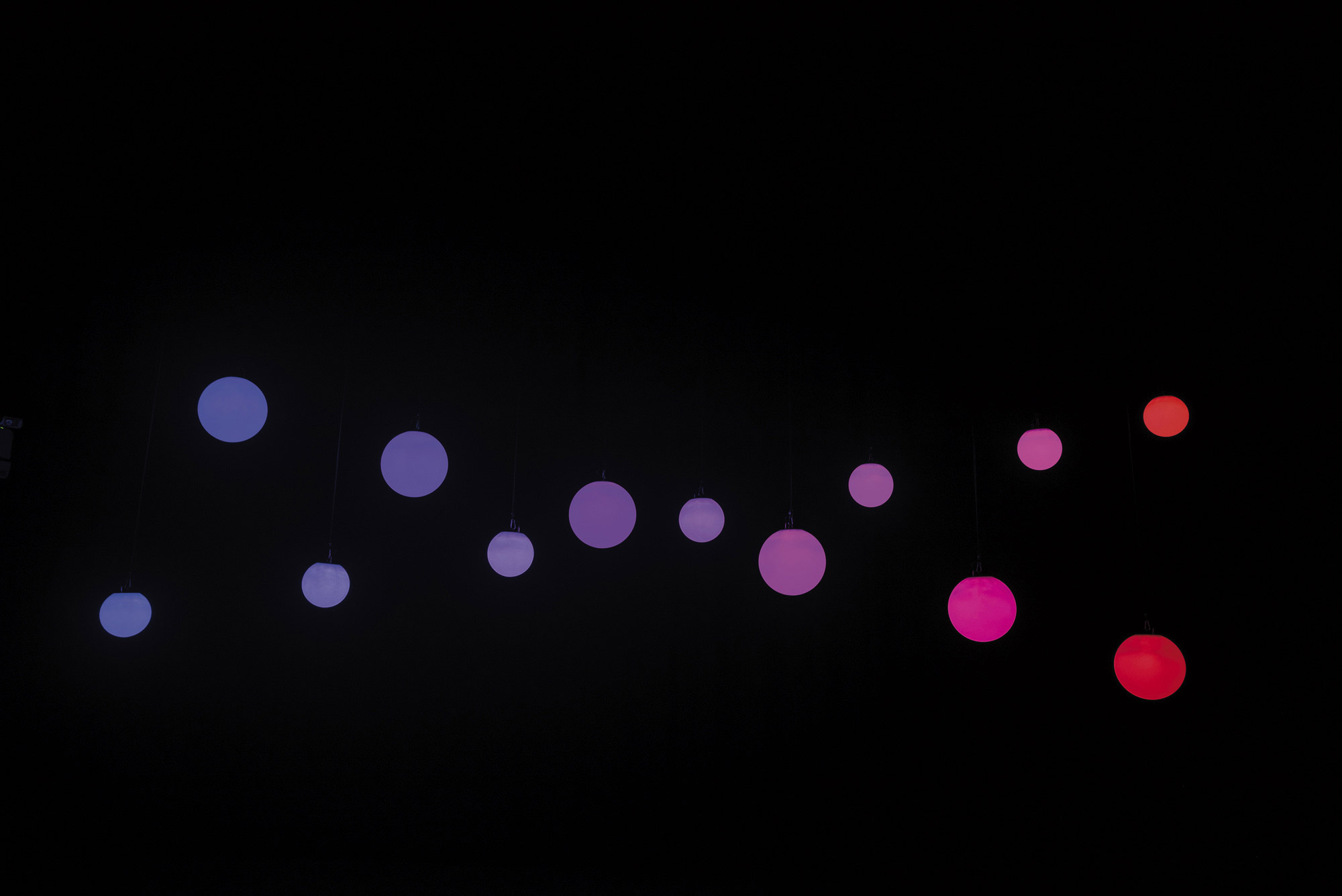

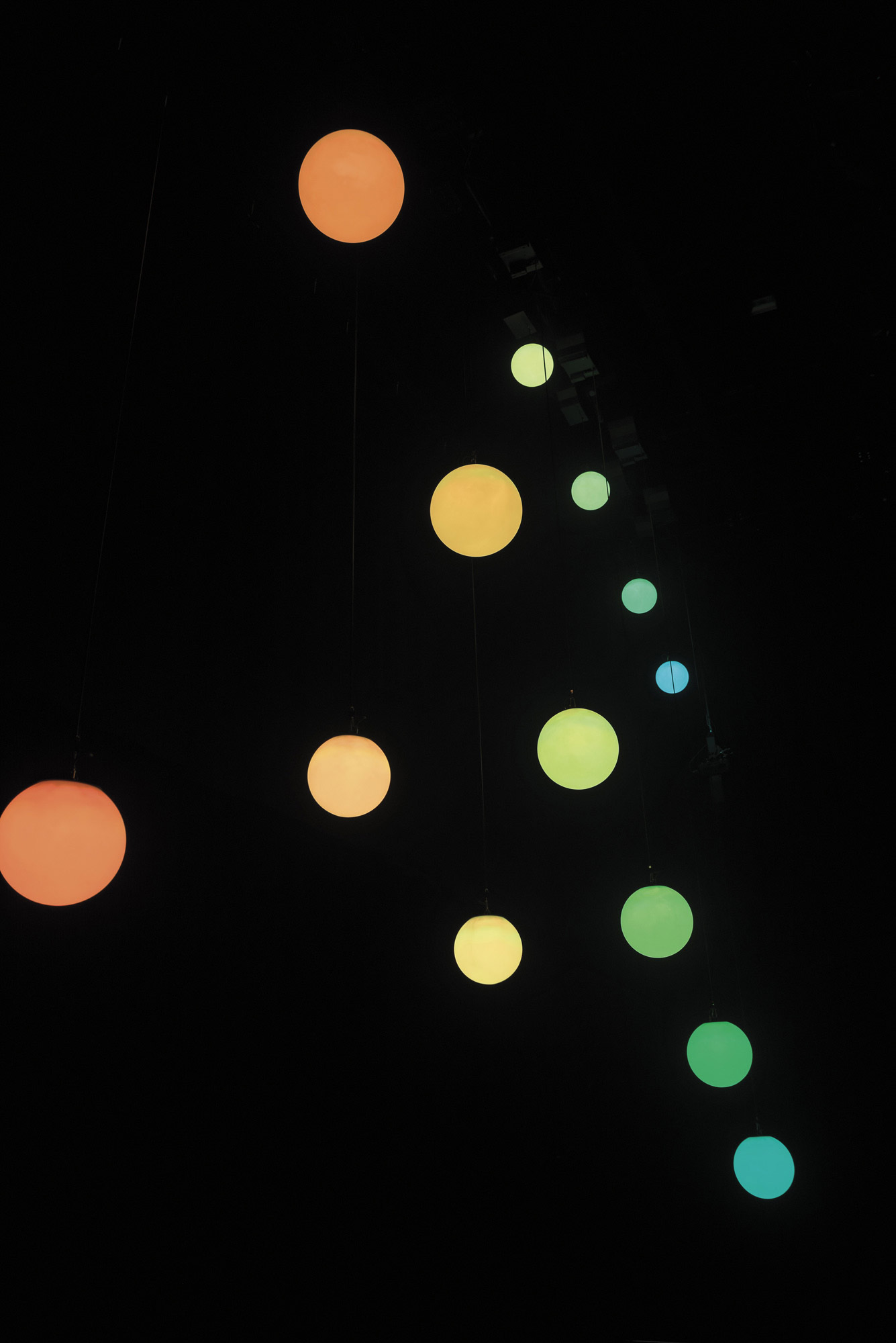

The Showtec Illumilift Turbo adds another dimension to your venue, literally. The Illumilift consists of a high speed 6 metre winch system with a 35 cm RGBW LED sphere. Through DMX512 in basic or advanced mode you can generate full saturated colours with the RGBW module inside the LED sphere. By adding white even soft tones are possible. It’s high speed 16-bit lifting motor makes positioning via DMX control very fast and accurate. Both Power and DMX In/Out make these units easy to daisy chain for bigger setups. The two DMX modes include a Safety channel avoiding unexpected movement. For a really awesome effect you can put various Illumilift sets into one setup. And combining it with the optional 25 cm RGBW LED sphere gives ultimate freedom to your Lighting and Designs.

Important: please note that the Illumilift hoist is only meant to be used in combination with the 35 cm or 25 cm LED Sphere.Technical data:

Light Source Type:	LED
Light Source Power:	18 W
LED Colour Type:	RGBW
Refresh Rate:	19600 Hz
Dimmer:	0-100 %
Strobe:	0-20 Hz

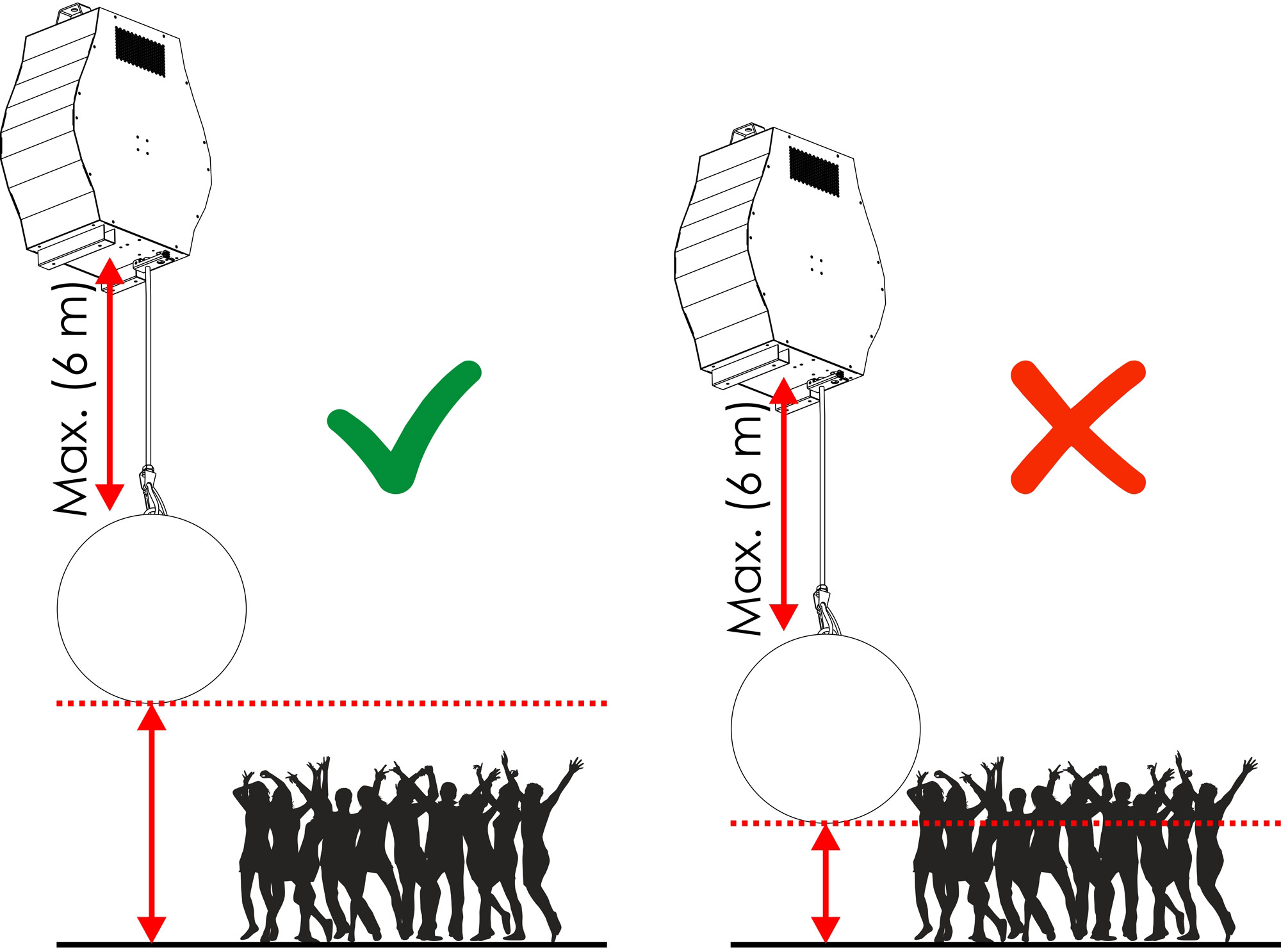

Lifting Height:	6 m
Lifting Speed:	2.5 m/s
Lifting Cable:	5 x 0.5mm²
Power Supply:	100-240 V AC 50/60 Hz
Power Consumption:	80 W
Power Connector In:	Power Pro Blue
Power Connector Out:	Power Pro Grey
DMX Connector:	XLR 3P In/Out
DMX Connector In:	XLR 3P
DMX Connector Out:	XLR 3P
Height (mm):	498 mm
Width (mm):	370 mm
Depth (mm):	190 mm
Weight:	14 kg
Maximum Load:	2 kg
IP Rating:	IP20 (indoor use only)
Housing:	Metal / Plastic
Colour:	Black / White
Cooling:	Axial fan

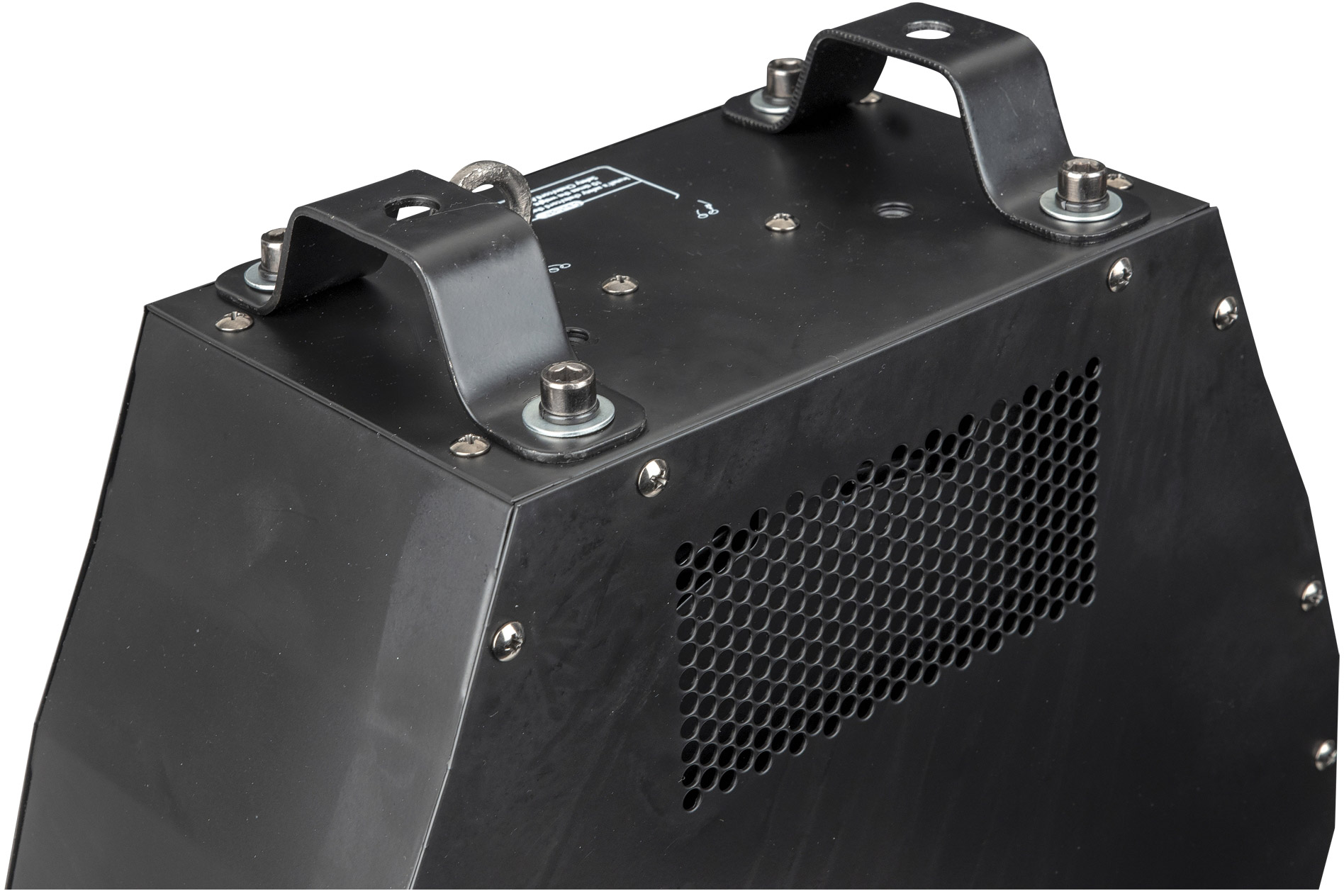

Mounting Options:	Bracket / Clamp
Safety Attachment:	Yes
Maximum Ambient Temperature:	40 °C
Included Cables:	Power Pro Cable
Included Accessories:	35 cm Led sphere
Included Rigging:	Bracket
Control Mode:	DMX / Manual
DMX Channels:	6 / 10
Protocols:	DMX
Display:	7-segment / LED
